PN34300009 ANA
PROFI LED Spotlight
Instruction Manual
PN34300009 ANA PROFI LED Spotlight
![]()
Before using or installing the product, kindly read the instructions and follow safety rules. Installation should be provided by qualified person or company.
Thank you for choosing the item of company PANLUX s.r.o.
Technical data
Location: exteriors, interiors
Material: metal, glass
Notice
Before using, check the product and make sure it is not damaged, otherwise do not use it. Before any manipulation make sure that mains electrical supply is disconnected.
In case of damage do not repair or disassemble the product. LEDs are not replaceable.
Infringement of any instruction mentioned in instruction manual can cause harm to health or property.
Warranty voids if the product is mechanically damaged or connected unprofessionally.

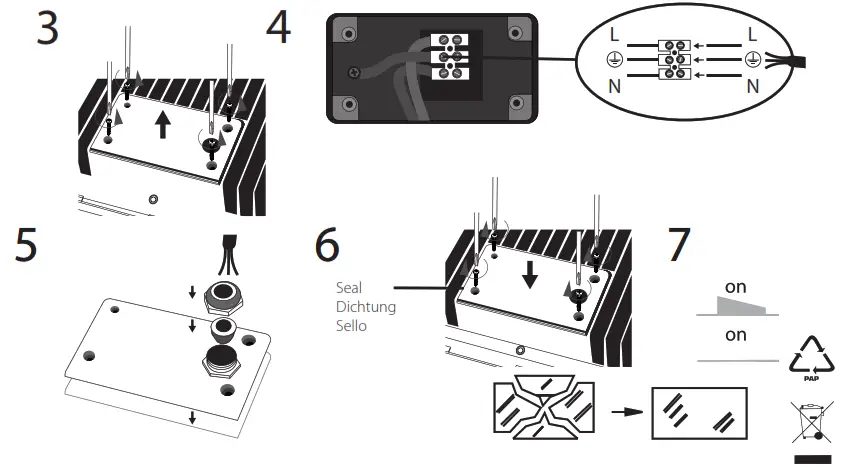

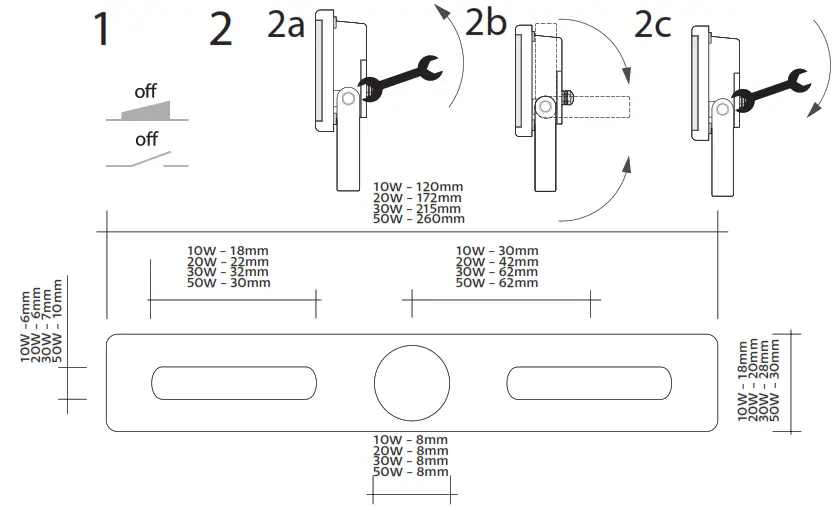

Installation
| Model | W | lm | D | ![]() | |
| PN34300009 | 10 | 850 | 125x95x60 | 140 | 380 |
| PN34300010 | 20 | 1750 | 180x140x65 | 205 | 850 |
| PN34300011 | 30 | 2550 | 225x185x70 | 280 | 1360 |
| PN34300012 | 50 | 4250 | 270x200x65 | 230 | 1400 |


All right reserved.
Technical data can be changed without previous notice.
UM_VANA_LED_PROFI_160428
