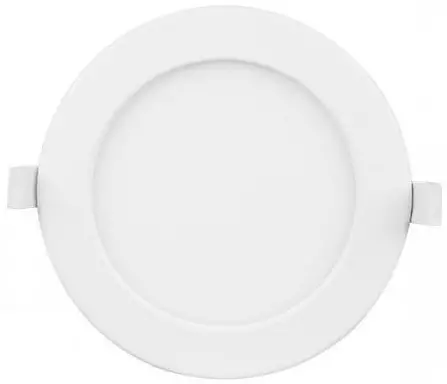

OPTONICA DL2582 LED Slim Downlight Instructions
| Product size | 3 | 3 | 5 | 5 | 7 | 7 | 8 | 8 |
| Power(W) | 6 | 9 | 12 | 16 | 18 | 20 | 20 | 24 |
| Input Voltage(AC) | 165-265V AC | |||||||
| Power Factor | >0.5/0.9 | >0.5/0.9 | >0.5/0.9 | >0.5/0.9 | >0.5/0.9 | >0.5/0.9 | >0.5/0.9 | >0.5/0.9 |
| Input Current(A) PF>0.5 | 50mA | 70mA | 100mA | 125mA | 140mA | 155mA | I55mA | 180mA |
| Input Current(A) PF>0.9 | 50mA | 70mA | 60mA | 75mA | 80mA | 90mA | 90mA | 110mA |
| Color Temperature(K) | 3000 (WW) /4500 (NW) /6000 (WH) | |||||||
| Luminous Flux (Lm | 400-480 | 600-720 | 900-1000 | 1400-1500 | 1600-1800 | 1900-2000 | 1900-2000 | 2000-2200 |
| Recessed Round Cutout(mm) | 4)105 | 4)105 | 4)155 | 4)155 | 4205 | 4)225 | 41225 | 4)225 |
| Recessed Square Cutout(mm) | 105 X 105 | 105×105 | 155X 155 | 155X 155 | 205 X 205 | 205×205 | 205×205 | 205X205 |
| Lifespan (hour) | 20000 | |||||||
| Protection Rate | Front IP44 Back IP20 / 0-rnpe,q IP44 OTaap, IP20 | |||||||
| Temperature(*C) | -20t- 40°C | |||||||
| CRI (Ra) | >80 | |||||||

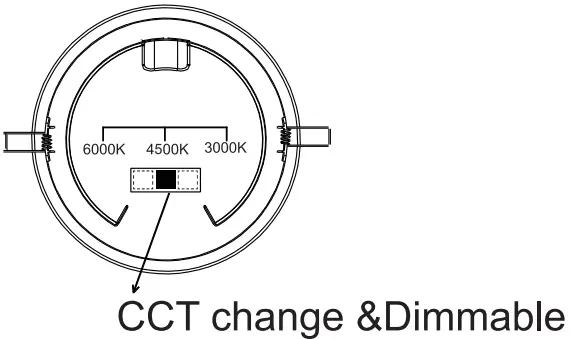

Option Functions

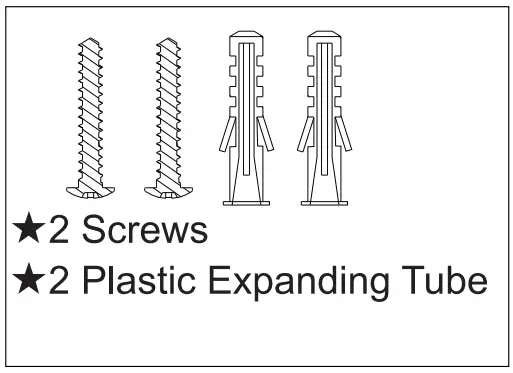

Accessories

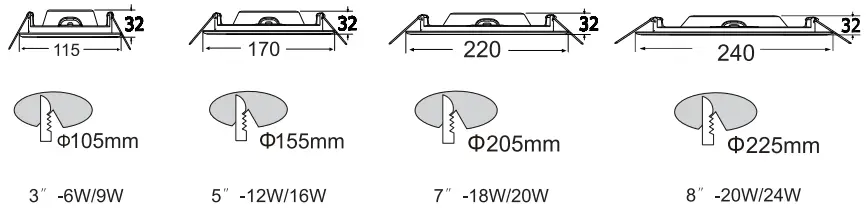

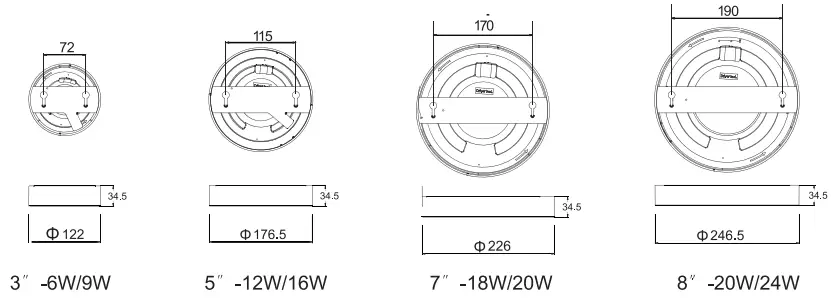

Product Size & Cutout
RECESSED-ROUND

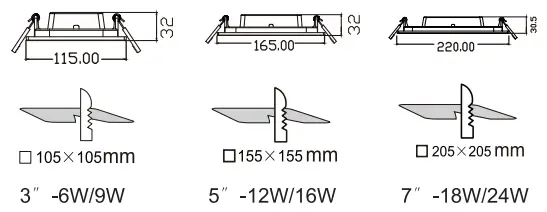

RECESSED-SQUARE
SURFACE-ROUND

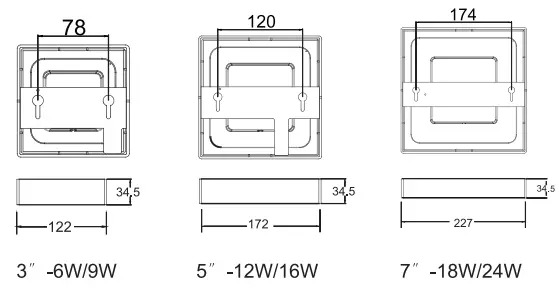

SURFACE-SQUARE

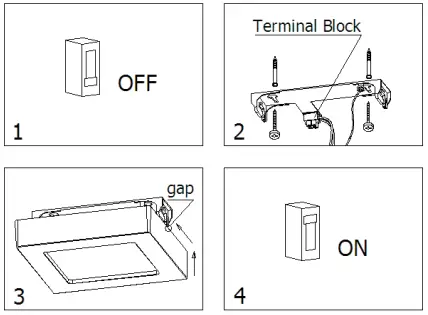

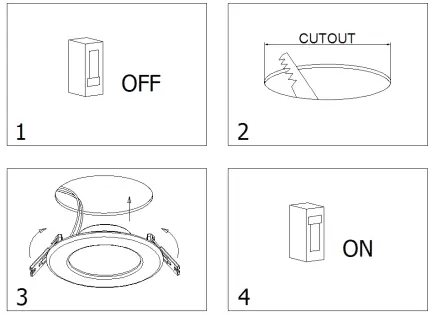

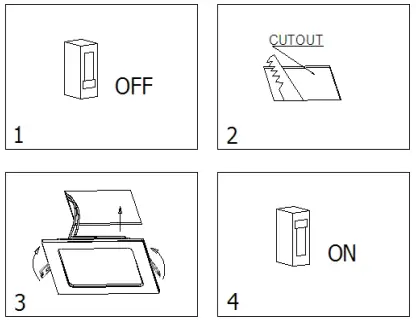

Installation
RECESSED-ROUND
RECESSED-SQUARE
SURFACE-ROUND
SURFACE-SQUARE
LED Slim Down Light Instruction
- Turn off the power.
- Drill a suitable mounting on the ceiling according to the light’s cutout.
- Connect input end of LED lights to commercial power. Make sure no copper wire exposed.
- Pinch both springs, then push light into installation hole. Make sure the light is fixed well.
- Turn on the power supply.
NOTES
- The panel should be driven by appointed power supply.
- All the instruction, maintenance, and checking should be operated by professional technical person to avoid any dangers.
- 75mm space should be left around the light for ventilation, no cover on the light at any time.
INSTALLATION INSTRUCTIONS
The installation of the luminaire must be performed by a qualified technician. Supply voltage of the light: 230V/50Hz
- Before you begin installation, make sure the power is off.
- Connect the terminals of the input voltage of the power supply to the power cord from the mains.
- Insulate connections to prevent short circuits
Prima Group 2004 Ltd. is not responsible for damage caused by improper installation. This product complies with the following EU Directives:
- LVD 2014/35/EU
- EMC 2014/30/EU
IMPORTER: Prima Group 2004 LTD, Bulgaria, 1784 Sofia, Mladost 1, bl. 144, Ground Floor; Phone: +359 2 988 45 72;
