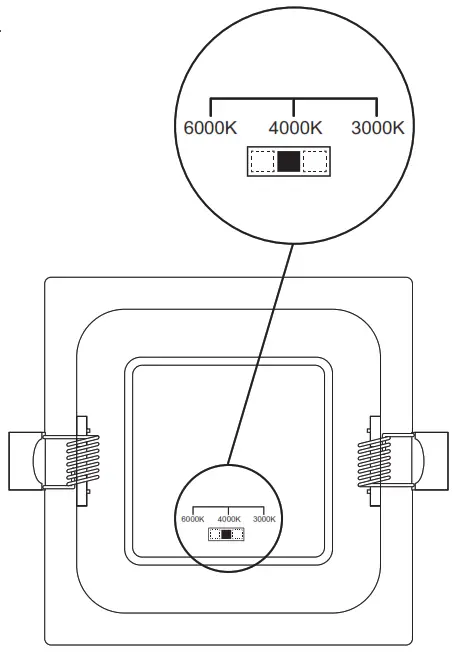

LED DOWNLIGHT CCT
MODEL: PN22400005 PN22400013
PN22400006 PN22400014
PN22400007 PN22400015
PN22400008 PN22400016
s.r.o. Panlux Downlight Square
![]()
INSTRUCTIONS
Thank you for choosing this product from PANLUX s.r.o.
Before using or installing the product, please read the instructions and follow the safety rules. Installation should be carried out by a qualified professional or company.
Technical data
Material: PC plastic
Notes
Before using, check the product and ensure that it is not damaged in any way; if it is, do not use it. Before any installation ensure that the main electrical supply is disconnected. If the product is damaged, do not attempt to repair or disassemble it. The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
Failure to follow these instructions can cause damage to health and property.
The warranty is void if the product is damaged or installed incorrectly.

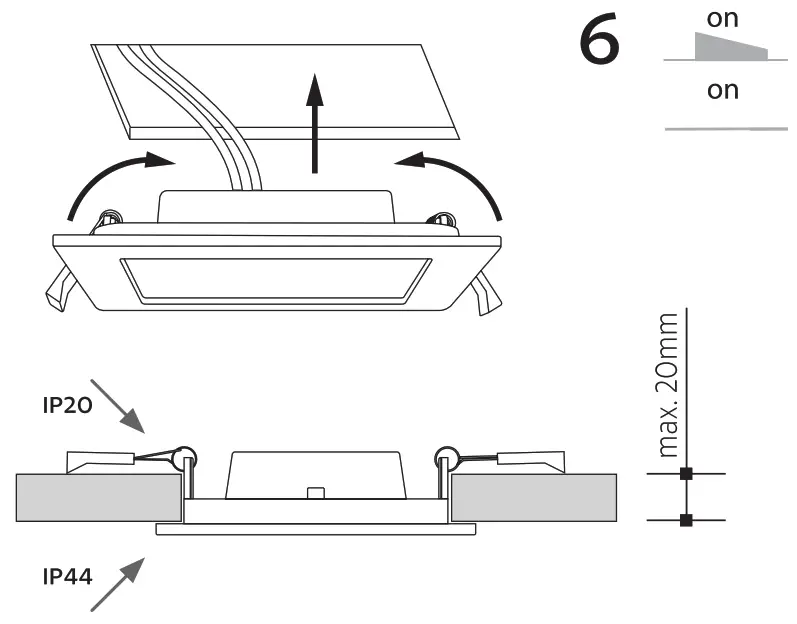

INDOOR

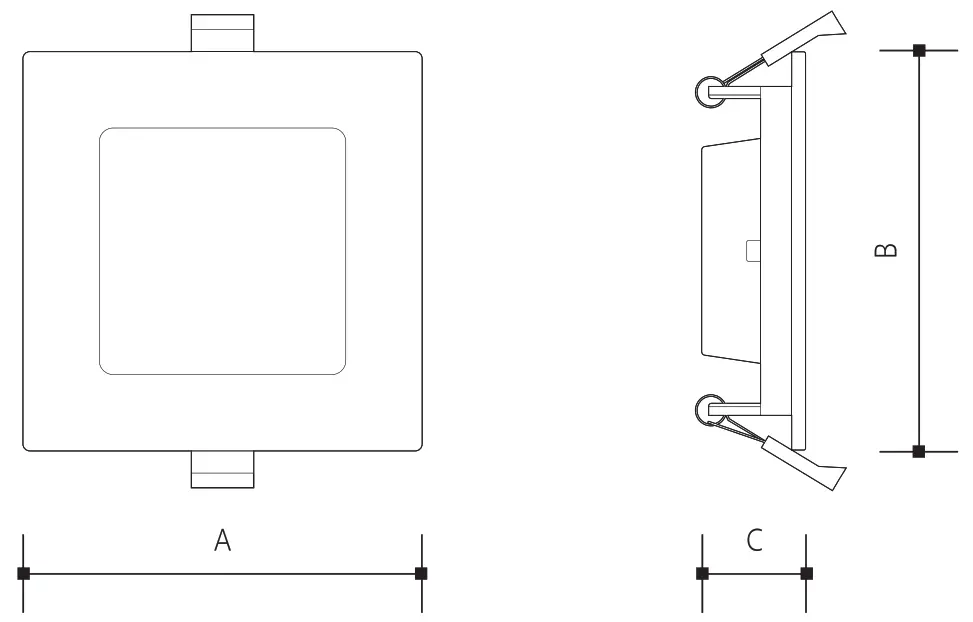

| Model | W | Inn | K | mA | ||||
| ❑ | PN22400005 PN22400013 | 6 | 510 540 570 | 3000 4000 6000 | 40 | 115x115x32 | 123g | 105×105 |
| ❑ | PN22400006 PN22400014 | 12 | 1020 1080 1140 | 3000 4000 6000 | 60 | 165x165x32 | 226g | 155×155 |
| ❑ | PN22400007 PN22400015 | 18 | 1530 1620 1710 | 3000 4000 6000 | 9N1 | 220x220x32 | 399g | 205×205 |
| ❑ | PN22400008 PN22400016 | 24 | 2040 2160 2280 | 3000 4000 6000 | 120 | 220x220x32 | 399g | 205×205 |

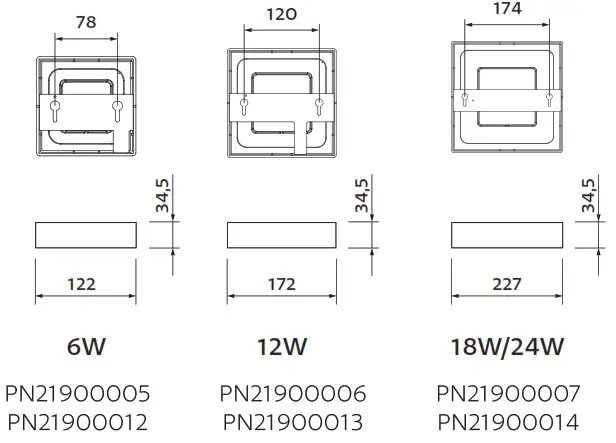

| SURFACE MOUVTING | ||||||||
| ❑ | PN21900005 PN21900012 | 6 | – | 122x122x34,5 | – | |||
| ❑ | PN21900006 PN21900013 | 12 | – | 172x172x3415 | – | |||
| ❑ | PN21900007 PN21900014 | 18 24 | – | – | 227x227x3415 | – | ||

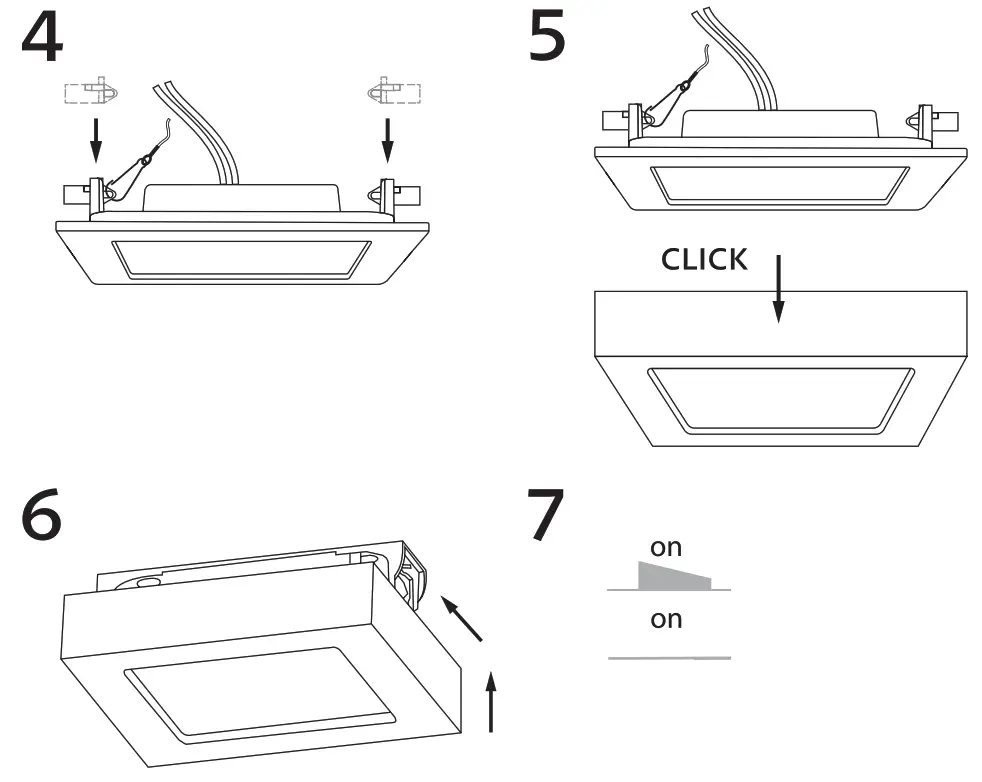

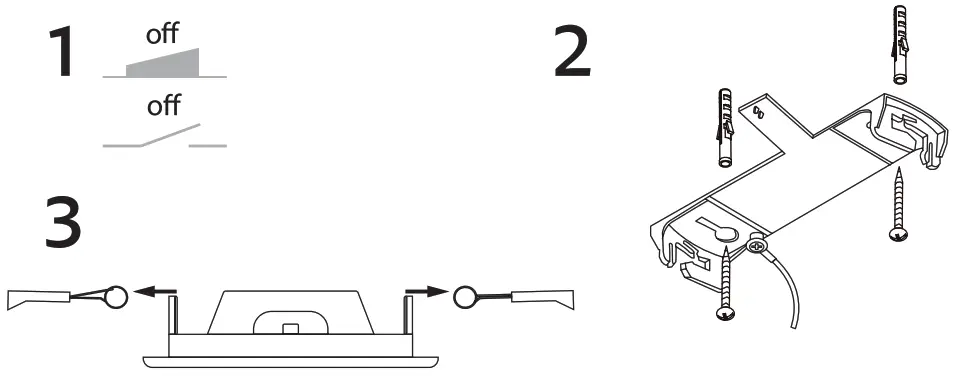

SURFACE MOUNTING

shop.panlux.cz
Please download the latest updated version of the manual.
UM_LEDDOWNLIGHTCCT _220516
All right reserved. Alle Rechte vorbehalten.
Technical data can be changed without previous notice.
Technische Daten kOnnen sich ohne vorheriges Hinweis verandem.
