LED Panel – Installation Instructions
Fortimo LED Edge-Lit Panel, CertaFlux LED Edge-Lit Panel, CertaFlux LED Back-Lit panel

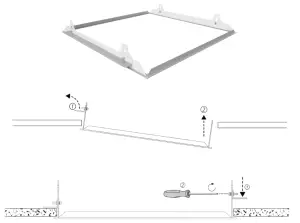

Mounting of the Panel in a T-bar ceiling

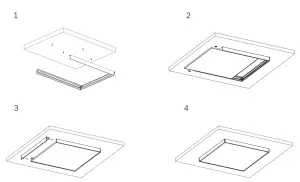

Mounting of the Panel in a plaster ceiling with the recessed mounted frame
First, fix one L-profile to the mounting frame with two screws, shift the mounting frame in the ceiling opening and fix another L-profile to the frame with two screws. Then place the Panel as in a T-bar ceiling.
Mounting of the Panel in a plaster ceiling with recessed mounted clips

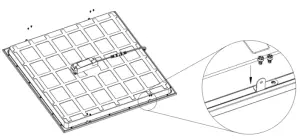

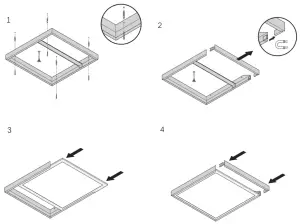

CertaFlux Back Lit Panels: Screw four clips at the corners of the Panel backside.
 |  |

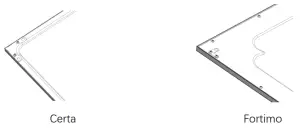

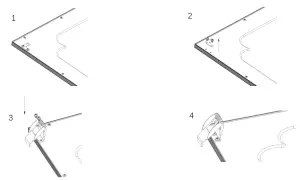

Fortimo Panels: First remove the hooks which are already in the Panel, then install clips with provided screws.
Position the clips upwards. Place the panel the same way as in a T-bar ceiling. If the panel is still above the ceiling, shift the clips in a horizontal position before landing the panel. The clips rest on the ceiling after installation.

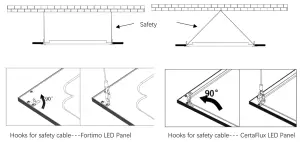

Fixation of the safety cables (optional)
Mounting of the Panel with a pendant cable

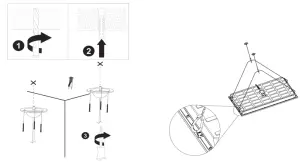

Use a pendant cable accessory set to mount the Panel.
Edge-Lit Panels: Hooks are pre-installed at the Panel backside.
Back-Lit Panels: Hooks need to be mounted with the screws at the Panel backside.
Pendant cable： Each anchor mounting bracket needs to be mounted to the ceiling with three screws.

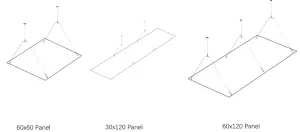

The number and position for the different Panel shapes are shown below.
Surface Mounting of the Panel
Use a surface mounting kit to mount the Panel to a ceiling. There are two types of kits:

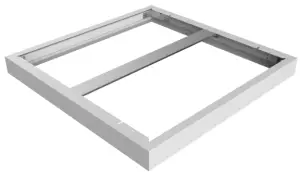

1. Surface-mounted kit (standard), which comes in one piece. Use the four screw holes to mount the frame to the ceiling. Open one of the sides of the frame, slide in the Panel and close the frame again.

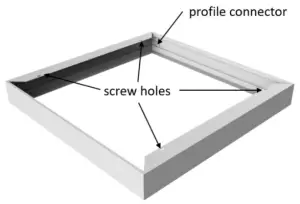

2. Surface-mounted kit basic, consisting of four profiles and four profiles connectors. The kit has to be assembled by clicking the connectors in the profiles. Take care that the two profiles with the screw holes are opposite each other. First, assemble the two profiles with the screw holes to a third profile. Mount the U-shaped frame to the ceiling, slide in the Panel, and assemble the fourth profile.
The electrical connection of the driver
Panel cable must be attached with strain relief protection
Warning
Please read these instructions carefully before attempting to install this product.
- Safety cable connection with the hook is recommended for safety purposes only. The hooks of CertaFlux Edge-Lit 30×120 and 60×120 Panels cannot be used for suspending the Panel.
- Please follow this installation guide strictly.
- The Panel can only be installed into a ceiling that is perfectly horizontal and – in the case of a system ceiling – is safely suspended to a carrying structure.
- The Panel shall only be installed or replaced by a qualified electrician and connected in accordance with the latest IEE electrical regulations or national requirements.
- If the external flexible cord of this Panel is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similarly qualified person in order to avoid a hazard.
- The supply cord and cable provided with the Panel are intended is for indoor use only.
- This Panel is intended for indoor use only.
- In any case, insulation or other similar materials shall not cover the Panel.
V2021.03.01
