Philips 911401862982 Led Panel Light User Manual

Project line Panel

911401862982 LED Panel Light

	Energy efficiency

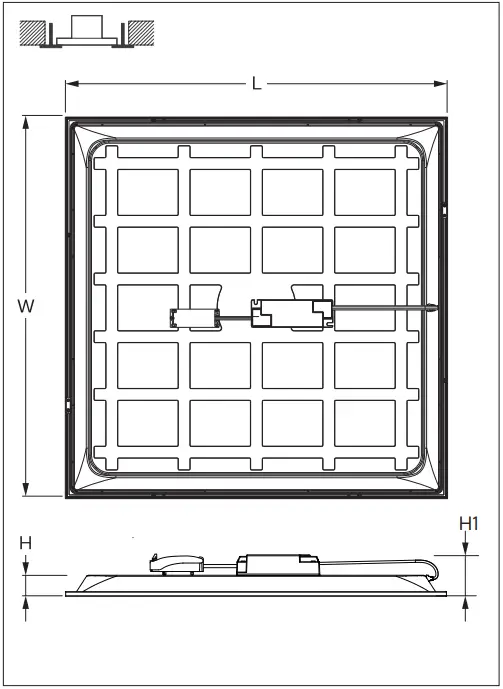

	Lumen (lm)	CCT (K)	P(W)	class of light source	L xW xH (mm)	H1(mm)
Projectline Panel 6060 32001m 4000K NOC	3200	4000	36	E	595x595x34	59	1.8
Projectline Panel 6060 32001m 4000K OC	3200	4000	36	E	595x595x35	60	2.0
Projectline Panel 6262 32001m 4000K OC	3200	4000	36	E	620x620x35	60	2.4
Projectline Panel 30120 32001m 4000K NOC	3200	4000	34	E	1195x295x34	59	1.8
Projectline Panel 30120 32001m 4000K OC	3200	4000	34	E	1195x295x35	60	2.1

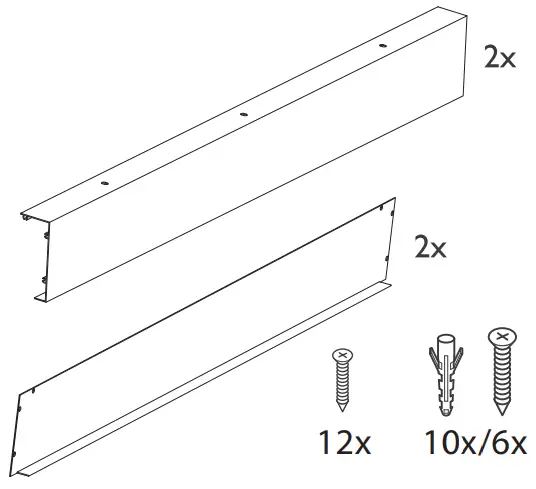

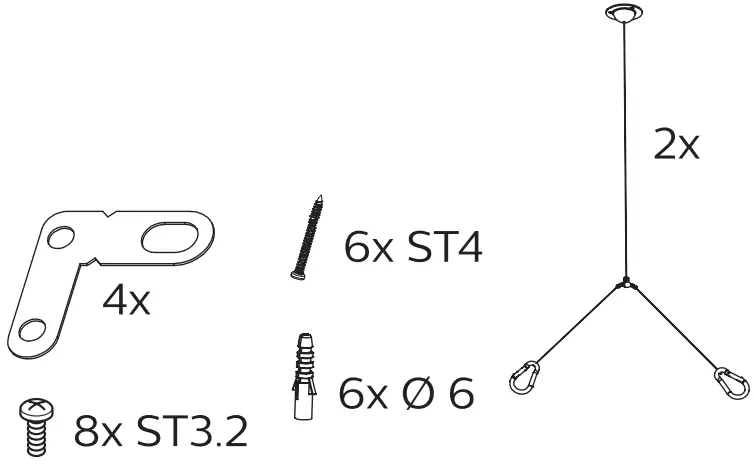

Available as accessory

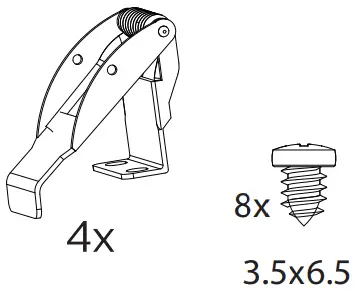

Suspension set: RC007Z SME-2 911401824280	Surface mounted set: 911401862982 Panel SMB W30L120 911401863082 Panel SMB W62L62 911401873482
Plaster set: RC007Z SMB-PLC 911401824180	Safety cable: RC065Z SC 911401892680

VPC visible profile ceiling

The luminaire shall, under no circumstance, be covered with thermal insulation matting or similar material.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similarly qualified person in order to avoid a hazard.
The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similarly qualified person.
The luminaire must not be used or stored in a corrosive environment where hazardous materials such as sulfur, chlorine, phthalates, etc, are present.

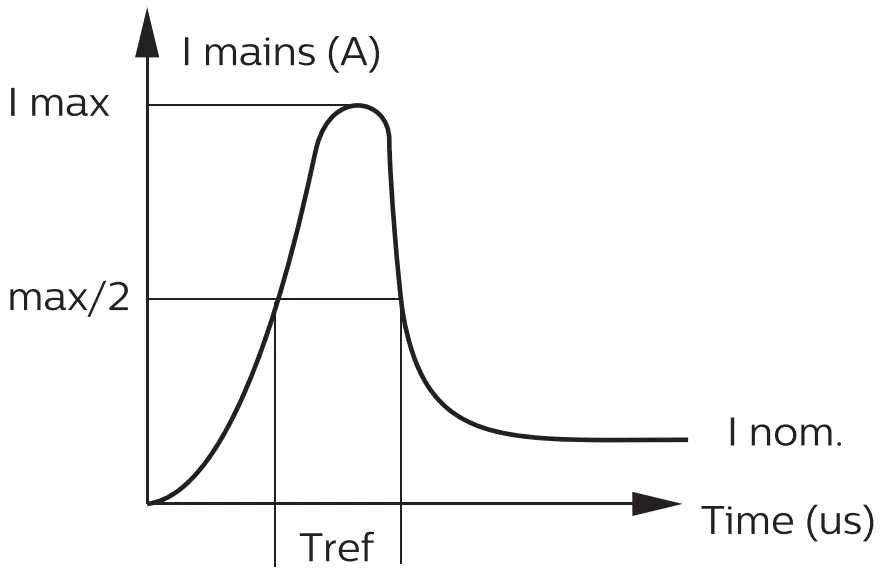

Inrush Current

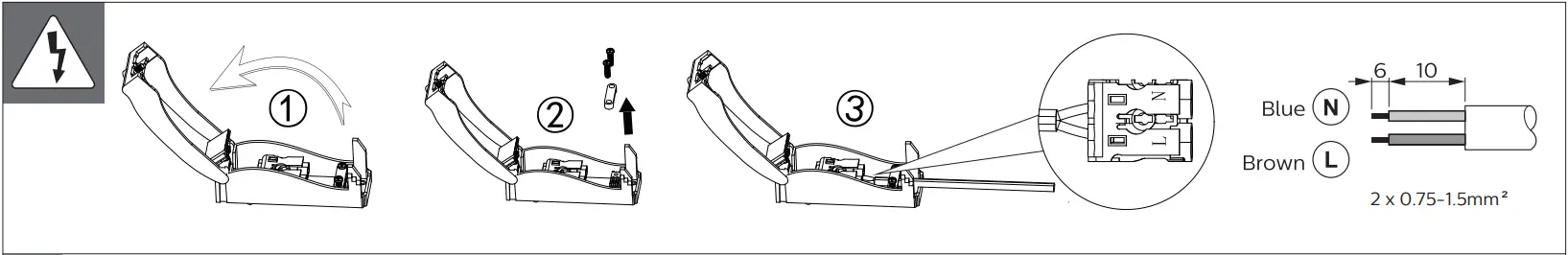

Electrical characteristics

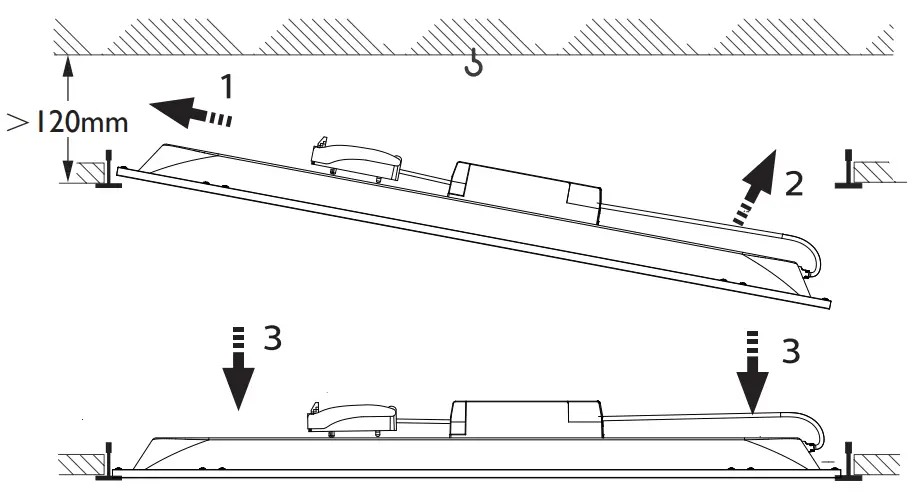

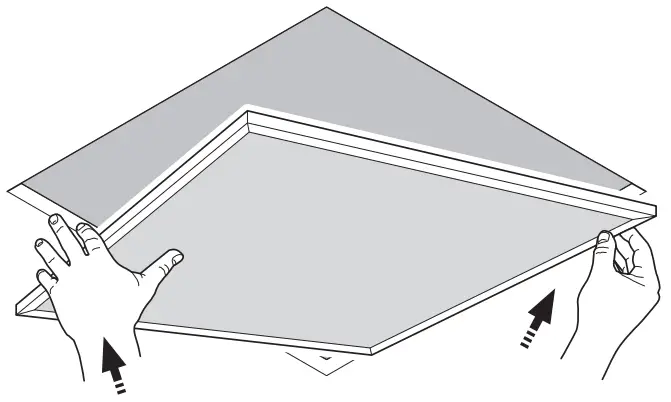

A. Visible Profile Ceiling mounting(VPC)
Install safety cable (Optional)

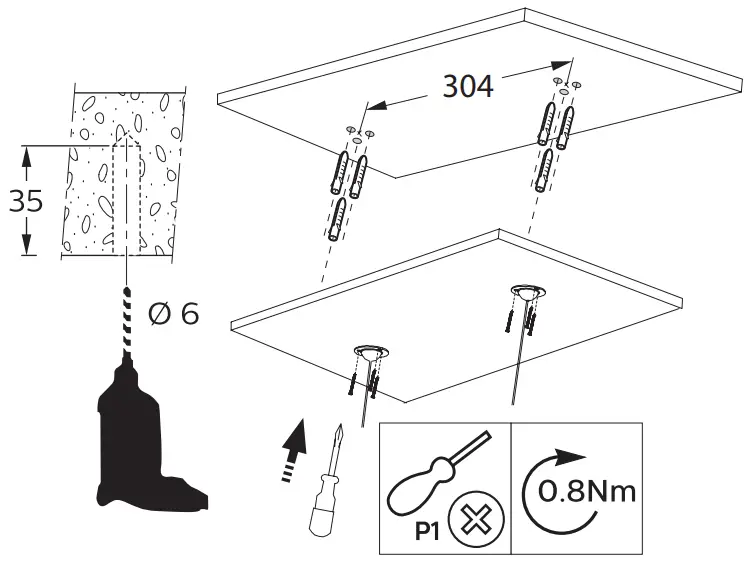

B. Suspension mounting (SUS)

Replace the bracket with the bracket in the suspension set.

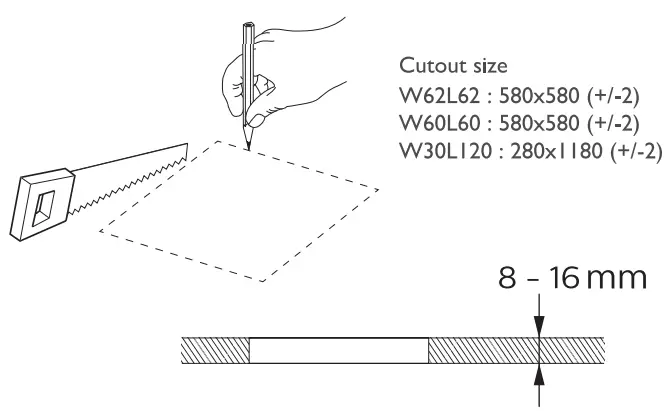

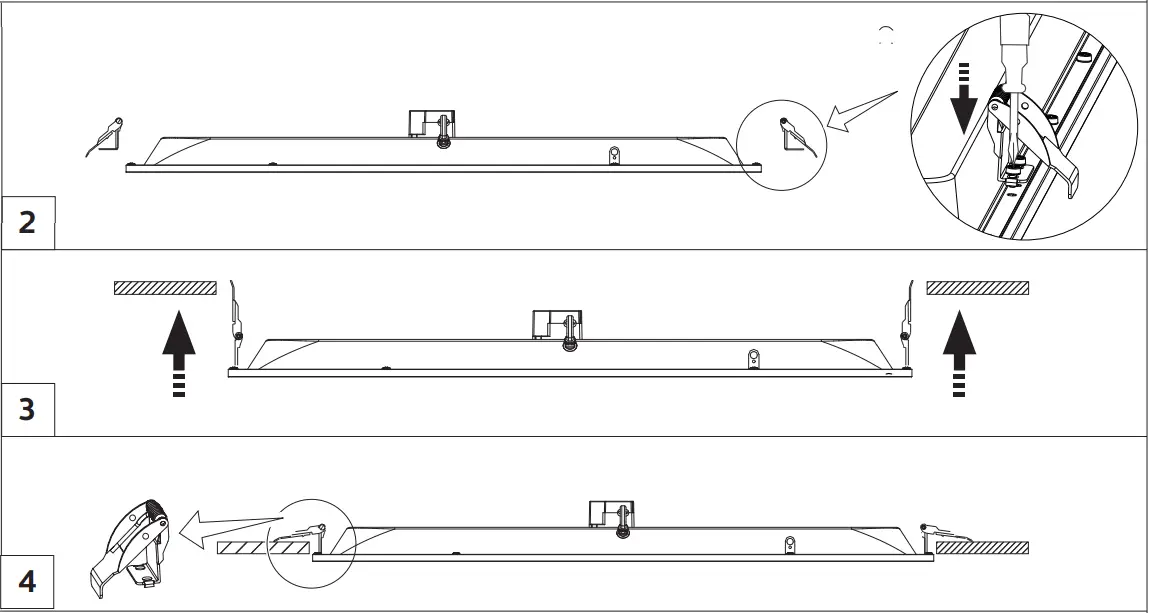

 C. In Plaster Ceiling Version mounting (PCV)
Install safety cable (Optional)

1.

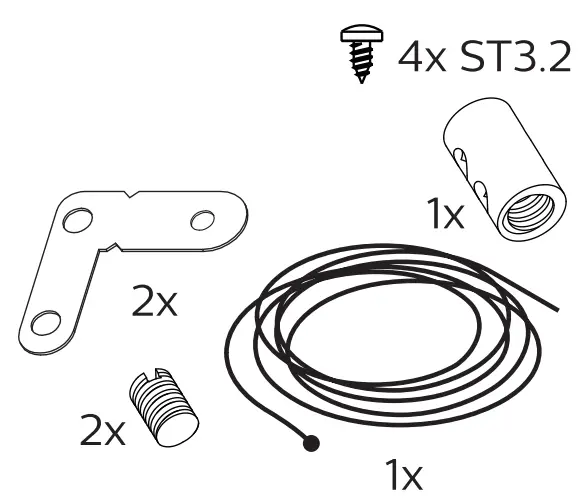

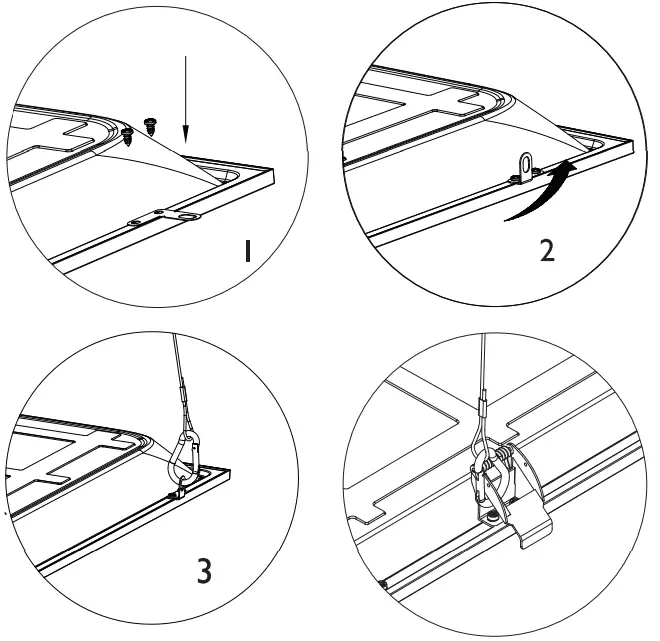

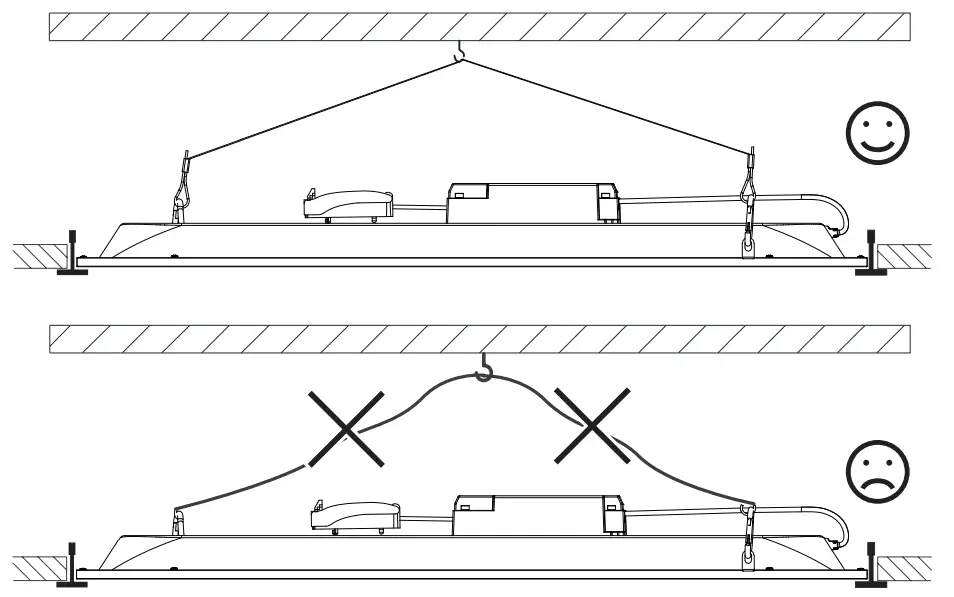

D. Safety cable

safety cable is included in the box. (except W62L62)
