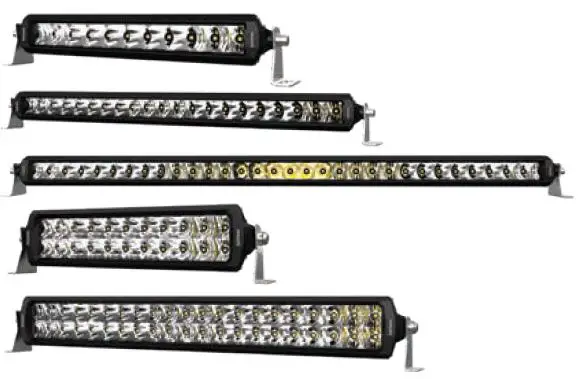

PHILIPS UD5001LX1 10 inch LED Lightbar
PHILIPS UD5001LX1 10 inch LED Lightbar

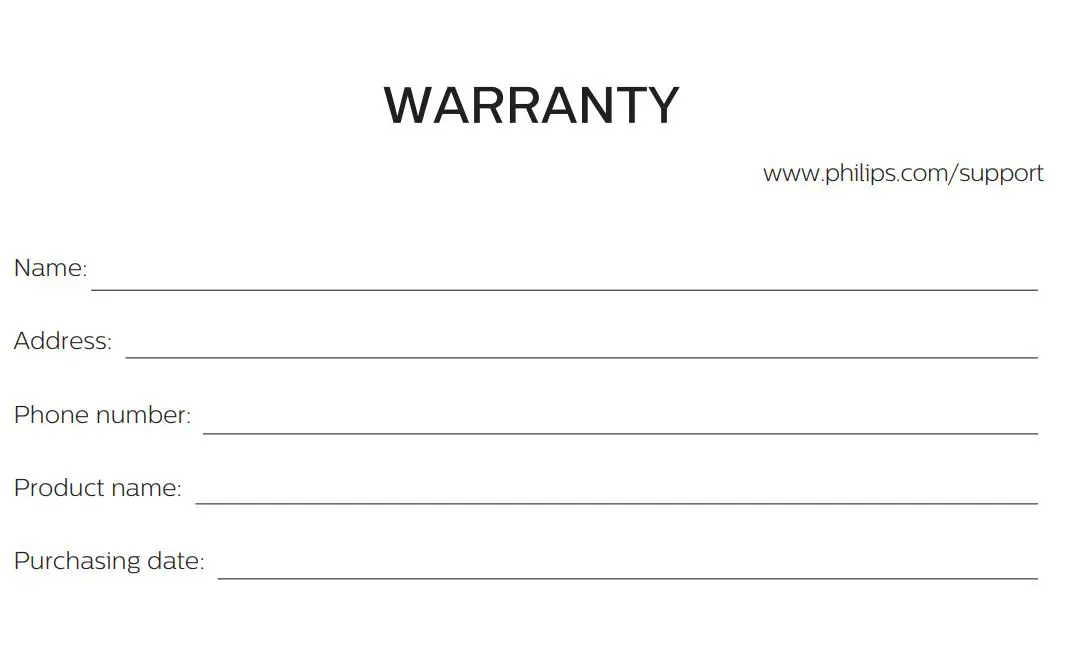

Warranty
The Philips LED Lightbar bears the official Philips Automotive Grade Quality seal. Philips Automotive Grade Quality products are designed and developed following strict quality control processes (including applicable ISO norms), leading to consistently high production standards.
Important
Please read this user guide carefully before using your LED Lightbar. This guide contains important health and safety information. lf you need further assistance, please visit our website: www.philips.com/support Or visit your local Philips Dealer For more information visit https://wwwphilips.com/Ultinon-Drive-5000

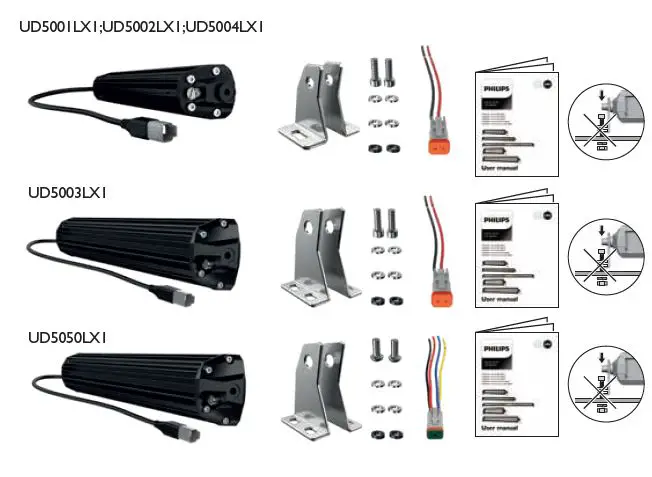

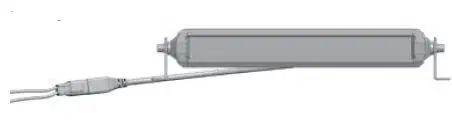

IN THE BOX
WARNING

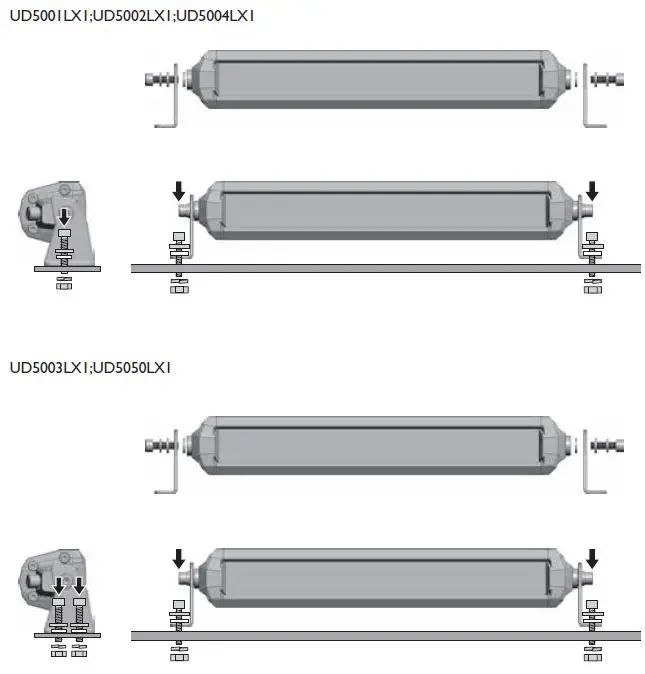

SCALING

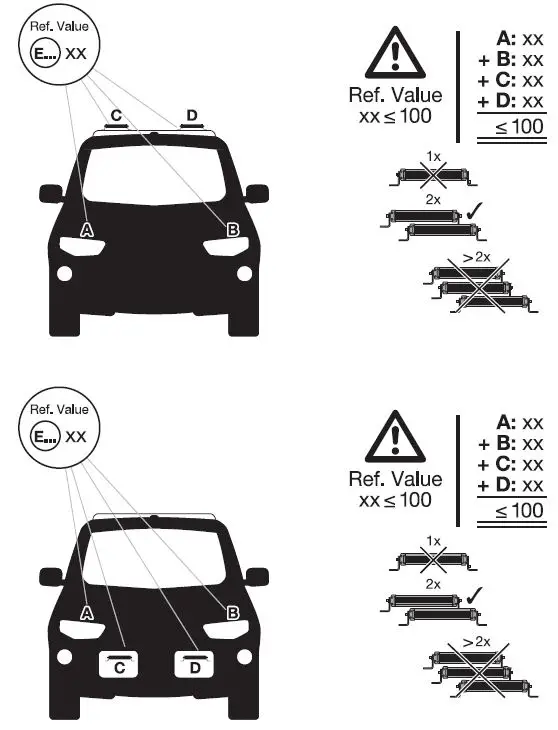

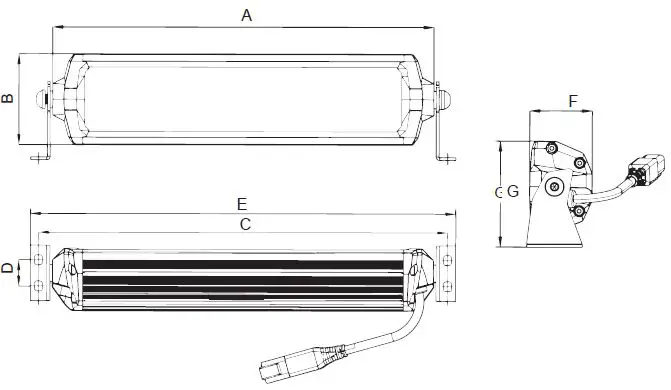

UD5003LX1; UD5050LX1
| Type | A-mm | B-mm | C-mm | D-mm | E-mm | F-mm | G-mm |
| UD5050LX1 | 304±2 | 72±2 | 326±3 | 21±2 | 339±3 | 49±2 | 84±2 |
| UD5003LX1 | 558±2 | 72±2 | 580±3 | 21±2 | 593±3 | 49±2 | 84±2 |

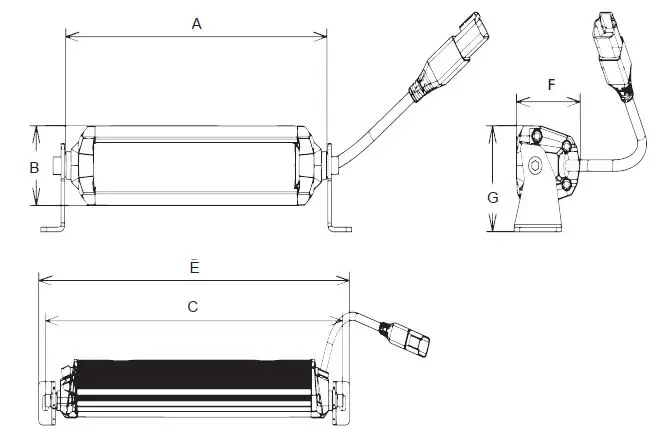

UD5001LX1; UD5002LX1; UD5004LX1
| Type | A-mm | B-mm | C-mm | E-mm | F-mm | G-mm |
| UD5001LX1 | 304±2 | 46±2 | 325±3 | 339±3 | 49±2 | 61±2 |
| UD5002LX1 | 558±3 | 46±2 | 579±3 | 593±3 | 49±2 | 61±2 |
| UD5004LX1 | 811±3 | 46±2 | 833±4 | 847±4 | 49±2 | 61±2 |

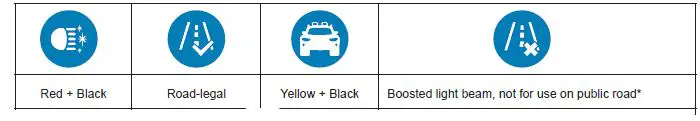

SETTINGS

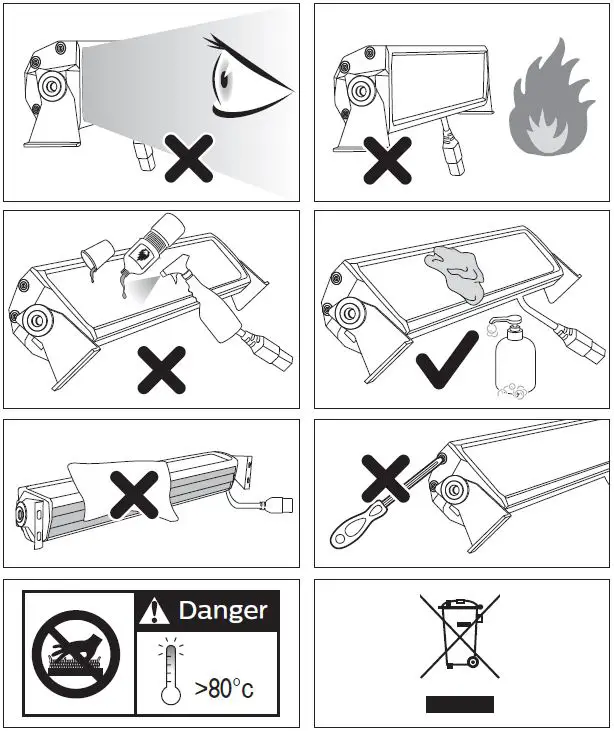

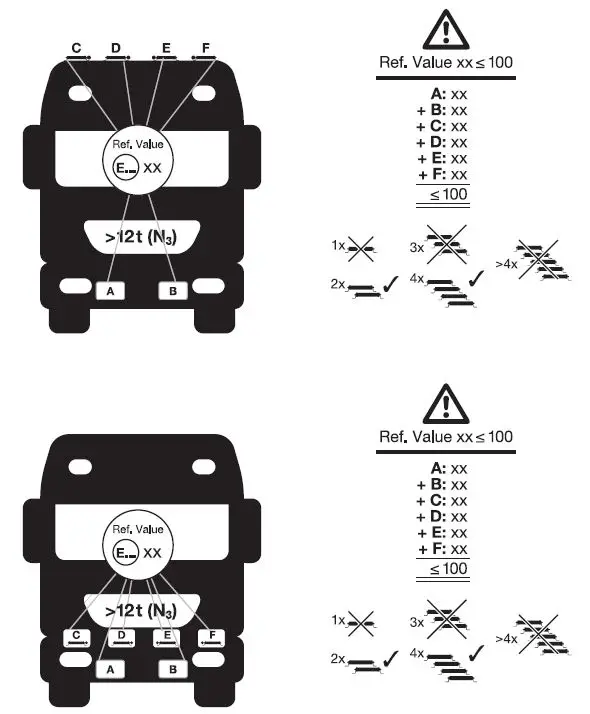

CAUTIONS
It is your own responsibility to ensure that the use of the LED lightbar complies with applicable local legal requirements.

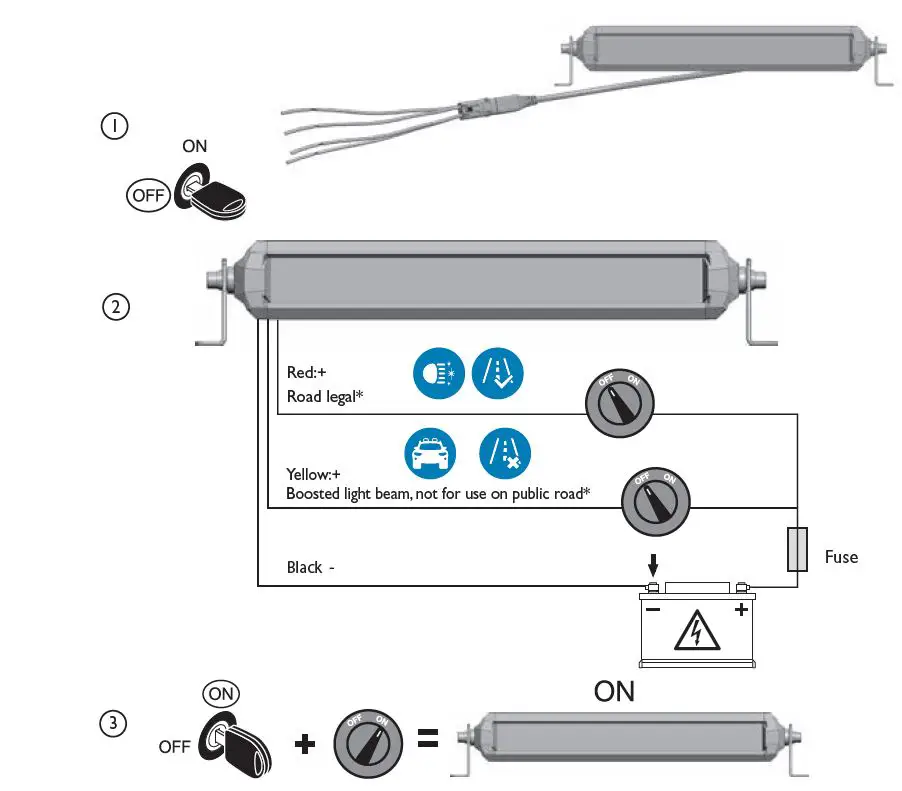

CHARGING
UD5001LX1 10 inch LED lightbar UD5002LX1 20 inch LED lightbar UD5003LX1 20 inch dual-row LED lightbar
UD5004LX1 30 inch LED lightbar

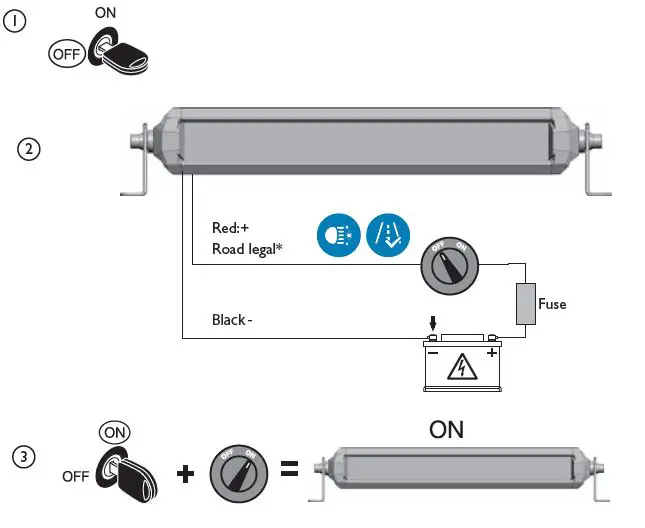

9-30V DC
Red +
Black –

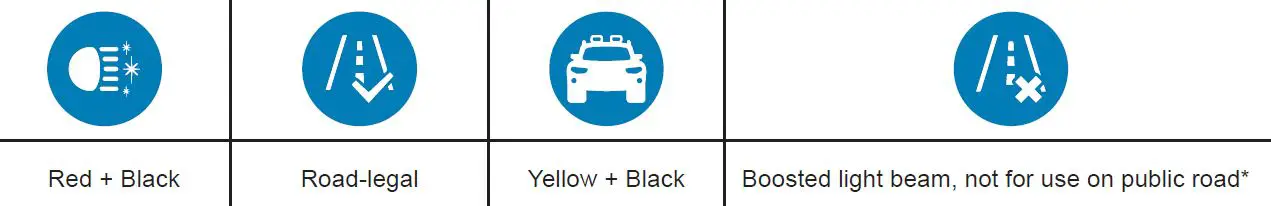

UD5050LX1 10 inch boost LED lightbar
9-30V DC
Red: +
Black: –
Yellow:+(Boosted light beam)
Blue: n/a
Measurement
| Item | Symbol- [unit] | UD5001LX1 | UD5002LX1 | UD5003LX1 | UD5004LX1 | UD5050LX1 | |
| Beam | Road legal | Road legal | Road legal | Road legal | Road legal | Boosted light beam | |
| Operating voltage | U [V] | 9-30V DC | 9-30V DC | 9-30V DC | 9-30V DC | 9-30V DC | |
| Power-13.2V | P [W] | 38±15% | 40±15% | 38±15% | 42±15% | 49±15% | 56±15% |
| Power-28V | P [W] | 39±15% | 44±15% | 42±15% | 48±15% | 53±15% | 62±15% |
| Flux (@1 min lighting) | Φ [lm] | 2500±15% | 2900±15% | 3600±15% | 3200±15% | 3300±15% | 4000±15% |
| Color temperature | T [K] | 6500±15% | 6500±15% | 6500±15% | 6500±15% | 6500±15% | |
| Beam shape | / | Combo | Combo | Combo | Combo | Combo | |
| Beam length(1 lux) | m | 387±10% | 427±10% | 436±10% | 458±10% | 425±10% | 448±10% |
| Beam Width(1 lux) | m | 70±10% | 70±10% | 90±10% | 70±10% | 90±10% | 90±10% |
| ECE Ref. No | 37.5 | 40 | 45 | 50 | 40 | Off-road use only | |
| Operating temperature | [°C] | -40°C+80°C | -40°C+80°C | -40°C+80°C | -40°C+80°C | -40°C+80°C | |
| Storage temperature | [°C] | -40°C+80°C | -40°C+80°C | -40°C+80°C | -40°C+80°C | -40°C+80°C | |
| Weight | [g] | 730±15% | 1180±15% | 1620±15% | 1600±15% | 1010±15% | |
| Ingress protection | / | IP68 & IP69K | IP68 & IP69K | IP68 & IP69K | IP68 & IP69K | IP68 & IP69K | |
| Shock resistance | / | IK07 | IK07 | IK07 | IK07 | IK07 | |
| Cable length | cm | 50 | 50 | 50 | 50 | 50 | |
