User Manual
STMB-AW48-MB
Important: Read all instructions prior to installation.

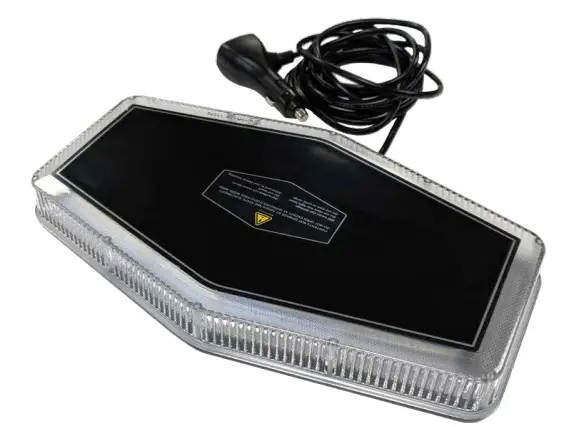

Mini Emergency LED Light Bar
Safety and Notes
- Avoid looking directly into the lamp when illuminated.
- Do not mount upside down or in enclosed space.
- Do not submerge in water or expose to high-pressure jets of water or steam when cleaning.
- Not intended for use while the vehicle is traveling faster than parking lot speeds (approximately 1520 MPH).
Specifications
| Model | STMB-AW48-MB |
| Voltage | 12-24 VDC |
| Wattage | 48 W |
| Current Draw | 4 A@ 12 VDC |
| IP Rating | IP66 |
| Wire Length | 9.5 ft (2.9 m) |
| Operating Temperature | -22°-140° F (-30°-60° C) |
Operation
| Switch | Operation |
| ON / OFF | turns power on or off |
| Pattern Select | press for 1 second or less for the next pattern |
| hold for 1-3 seconds for the previous pattern | |
| hold for 3-5 seconds to return to pattern 1 | |
| hold for 5-10 seconds to place light in standby mode |
Flash Patterns
| Pattern | Pattern Name | Pattern | Pattern Name |
| 1 | Single | 14 | CCW Constant Flash |
| 2 | Double | 15 | CW Single |
| 3 | Half / Half | 16 | CCW Single |
| 4 | Cross Flash | 17 | CW Rotation |
| 5 | CW Rotation | 18 | CCW Rotation |
| 6 | CCW Rotation | 19 | CCW-CW |
| 7 | All-Half | 20 | Single – Slow |
| 8 | All-Single Quick | 21 | Double – CW Single |
| 9 | Triple | 22 | Single Alternate |
| 10 | Quad | 23 | Quint Alternate |
| 11 | Eight Flash | 24 | Half Steady Half Single |
| 12 | Twelve Flash | 25 | Half Steady Half Single |
| 13 | CW Constant Flash | 26 | Steady On |
