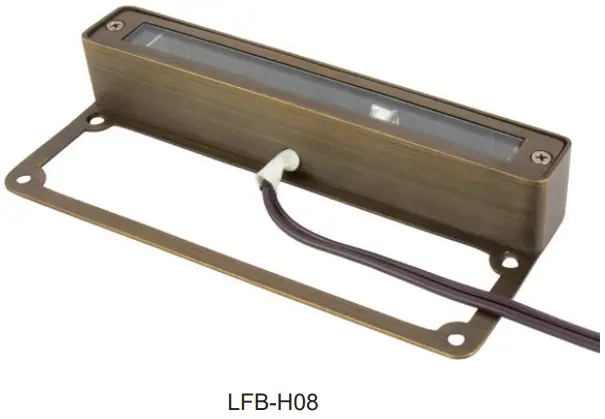

superbrightleds com LFB-H Series LED Ready Hardscape Light
Safety and Notes
- For use with OUTDOOR, low-voltage landscape lighting systems ONLY.
- NOT FOR USE with submersible or pool/spa equipment.
- Do not submerge in water, the product can be damaged.
- For low voltage use only. Power supply voltage must match installed bulb.
- These lights are designed for G4 bulbs (up to 20 W), which are not included.
Recommended Accessories
| Part Number | Description |
| WWN-2212 | silicone filled wire nut |
| SFT-20 | self fusing silicone tape |
| WP14-2DB | 14 gauge landscape wire |
| WP12-2DB | 12 gauge landscape wire |

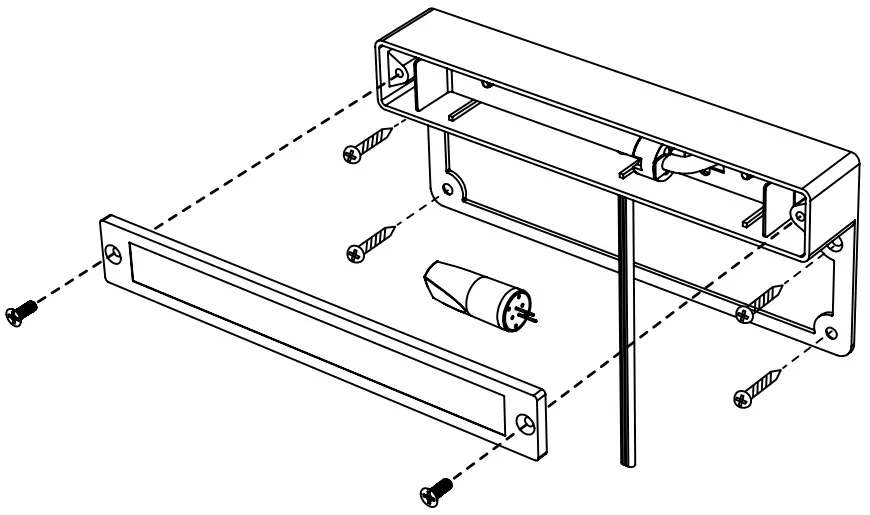

Installation Instructions
- Remove lens.
- Install compatible bulb and reinstall lens.
- Lay out fixtures as they will be installed.
- Run landscape wire (WP14-2DB or WP12-2DB) from power supply past each light. Wire must be within a few inches of mounting location to allow power connections to be made.
- Install light, concealing and protecting wiring.
