PHILIPS UD Series Ultinon Driver LED Lightbar
PHILIPS UD Series Ultinon Driver LED Lightbar

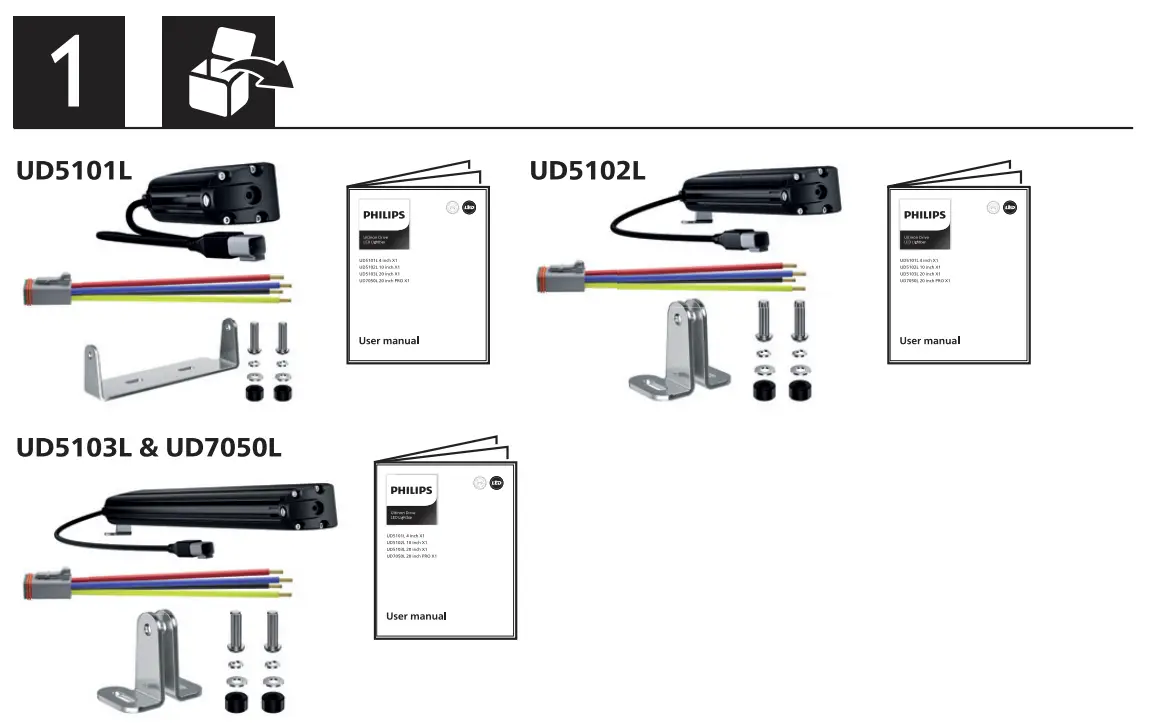

The Philips LED Lightbar bears the official Philips Automotive Grade Quality seal. Philips Automotive Grade Quality products are designed and developed following strict quality-control processes (including applicable ISO norms), leading to consistently high production standards.
Important
Please read this user guide carefully before using your LED Lightbar. This guide contains important health and safety information.
WARNINGS

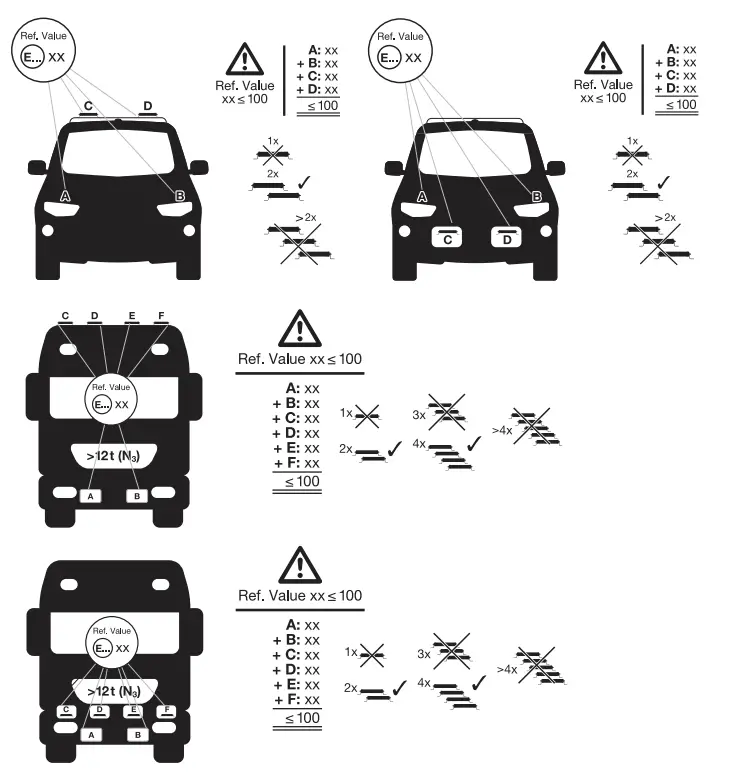

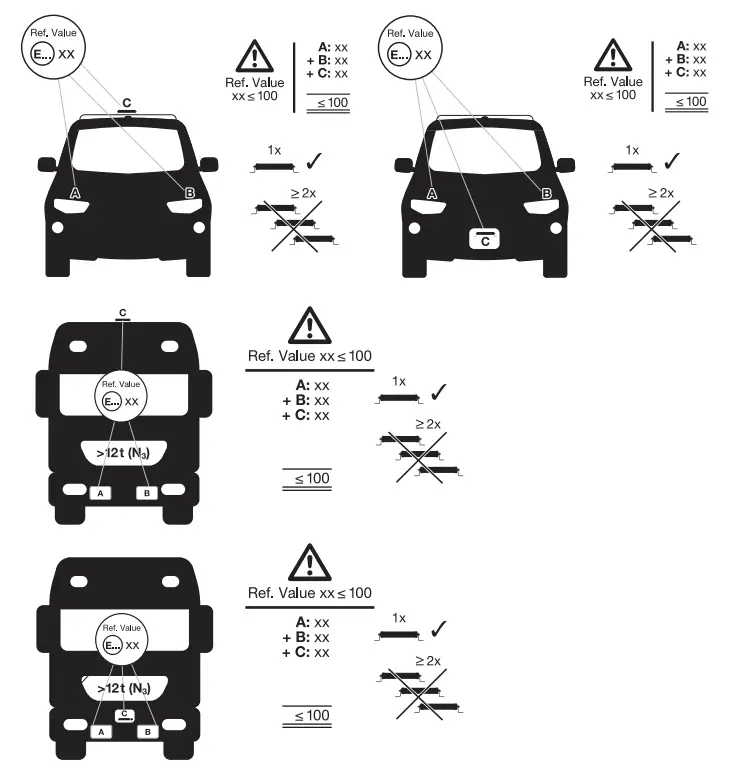

- Philips Ultinon Drive series a retype-approved according to UN ECE R149 regulation and may therefore be installed and operated on public roads. Please note: It is your own responsibility to ensure that the installation and use of the LED lightbars complies with applicable local and country-specific legal requirements. This includes, but is not limited to: Only install in pairs. The total of all reference numbers oft he high beam headlights mounted on the vehicle may not exce€d 100. Boost function is not permitted for use on public roads and can only be used off road.
- Do not look directly into the light source during operating due to the extremely light output.
- Do not mount the lights i1 any location that obstructs the view of the driver; install it on location/devices which are designed for such purpose.

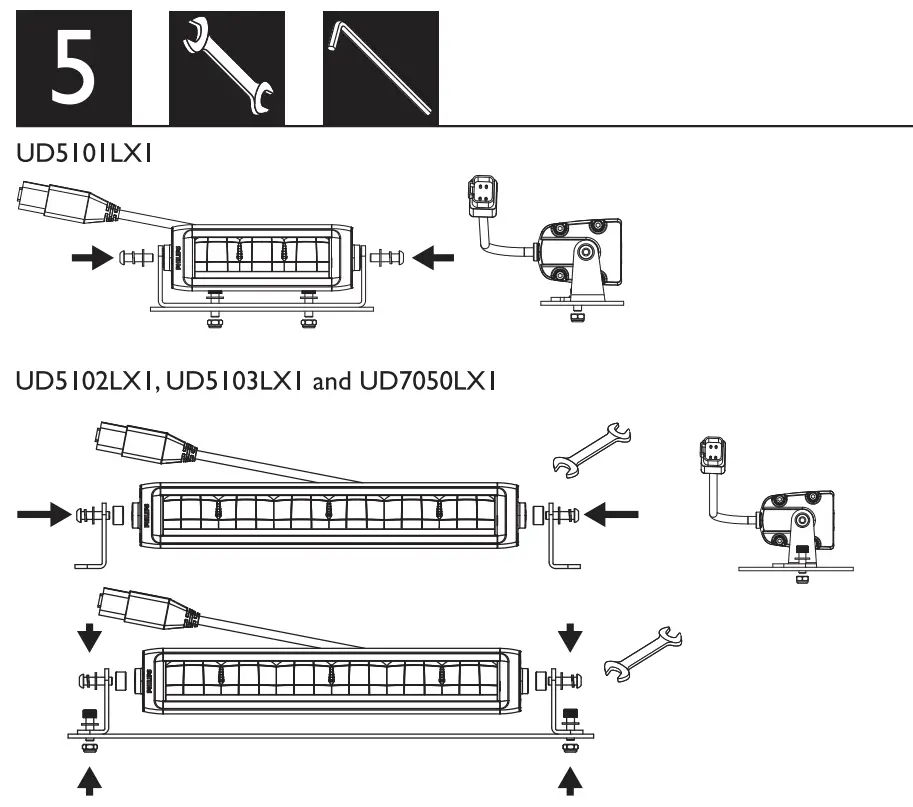

- Professional installation is recommended.
- Ensure that installation will not interfere with existing vehide systems, airbag system sensors, forward and signal lighting, etc.
- Ensure adequate dearance exists between the light and its wiring, between any moving or rotating parts of the vehide (e.g., tires/whOOs, suspension, doors, etc.).
- Ensure the light is mounted at a safe distance from temperature-sensitive objects. Do not route wires along or near hot. sharp, or moving surfaces that might damage the wiring.
- When laying out wire routing, stay clear of radio antenna and wiring to minimize radio interference.

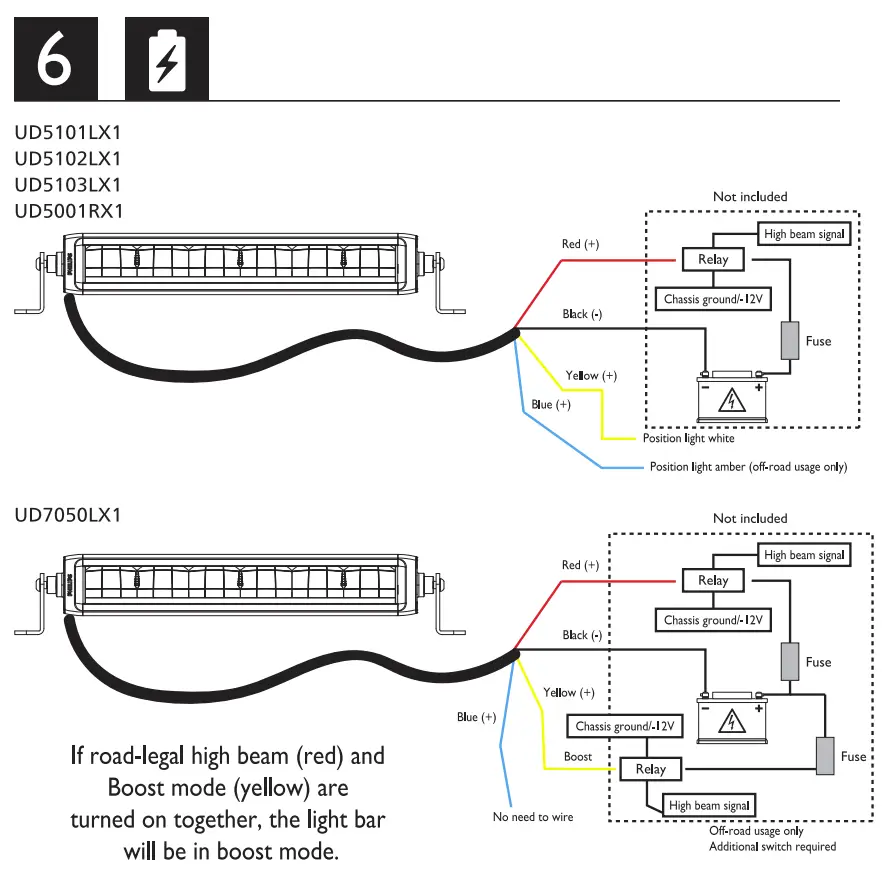

- Only operate under the specified voltages as mentioned in the specifications.
- Use appropriately sized switches, wires, and circuit fusing.
- Do not open the product and do not make any modifications to the lamp or cables; for any defective/malfunctioning devices, please contact our aftersales service.
- The light becomes very hot during operation and remains hot after use. Do not touch the light when hot.
- Do not clean with flammable substance or cover by flammable materials .

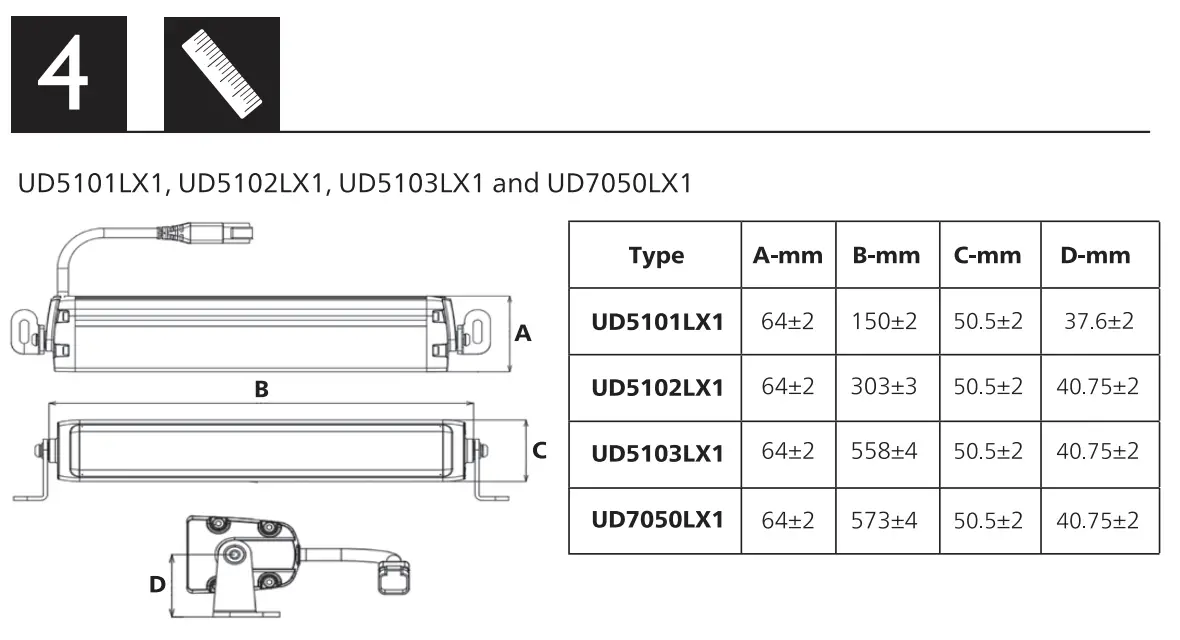

 | Discarded electrical products must not be disposed together with household waste. Please use recycling facilities. Contact your local – authority or retailer for advice on recycling. |
| Item | Symbol [unit] | UD5101LX1 | UD5102LX1 | UD5103LX1 | UD7050LX1 | ||
| Mode | ECE Compliance | ECE Compliance | ECE Compliance | ECE Compliance | Boost Off-Road | ||
| Operating Voltage | U[V] | 9-30VDC | 9-30VDC | 9-30VDC | 9 -30VDC | 9 -30VDC | |
| Wattage (dri ving beam)@12V | P[W] | 20 | 37 | 59 | 60 | 82 | |
| W (White position lig ht)@12V | P[W] | 1.8 | 1.36 | 1.6 | |||
| W (Heated lens feature)@12V | P[W] | 13.2 | |||||
| Effective lumen output | (f)[ lm) | 1150 | 2300 | 4000 | 4000 | 5300 | |
| Color temperature | T [K) | 6500 | 6500 | 6500 | 6500 | ||
| Beam pattern | Combo | Combo | Combo | Combo | |||
| Beamlength(llux) | 240 | 370 | 500 | 480 | I | 520 | |
| ECERef.No | 12.5 | 30 | 30+30 | 30+30 | Off-road usage only | ||
| Operating temperature | [“Cl | -40°c- + so·c | -40°c- + so0c | -40°c- + so·c | -4o•c- + so·c | ||
| Storage temperature | 1·c1 | -40°c-+so·c | -40°c-+ao·c | -40°c-+ao·c | -40°c-+so·c | ||
| Weight | [g] | 560 | 990 | 17 10 | 1780 | ||
| Ingress protection | / | IP68&IP69K | IP68& IP69K | IP68&IP69K | IP68&IP69K | ||
| Shock resistance | / | IK07 | IK07 | IK07 | IK07 | ||
| Cab l e length | / | O.Sm wi th | O.Smwith | O.Smwith | O.Smwith | ||
| / | / | OT connector | OT connector | OT connector | OT connector | ||
| Heated lens | / | / | / | / | When powering up, function will automatically turn on when temperature inside the lamps SC, and automatically turn off when temperature inside the lamp30°C | ||
Lumileds is the warrantor of this product. 2022© Lumileds Holding B.V. All rights reserved. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license.
If you need further assistance, please visit our website:
www.philips.com/support
Or visit your local Philips Dealer
For more information visit
https://www.philips.com/LED-driving-lights
