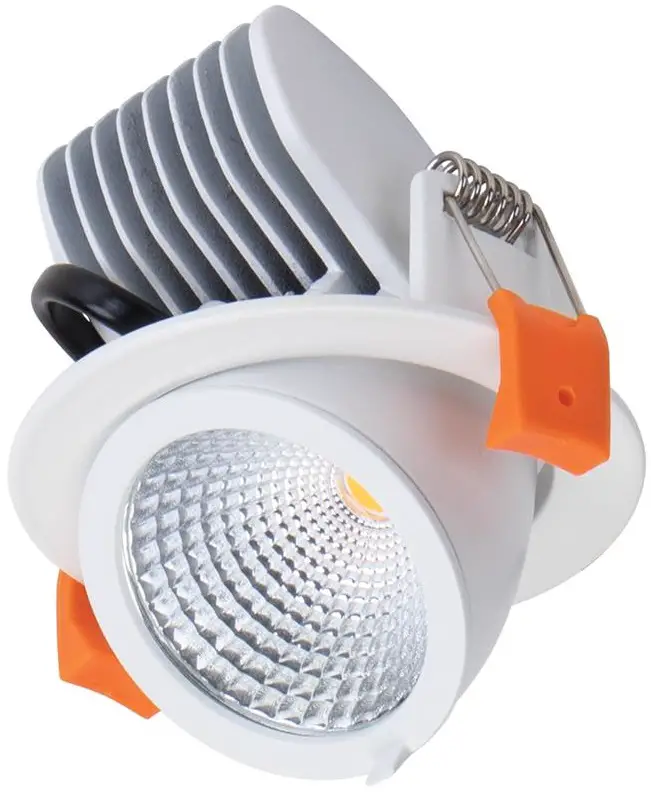

DOMUS SCOOP-13 Round 13W Adjustable LED Dimmable Downlight

Product Information
SCOOP-13
Order Code Product Code Description
| Blk | Wht | SCOOP-13 | 13W LED Adjustable Downlight, TRIO |
| 20466 | 20468 |
Thank you for purchasing your new SCOOP-13, Please take the time to read and understand the instruction sheet below. Failure to do so may void warranty.
Specifications
| Voltage: | 240V AC | Lumen (±5%): | WW 3000K – 780lm NW 4000K – 880lm W 5000K – 870lm | Dimmable: | Yes |
| Power: | 13W | Beam Angle: | 60° | CRI: | ≥80 |
| IP Rating: | 20 | CCT: | 3000K – 4000K – 5000K | Lifespan: | 50,000hrs |

Dimension

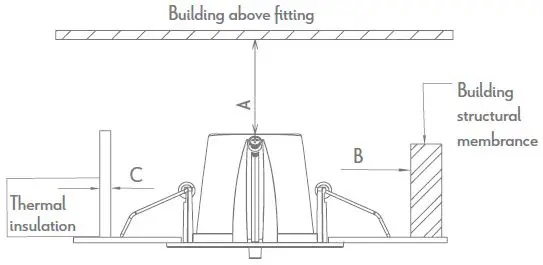

Install Requirements
| A – Gap above the top of the fitting. | 25mm |
| B – Side gap to the structural membrane. | 25mm |
| C – Gap between thermal insulation. | 25mm |

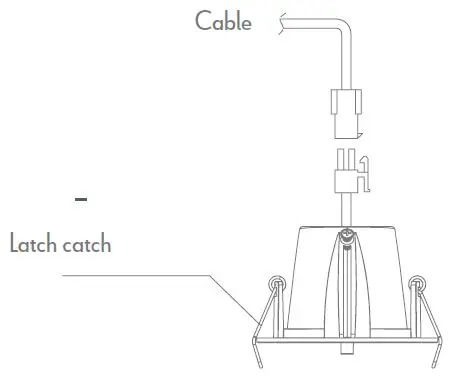

Installation
Cutout Ø85mm

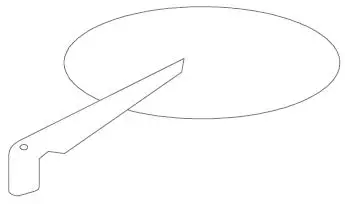

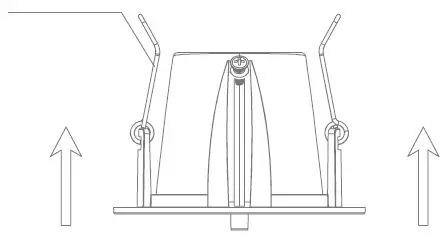

- A. Vertical pull latch
- B. Fasten the latch on the ceiling

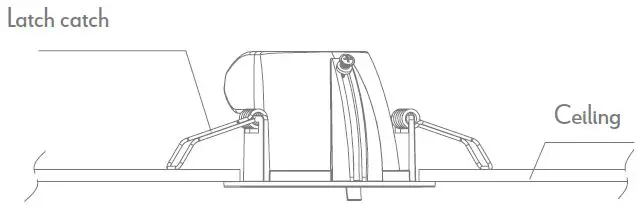

Latch catch

Note:
- The lamp must be installed by a professional electrician
- Ensure the power supply is switched off before fitting this product
- Do not touch the lamp when in use
- Keep away from hot steam and corrosive gas
