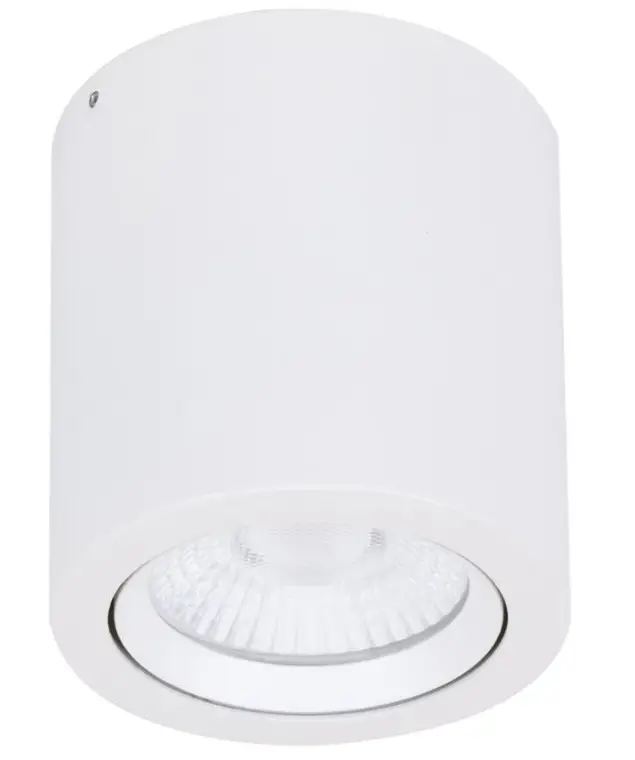

DOMUS LIGHTING NEO-20-SM-TILT Round 20W Surface Mount Tiltable LED Dimmable IP20 Downlight
Installation

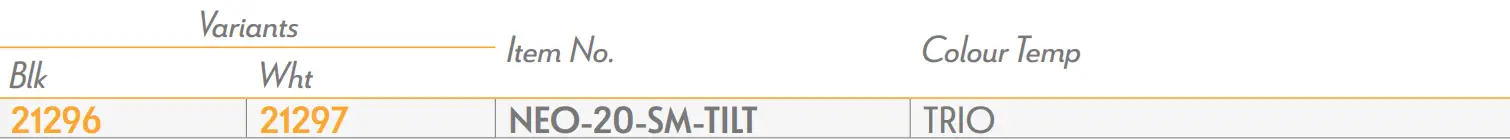

NEO-20-SM-TILT
Thank you for purchasing your new LED NEO-20-SM-TILT, Please take the time to read and understand the instruction sheet below. Failure to do so may void warranty.
Specifications
| Voltage: | 240V | Lumen (±5%): | Warm White 3000K – 1950lm Neutral White 4000K – 2030lm White 5000K – 1920lm | Dimmable: | Yes |
| Power: | 20W | Beam Angle: | 60° | Operating Temp: | -20°C~45°C |
| IP Rating: | IP20 | CCT: | 3000K – 4000K – 5000K (Switchable) | Power Factor: | 0.85 |
| CRI: | ≥80 | Lifespan: | 50,000hrs |

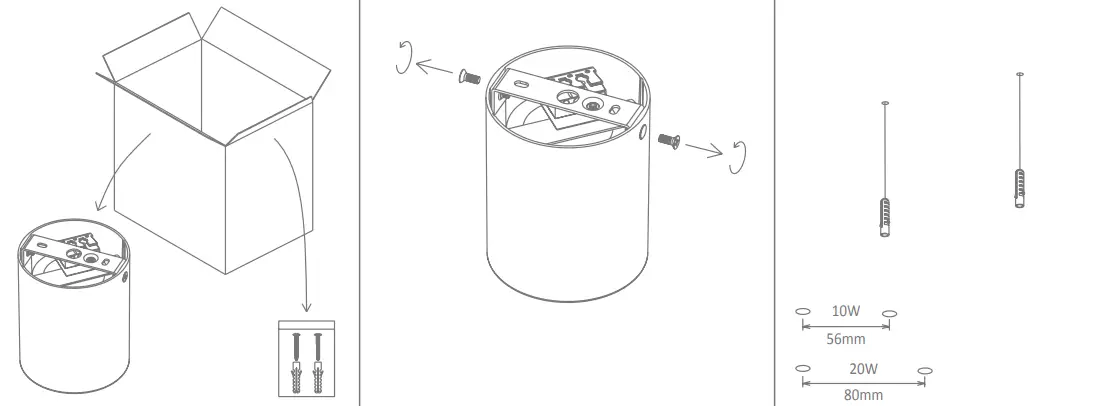

- Step 1: Take out the fixtures and fitting from the carton.
- Step 2: Loosen the screws on surface mounted frame.
- Step 3: Hammer the anchors into the ceiling according to the hole distance

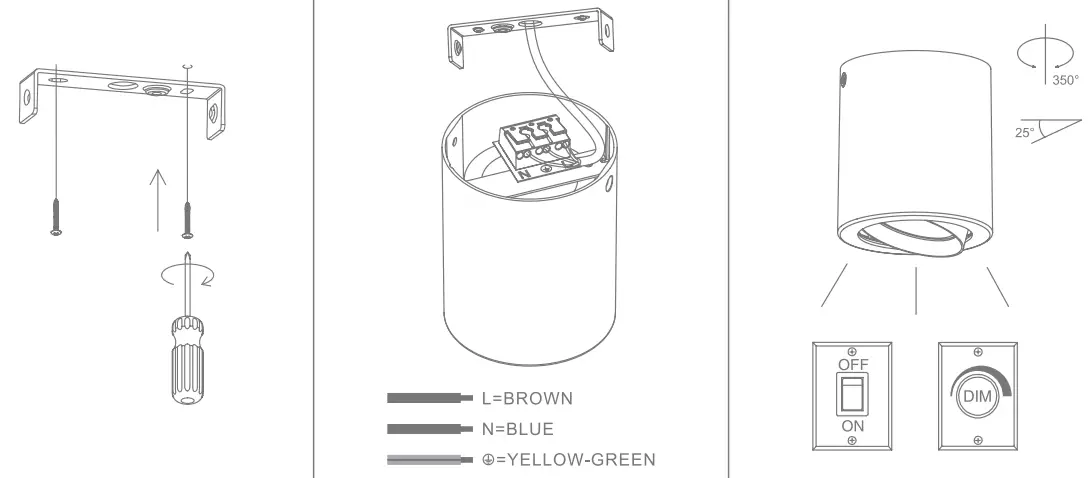

- Step 4: Fix the frame to the ceiling with screws provided.
- Step 5: Fix the “L””N”“G”into the terminal block.
- Step 6: Screw back the lamp to the frame according to step 2, adjust the lighting direction.
Note:
- The lamp must be installed by professional electrician
- Ensure the power supply is switched off before fitting this product
- Do not touch the lamp when in use
- Keep away from hot steam and corrosive gas
