LIGHTING SOLAR-200 Round Tricolour 200MM 15W
Slimline LED Dimmable IP54 Oyster Light
Instruction Manual
Installation Manual
September 20, 2022 9:31 AM
SOLAR-RND-200-TRIO
| Order Code | Product Code | Description |
| 20938 | SOLAR-RND-200-W-TRIO | 15W Ceiling Light Oyster, TRIO. Satin White Finish |
| 20939 | SOLAR-RND-200-B-TRIO | 15W Ceiling Light Oyster, TRIO. Black Finish |
Thank you for purchasing your new LED SOLAR-RND-200-TRIO, Please take the time to read and understand the instruction sheet below. Failure to do so may void warranty.
Specifications
| Voltage: | AC 240V | Lumen (±5%): | Warm White 3000K – 1350lm Neutral White 4000K – 1400lm White 5700K -1450lm | Dimmable: | Ye s * |
| Power: | 15W | Beam Angle: | 120° | Operating Temp: | -20°C~45°C |
| IP Rating: | 54 | CCT: | 3000K – 4000K – 5700K (Switchable) | Power Factor: | ≥0.9 |
| CRI: | ≥80 | Lifespan: | 40,000hrs |

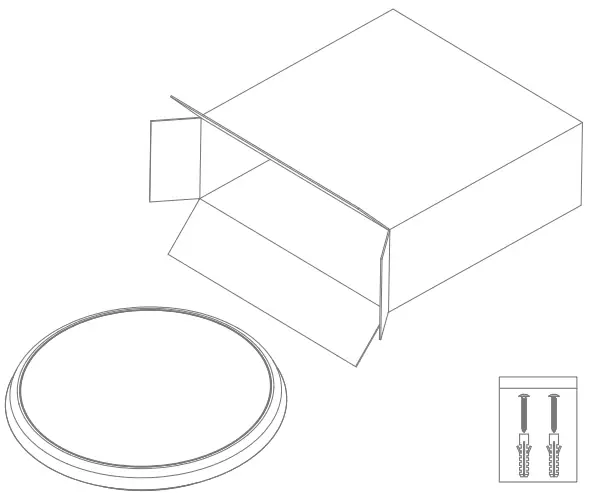

- Take out ceiling light and accessory pack from box

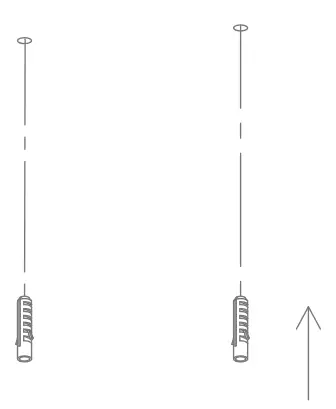

- Knock-in the plastic anchor into ceiling

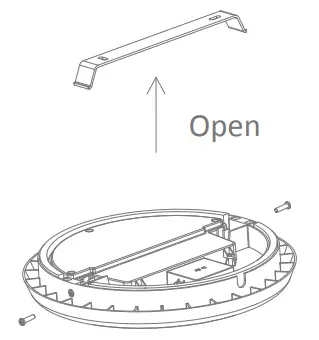

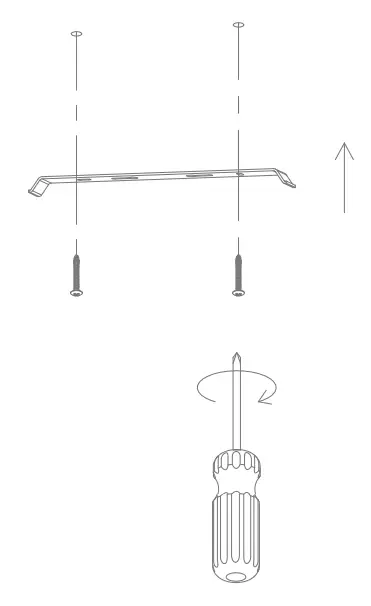

- Remove screw, take out bracket
- Remove screw, take out bracket

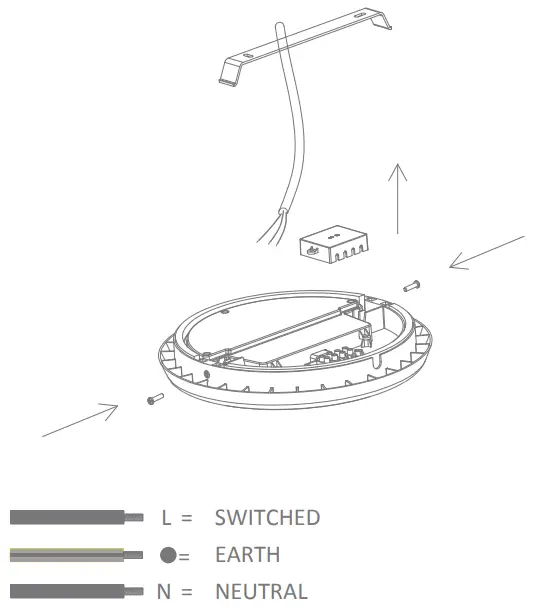

- Open junction box, wire“L”“N” to terminal block and mount ceiling light into the right place

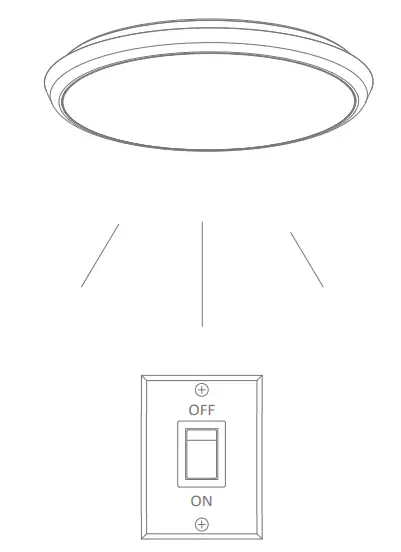

- Switch on
Note:
-The lamp must be installed by professional electrician
-Ensure the power supply is switched off before fitting this product
-Do not touch the lamp when in use
-Keep away from hot steam and corrosive gas
