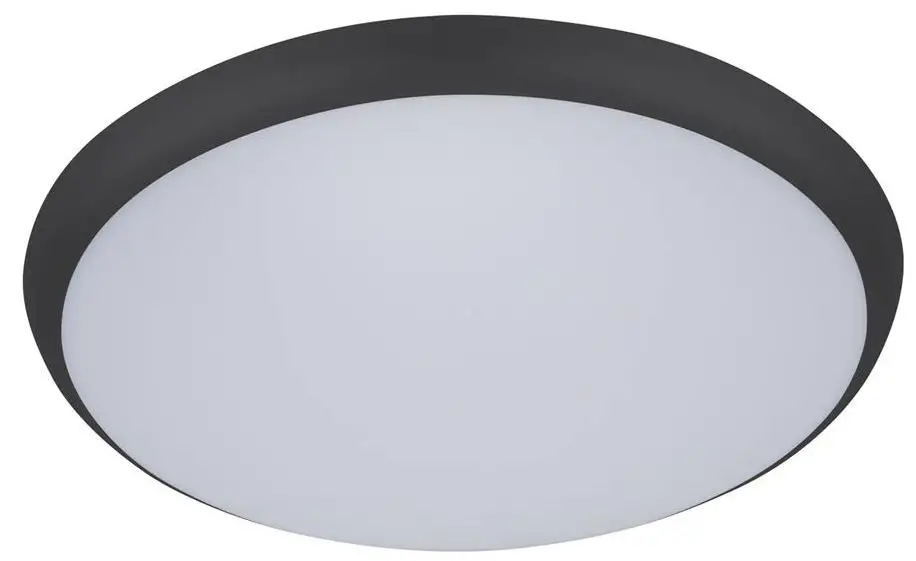

DOMUS LIGHTING SOLAR-400 Round Tricolour 35W 400MM Slimline LED Dimmable IP54 Oyster Light
SOLAR-RND-400-TRIO
Order Code Product Code Description
| 20942 | SOLAR-RND-400-W-TRIO | 35W Ceiling Light Oyster, TRIO. Satin White Finish |
| 20943 | SOLAR-RND-400-B-TRIO | 35W Ceiling Light Oyster, TRIO. Black Finish |
Specifications
| Voltage: | AC 240V | Lumen (±5%): | Warm White 3000K – 3150lm Neutral White 4000K – 3200lm White 5700K – 3250lm | Dimmable: | Yes* |
| Power: | 35W | Beam Angle: | 120° | Operating Temp: | -20°C~45°C |
| IP Rating: | 54 | CCT: | 3000K – 4000K – 5700K (Switchable) | Power Factor: | ≥0.9 |
| CRI: | ≥80 | Lifespan: | 40,000hrs |
INSTALLATION
- Take out ceiling light and accessory pack from box

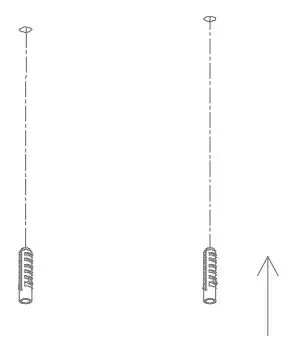

- Knock-in the plastic anchor into ceiling

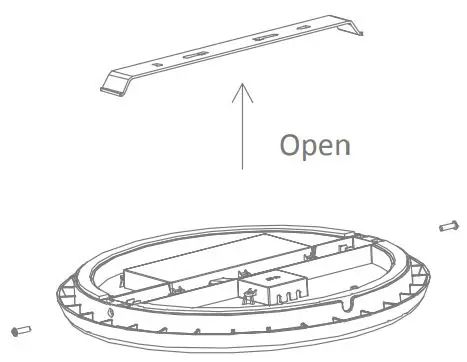

- Remove screw, take out bracket

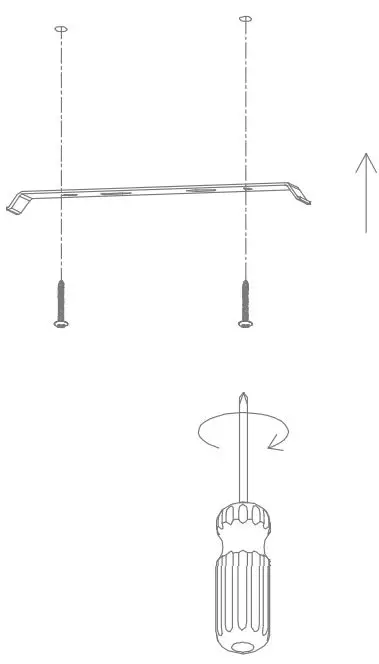

- Fix bracket with screw into the ceiling

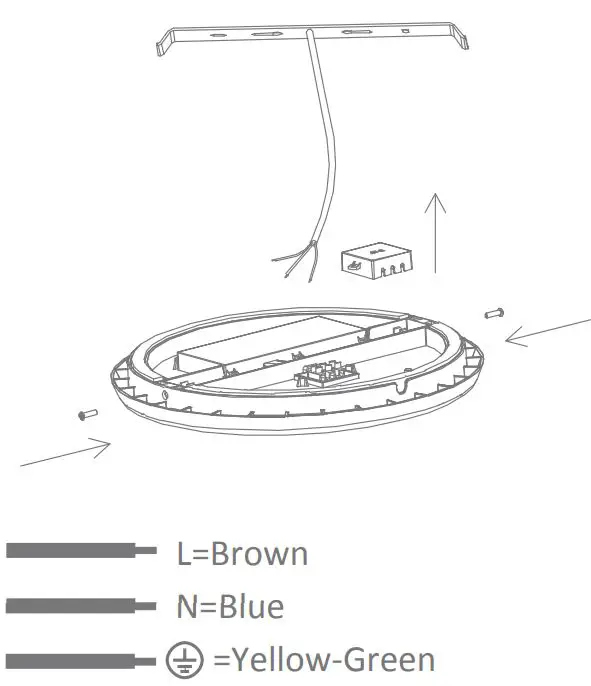

- Open junction box, wire“L”“N” to terminal block and mount ceiling light into the right place

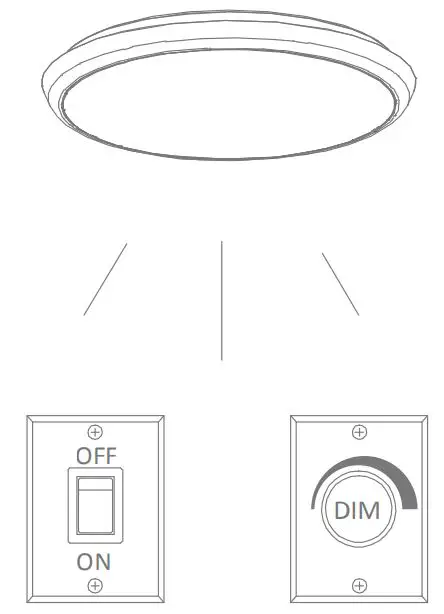

- Switch on
Note:
- The lamp must be installed by professional electrician
- Ensure the power supply is switched off before fitting this product
- Do not touch the lamp when in use
- Keep away from hot steam and corrosive gas
29-31 Richland St. Kingsgrove. Sydney NSW 2208 Australia
Phone: 02 9554 9600 | Fax: 02 9554 9433
[email protected] | www.domuslighting.com
