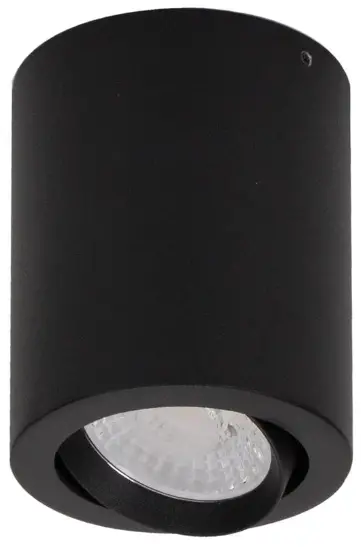

DOMUS NEO-10-SM-TILT Surface Mount Tiltable LED Dimmable Downlight Instruction Manual
Introduction
Thank you for purchasing your new LED NEO-10-SM-TILT, Please take the time to read and understand the instruction sheet below.
Failure to do so may void warranty.
NEO-10-SM-TILT
Variants | |||
| Blk | Wht | Item No. | Colour Temp |
| 21294 | 21298 | NEO-10-SM-TILT | TRIO |
Specifications
| Voltage | 240V | Lumen (±5%): | Warm White 3000K – 880lm Neutral White 4000K – 960lm White 5000K – 945lm | Dimmable | Yes |
| Power | 10W | Beam Angle: | 60° | Operating Temp: | -20°C~45°C |
| P Rating: | IP20 | CCT | 3000K – 4000K – 5000K (Switchable | Power Factor | 0.85 |
| CRI: | ≥80 | Lifespan | 50,000hrs |
Assembly Instruction

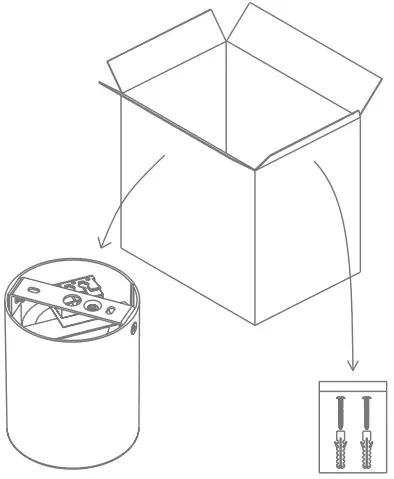

- Step 1: Take out the fixtures and fitting from the carton.

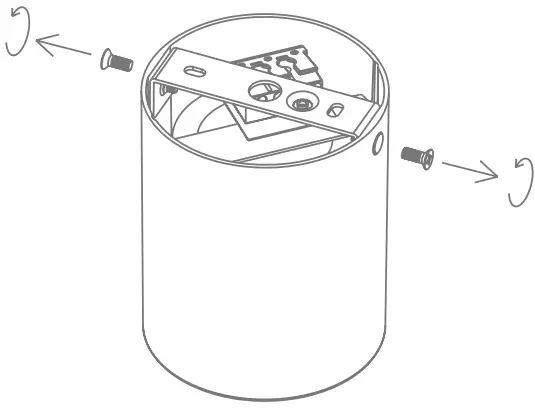

- Step 2: Loosen the screws on surface mounted frame.

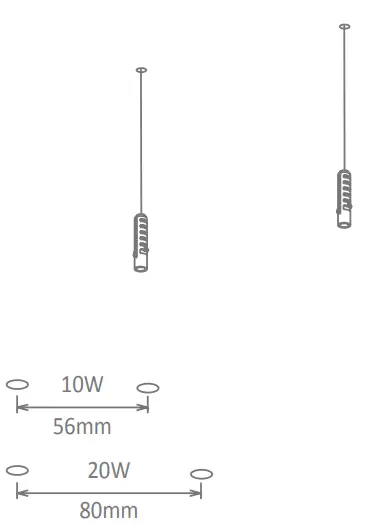

- Step 3: Hammer the anchors into the ceiling according to the hole distance

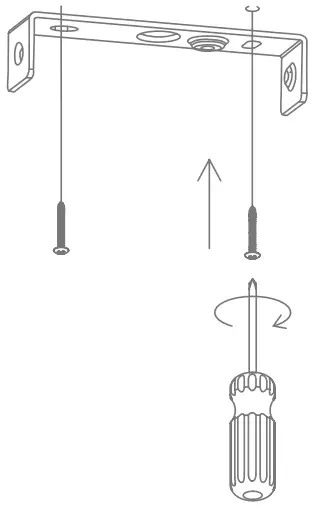

- Step 4: Fix the frame to the ceiling with screws provided.

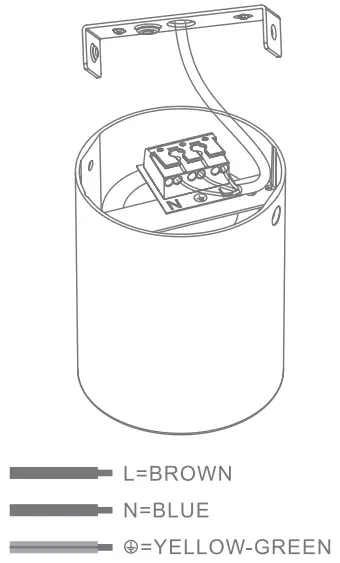

- Step 5: Fix the “L””N”“G” into the terminal block.
- Step 6: Screw back the lamp to the frame according to step 2, adjust the lighting direction.
Note:
- The lamp must be installed by professional electrician
- Ensure the power supply is switched off before fitting this product
- Do not touch the lamp when in use
- Keep away from hot steam and corrosive gas
