Philips Rc048b Smartbright Direct Panel Instruction Manual

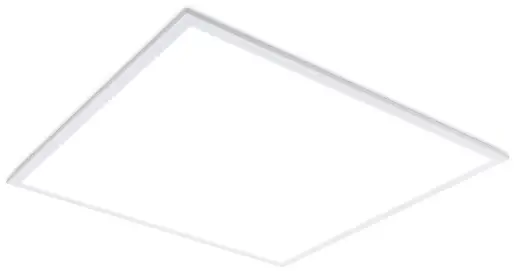

PHILIPS RC048B Smartbright Direct Panel

Mounting Instructions

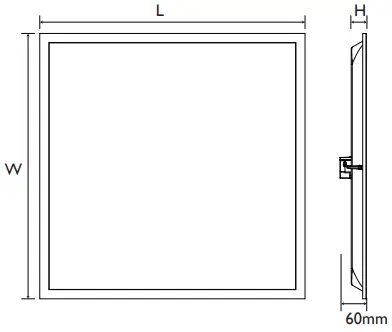

RC048B LED32S/840 PSU W60L60
RC048B LED32S/865 PSU W60L60

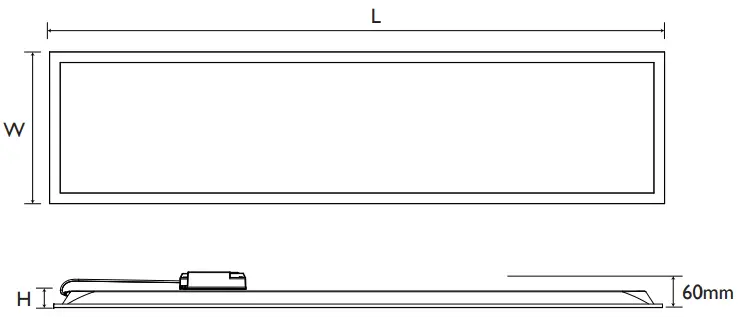

RC048B LED32S/840 PSU W30L 120
RC048B LED32S/865 PSU W30L 120

• Plaster ceiling set 911401824580 RC048Z SMB-PLC

• Suspension set 911401824680 RC048Z SME-2

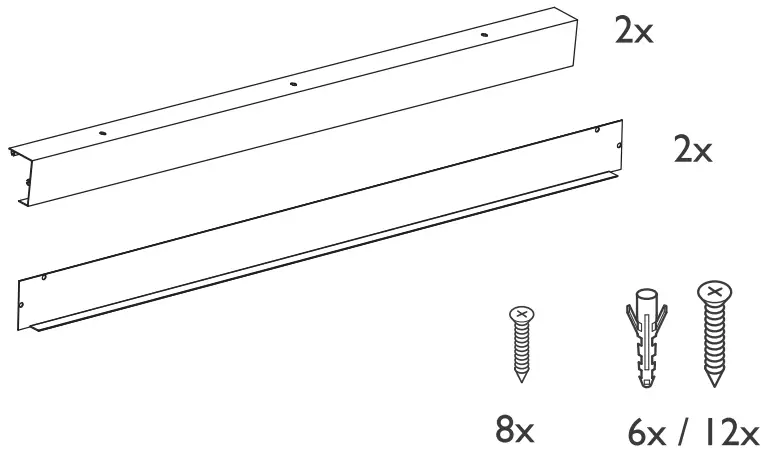

• Surface mounted set
  911401724272 : RC09 I Z SMB-597×597
  911401724282 : RC09 I Z SMB-297x 1197

• Safety cable 911401824780 RC048Z SC

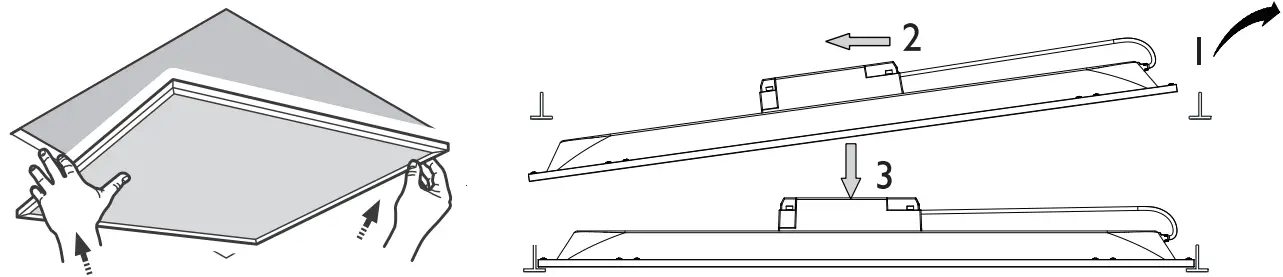

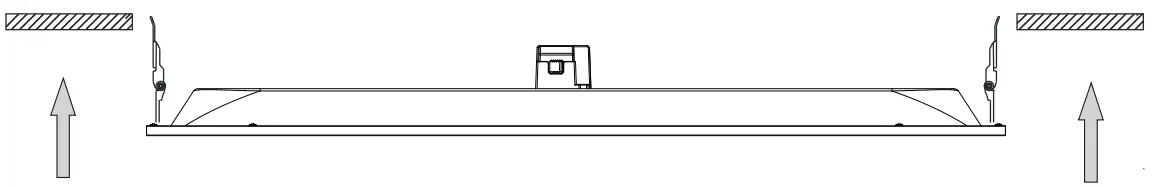

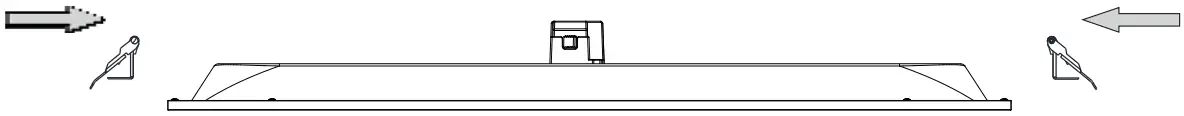

A Visible Profile Ceiling Mounting(VPC)

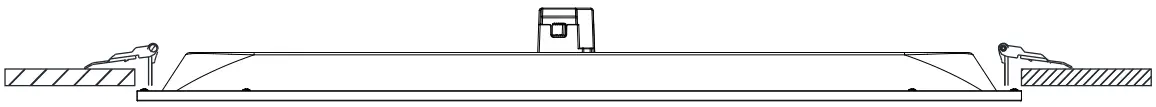

B Plaster Ceiling Version Mounting (PCV)

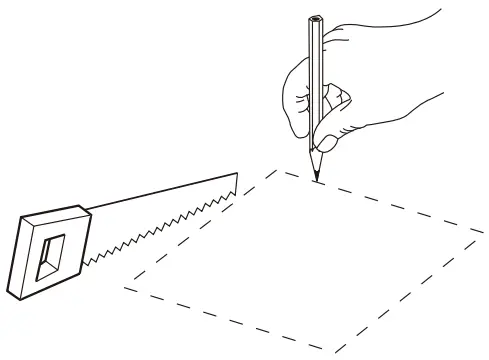

1. Cutout size
   W60L60 : 580×580 (+/-2)
   W30Ll20: 280xl 180 ( +/-2)
   Ceiling thickness: 8mm- I 6mm

2.
3.
4.

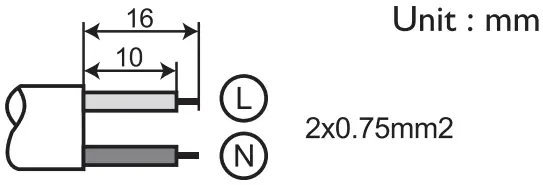

Wiring Method

N: Blue/Biro L:Brown/Coklat
Please use IP20 or higher terminal box
W60L60 : 580×580 (+/-2)
W30Ll20: 280xl 180 ( +/-2)

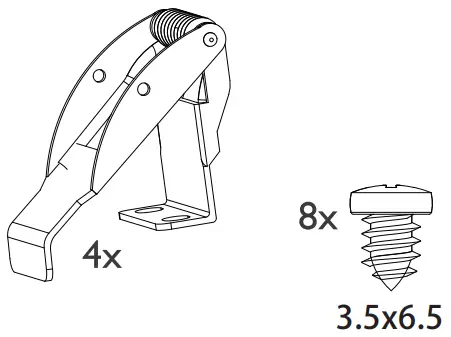

These 4 clips are not included in the package, could be ordered by separate I 2NC.

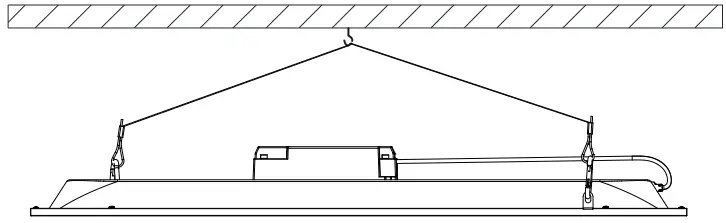

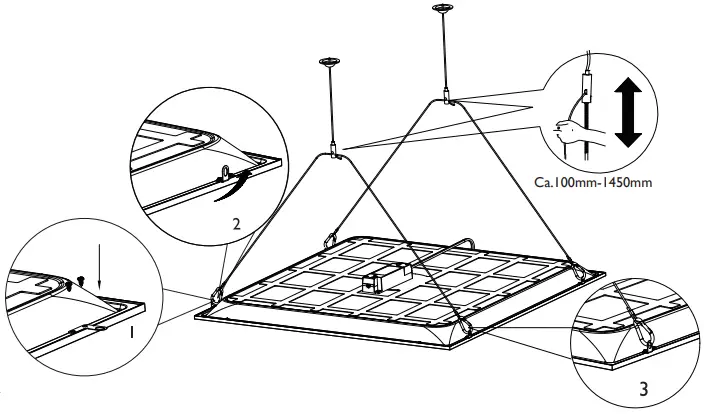

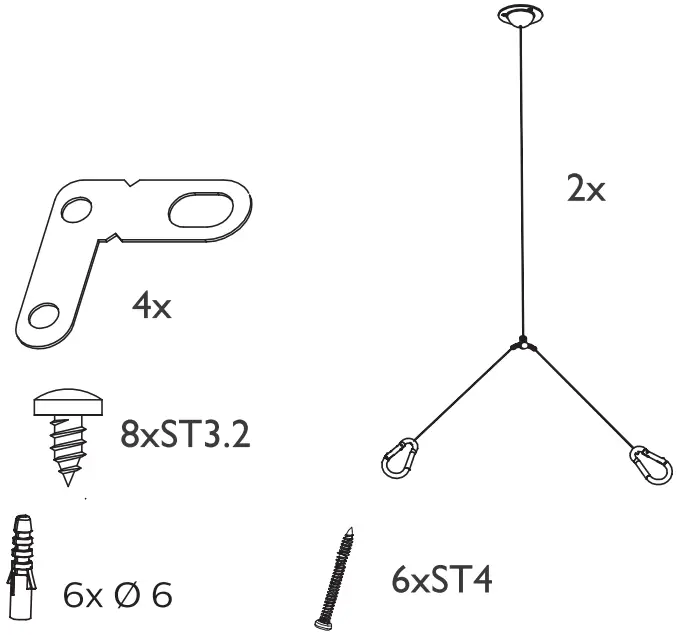

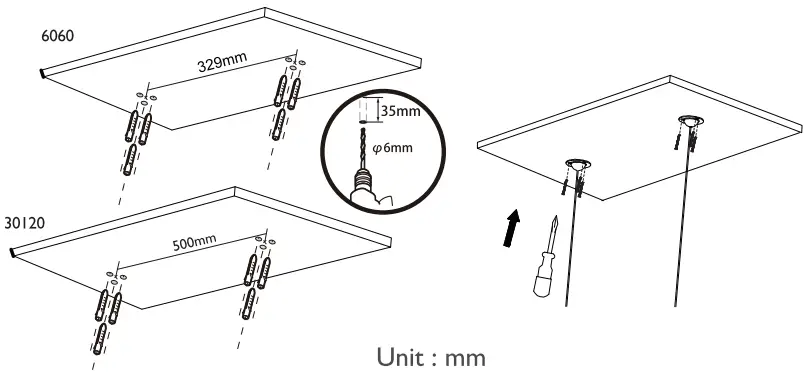

Suspension Mounting (SUS)

The suspension wires are not included in package, could be ordered by separate I 2NC.

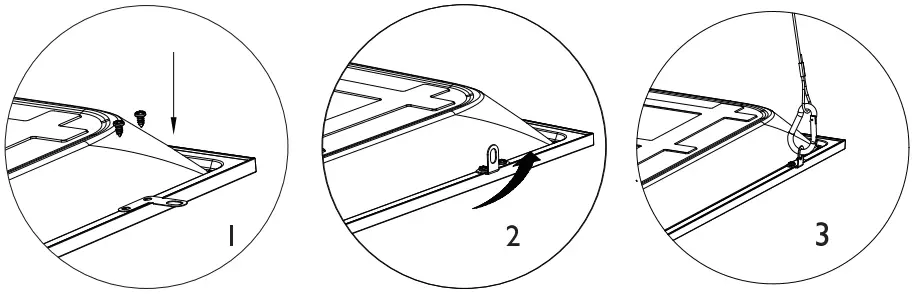

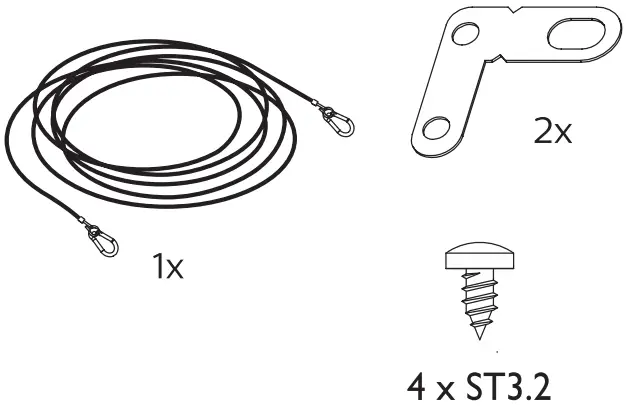

Safety cable

The product should install safety cable (Safety cable is not included. ) could be ordered by separate I 2NC.

Please read this manual carefully before using the product.

1. For indoor use only.
2. Do not switch on before completing the installation.
3. The luminaire shall be installed by a qualified electrician and wired in accordance with the latest IEE electrical regulations or the national requirements.
4. If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
5. The luminaire shall not be covered with thermal insulation or similar material under any circumstance.
6. The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
7. The luminaire is complied with IEC 60598.
8. The corrosive atmosphere or hazardous materials such as sulfur, chlorine, phthalate, etc. must be avoided during the use and storage.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
