SmartBright Dimmable Spot
RS051B
Instruction Manual

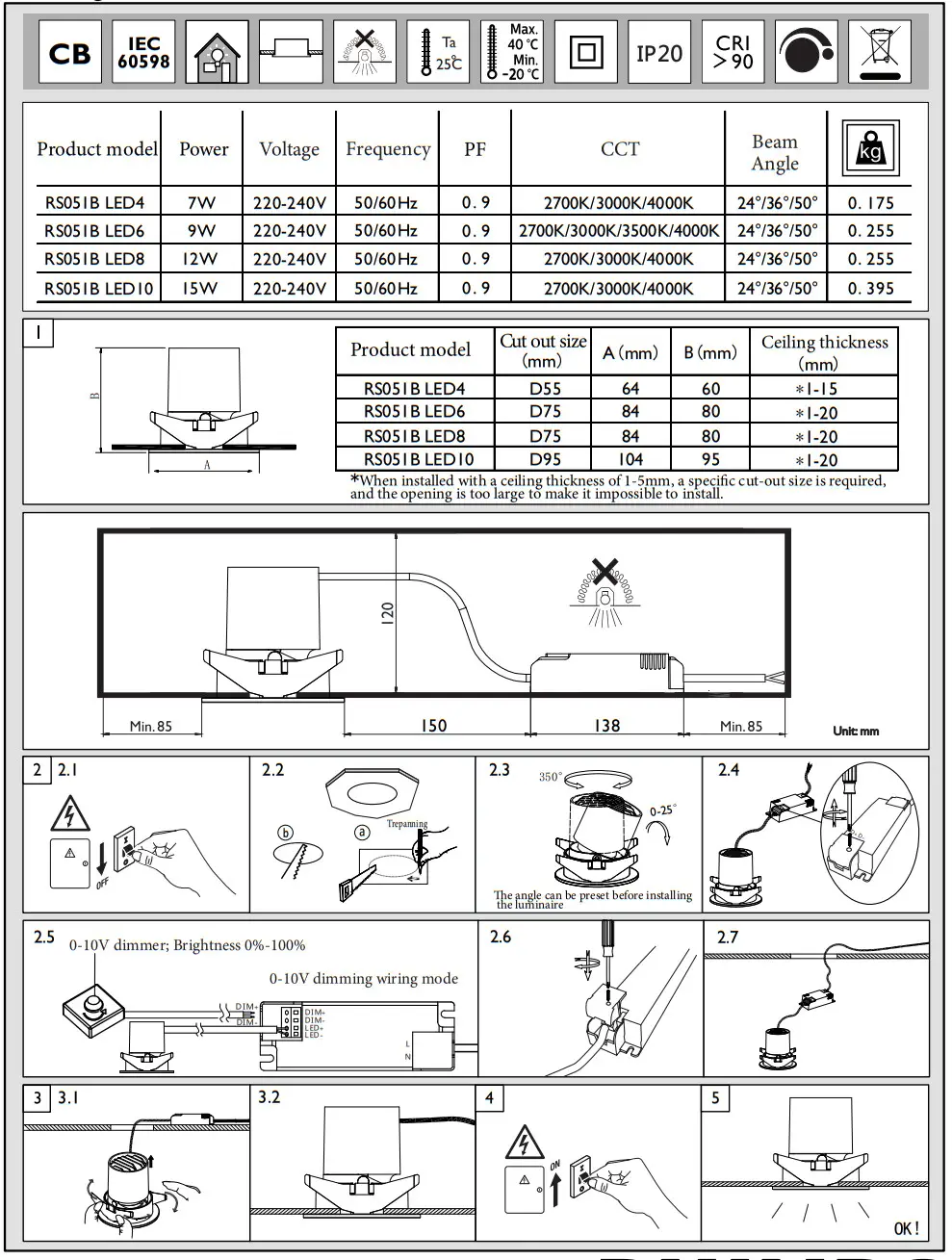

Mounting Instruction

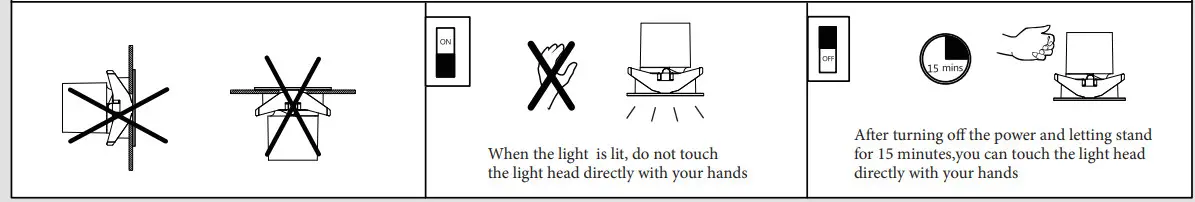

Please do not use the following methods to install luminaires
| Product name | Power (TO | Operating current (A) (@220V) | Inrush current (A) | Inrush current duration T(@50% of Ipeak) (ps) | Leakage current (mA) | The I6A Type B miniature circuit breaker can be connected to up to the number of luminaires (pa) | The 16A C miniature circuit breaker can connect up to the number of luminaires (pcs) |
| RS051B LED4 | 7W | 0.023 | 4. | 0.512 | 0.7 | 380 | 380 |
| RS051B LED6 | 9W | 0.038 | 4. | 0.496 | 0.7 | 336 | 336 |
| RS05 I B LED8 | 12W | 0.059 | 5. | 0.512 | 0.7 | 216 | 216 |
| RS05 I B LED I 0 | 15W | 0.066 | 6. | 0.52 | 0.7 | 193 | 193 |
- Luminaires should be installed by qualied electricians, and the wiring should comply with IEE electrical standards or national standards.
- This luminaire is not suitable for covering with thermal insulation pads or similar materials.
- Do not energize during wiring.
- The light source and/or control devices in this luminaire may only be replaced by the manufacturer or its service agent or a person of similar qualications.
- Lamps should not be stored and used in corrosive environments or environments containing harmful substances such as suldes, halides, phthalates, etc.
This luminaire is for indoor use only.- The protection level of this product is IP20, can not prevent water ingress, it is strongly recommended to check and evaluate the adaptability of the use environment before installing this product. Once there is water ingress, the product may have electrical failures or safety accidents, and Philips/Signify is not responsible for this warranty.
- Do not hot plug, live operation; do not touch the light source or heated parts, etc.
- The installation position of the luminaire should not be stared at a distance of less than 1.3m for a long time.
- The manufacturer shall not be liable for damage caused by improper use or self-alteration of the product structure.
- If the external cord or cord of this luminaire is damaged, the cord should be replaced by the manufacturer or its service agent or a person with similar qualications to avoid danger.
This luminaire is for indoor use only.| Component Name | Toxic and harmful substances or elements | |||||
| Pb | Hg | Cd | Cr(VI) | PBB | PBDE | |
| LED | O | O | O | O | O | O |
| PCB | X | O | O | O | O | O |
| Housings and other components | O | O | O | O | O | O |
| This form has been prepared in accordance with the provisions of SJ/T 11364. O: Indicates that the content of the hazardous substance in all homogeneous materials of the part is below the limit requirements specindard. X: Indicates that the toxic and harmful substances at least in a homogeneous material of the part exceeds the limit requirements specindard. | ||||||
