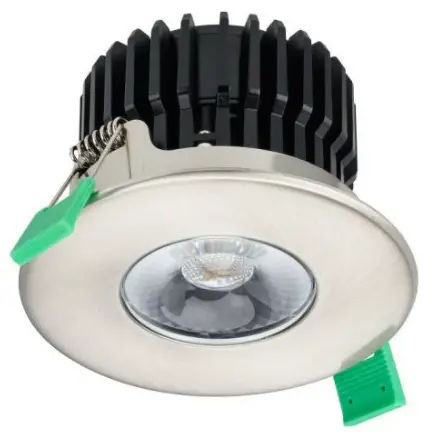

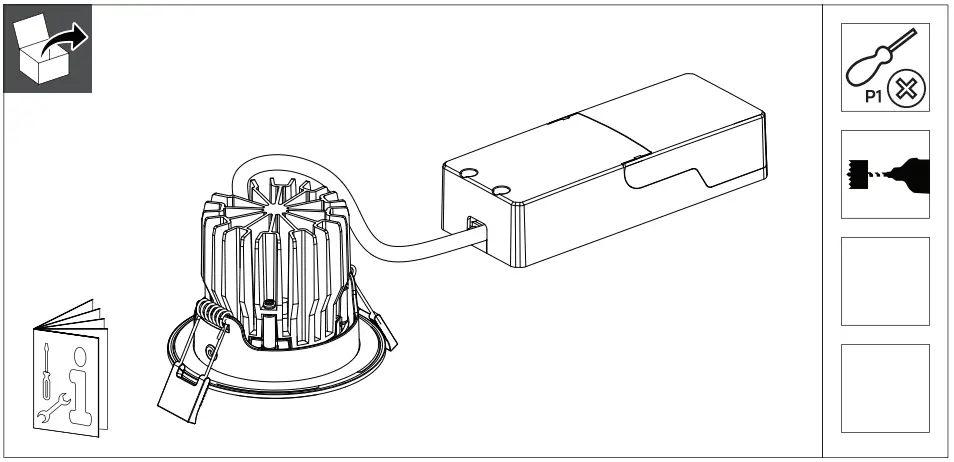

RS155B LED Spot
Instruction Manual

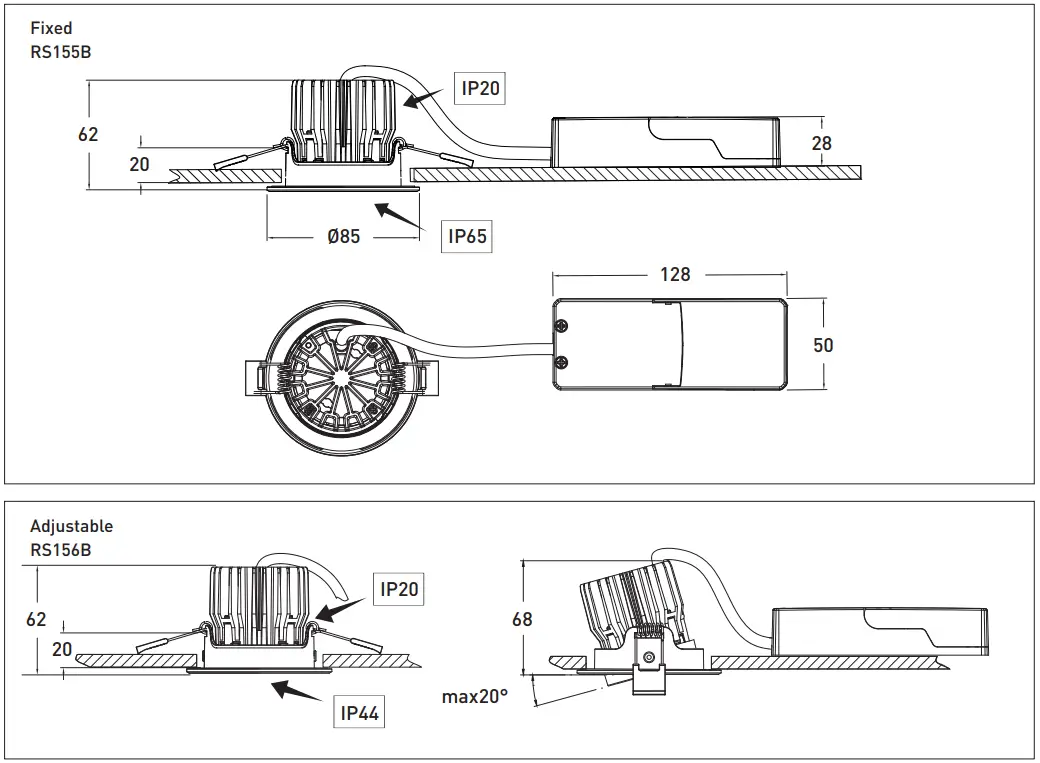

CoreLine Recessed spot gen2
RS155B/RS156B
RS155B LED Spot
| System lumen(lm) | light source of energy efficiency class | P(W) |  |  | ||
| RS155B LED6-WB-PSR | Round fixed | 720 | E | 7.2 | 68 | 0.286 |
| RS156B LED6-WB-PSR | Round adjustable | 0.295 | ||||
| RS155B LED9-WB-PSR | Round fixed | 1000 | E | 10.2 | 68 | 0.286 |
| RS156B LED9-WB-PSR | Round adjustable | 0.295 | ||||
| RS155B LED12-WB-PSR | Round fixed | 1300 | E | 12.3 | 68 | 0.29 |
| RS156B LED12-WB-PSR | Round adjustable | 0.3 |

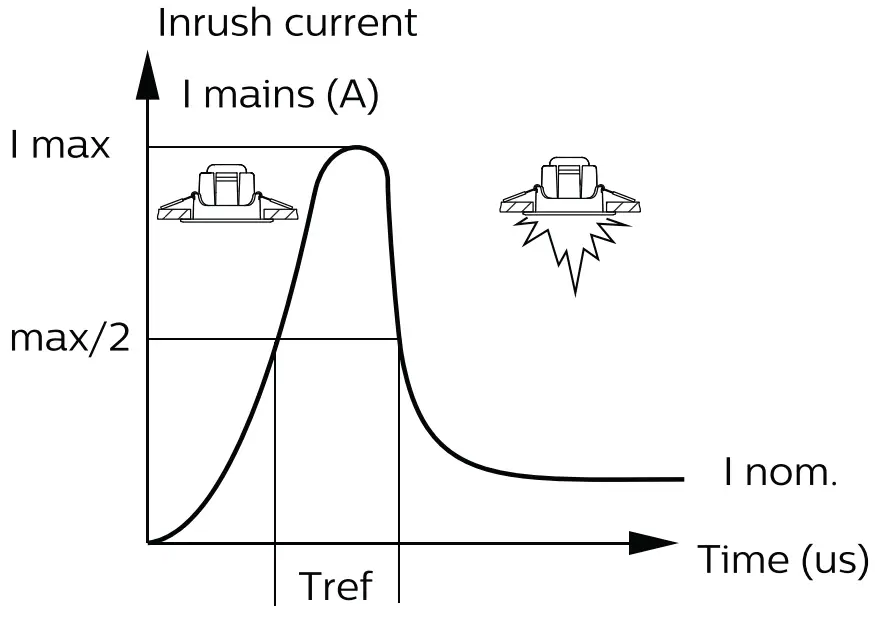

| LED-6 LED-9 | Electrical characteristics |
| Imax (A) | 2 |
| Tref (ps) | 20 |
| MCB | Downlights Max. |
| B-10 A | 25 |
| B-13 A | 32 |
| B-16 A | 40 |
| C-10 A | 40 |
| C-13 A | 54 |
| C-16 A | 68 |
| LED-12 | Electrical characteristics |
| Imax (A) | 7 |
| Tref (ps) | 300 |
| MCB | Downlights Max. |
| B-10 A | 25 |
| B-13 A | 32 |
| B-16 A | 40 |
| C-10 A | 40 |
| C-13 A | 54 |
| C-16 A | 68 |

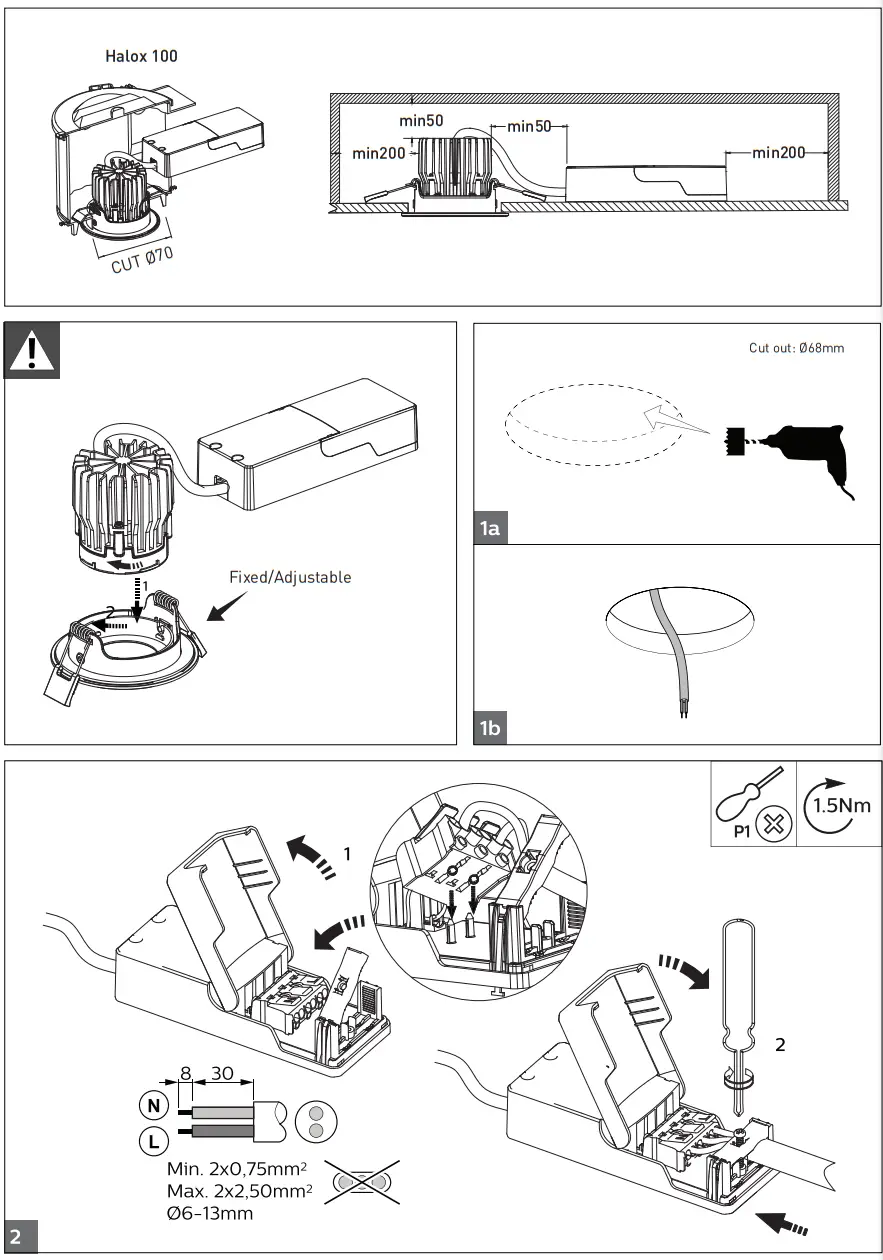

– The luminaire shall be installed by a qualified electrician and wired in accordance with the latest IEE electrical regulations or the national requirements.

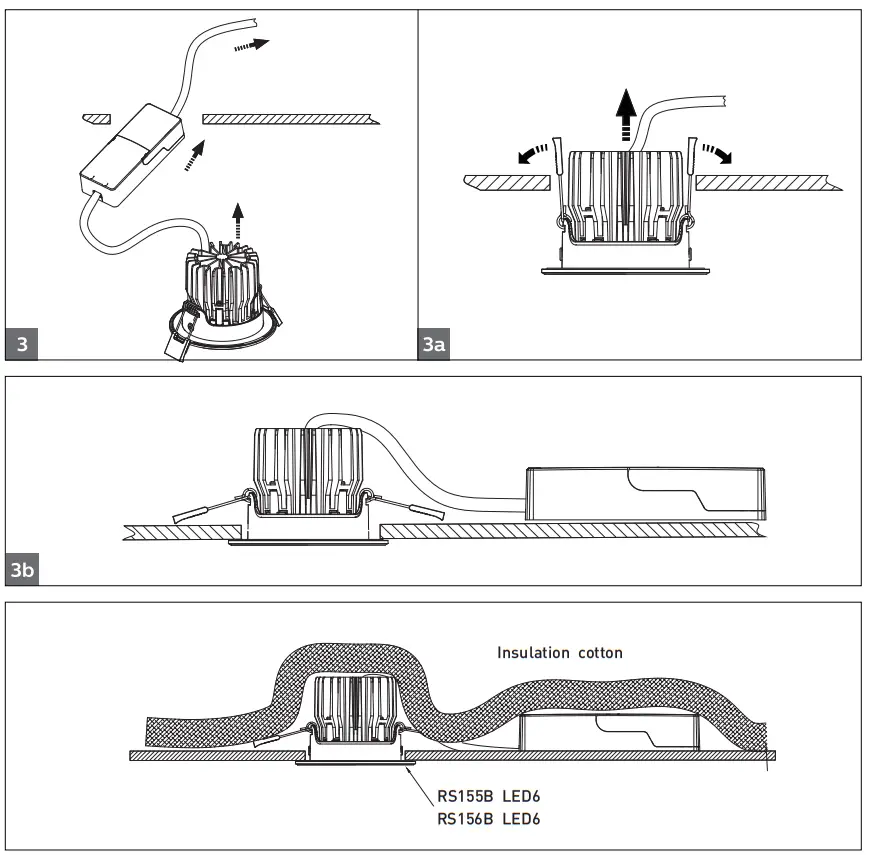

– Only to be installed outside arms reach as recessed ceiling luminaire.
– For complete and updated list of advised dimmers, please check the CoreLine Recessed Spot RS155 page on the Philips Lighting eCatalog: http://www.ecatlighting.philips.com
– The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
This product contains a light source of energy efficiency class: see table or label.
The light source and/or control gear and/or the external flexible cable contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
