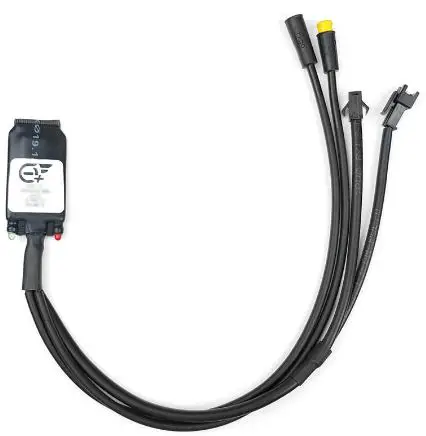

ANANDA Speed Sensor Instruction
The content of this information is subject to change without notice
INSTALLATION
- Check the harness for damage and the connector for loosening or falling.
- Check whether the speed measuring magnet is loose on the spokes.

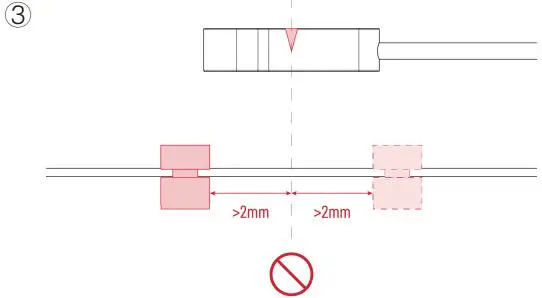

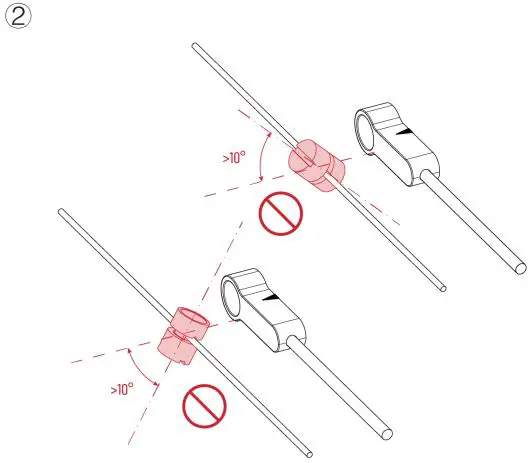

- Check whether the speed measuring magnet is aligned with the “△”mark of the speed sensor.

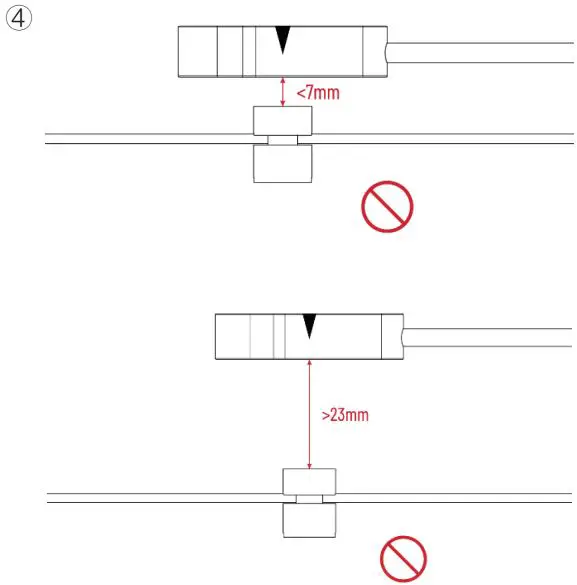

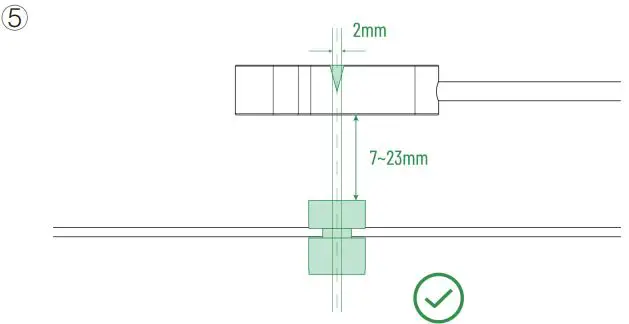

- Check whether the distance between the speed measuring magnet and speed sensor is 7-23mm.
- Adjust the speed measuring magnet to meet the above inspection requirements.
- If the problem is still not resolved, replace the speed sensor.
Ananda Drive Techniques Co., Ltd.
