RE 5 SPEED CONTROL
Item no. 5002
Document type: Product card
Document date: 2019-06-25
Generated by: Systemair Online Catalogue
Description

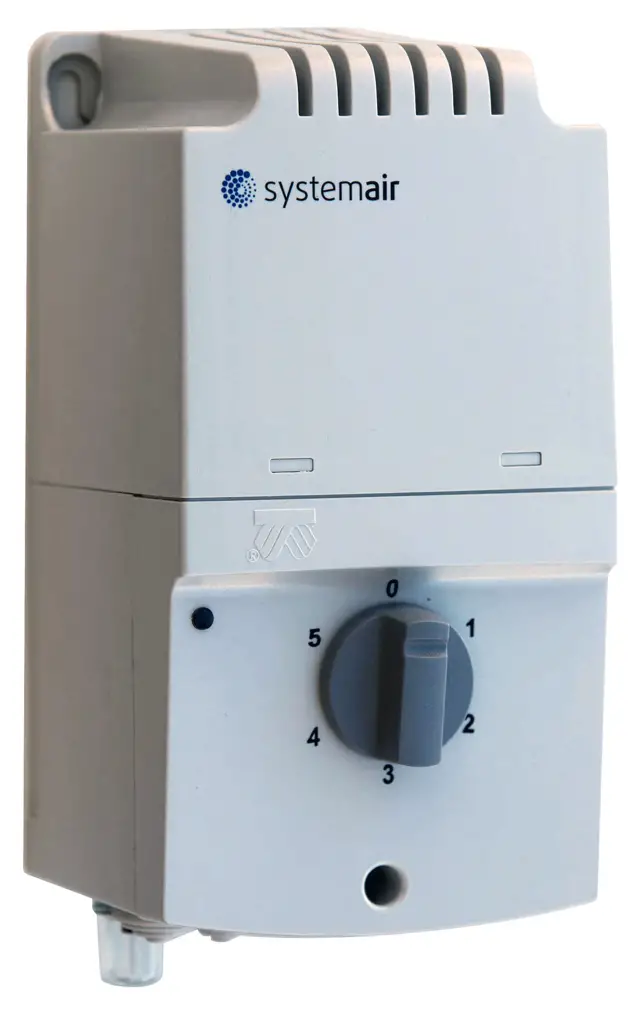

Manual five-step transformer
A single-phase transformer which controls the fan speed by altering the supply voltage in five fixed steps. The steps are adjusted manually, using the control knob on the front of the unit. The transformer has 230V terminals for operating dampers, electric heater batteries or other external equipment. When the transformer knob is in position 0, the outlet has no current. The indicator lamp on the front shows that the transformer is in operation. The fuse may be reset from outside. The RE has a self-extinguishing thermoplastic casing.
NOTE! Fans with external contact leads (TK) must always be connected to a motor protection device.
Document type: Product card Document date: 2019-06-25 Generated by: Systemair Online Catalogue
Technical parameters
| Default group | ||
| Voltage | 230 | V |
| Phase | 1 | ~ |
| Frequency | 50/60 | Hz |
| Current | 5 | A |
| Enclosure class | IP54 | |
| Dimension | ||
| Width | 105 | mm |
| Depth | 105 | mm |
| Height | 200 | mm |
| Weight | 3,4 | kg |

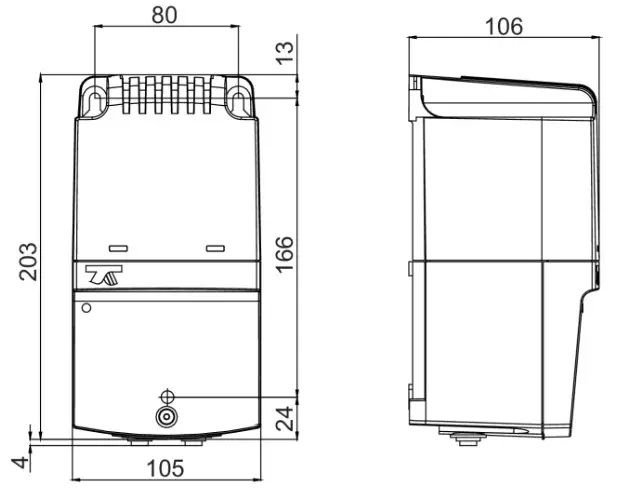

Dimensions
Documentation
RE RTRE REU_ IMO_ GB.pdf (245,21kB) Declaration Of Conformity_RE_REU_RTRE_EN-2017.pdf (26,64kB)

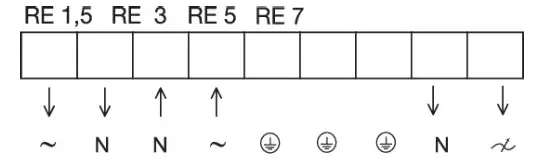

Wiring
| Transmission | Supply voltage | Earth | Fan |
Transmission: between ~ and N is always 230V when the transformer handle is in pos. 1-5
Name: RE 5 SPEED CONTROL | Item no.: 5002
Document type: Product card | Document date: 2019-06-25 | Generated by: Online catalogue
