Philips Rs155z Coreline Recessed Spot Led Gen2 User Manual

Core Line Recessed Spot gen2
RS155Z

	System lumen (Lm)	light source of energy efficiency class	P (w)
RS155Z MODULE LED6-WB-/827 D68 PSR	720	E	7.2	0.24
RS155Z MODULE LED6-WB-/830 D68 PSR	750
RS155Z MODULE LED6-WB-/840 D68 PSR	800
RS155Z MODULE LED9-WB-/830 D68 PSR	1000	E	10.2	0.24
RS155Z MODULE LED9-WB-/840 D68 PSR	1080

Electrical characteristics

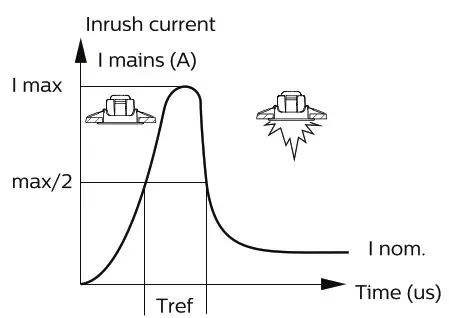

Imax (A) 2 Tref (ps) 20 MCB Downlights Max. B-10 A 25 B-13 A 32 B-16 A 40 C-10 A 40 C-13 A 54 C-16 A 68

• The luminaire shall be installed by a qualified electrician and wired in accordance with the latest IEE electrical regulations or the national requirements. • Only to be installed outside arms reach as recessed ceiling luminaire. • For complete and updated list of advised dimmers, please check the CoreLine Recessed Spot RS155 page on the Philips Lighting eCatalog: http://www.ecat.lighting.philips.com • The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person. • Reinforce insulation between LV and accessible part(working voltage:250V)

This product contains a light source of energy efficiency class: see table or label.
The light source and/or control gear and/or the external flexible cable contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.

© 2022 Signify Holding. All rights reserved

Data subject to change without notice
Keep for future reference: https://www.lighting.philips.com/
