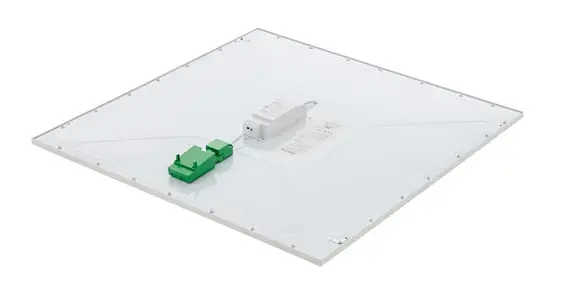

PHILIPS RC132V LED CoreLine Panel

© 2022 Signify Holding.
All rights reserved. This document contains information relating to the product portfolio of Signify which information may be subject to change. No representation or warranty as to the accuracy or completeness of the information included herein is given and any liability for any action in reliance thereon is disclaimed. The information presented in this document is not intended as any commercial ofer and does not form part of any quotation or contract. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V.. All other trademarks are owned by Signify Holding or their respective owners.
Signify Holding.
The Netherlands

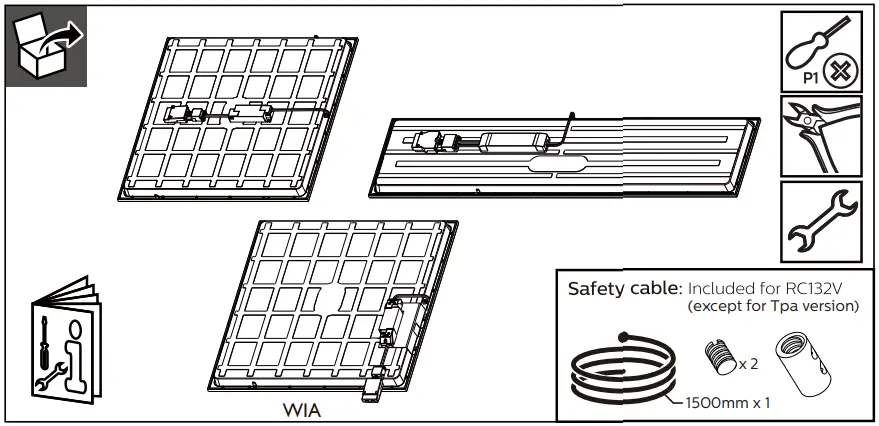

WHAT’S IN THE BOX

INSTRUCTIONS

FEATURES

DIMENSIONS

Available as accessory

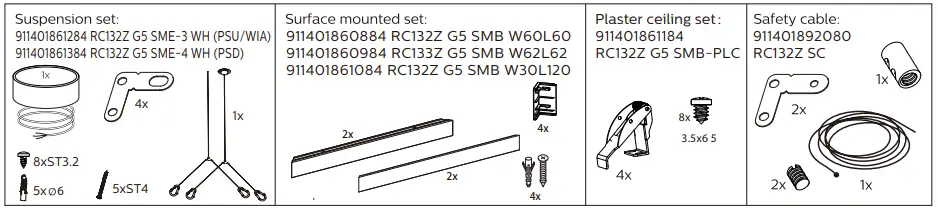

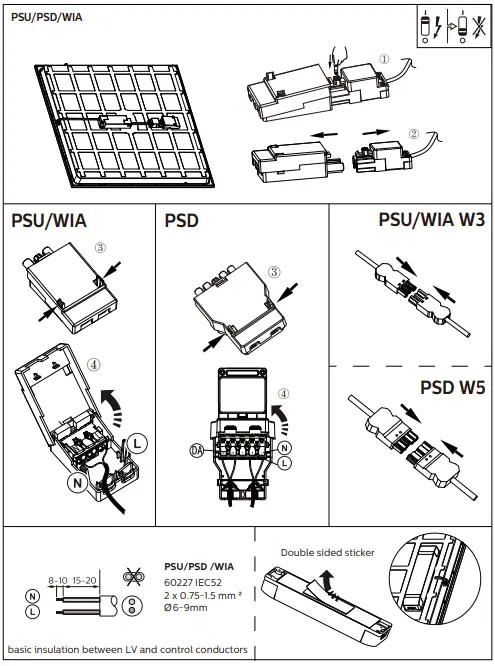

Quick-connectors

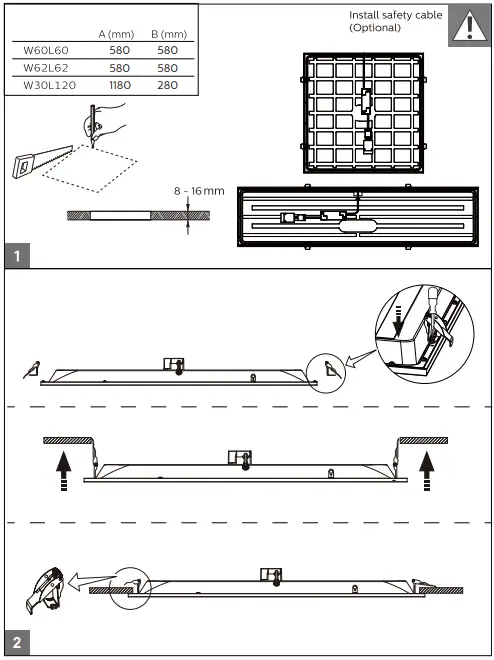

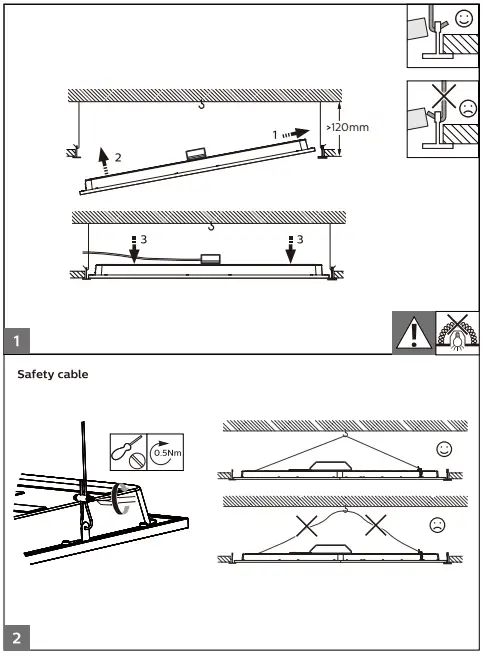

VPC Visible Profile Ceiling/ Lay-In mounting

PCV plaster ceiling version

Optional with 911401861184 RC132Z G5 SMB-PLC

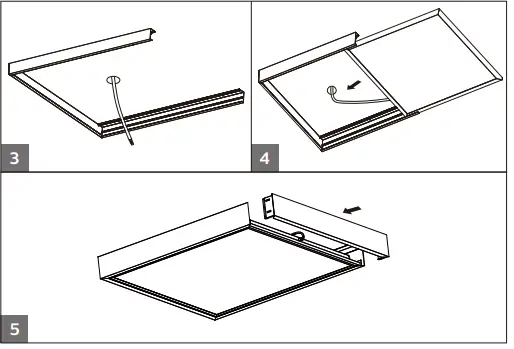

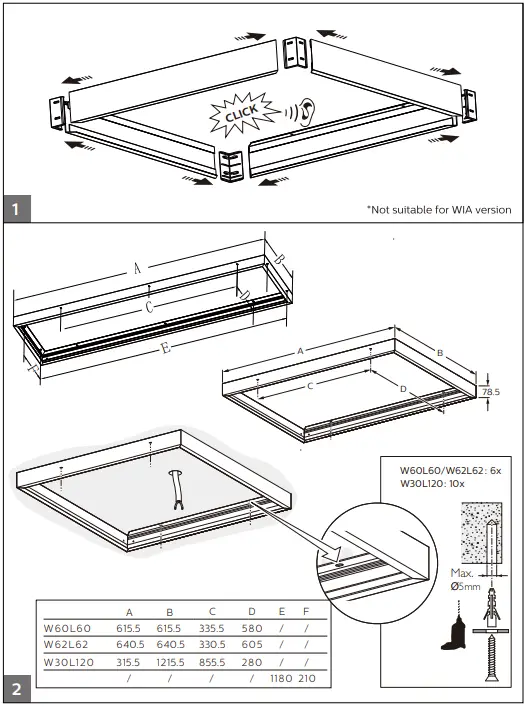

Surface mounted

Optional with 911401860884 RC132Z G5 SMB W60L60, 911401860984 RC133Z G5 SMB w62L62/911401861084 RC132Z G5 SMB W3OL120

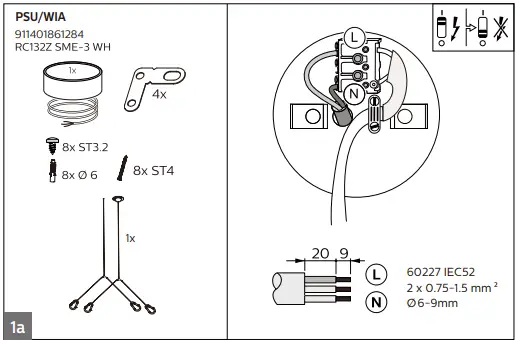

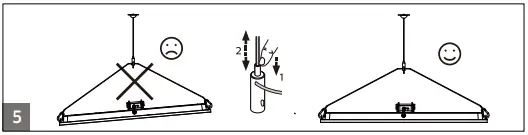

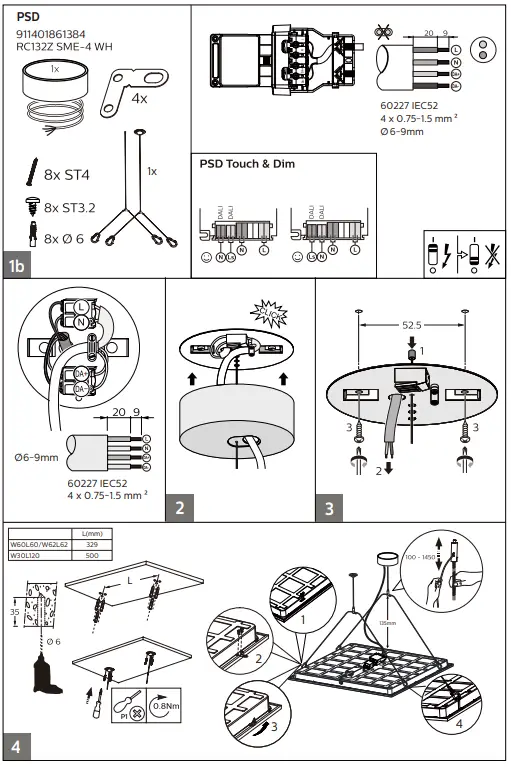

Suspension

Optional with 911401861284 RC132Z G5 SME-3 WH(PSU/WIA), 911401861384 RC132Z G5 SME-4 WH(PSD)

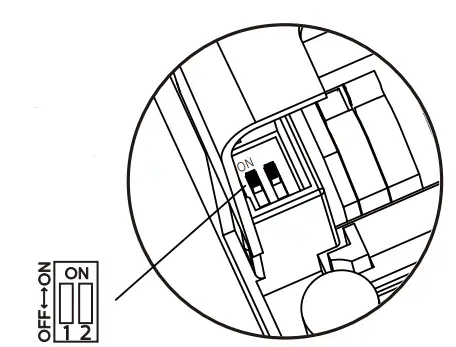

Multi Lumen

This product contains a light source of energy efficiency class: D,E. The light source and/or control gear and/or the external flexible cable contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.

IMPORTANT

• The luminaire shall be installed by a qualified electrician and wired in accordance with the latest IEE electrical regulations or the national requirements.
• The light source contained in this luminaire shall only be real similar qualified person.
• During installation or maintaining the luminaire please use gloves to avoid spots on the cover.
• To remove dirt and spots use the following:
  • Dust: use microfiber cloths only.
  • Fingerprints, etc.: use a cleaner for synthetic materials with antistatic properties.
• Luminaires not suitable for covering with thermally insulating
• For controllable luminaires,the classification of insulation between LV supply and control conductors shall be basic insulation at least.
• Luminaire must not be used or stored in corrosive environment w Chlorine, Phthalates, etc, are present.
• Luminaire not suitable for central emergency aced by the manufacturer or his service agent or a material.

DISCONNECT BEFORE SERVING

• Luminaire has basic insulation between Low Voltage supply and control conductors
• Storage, installation, use, operation and maintenance of the products needs to be performed exactly according the instructions in this manual andior other instructions as
  may be provided by us to guarantee safe use of the product over its entire lifetime. Failure to adhere to these instructions wil invalidate your entitlement to warranty. Bolts
  with indication of torque strength on the drawing need to be tightened using a calibrated torque wrench. Pre-assembled bolts need to be retightened again to the required torque specification to assure maximum strength over lifetime.
• SR compatibility – For SR-based luminaires, only SR-Certified components/sensors are to be used (see also: http://www.lghting.philips.co.ukloem-emea/products/driving-connected-lighting). Ihe functional compatibility of two (SR-certified) components/sensors to De used in combination, as well as the override possibility of any line-sWitch function used in an SR-based luminaire, is to be released by the master component/sensor supplier. If using a NEMA 7-pin socket on an SR-based luminaire, a full system verification is required. Not following this advice civil cause risk of damage and non-compliance for which Sianify cannot take any responsibility.
