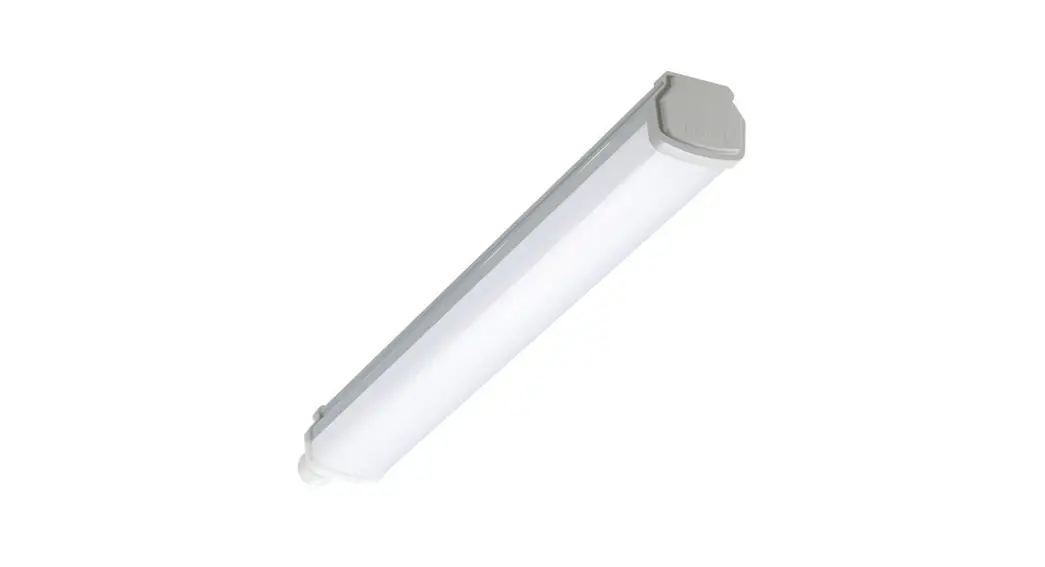

BN126C LED CoreLine Batten
Instruction Manual

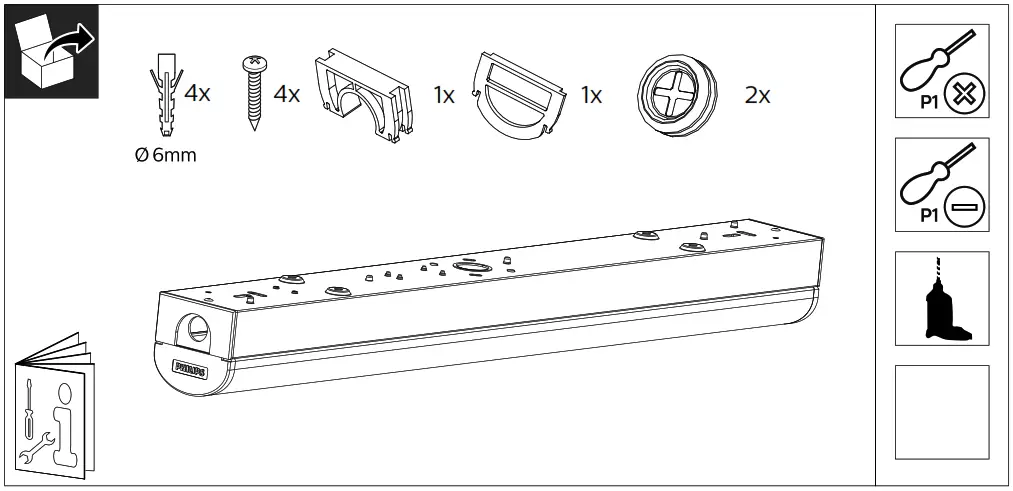

BN126C LED CoreLine Batten

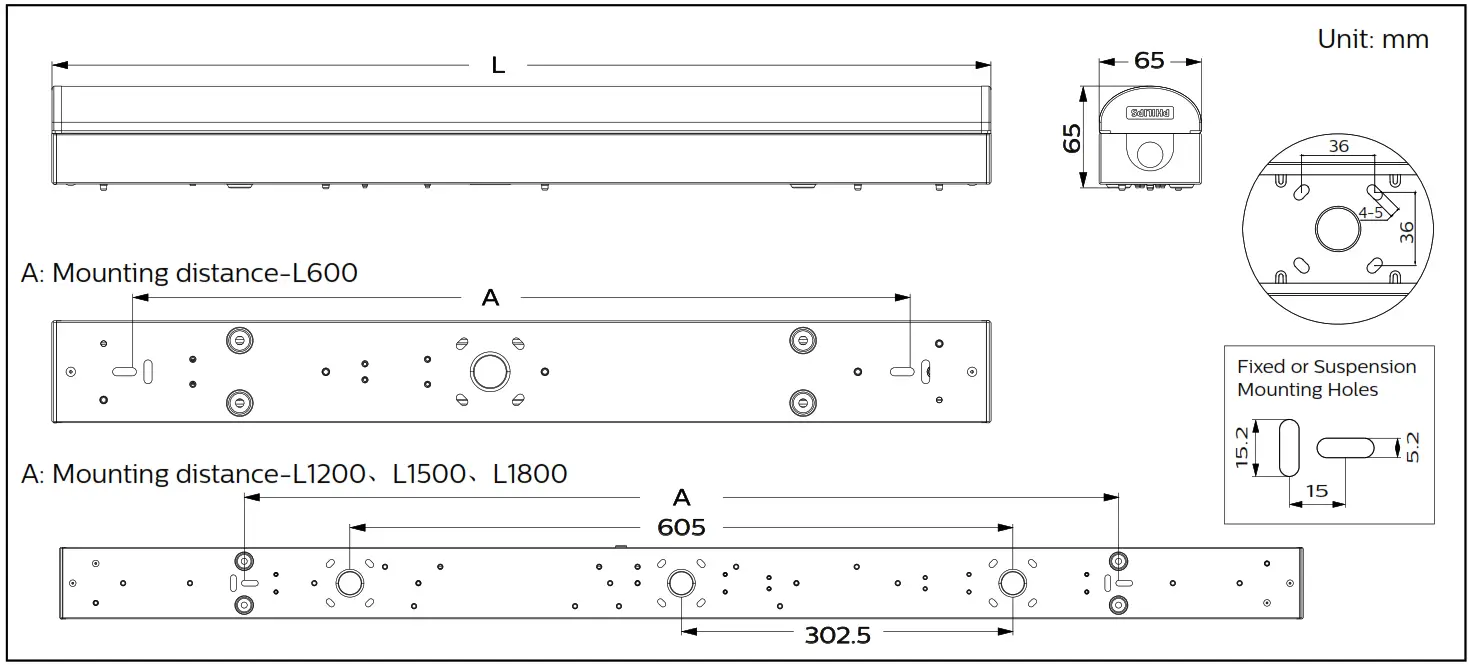

| Type Type | Energy efficiency class | P (W) | A (mm) | L (mm) |  |
| BN126C LED22S/840 PSU L600 | D | 17 | 497 | 600 | 0.62 |
| BN126C LED20S/830 PSU L600 | D | 17 | 497 | 600 | 0.62 |
| BN126C LED25S/840 PSU L1200 | D | 18 | 798 | 1135 | 1.01 |
| BN126C LED23S/830 PSU L1200 | D | 18 | 798 | 1135 | 1.01 |
| BN126C LED41S/840 PSU L1200 | D | 31 | 798 | 1135 | 1.01 |
| BN126C LED38S/830 PSU L1200 | D | 31 | 798 | 1135 | 1.01 |
| BN126C LED64S/840 PSU L1200 | D | 49 | 798 | 1135 | 1.01 |
| BN126C LED60S/830 PSU L1200 | D | 49 | 798 | 1135 | 1.01 |
| BN126C LED35S/840 PSU L1500 | D | 25.5 | 798 | 1450 | 1.27 |
| BN126C LED32S/830 PSU L1500 | D | 25.5 | 798 | 1450 | 1.27 |
| BN126C LED52S/840 PSU L1500 | D | 40 | 798 | 1450 | 1.27 |
| BN126C LED48S/830 PSU L1500 | D | 40 | 798 | 1450 | 1.27 |
| BN126C LED80S/840 PSU L1500 | D | 59 | 798 | 1450 | 1.27 |
| BN126C LED74S/830 PSU L1500 | D | 59 | 798 | 1450 | 1.27 |
| BN126C LED64S/840 PSU L1800 | D | 49 | 798 | 1750 | 1.53 |
| BN126C LED60S/830 PSU L1800 | D | 49 | 798 | 1750 | 1.53 |
| BN126C LED100S/840 PSU L1800 | D | 75 | 798 | 1750 | 1.53 |
| BN126C LED94S/830 PSU L1800 | D | 75 | 798 | 1750 | 1.53 |
- The luminaire shall be installed by a qualified electrican and wired in accordance with the latest IEE electrical regulations or the national requirements.
- The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
- Luminaire must not be used or stored in corrosive environment where hazardous materials such as sulphur,chlorine, phthalates,etc,are present.
- This luminaire is not suitable for use as emergency lighting.
- Water entering into IP20 luminaire is strictly prohibited. IP20 luminaire is not protected against wet condition, water ingress may cause electrical failure or unsafe conditions.
- Luminaire is rated at IP40 from the front (part 1) and IP20 for a complete housing (part 2).
ATTENTION OBSERVE PRECAUTIONS FOR HANDLING ELECTROSTATIC SENSITIVE DEVICES
Luminaire opening

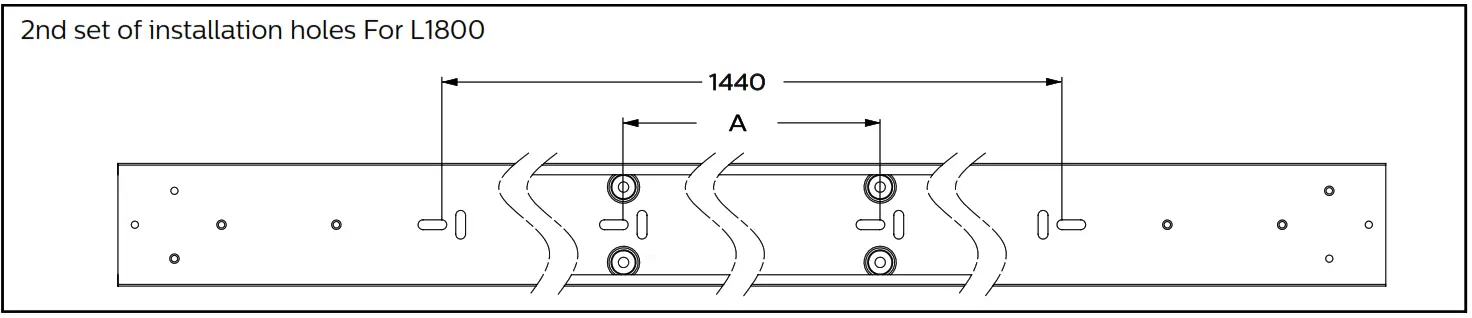

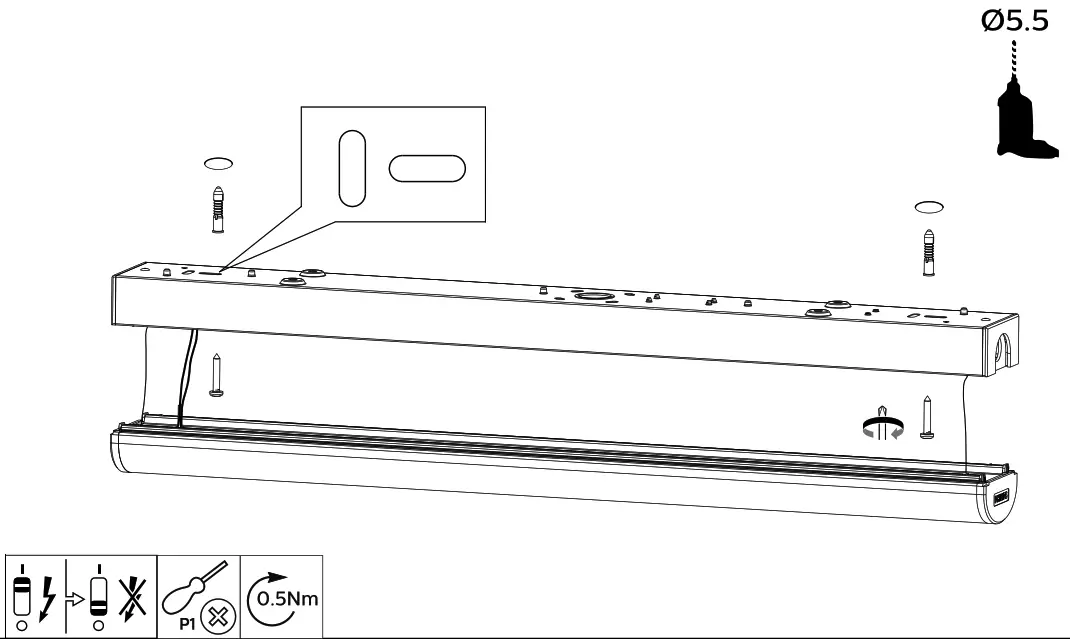

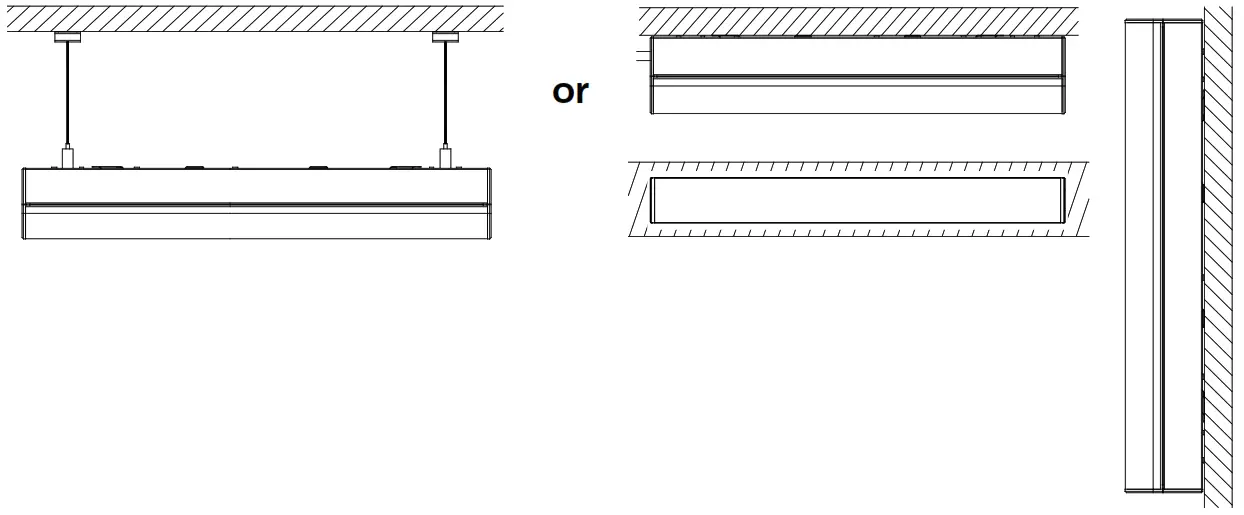

2.1: Surface Mounted
2.2: Suspend Mounted

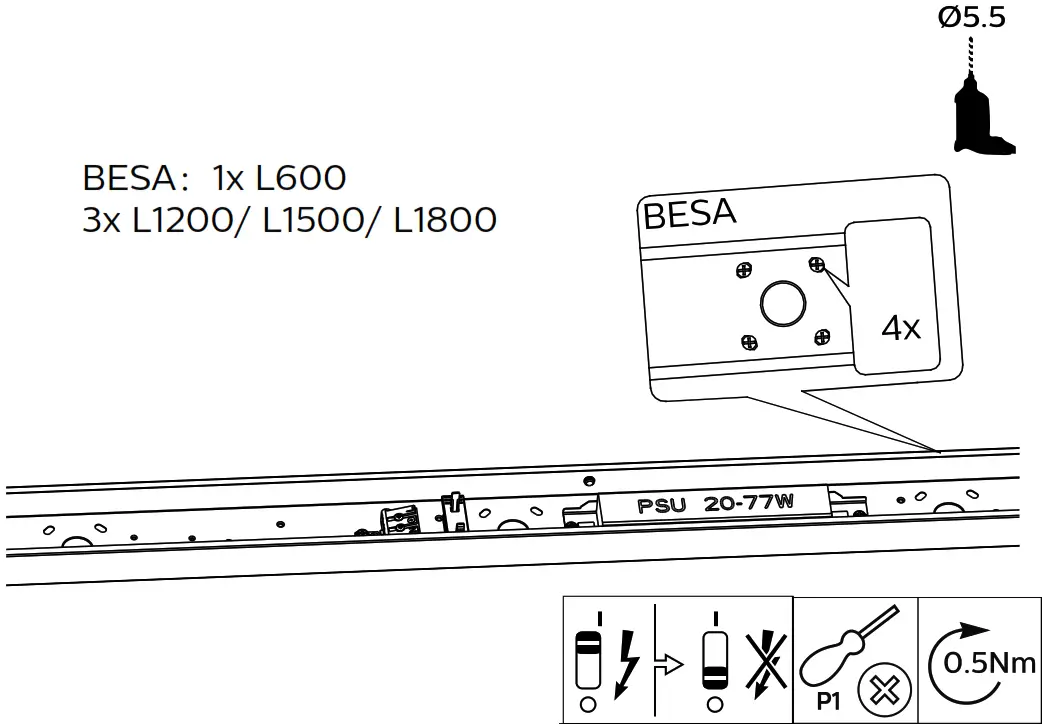

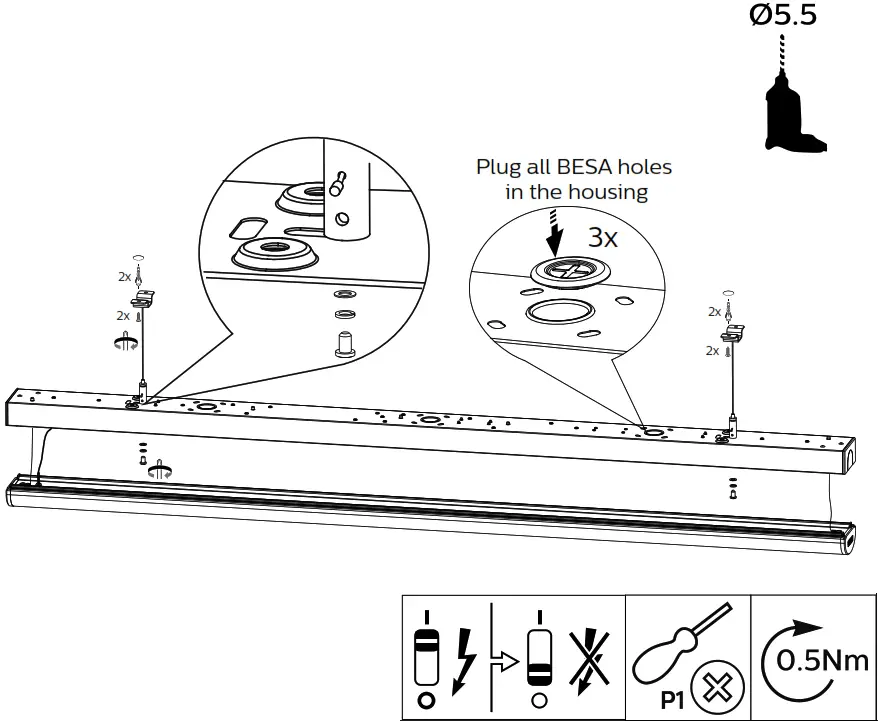

2.3: Mounted on a BESA

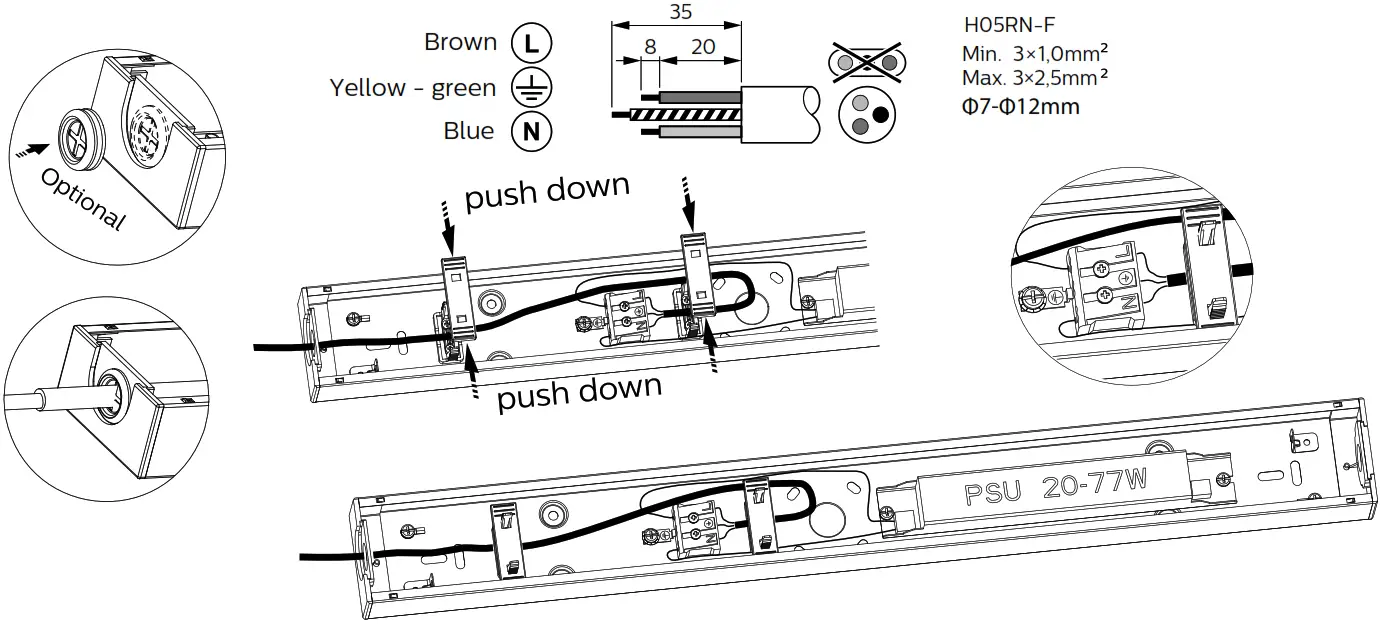

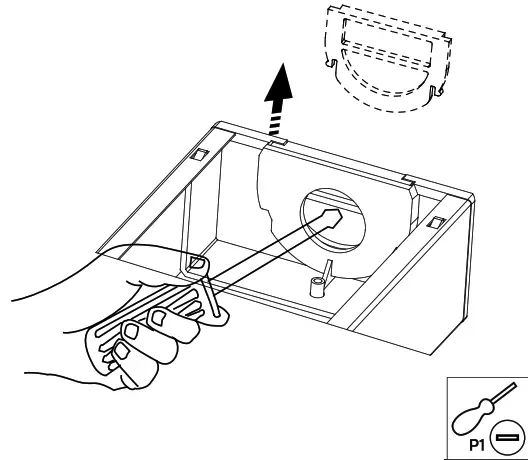

Wiring from end hole (side)
3.1: Wiring from back entry

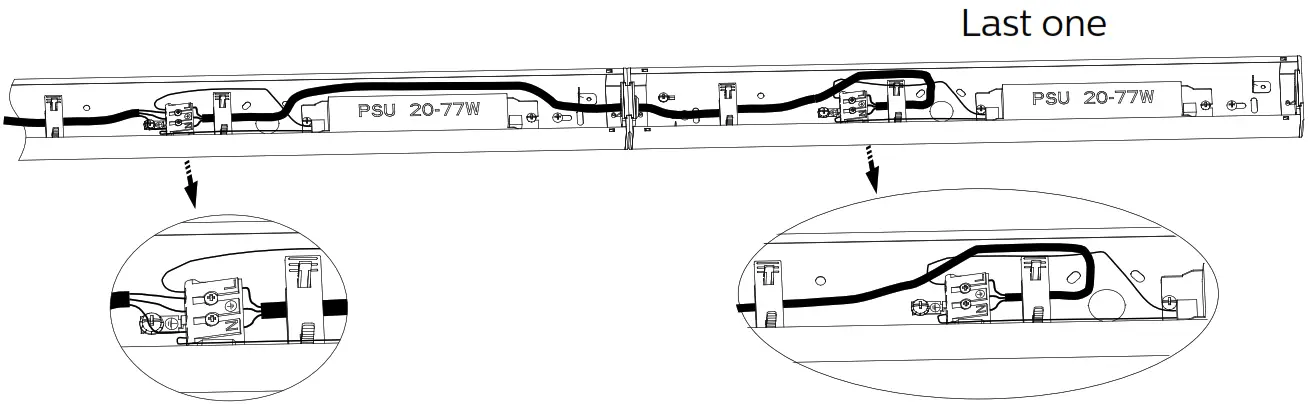

TW/ Loop in/Light-line creation (Optional)

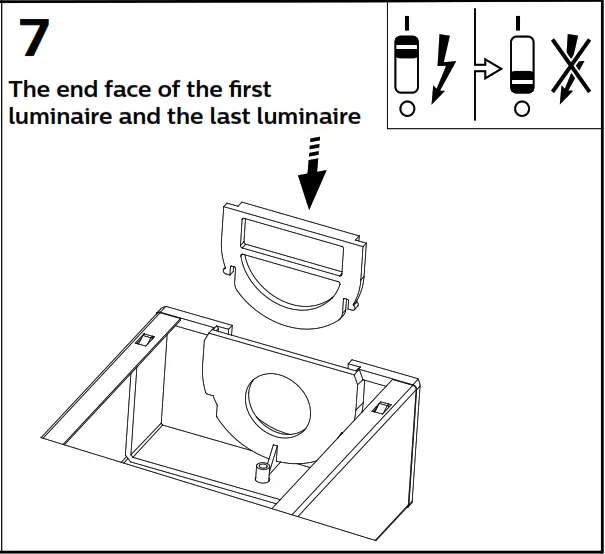

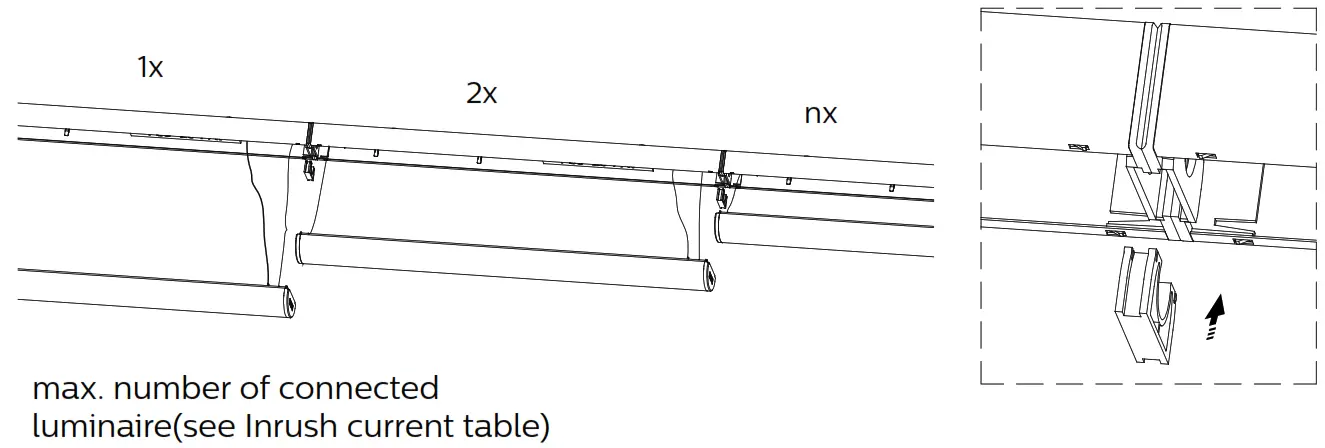

Light-line creation (Optional)

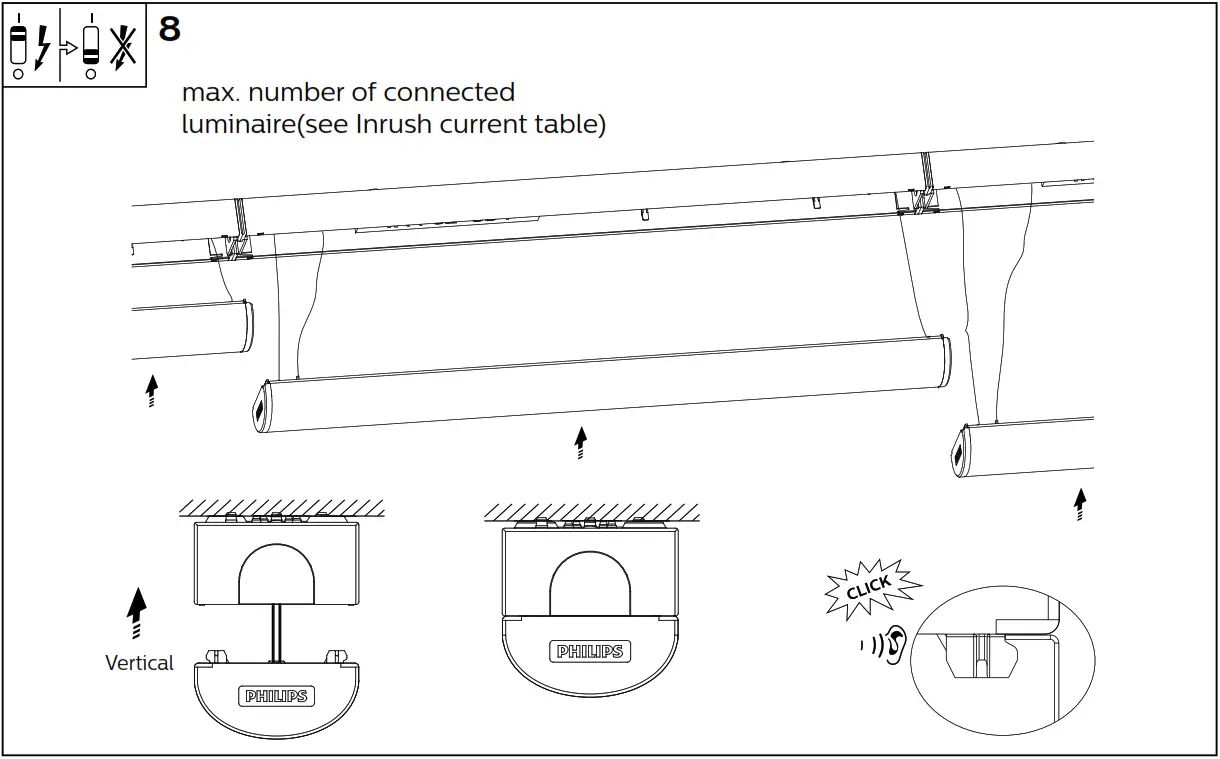

TW/Loop in/Light-line creation (Optional)
The power cord is not included in the luminaire

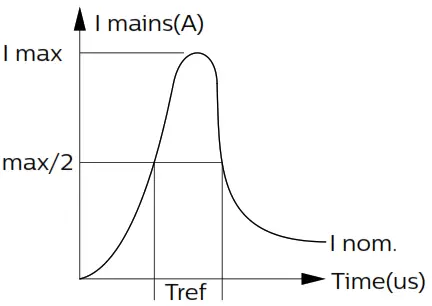

Inrush current
| L600 | L1200 | L1500 | L1800 | ||||||
| LED22S LED2OS | LED25S LED23S | LED41S LED385 | LED64S LED6OS | LED35S LED32S | LED52S LED48S | LED8OS LED74S | LED64S LED6OS | ||
| Electrical characteristics | |||||||||
| Horn (mA) | 78 | 80 | 140 | 220 | 115 | 180 | 260 | 220 | 330 |
| I max (A) | 8. | 8. | 11.6 | 14.4 | 10 | 10.6 | 15.7 | 15.7 | 17.6 |
| Tref (ps) | 345 | 332 | 499 | 579 | 508 | 527 | 678 | 648 | 832 |
| MCB | Lumunaire Max | ||||||||
| B-10 A | 19 | 19 | 11 | 8 | 12 | 11 | 6 | 6 | 5 |
| B-16 A | 25 | 25 | 13 | 9 | 16 | 13 | 8 | 8 | 7 |
| C-10 A | 24 | 24 | 13 | 10 | 16 | 14 | 8 | 8 | 6 |
| C-16 A | 38 | 38 | 22 | 16 | 25 | 23 | 14 | 14 | 11 |

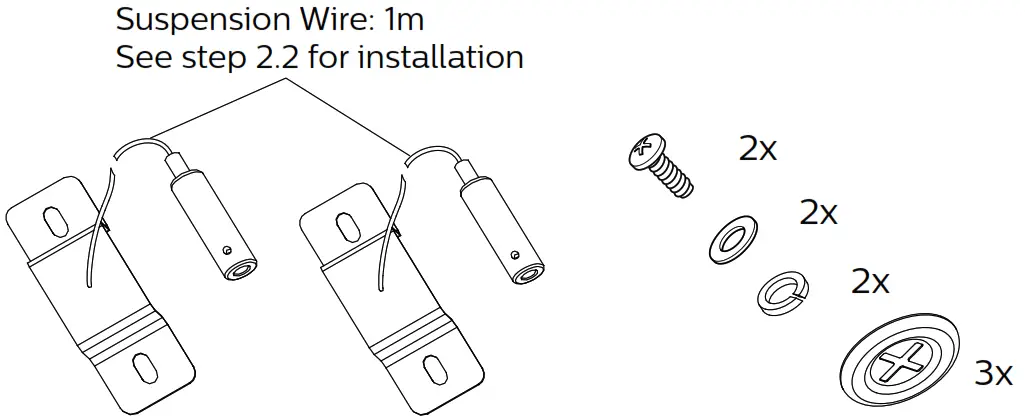

Optional
Installation Mode: 911401776802
12NC: BN126Z SC
Description: Short EOC
Suspension: 36574999
Signify Holding.
All rights reserved. This document contains information relating to the product portfolio of Signify which information may be subject to change. No representation or warranty as to the accuracy or completeness of the information included herein is given and any liability for any action in reliance thereon is disclaimed. The information presented in this document is not intended as any commercial offer and does not form part of any quotation or contract.Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V.. All other trademarks are owned by Signify Holding or their respective owners.
Signify Holding.
The Netherlands
© 08/2022 Signify Holding. All rights reserved
Printed in China Data subject to change without notice
Keep for future reference:
www.philips.com/lighting
