LEDVANCE 4058075266476 LED Power Batten
Product Information

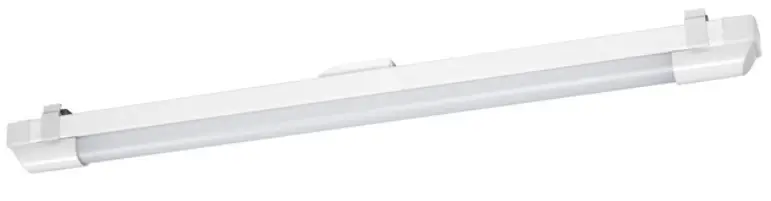

LED Power Batten
The LED Power Batten is a lighting fixture that comes in different models based on size and wattage. It is available in the following models:
- LED Power Batten 0.6 12 W 830
- LED Power Batten 0.6 12 W 840
- LED Power Batten 0.6 25 W 830
- LED Power Batten 0.6 25 W 840
- LED Power Batten 1.2 25 W 830
- LED Power Batten 1.2 25 W 840
- LED Power Batten 1.2 50 W 830
- LED Power Batten 1.2 50 W 840
The product has different features based on the model, such as light output, color temperature, and weight. It is designed to operate within a specific voltage range and frequency.
Product Usage Instructions
Before using the LED Power Batten, ensure that you have the appropriate model for your needs and that it is compatible with your power supply.

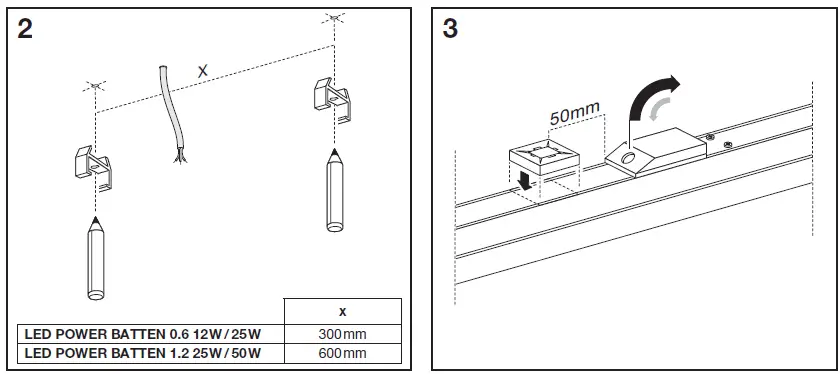

To install the LED Power Batten, follow these steps:
- Choose a location to install the fixture that is suitable for its size and wattage.
- Mount the fixture onto a surface using the provided screws and brackets.

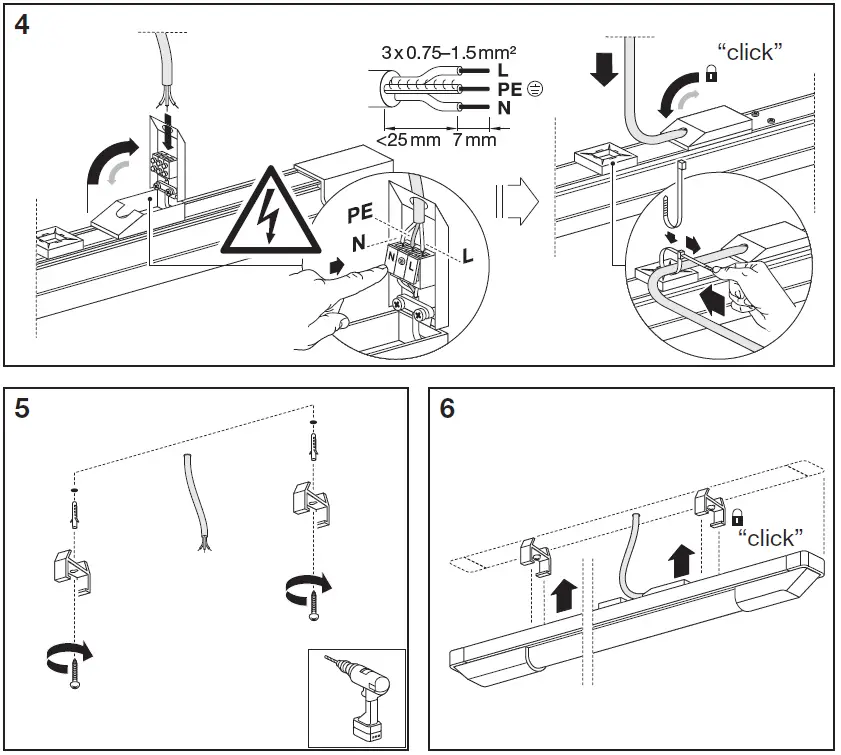

- Connect the fixture to a compatible power supply using the provided wiring diagram.

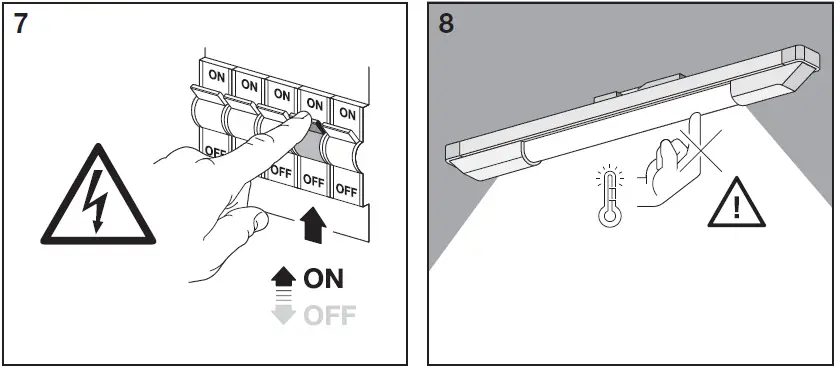

- Switch on the power supply to activate the fixture.
To maintain the LED Power Batten, follow these recommendations:
- Regularly clean the fixture with a soft, dry cloth to remove dust and debris.
- Avoid exposing the fixture to extreme temperatures or humidity.
- Replace any damaged or worn out parts with genuine replacement parts from the manufacturer.
For any additional information or support, please refer to the product manual or contact the manufacturer’s customer service.
| EAN | W | lm Light Source | lm Output | K |  | V~ | mA | Hz | PF |  |  |  | |
| LED POWER BATTEN 0.6 12 W 830 | 4058075266476 | 12 | 1540 | 1260 | 3000 | -20…+40 | 220- 240 | 110 | 50/60 | >0.5 | 110 | 12500 | 210 g |
| LED POWER BATTEN 0.6 12 W 840 | 4058075266490 | 12 | 1620 | 1320 | 4000 | -20…+40 | 220- 240 | 110 | 50/60 | >0.5 | 110 | 12500 | 210 g |
| LED POWER BATTEN 0.6 25 W 830 | 4058075266513 | 25 | 3220 | 2375 | 3000 | -20…+40 | 220- 240 | 230 | 50/60 | >0.5 | 110 | 12500 | 500 g |
| LED POWER BATTEN 0.6 25 W 840 | 4058075266537 | 25 | 3380 | 2500 | 4000 | -20…+40 | 220- 240 | 230 | 50/60 | >0.5 | 110 | 12500 | 500 g |
| LED POWER BATTEN 1.2 25 W 830 | 4058075266575 | 25 | 3220 | 2600 | 3000 | -20…+40 | 220- 240 | 230 | 50/60 | >0.5 | 110 | 12500 | 375 g |
| LED POWER BATTEN 1.2 25 W 840 | 4058075266599 | 25 | 3380 | 2700 | 4000 | -20…+40 | 220- 240 | 230 | 50/60 | >0.5 | 110 | 12500 | 375 g |
| LED POWER BATTEN 1.2 50 W 830 | 4058075266636 | 50 | 6000 | 4845 | 3000 | -20…+40 | 220- 240 | 255 | 50/60 | >0.9 | 110 | 12500 | 985 g |
| LED POWER BATTEN 1.2 50 W 840 | 4058075266667 | 50 | 6260 | 5100 | 4000 | -20…+40 | 220- 240 | 255 | 50/60 | >0.9 | 110 | 12500 | 985 g |
