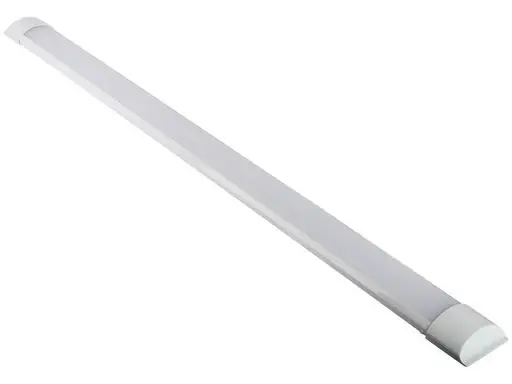

Verbatim 65053 Outdoor LED Integrated Batten
Overview

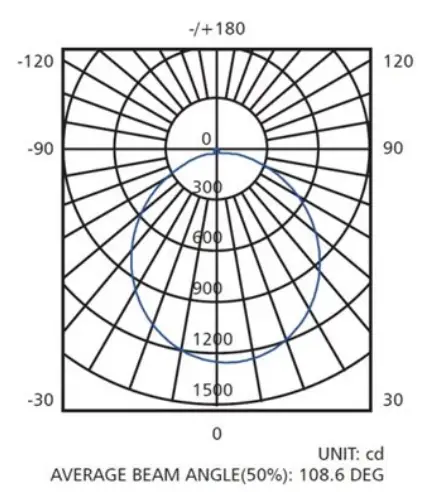

Polar intensity diagram
Specification
- IP65 rated for outdoor installation, suitable for outdoor installation
- 5000K CCT
- Slim design, only 28mm thick
- Easy Installation
- Dedicated power cord outlet and power cord outlet stop-per provided
- Wide input voltage range, 100-277V
- A long lifespan and little maintenance required
- More than 50% power saving compared to fluorescent tube
- Operating temperature -20°C to 45°C
- A lifetime of 40,000 hrs

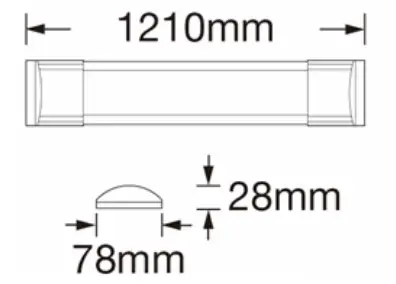

Dimensions
| Order Code | 65053 |
| General Data | |
| Design | PC diffuser |
| Geometric Data | |
| Height (mm) | 1210mm |
| Diameter (mm) | 78mm |
| Cut-hole (mm) | 28mm |
| Weight (g) | 770g |
| Electric Data | |
| Wattage | 42W |
| Voltage | 100-277 V AC |
| Power Factor | ≥0.9 |
| Operating Frequency | 50/60 Hz |
| Photometric Data | |
| Total Luminous Flux (lm) | 3600lm |
| 90° cone Luminous Flux (lm) | N/A |
| CRI | ≥80 |
| CCT | 5000K – Daylight |
| Luminous Intensity (cd) | 1260Cd |
| Beam Angle (°) | 110° |
| Lifetime | 40,000 hrs |
| Equivalent to (W) | N/A |
Technical Packaging Details
| Order Code | 65053 |
| Product Description | Verbatim LED IP65 Outdoor Linear Batten 42W 1200mm 5000K 3600lm |
|
Technical Packaging Details | |
| Giftbox Barcode | 4895117950531 |
| Inner Carton Barcode | |
| Outer Carton Barcode | 24895117950535 |
| Pack Dimensions (LxWxH) | 1238mmx86.5mmx40mm |
| Pack Weight | 1000g |
| Carton Qty (Shipping Unit) | 25 |
| Carton Dimensions (LxWxH) | 1290mmx480mmx250mm |
| Cartons/Layer | 2 |
| Layers/Pallet | 3 |
| Units/Pallet | 150 |
