LN COMP BATTEN 600 10W-3000K Linear Compact Batten
Instruction Manual

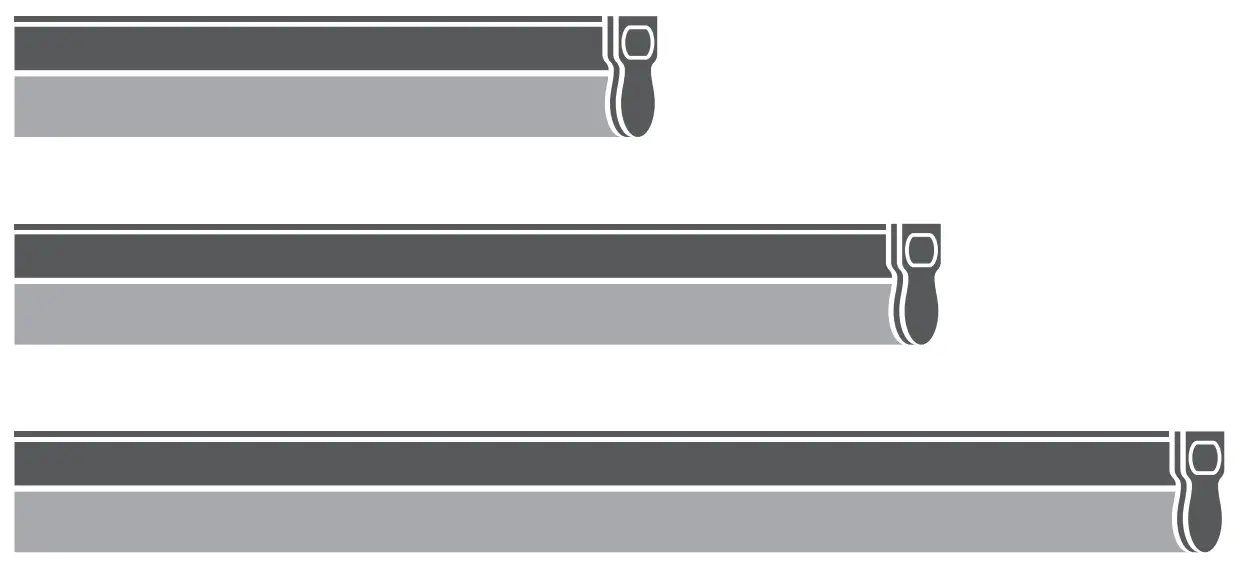

LN COMP BATTEN 600 10W-3000K Linear Compact Batten
| EAN | I x w x h [mm] | W | Im | Im/W | K | IP | IK | |
| LN COMP BATTEN 600 10W/3000K | 4058075099692 | 575 x27 x38 | 10 | 1000 | 100 | 3000 | 20 | 3 |
| LN COMP BATTEN 600 10W/4000K | 4058075099715 | 575 x27 x38 | 10 | 1000 | 100 | 4000 | 20 | 3 |
| LN COMP BATTEN 1200 20W/3000K | 4058075099739 | 1175 x27 x38 | 20 | 2000 | 100 | 3000 | 20 | 3 |
| LN COMP BATTEN 1200 20W/4000K | 4058075099753 | 1175x27x38 | 20 | 2000 | 100 | 4000 | 20 | 3 |
| LN COMP BATTEN 1500 25W/3000K | 4058075099777 | 1475 x27 x38 | 25 | 2500 | 100 | 3000 | 20 | 3 |
| LN COMP BATTEN 1500 25W/4000K | 4058075099791 | 1475 x27 x38 | 25 | 2500 | 100 | 4000 | 20 | 3 |
| EAN | (°C) | VAC | Hz |  | PF | Ra |  | |
| LN COMP BATTEN 600 10W/3000K | 4058075099692 | -20…+40 | 220-240V | 50/60 Hz | 140° | > 0.5 | >80 | 0.1 kg |
| LN COMP BATTEN 600 10W/4000K | 4058075099715 | -20…+40 | 220-240V | 50/60 Hz | 140° | > 0.5 | >80 | 0.1 kg |
| LN COMP BATTEN 1200 20W/3000K | 4058075099739 | -20…+40 | 220-240 V | 50/60 Hz | 140° | > 0.5 | > 80 | 0.2 kg |
| LN COMP BATTEN 1200 20W/4000K | 4058075099753 | -20…+40 | 220-240 V | 50/60 Hz | 140° | > 0.5 | >80 | 0.2 kg |
| LN COMP BATTEN 1500 25W/3000K | 4058075099777 | -20…+40 | 220-240V | 50/60 Hz | 140° | > 0.9 | >80 | 0.3 kg |
| LN COMP BATTEN 1500 25W/4000K | 4058075099791 | -20…+40 | 220-240V | 50/60 Hz | 140° | > 0.9 | >80 | 0.3 kg |
LINEAR COMPACT BATTEN
G11051860V2
C10449057 15.04.21
