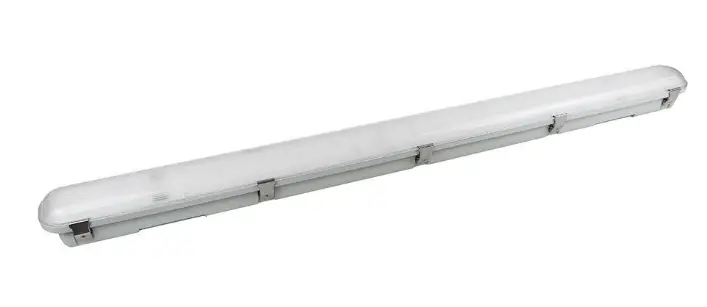

Martec TLWB34618 LED Weatherproof Batten
Martec TLWB34618 LED Weatherproof Batten
Weatherproof Batten (IP65) Installation Guide
We strongly recommend that you read this manual carefully before installation. Installation MUST be carried out by a qualified and licensed electrician.
Models Parameters
- TLWB34618
18W IP65 600mm Tricolour LED Batten - TLWB34620S
18W IP65 600mm Tricolour LED Batten Microwave Sensor - TLWB34639
40W IP65 1200mm Tricolour LED Batten - TLWB34639S
40W IP65 1200mm Tricolour LED Batten Microwave Sensor

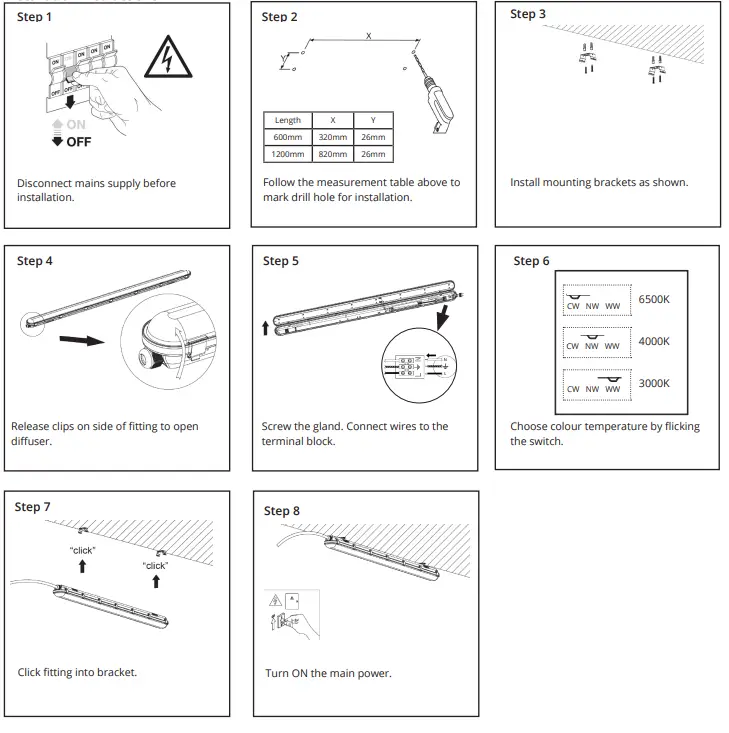

Installation Instructions
Weatherproof LED Batten (IP65)
Installation Guide
Data Table
| Models | Power (W) | PF | CCT (K) | Weight (KG) | Operation Temperature (Degree) | IP | IK | In-rush Current (A) | Earth Leakage Current (mA) |
| TLWB34618 | 18 | >0.9 | 3000 4000 6500 | 1.5 | -20° to 40° | 65 | 06 | <20 | <0.7 |
| TLWB34620S | 18 | >0.9 | 3000 4000 6500 | 1.5 | -20° to 40° | 65 | 06 | <20 | <0.7 |
| TLWB34639 | 40 | >0.9 | 3000 4000 6500 | 2 | -20° to 40° | 65 | 06 | <20 | <0.7 |
| TLWB34639S | 40 | >0.9 | 3000 4000 6500 | 2 | -20° to 40° | 65 | 06 | <20 | <0.7 |

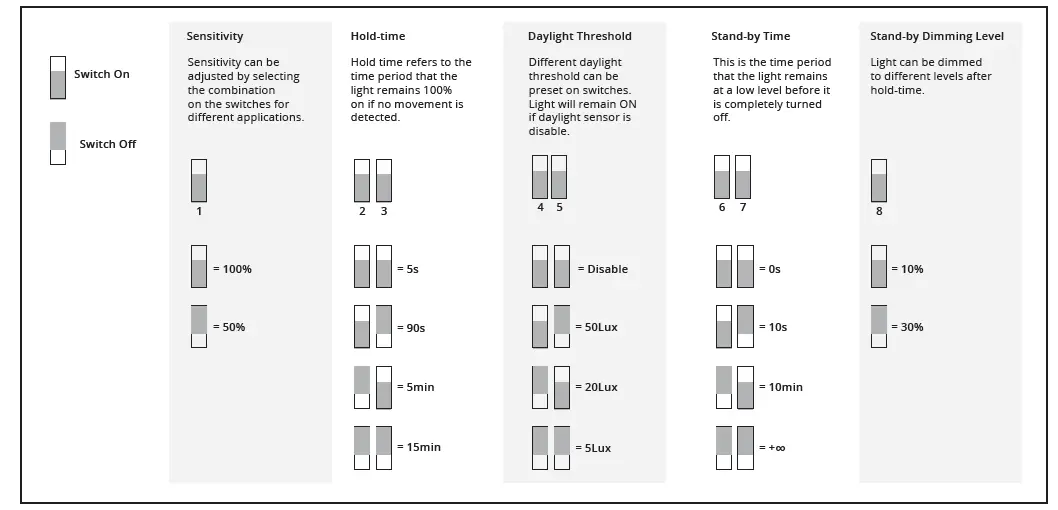

Sensor Settings
WARNING
- Installation of product MUST follow SAA standards and meet local authority regulations.
- Installation MUST be carried out by a qualified and licensed electrician.
- Light MUST be earthed.
- Light MUST be firmly installed to a flat solid surface, wall or ceiling.
- DO NOT immerse any part of the light fitting into water or any form of liquid.
- DO NOT look directly into the LED light.
- The warranty is VOID if product is not installed according to this installation guide.
2 Year Replacement Warranty
Visit our website for details https://www.martecaustralia.com.au/warranty-statement/
Martec® Australia | Life, enhanced®
