Aurora Limited
6 Little Burrow,
Burrowfields,
Welwyn Garden City,
AL7 4SW, United Kingdom
EN-BAl222 EN-BAl243- 965mm
EN-BA1533 EN-BA1563- 1265mm
EN-BA1839 EN-BA1873- 1529mm

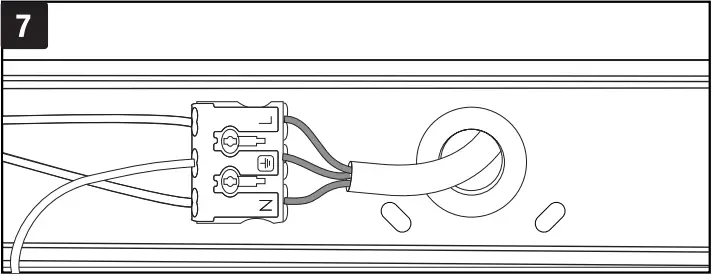

Brown – (L) Live,
Blue – (N) Neutral,
Green/Yellow – Earth.
EN-BAl222MS, EN-BAl243MS, EN-BA1533MS, EN-BA1563MS, EN-BA1839MS & EN-BA1873MS
Class I Document Version EN-BA1XXXMS_V1_21
MICROWAVE SENSOR
ON
| 1 | 2 | |
| ON | ON | 100% | |
| – | ON | 75% | |
| ON | – | 50% | |
| – | – | 25% |
DETECTION AREA
Detection area can be reduced by selecting the combination on the DIP switches to fit precisely each application.
ON
| 3 | 4 | 5 | |
| ON | ON | ON | 5s | |
| – | ON | ON | 30s | |
| ON | – | ON | 90s | |
| – | – | ON | 3min | |
| ON | ON | – | 20min | |
| – | – | – | 30min |
HOLD TIME
Refers to the time period the lamp remains at 100% illumination after no motion detected.
ON
| 6 | 7 | 8 | |
| ON | ON | ON | 2 lux | |
| ON | ON | – | 10 lux | |
| – | ON | – | 25 lux | |
| ON | – | – | 50 lux | |
| – | – | – | Disable |
DAYLIGHT SENSOR
The sensor can be set to only allow the lamp to illuminate below a defined ambient brightness threshold. When set to Disable mode, the daylight sensor will switch on the lamp when motion is detected regardless of ambient light level. 50lux: twilight operation, 10lux, 2lux: darkness operation only.
IMPORTANT INSTALLATION INFORMATION
- Installation should be carried out in accordance with the current edition of the National Wiring Regulations. If in doubt, consult a qualified electrician.
- These luminaires are for indoor use only,
- Maximum Input Voltage— 220-240V AC 50/60Hz
- Ensure that ALL electrical connections are tight with no loose strands.

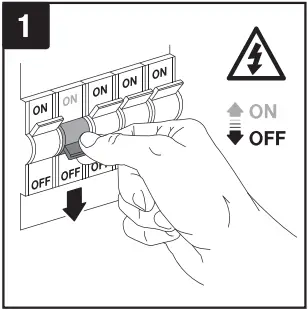

- Before commencing installation or maintenance, ensure electricity is switched off at the mains.
- Class I, mains voltage, this luminaire must be earthed.
- This luminaire is not dimmable
- Brown —(L) Live
Blue— (N) Neutral.,
Green/Yellow —
Earth - We do not recommend mixing LEDs circuits with products such as extractor fans. This is due to the sensitive nature of LEDs and is not product specific.
- This product contains a light source of energy efficiency class D.
EarthEnvironmental Protection (W.E.E.E.) — Aurora’s WEEE Reg. No. WEE/BG0130YX (UK Only)
Waste Electrical & Electronic Equipment Regulations (WEEE) requires that any of our products showing this marking (left) must not be disposed of with other household or commercial waste. Aurora does not levy any WEEE disposal charges to its customers for affected WEEE related products. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate any such product from other waste types and recycle it responsibly at your local facilities. Check with your Local Authority, Recycling Centre or retailer for recycling advice. If, when you purchased any Aurora product, your supplier included a WEEE disposal fee, you should then contact your supplier for advice on his take back of the product for the correct disposal.
GUARANTEE
This product is guaranteed for a period of 5 years from the date of purchase. The guarantee is invalid in the case of improper use, installation, tampering, and removal of the Q.C. date label, installation in an improper working environment or installation not according to the current edition of the National Wiring Regulations. Should this product fail during the guarantee period it will be replaced free of charge, subject to correct installation and return of the faulty unit. Aurora does not accept responsibility for any installation costs associated with the replacement of this product. This warranty is in addition to the statutory rights in your country of purchase. Aurora reserves the right to alter specifications without prior notice.
