PHILIPS RC132V CoreLine LED Panel

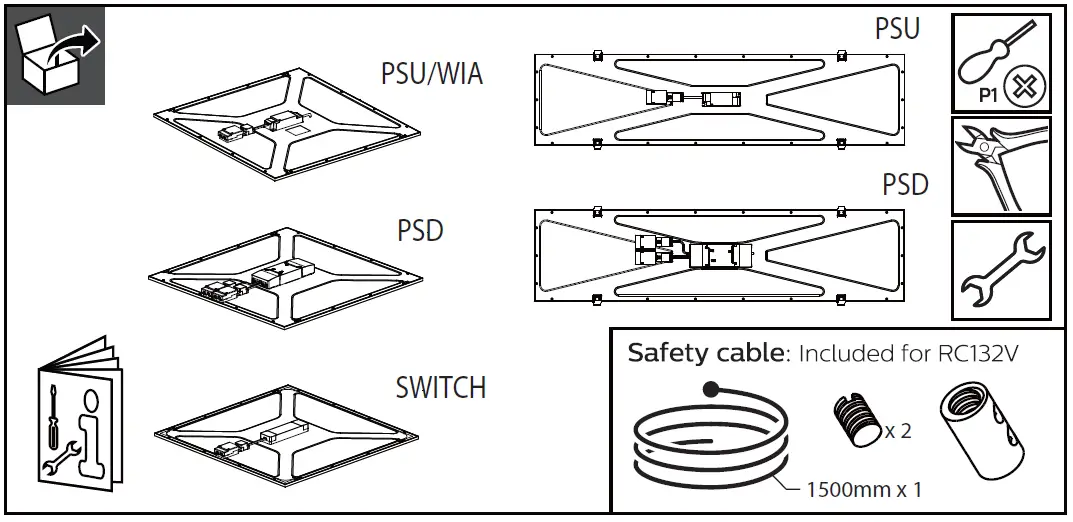

UNPACKING
SYMBOLS
| RC132V G4 LED34S/830 PSU W60L60 NOC W3 | 3400 | 3000 | 29 | 595×595×11 | 2.90 | |
| RC132V G4 LED34S/830 PSU W60L60 OC W3 3400 | 3000 | 29 | 595×595×11 | 2.90 | ||
| RC132V G4 LED36S/840 PSU W60L60 NOC W3 | 3600 | 4000 | 29 | 595×595×11 | 2.90 | |
| RC132V G4 LED36S/840 PSU W60L60 OC W3 | 3600 | 4000 | 29 | 595×595×11 | 2.90 | |
| RC132V G4 LED36S/840 PSU W30L120 NOC W3 | 3600 | 4000 | 29 | 1195x295x11 | 3.00 | |
| RC132V G4 LED36S/840 PSU W30L120 OC W3 | 3600 | 4000 | 29 | 1195×295×11 | 3.00 | |
| RC132V G4 LED34S/830 PSD W60L60 OC W5 | 3400 | 3000 | 29 | 595×595×11 | 2.90 | |
| RC132V G4 LED34S/830 PSD W30L120 OC W5 | 3400 | 3000 | 29 | 1195x295x11 | 3.00 | |
| RC132V G4 LED36S/840 PSD W30L120 OC W5 | 3600 | 4000 | 29 | 1195x295x11 | 3.00 | |
| RC132V G4 LED36S/840 PSD W60L60 OC W5 | 3600 | 4000 | 29 | 595×595×11 | 2.90 | |
| RC132V G4 LED43S/840 PSD W60L60 NOC W5 | 4300 | 4000 | 34 | 595×595×11 | 2.90 | |
| RC132V G4 LED43S/840 PSD W60L60 OC W5 | 4300 | 4000 | 34 | 595×595×11 | 2.90 | |
| RC132V G4LED34_43S/830_840PSUW60L60 OCW | 3400/4300 | 3000/4000 | 29/34 | 595×595×11 | 3.20 | |
| RC132V G4LED36_43S/830_840 PSUW30L120 OCW | 3600/4300 | 3000/4000 | 29/34 | 1195x295x11 | 3.40 | |
| RC132V G4 LED34S/830 WIA W60L60 NOC | 3400 | 3000 | 29 | 595x595x11 | 2.90 | |
| RC132V G4 LED34S/830 WIA W60L60 OC | 3400 | 3000 | 29 | 595x595x11 | 2.90 | |
| RC132V G4 LED34S/830 WIA W60L60 NOC W3 | 3400 | 3000 | 29 | 595x595x11 | 2.90 | |
| RC132V G4 LED34S/830 WIA W60L60 OC W3 | 3400 | 3000 | 29 | 595x595x11 | 2.90 | |
| RC132V G4 LED36S/840 WIA W30L120 NOC W3 | 3600 | 4000 | 29 | 1195x295x11 | 3.00 | |
| RC132V G4 LED36S/840 WIA W30L120 OC W3 | 3600 | 4000 | 29 | 1195x295x11 | 3.00 | |
| RC132V G4 LED36S/840 WIA W30L120 NOC | 3600 | 4000 | 29 | 1195x295x11 | 3.00 | |
| RC132V G4 LED36S/840 WIA W60L60 NOC | 3600 | 4000 | 29 | 595×595×11 | 2.90 | |
| RC132V G4 LED36S/840 WIA W60L60 OC | 3600 | 4000 | 29 | 595×595×11 | 2.90 | |
| RC132V G4 LED36S/840 WIA W30L120 OC | 3600 | 4000 | 29 | 1195x295x11 | 3.00 | |
| RC132V G4 LED36S/840 WIA W60L60 NOC W3 | 3600 | 4000 | 29 | 595×595×11 | 2.90 | |
| RC132V G4 LED36S/840 WIA W60L60 OC W3 | 3600 | 4000 | 29 | 595×595×11 | 2.90 | |
| RC132V G4 LED36/840 WIA W60L60 OC TP(a) | 3600 | 4000 | 29 | 595×595×11 | 2.90 | |
| RC132V G4 LED43S/840 WIA W60L60 OC 4300 | 4000 | 34 | 595×595×11 | 2.90 | ||
| RC132V G4 LED43S/840 WIA W60L60 NOC | 4300 | 4000 | 34 | 595×595×11 | 2.90 | |
| RC132V G4 LED43S/840 WIA W60L60 NOC W3 | 4300 | 4000 | 34 | 595×595×11 | 2.90 |
| RC133V G4 LED34S/830 WIA W62L62 NOC | 3400 | 3000 | 29 | 622x622x11 | 3.10 |
| RC133V G4 LED36S/840 WIA W62L62 NOC | 3600 | 4000 | 29 | 622×622×11 | 3.10 |
| RC133V G4 LED36S/840 WIA W62L62 OC | 3600 | 4000 | 29 | 622x622x11 | 3.10 |
| RC133V G4 LED43S/840 WIA W62L62 OC | 4300 | 4000 | 34 | 622x622x11 | 3.10 |
PARTS
Optional

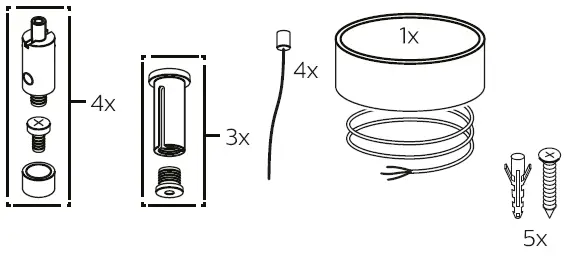

Suspension set (can not be used with Wieland versions)
911401892280 RC132Z SME-3 WH
911401892380 RC132Z SME-4 WH

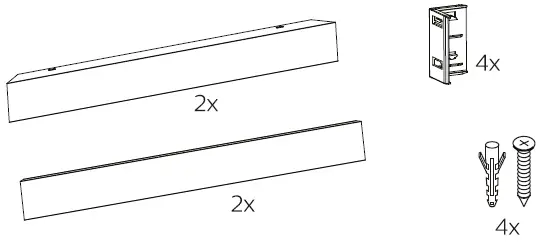

Surface mounted (can not be used with: Wieland versions and WIA versions)
911401892480 RC132Z SMB W60L60
911401892580 RC133Z SMB W62L62
911401892680 RC132Z SMB W30L120

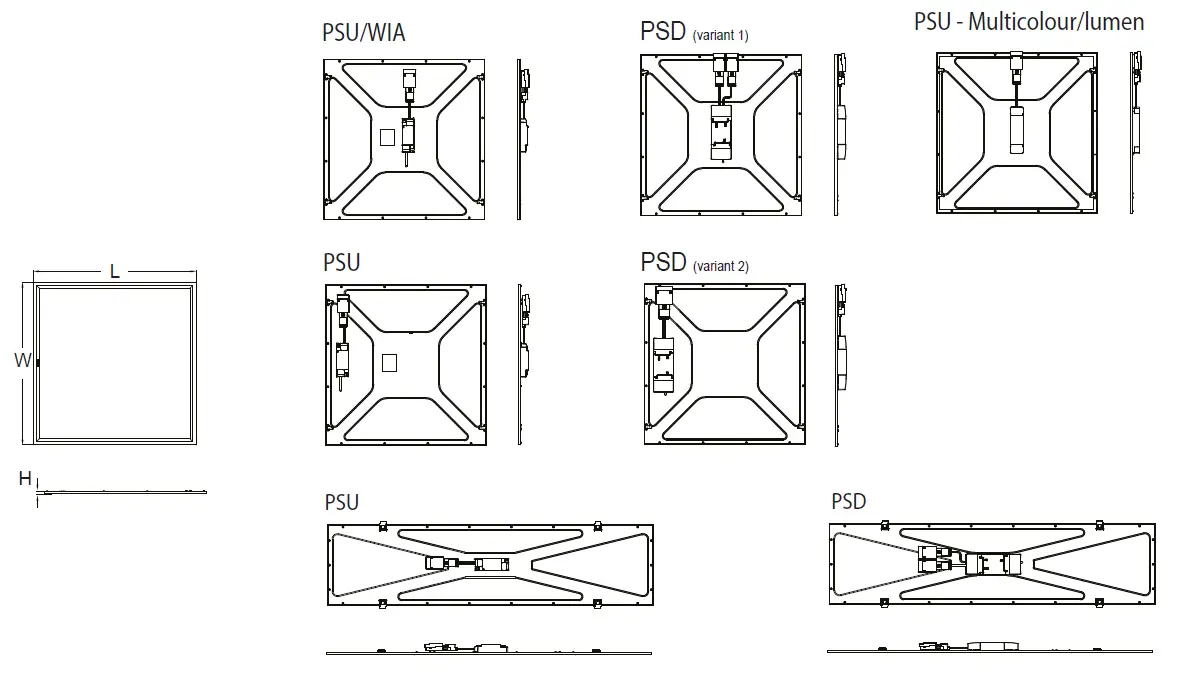

PSU/SWITCH/WIA

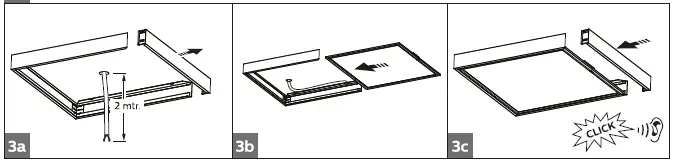

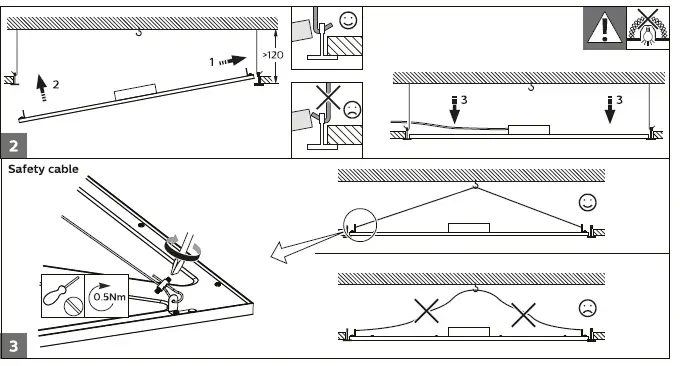

Visible Profiles Ceiling

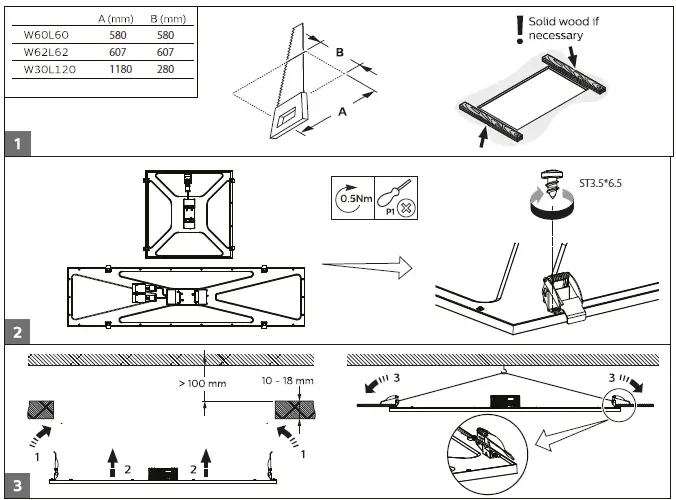

plaster ceiling version

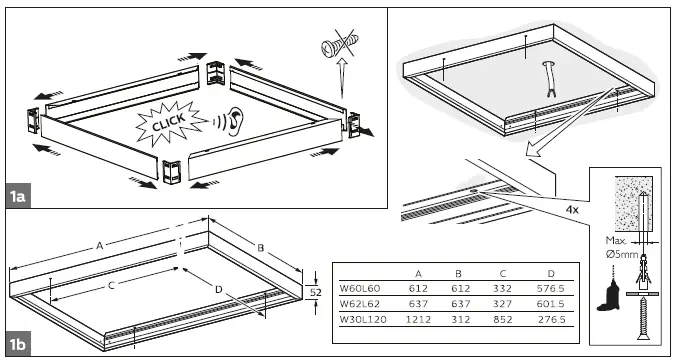

Surface mounted

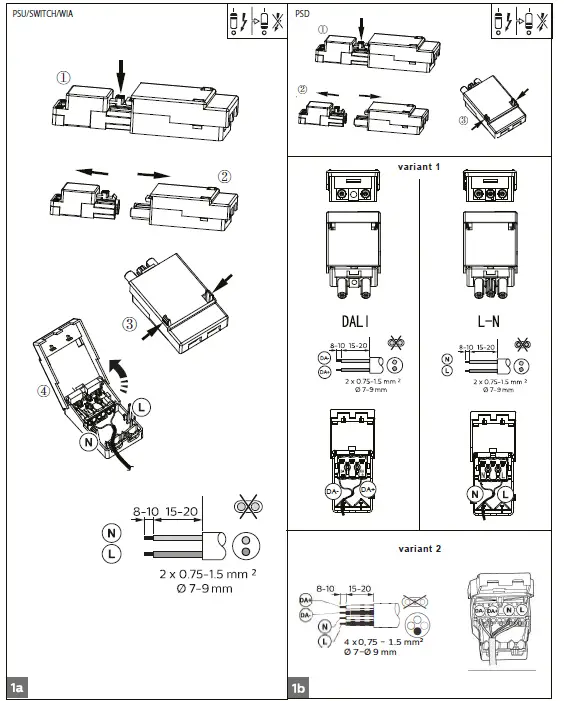

Electrical connections. See relevant installation instruction.

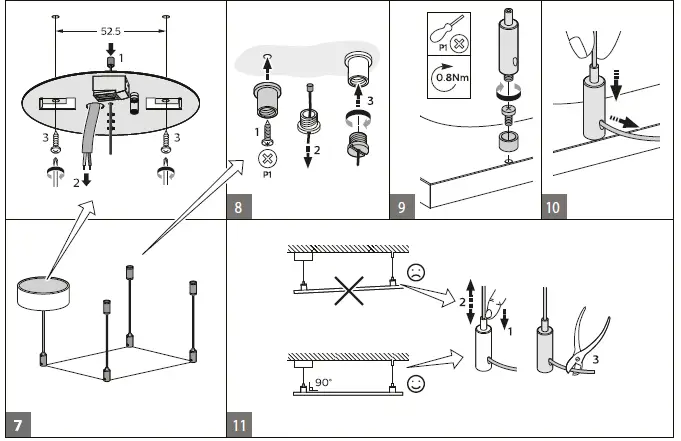

Suspension kit

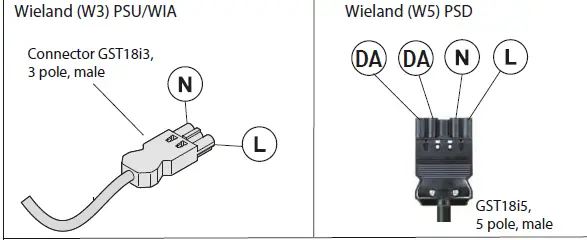

Versions with Wieland connector (W3, W5)
If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or his service agent.
WIA – same as PSU, see page nr. 3

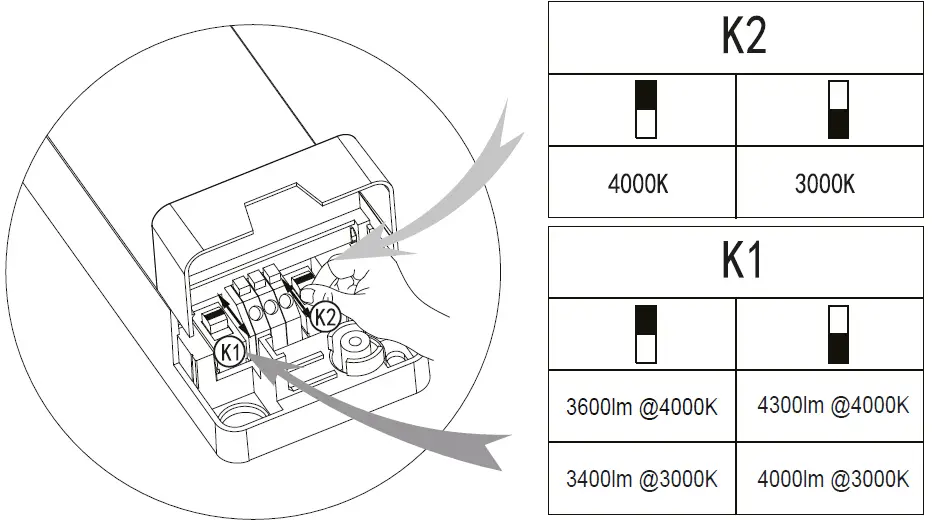

Multi/Colour Lumen

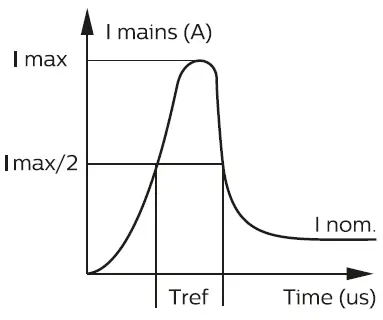

Inrush current
| 29W | PSU | 34W | PSD 29W | 34W | MultiColour/Lumen 34W | WIA |
| 5.2 | 6.2 | 14.1 | 14.3 | 15 | 4.9 | |
| 51 | 54 | 212 | 214 | 300 | 50 | |
|
| ||||||
| 25 | 25 | 19 | 19 | 11 | 15 | |
| 40 | 40 | 30 | 30 | 18 | 24 | |
| 42 | 42 | 31 | 31 | 16 | 24 | |
| 68 | 68 | 51 | 51 | 31 | 40 | |
- The luminaire shall be installed by a qualified electrician and wired in accordance with the latest IEE electrical regulations or the national requirements.
- The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person
- During installation or maintaining the luminaire please use gloves to avoid spots on the cover.
- To remove dirt and spots use the following:
- Dust: use micro fiber cloths only.
- Fingerprints, etc.: use a cleaner for synthetic materials with antistatic properties.
- Luminaires not suitable for covering with thermally insulating material.
- For controllable luminaires ,the classification of insulation between LV supply and control conductors shall be basic insulation at least.
- Luminaire must not be used or stored in corrosive environment where hazardous materials such as Sulphur,Chlorine, Phthalates, etc, are present.
Scan me!
To get an overview of all spare parts for a luminaire, please refer to detailed instrucfions in the service manual available via the Signify Service tag apps (Android and iOS).
Disconnect before servicing
Luminaire has basic insulation between Low Voltage supply and control conductors.
The control gear and/or the external flexible cable contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person. The light source contained in this luminaire is not replaceable, in case of damage replace the luminaire.
Storage, installation, use, operation and maintenance of the products needs to be performed exactly according the instructions in this manual and/or other instructions as may be provided by us to guarantee safe use of the product over its entire lifetime. Failure to adhere to these instructions will invalidate your entitlement to warranty. Bolts with indication of torque strength on the drawing need to be tightened using a calibrated torque wrench. Pre-assembled bolts need to be retightened again to the required torque specification to assure maximum strength over lifetime.
This product contains a light source of energy efficiency class: see table or label.
Zhaga-D4i and SR certified compatibility For Zhaga-D4i/SR-Certified based luminaires only Zhaga-D4i/SR-Certified components/sensors are to be used (see also: https://www.zhagastandard.org/products / https://www.lighting.philips.co.uk/oem-emea/products/driving-connected-lighting). The functional compatibility of two SR-certified and/or Zhaga-D4i controllers/sensors to be used in combination, as well as the override possibility of any line-switch function used in an SR-based/Zhaga-D4i luminaire, is to be released by the master controller/sensor supplier. If using a NEMA 7-pin socket on an SR-based luminaire, a full system verification is required. Not following this advice can/will cause risk of damage and non-compliance for which Signify cannot take any responsibility.
©20.2 Signify Holding
All rights reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.
The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. No liability will be accepted by the publisher for any consequence of its use.
Publication thereof does not convey nor imply any license under patent- or other industrial or intellectual property rights.
