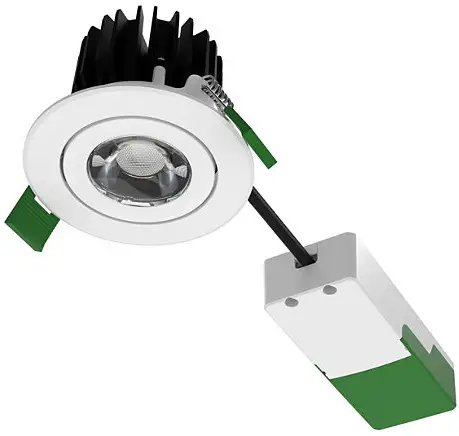

PHILIPS RS150B Coreline Recessed Spot Gen2 Instruction Manual
Box Contents
| System Lumen (Lm) | light source of energy efficiency class | P(W) |  |  | |||
| RS150B | LED12-WB-PSR | Round fixed | 1200 | E | 12.3 | 78 | 0.37 |

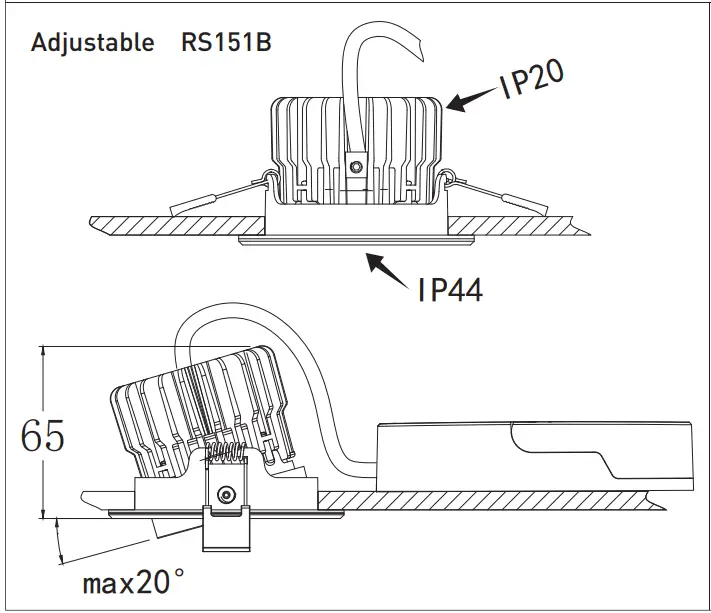

| RS151B | LED12-WB-PSR | Round adjustable | |||||

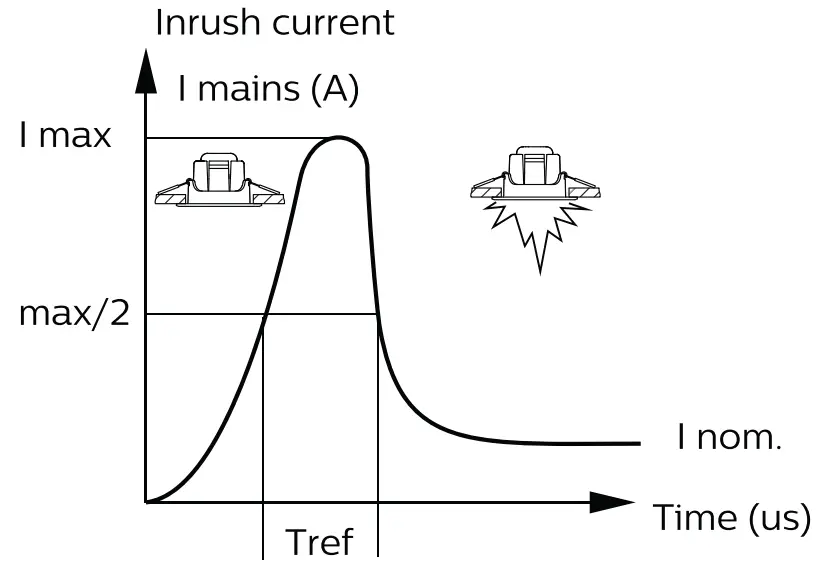

| Electrical characteristics | |
| Imax (A) | 7 |
| Tref (us) | 300 |
| MCB | Downlights Max. |
| B-10 A | 25 |
| B-13 A | 32 |
| B-16 A | 40 |
| C10 A | 40 |
| C-13 A | 54 |
| C-16 A | 68 |

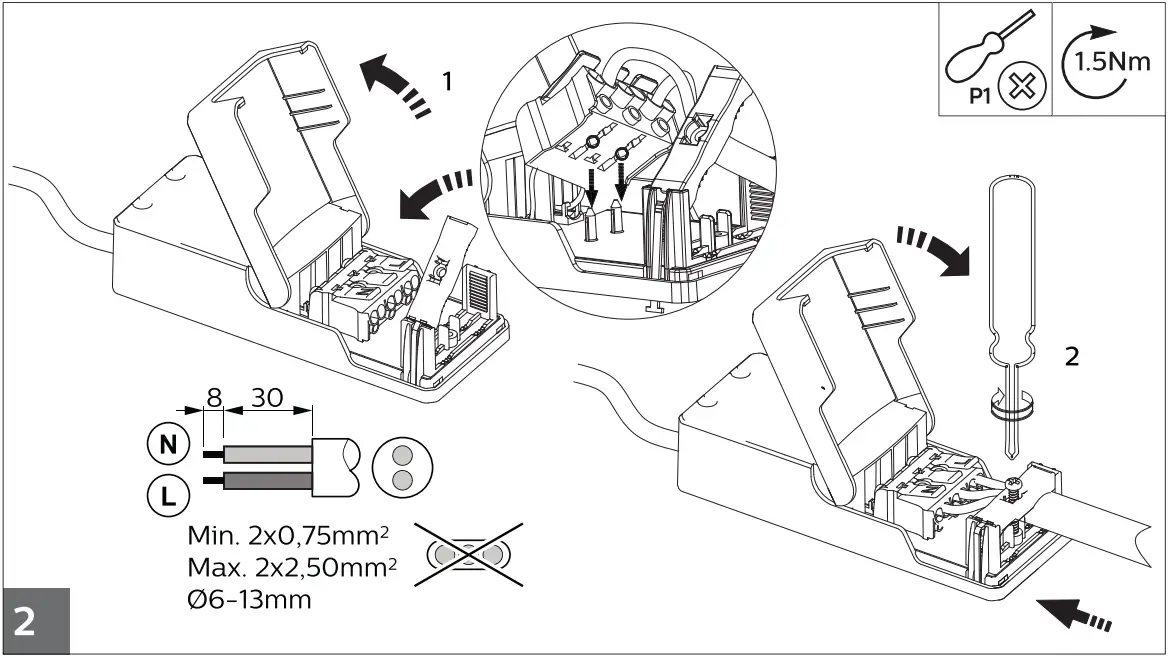

- The luminaire shall be installed by a qualified electrician and wired in accordance with the latest IEE electrical regulations or the national requirements.
- Only to be installed outside arms reach as recessed ceiling luminaire.
- For complete and updated list of advised dimmers, please check the CoreLine Recessed Spot RS150 page on the Philips Lighting eCatalog: http://www.ecat.lighting.philips.com
- The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
This product contains a light source of energy efficiency class: see table or label.
The light source and/or control gear and/or the external flexible cable contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
