PHILIPS RS155B CorLine Recessed Spot gen2 Instruction
| light source of energy efficiency class |   | ||
| RS155B LED6-WB-PSR Round fixed 720 RS156B LED6-WB-PSR Round adjustable | E | 7.2 | 68 0.286 0.295 |
| RS155B LED9-WB-PSR Round fixed 1000 RS156B LED9-WB-PSR Round adjustable | E | 10.2 | 68 0.286 0.295 |
| RS155B LED12-WB-PSR Round fixed 1300 RS156B LED12-WB-PSR Round adjustable | E | 12.3 | 68 0.29 0.3 |

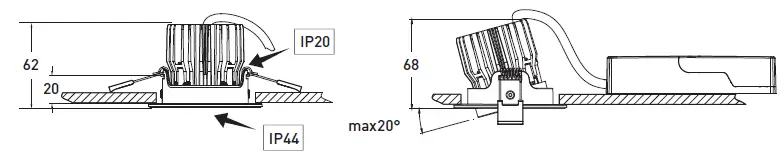

Fixed RS155B
Adjustable RS156B
Halox 100

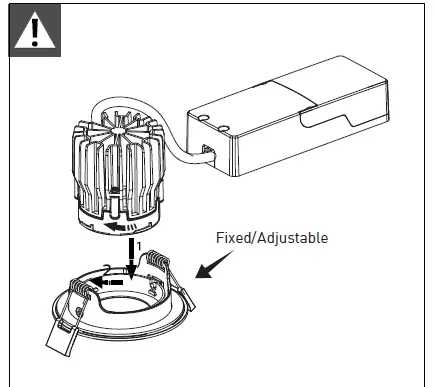

WARNING

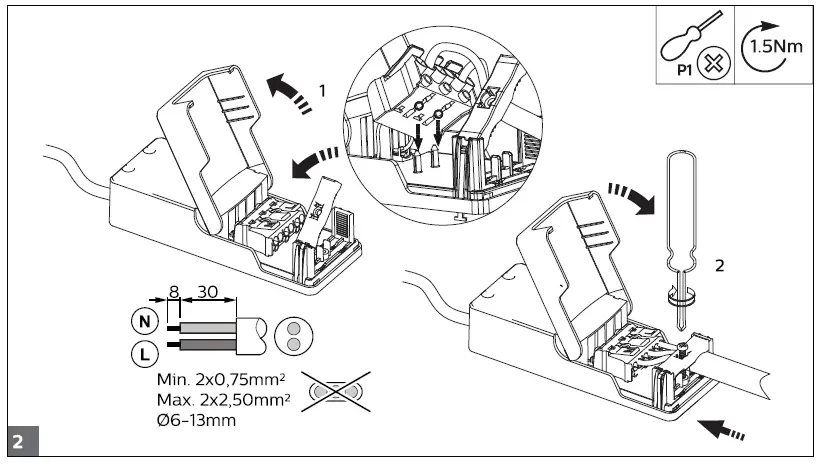

INSTALLATION
- The luminaire shall be installed by a qualified electrician and wired in accordance with the latest IEE electrical regulations or the national requirements.
- Only to be installed outside arms reach as recessed ceiling luminaire.
- For complete and updated list of advised dimmers. please check the CoreLine Recessed Spot R$155 page on the
- Philips Lighting eCatalog: http://www.ecat.lighting.philips.com
- The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a
similar qualified person.
This product contains a light source of energy efficiency class: see table or label.
The light source and/or control gear and/or the external flexible cable contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
