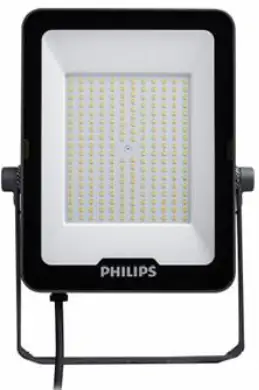

PHILIPS BVP151 LED Floodlight
Mounting Instructions
| Type | CCT (K) | Power(W) | LEDs | Lumen Output | Dimension |
(m² ) Eng: Projected Area ID: Area Proyeksi | Voltage | Frequency
|
Surge rating Kisaran lonjakan | |

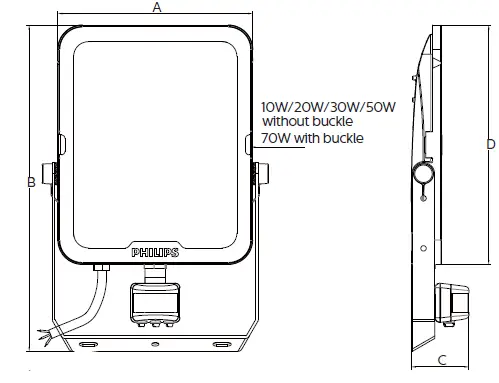

| BVP151 LED12/WW PSU 10W SWB MDU G2 GM | 3000K | 10W | 36 | 1100lm | 63.8x155x52x82.8 | 0.005 | 0.29 |
220-240V~ |
50/60Hz |
2KV/2KV |
| BVP151 LED12/NW PSU 10W SWB MDU G2 GM | 4000K | 1200lm | ||||||||
| BVP151 LED12/CW PSU 10W SWB MDU G2 GM | 6500K | |||||||||
| BVP151 LED24/WW PSU 20W SWB MDU G2 GM | 3000K | 20W | 60 | 2200lm | 82x172x52x100 | 0.008 | 0.38 | |||
| BVP151 LED24/NW PSU 20W SWB MDU G2 GM | 4000K | 2400lm | ||||||||
| BVP151 LED24/CW PSU 20W SWB MDU G2 GM | 6500K | |||||||||
| BVP151 LED36/WW PSU 30W SWB MDU G2 GM | 3000K | 30W | 90 | 3300lm | 117x220x53x145 | 0.017 | 0.63 | |||
| BVP151 LED36/NW PSU 30W SWB MDU G2 GM | 4000K | 3600lm | ||||||||
| BVP151 LED36/CW PSU 30W SWB MDU G2 GM | 6500K | |||||||||
| BVP151 LED60/WW PSU 50W SWB MDU G2 GM | 3000K | 50W | 120 | 5500lm | 150x263x53x185 | 0.028 | 0.89 | |||
| BVP151 LED60/NW PSU 50W SWB MDU G2 GM | 4000K | 6000lm | ||||||||
| BVP151 LED60/CW PSU 50W SWB MDU G2 GM | 6500K | |||||||||
| BVP151 LED84/WW PSU 70W SWB MDU G2 GM | 3000K | 70W | 170 | 7700lm | 175x293x53x215 | 0.038 | 1.09 | |||
| BVP151 LED84/NW PSU 70W SWB MDU G2 GM | 4000K | 8400lm | ||||||||
| BVP151 LED84/CW PSU 70W SWB MDU G2 GM | 6500K |
- The exposed wire length：10/20/30/50/70W 1000mm
H05RN-F 3×1.0 mm² 60245IEC57
N: Blue
L: Brown
GND: Yellow-Green
- Always use IP65 or higher IP-rated junction box/connector for wiring connection.
- The Luminaire should never be used in submerged wet conditions e.g. underwater, soil, snow, etc.
- The wiring connection should also never be used in submerged wet conditions e.g. water, soil, snow, etc. OR use the IP68 junction box.
- The warranty is void, in case any of the instructions/guidelines are not followed as per the given mounting instruction. This product is not supplied with any junction box/connector.
- For further clarification, please contact the manufacturer.
| Type
| Run Current | Start (Inrush) Current(A)
| Start Current Duration (s) | * Touch current or protective conductor current (mA)
| Maximum Number of Luminaire on MCB 16A Type B (pcs)
| Maximum Number of Luminaire on MCB 16A Type C (pcs)
|
| BVP151 10W | 0.055 | 0.78 | 6.48 | <3.5 | 218 | 254 |
| BVP151 20W | 0.1 | 1.1 | 7.4 | <3.5 | 109 | 127 |
| BVP151 30W | 0.15 | 1.22 | 7.2 | <3.5 | 73 | 85 |
| BVP151 50W | 0.25 | 1.68 | 8.2 | <3.5 | 44 | 51 |
| BVP151 70W | 0.35 | 3.64 | 22.2 | <3.5 | 31 | 36 |
The leakage current *(touch current or protective conductor current) of the electrical circuit may be greatly dependent upon the electrical supply cables used such as its rating and length, proper connection of electrical supply cables to luminaires, and wiring connection topology of luminaires to the supply electrical circuit amongst other site conditions.In some cases referred to as Earth Leakage Current.
Working mode
Fasten the bolt Torque : Nm Kencangkan Baut
| 10W | 20W | 30W | 50W | 70W | |
| Torque(Nm) | 3 | 3 | 3 | 8 | 8 |
Install the luminaire according to national regulation and make sure it will not fall off.

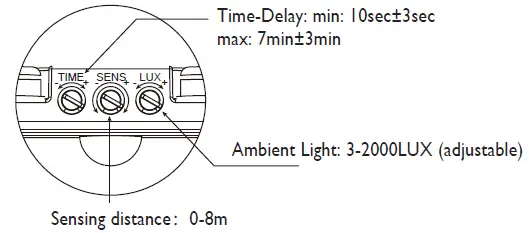

- Turn on the light
- After 5 seconds, quickly switch “OFF – ON” two cycles
- Product will go into non-sensor mode. Back to sensor mode: turn off the light, wait for >10 seconds.

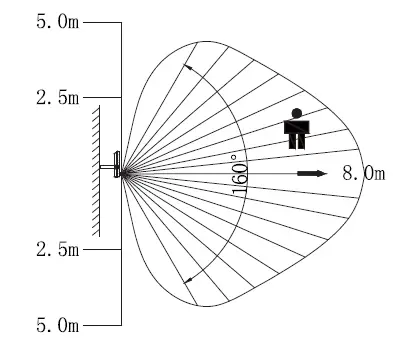

Detection range
Signify Luminaires (Shanghai) Co., Ltd. Address: 2F, Building 6, No. 1805, Huyi Highway, Malu Town, Jiading District, Shanghai, P.R. China Postal code: 201801 Philips and the Philips shield emblem are registered trademarks of Koninklijke Philips N.V.
Please read this manual carefully before using the product.
- Do not switch it on before completing installation.
- The luminaire shall be installed by a qualified electrician and wired in accordance with the latest IEE electrical regulations or national requirements.
- The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire shall be destroyed.
- The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole Juminaire shall be replaced.
- The luminaire is complied with IEC 60598.
- The luminaire must not be used or stored in a corrosive environment where hazardous materials such as Sulphur, Chlorine, phthalates, etc, are present.
