Lighting Instructions
Competitive industrial solution with an excellent look & feel

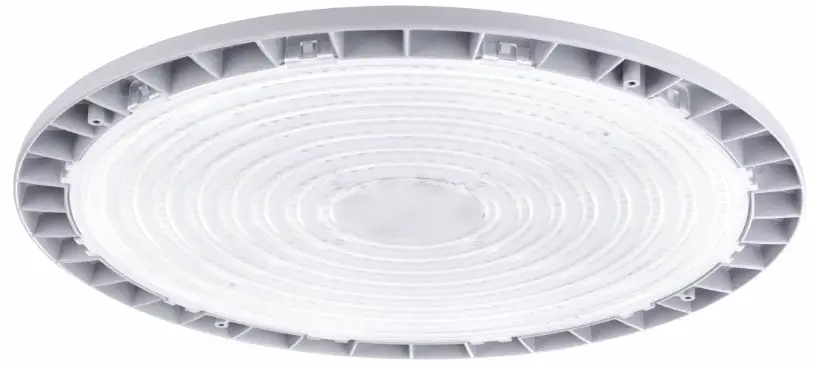

BY320P 120-277V SmartBright HighBay LED Light

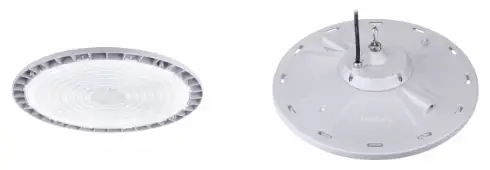

SmartBright HighBay BY320P 120-277V
SmartBright Highbay continuously explores a better balance of price and performance. The product family offers a wide range of products, excellent specification, and is sufficiently competitive with quality and long-term reliability, covering the majority of industrial applications
Benefits
- Strong energy-saving history
- Robust and reliable with a long lifetime
- Better and easier on-site calibration
- Various application requirements satisfied with the complete family of products
Features
- 30.000 h (Calculated L70B50) @35⁰C
- CW (6500K)
- IP65 / IK07
- 130 lm/W
- 3-lumen packages: 13.000, 19.500, and 21.000 lm
- 120-277V~, 50/60 Hz
Application
- Manufacturing areas
- Showrooms and high-ceiling halls
- Warehouses and logistics centers
Warnings and Safety
- The Luminaire must be used within the applicable product specifications, installation instructions, and environmental conditions for storage and operations according to application guidelines provided by Signify for the product Warranty to be valid
- The luminaire shall be installed by a qualified electrician and wired in accordance with the latest IEE electrical regulations or the national requirements
- Turn the power off before inspection, installation, or removal
- Before using, an external earthing must be required. Earthing is also must be required in its whole life
- The corrosive atmosphere or hazardous materials such as sulfur, chlorine, phthalate, etc. must be avoided during the use and storage
Versions
| Application conditions | |
| Ambient temperature range | -20 to +45 °C |
| Approval and application | |
| Ingress protection code | IP65 |
| Controls and dimming | |
| Dimmable | No |
| Operating and electrical | |
| Input Voltage | 120 to 277 V |
| General information | |
| Protection class IEC | Safety class I (I) |
| Driver included | Yes |
| Light source replaceable | No |
| Initial performance (IEC compliant) | |
| Init. Corr. Color Temperature | 6500 K |
| Init. Color Rendering Index | >80 |
| Initial LED luminaire efficacy | 130 lm/W |
| Luminous faux tolerance | +/-10% |
| Mechanical and housing | |
| Color | Gray |
Initial performance (IEC compliant)
| Order Code | Full Product Name | Initial luminous fiux | Initial input power |
| 911401873181 | BY320P LED130S CW PSU GR FG WB | 13000 lm | 100 W |
| 911401873381 | BY320P LED195S CW PSU GR FG WB | 19500 lm | 150 W |
| 911401873581 | BY320P LED260S CW PSU GR FG WB | 26000 lm | 200 W |
| 911401873281 | BY320P LED130S CW PSU GR FG MB | 13000 lm | 100 W |
| 911401873481 | BY320P LED195S CW PSU GR FG MB | 19500 lm | 150 W |
| 911401873681 | BY320P LED260S CW PSU GR FG MB | 26000 lm | 200 W |
© 2021 Signify Holding All rights reserved. Signify does not give any representation or warranty as to the accuracy or completeness of the information included herein and shall not be liable for any action in reliance thereon. The information presented in this document is not intended as any commercial offer and does not form part of any quotation or contract unless otherwise agreed by Signify. All trademarks are owned by Signify Holding or their respective owners.
www.lighting.philips.com
2021, December 31 – data subject to change
