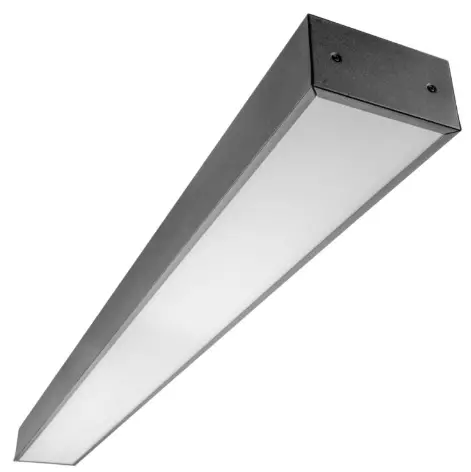

RC095V SmartBright Suspension Light
Instruction Manual
SmartBright Suspension is the most economic LED linear solution. Quality light with good uniformity and visual comfort is delivered under suspension installation.
SmartBright Suspension
A linear suspension solution at an affordable price
Benefits
- Stylish product look and feel
- Excellent uniformity for light exit windows
- Visual comfort with enough light output
SmartBright Suspension
Features
- System efficacy up to 90 lm/W
- Lumen output up to 3,000 lm/1.2 m
- Flicker-free for a good on-site experience
Application
- Office
- Retail
- Open Area
Versions

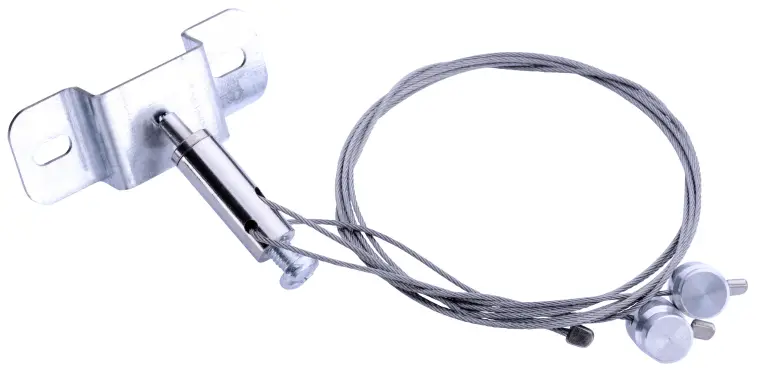

Accessories
Ordercode 911401724662, 911401724682, 911401724722
Application conditions
| Ambient temperature range | -10 to +35 °C |
| Maximum dimming level | Not applicable |
| Suitable for random switching | No |
Approval and application
| Mech. impact protection code | IK03 |
| Ingress protection code | IP20 |
Controls and dimming
| Dimmable | No |
Operating and electrical
| Input Voltage | 220 to 240 V |
General information
| Beam angle of light source | – ° |
| CE mark | – |
| Protection class IEC | Safety class I |
| Optical cover/lens type | Polystyrene bowl/cover prismatic |
| Driver included | Yes |
| ENEC mark | – |
| Flammability mark | – |
| Glow-wire test | Temperature 650 °C, duration 30 s |
| Light source replaceable | No |
| Number of gear units | One unit |
| Optic type | Symmetrical |
Initial performance (IEC compliant)
| Initial chromaticity | ≤5 |
| Init. Colour rendering index | >80 |
| Initial LED luminaire efficacy | 88 lm/W |
| Initial luminous flux | 3000 lm |
| Luminous flux tolerance | +/-10% |
| Initial input power | 34 W |
Mechanical and housing
| Colour | Grey |
Initial performance (IEC compliant)
| Order Code | Full Product Name | Init. Corr. Colour Temperature |
| 9.11402E+11 | RC095V LED30S/840 PSU W12L120 Grey GM | 3000 K |
| 9.11402E+11 | RC095V LED30S/865 PSU W12L120 Grey GM | 4000 K |
© 2021 Signify Holding All rights reserved. Signify does not give any representation or warranty as to the accuracy or completeness of the information included herein and shall not be liable for any action in reliance thereon. The information presented in this document is not intended as any commercial offer and does not form part of any quotation or contract, unless otherwise agreed by Signify. All trademarks are owned by Signify Holding or their respective owners.
www.lighting.philips.com
2021, November 22 – data subject to change
