Anern AN-SFL-PJ-PF Solar Flood Light User Manual
Product Advantage

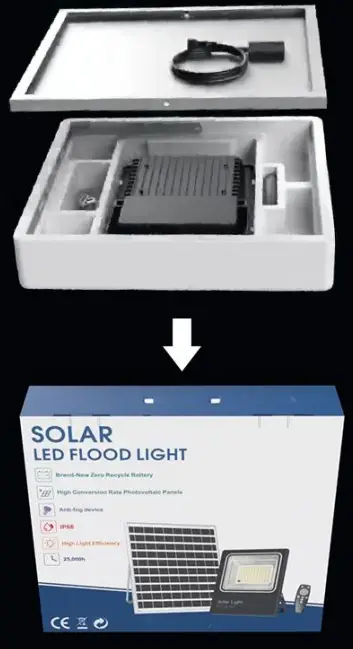

Integrated Packing Design
Convenient for transportation and resale.

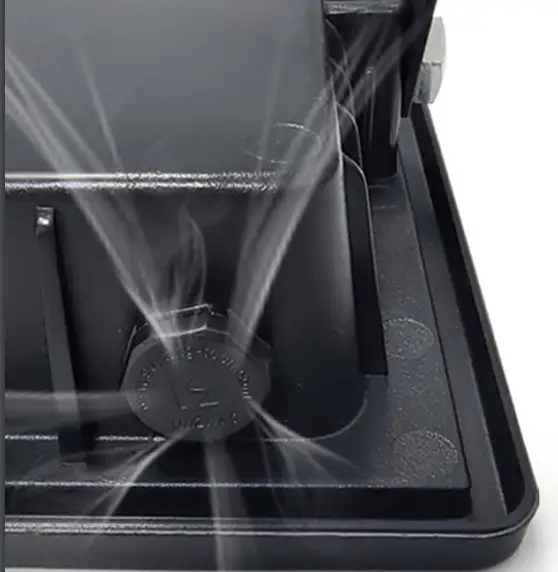

High-efficiency Respirator
Effecitively avoid seal failure and internal fogging caused by thermal expansion and contraction.

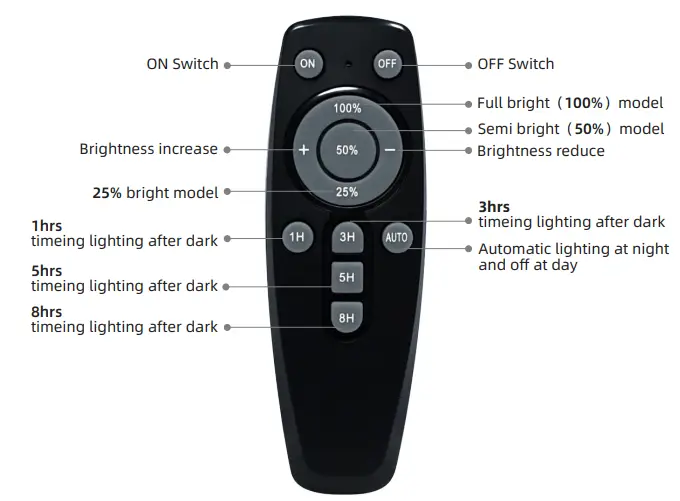

Remote Controller
Adjustable brightness dimming function,timing function.
Outdoor Waterproof
Superior waterproof performance, highly resistant from water and dust.
SPECTFICATIONS
| Model | AN-SFL-PJ | AN-SFL-PF | ||||||
| Power | 50W | 100W | 200W | 300W | 50W | 100W | 200W | 300W |
| LED | 573046PCS | 5730107PCS | 5730166PCS | 5730358PCS | 283549PCS | 283597PCS | 2835127PCS | 2835199PCS |
| Luminous Flux | 140lm/w | |||||||
| LiFePO4Battery | 3.2V5.5AH | 3.2V11AH | 3.2V16.5AH | 3.2V27.5AH | 3.2V5.5AH | 3.2V11AH | 3.2V16.5AH | 3.2V27.5AH |
| Mono Solar Panel | 6W | 12W | 18W | 30W | 6W | 12W | 18W | 30W |
| Solar Charging Time | 5-6 hours by bright sunlight | |||||||
| Lighting Time In Rainy Day | 3 days | |||||||
| Lighting Mode | Time control | |||||||
| Material | ABS plastic | |||||||
| IP Class | IP66 | |||||||
| Work Temperature | 0℃ to 50℃ | |||||||
DIMENSION FIGURE
| Item No. | AN-SFL-PJ | AN-SFL-PF | ||
|
|  | |||
| Solar Panel Size | Lamp Size | Solar Panel Size | Lamp Size | |
| 50W | 270*180*17mm | 205*170*42mm | 270*180*17mm | 205*170*42mm |
| 100W | 350*290*17mm | 260*215*42mm | 350*290*17mm | 260*215*42mm |
| 200W | 400*350*17mm | 290*240*42mm | 400*350*17mm | 290*240*42mm |
| 300W | 600*350*17mm | 350*290*43mm | 600*350*17mm | 350*290*43mm |
High Lumens SMD 01 Led Chips
Maximum brightness up to 140lm/W, high-brightness illumination.
High-efficient 02 Solar Panel
Higher charging efficiency and faster charging.

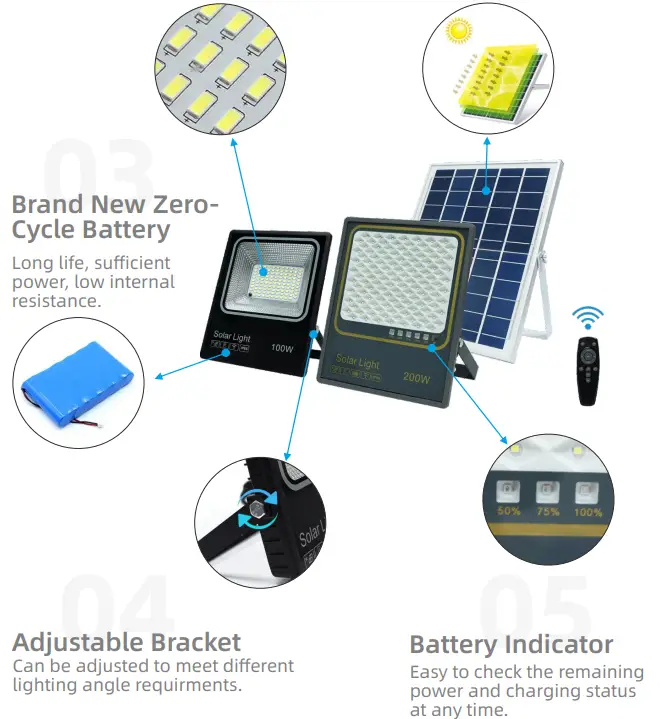

PRODUCT DETAIL
