Lepro 340017-DW-US LED Flood Light User Guide

Contents hide

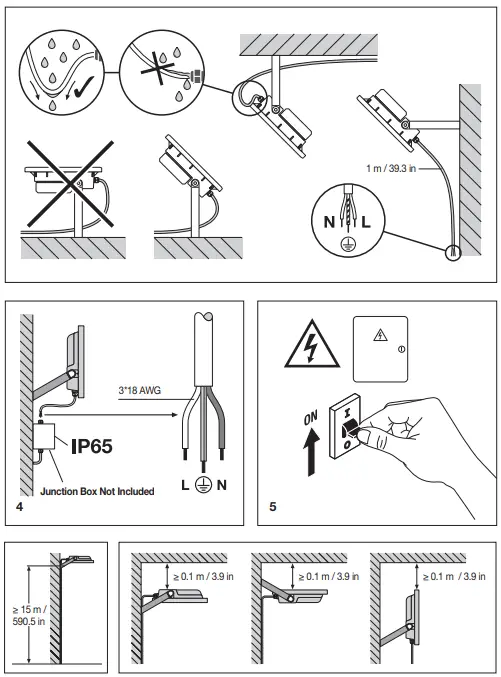

Using Instructions

Model NO

340017-DW-US 10000 lm
100 W, 110-130 Vac, 50/60 Hz, IP65, 5000K, 0.85 A, PF>0.9, 110°, CRI≥80, -20 °C ~ 40 °C / -4 °F ~ 104 °F

340018-DW-US 15000 lm
150 W, 110-130 Vac, 50/60 Hz, IP65, 5000K, 1.27 A, PF>0.9, 110°, CRI≥80, -20 °C ~ 40 °C / -4 °F ~ 104 °F

340019-DW-US 20000 lm
200 W, 110-130 Vac, 50/60 Hz, IP65, 5000K, 1.68 A, PF>0.9, 110°, CRI≥80, -20 °C ~ 40 °C / -4 °F ~ 104 °F

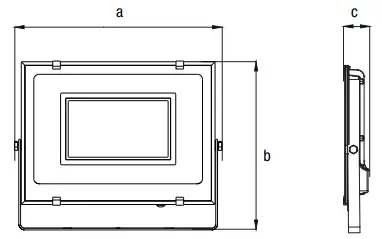

	a	b	c	g
100 W	269.5 mm / 10.6in	230 mm / 9.0 in	42 mm / 1.6 in	1300g
150 W	339.5 mm / 13.3in	291.7 mm / 11.5in	42 mm / 1.6 in	1800g
200 W	404 mm / 15.9in	331 mm / 13.0in	43.5 mm / 1.7 in	3100g

THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED

This product is class I and must be earthed.
Please switch off mains supply before installation.
Ensure all seals are intact and operational after installation or maintenance.
Do not touch the light while in use or just after use to avoid being burnt.
Glass cover can break into small pieces.
The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire shall be destroyed.
SUITABLE FOR WET LOCATIONS
SUITABLE FOR OPERATION IN AMBIENT NOT EXCEEDING 40°C

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

this device may not cause harmful interference, and
this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/ TV technician for help.

Conforms to UL Std. 1598
