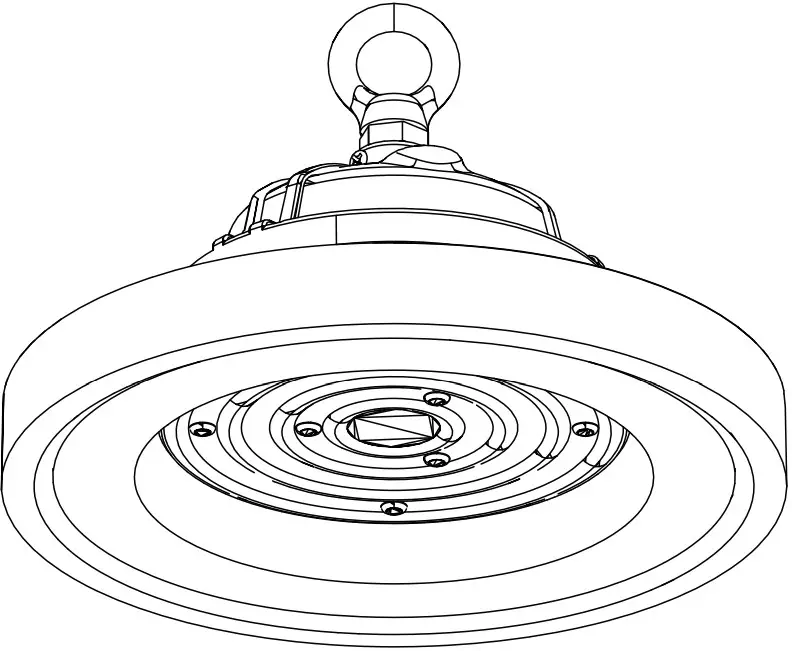

Lepro 350031 Led High Bay Light User Guide

350031 LED High Bay Light
User Guide

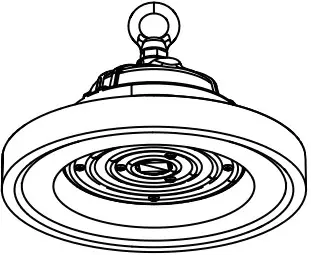

Packing List / Verpackungsliste

Model NO.: 350031-DW-EU
14000 lm
100 W, 220-240V~, 50 Hz, IP65, 4000K, 0.46 A, PF>0.9, 90°, CRI≥80, -20 °C~40 °C, 140 lm/W L70B50 lifetime: 50000hours

https://eprel.ec.europa.eu/qr/1189875

Model NO.: 350032-DW-EU
21000 lm
150 W, 220-240V~, 50 Hz, IP65, 4000K, 0.68 A, PF>0.9, 90°, CRI≥80, -20 °C~40 °C, 140 lm/W L70B50 lifetime: 50000hours

https://eprel.ec.europa.eu/qr/1189897

Model NO.: 350033-DW-EU
28000 lm
200 W, 220-240V~, 50 Hz, IP65, 4000 K, 0.91 A, PF>0.9, 90°, CRI≥80, -20 °C~40 °C, 140 lm/W L70B50 lifetime: 50000hours

https://eprel.ec.europa.eu/qr/1189913

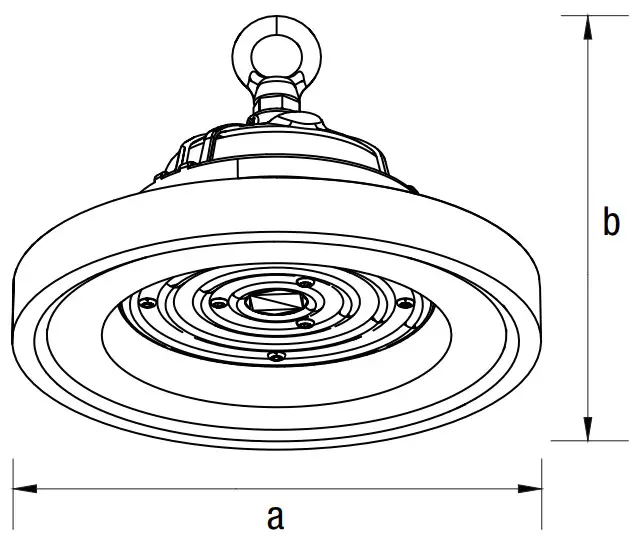

	a	b	g
100 W	Ø253 mm	120 mm	2200g
150 W	Ø322 mm	121 mm	3300g
200 W	Ø346 mm	122 mm	3800g

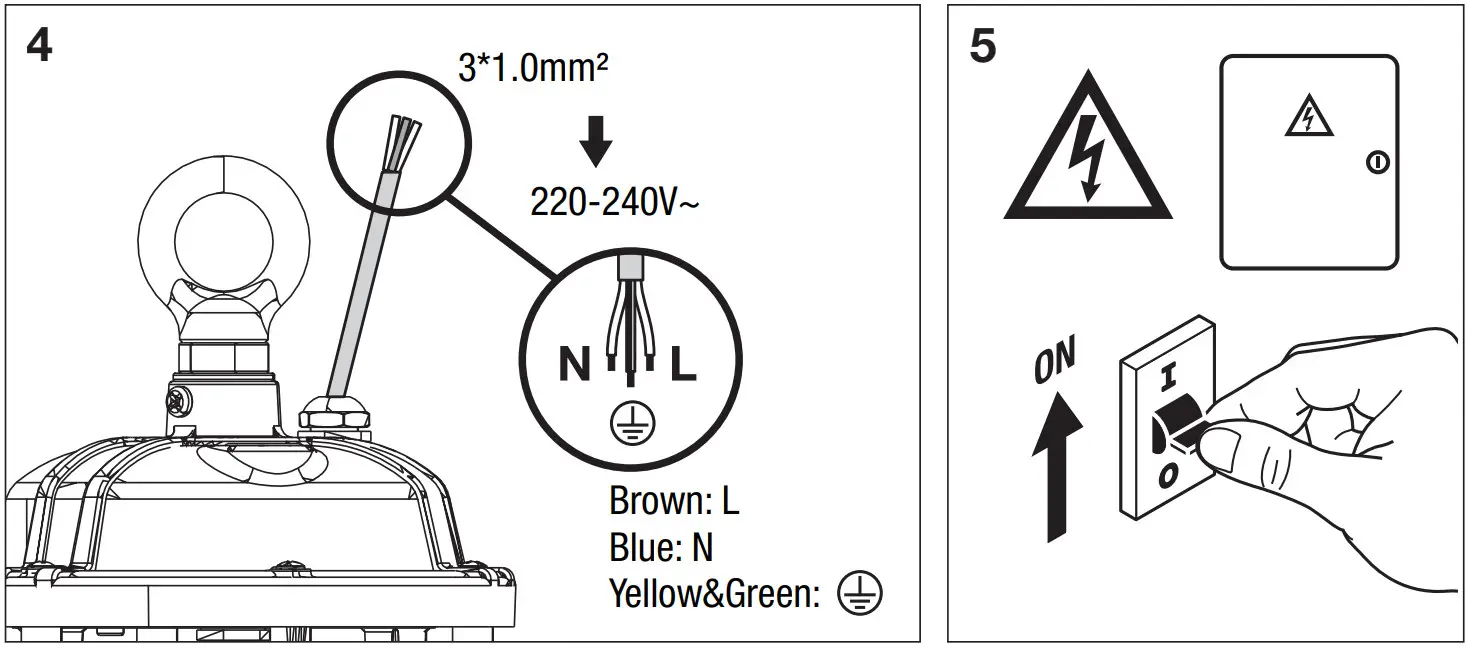

1. This product is class I and must be earthed.

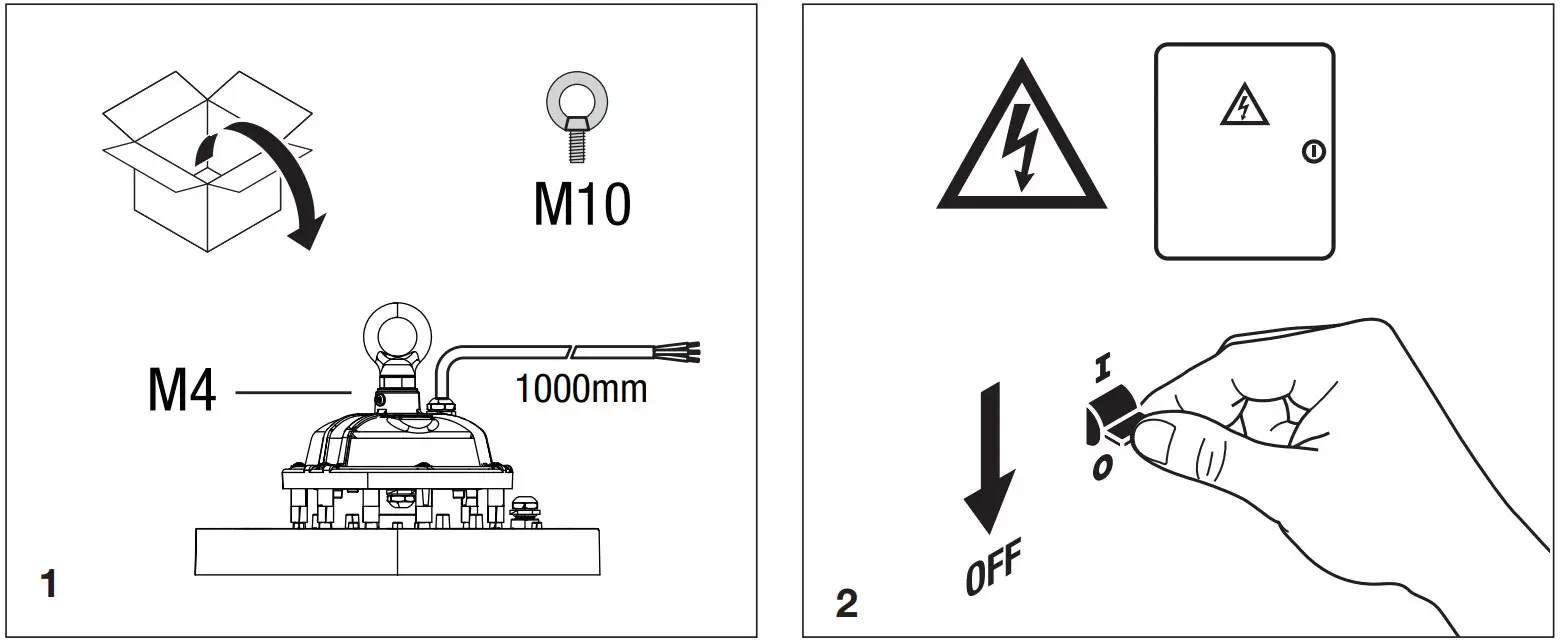

2. Please switch off the mains supply before installation.
3. Ensure all seals are intact and operational after installation or maintenance.
4. Do not touch the light while in use or just after use to avoid being burnt.
5. The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
6. Terminal block not included. Installation must be performed by a qualified person.
7. The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire shall be destroyed.
8. Non-replaceable control gear.
9. This product contains a light source of energy efficiency class <E>.
10. This is a containing product, including one light source.
11. Only to be installed outside arms reach.

This product is subject to the provisions of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products identified with this symbol may not be discarded with normal household waste, but must be taken to a collection point for recycling electric and electronic appliances. This recycling symbol marks e.g. an object or parts of the material as valuable for recycling. Recycling helps to reduce the consumption of raw materials and protect the environment.
Manufacturer / Hersteller:

LE Innovation Limited
One Spencer Dock, North Wall Quay, Dublin 1, D01
X9R7, Ireland
www.lepro.de
+49 800-723-6202
[email protected]
UK Importer:
Lighting EVER Ltd.
93 Addy House, Rotherhithe New Road, London, SE16 2PD, United Kingdom
www.lepro.co.uk
+44 800-802-1244
[email protected]
Made in China Hergestellt in China

Non-replaceable control gear

Non-replaceable light source
