Ustellar Ut88870-rgb Led Flood Light Outdoor App Control User Guide

LED RGB Flood Light User Guide
Please scan the QR code below to download APP —”Shine Light”.

http://120.25.194.109/files/down/CShine/index.html

THANK YOU for choosing Ustellar. To optimize user experience, please install and use the light according to the following instruction.

Warning

1. Please check if the light and the parts are intact before installation.
2. Make sure to cut off the power before installation.
3. Please do not place this light in corrosive conditions.
4. If there is any damage to the cord, please cut off the power and stop using it im­mediately.
5. Please do not retrofit the light within the warranty period.
6. To ensure the light works properly, please use the voltage indicated on the packing.
7. To avoid any damage to the light, please do not use chemical solvent during routine maintenance.

Specification

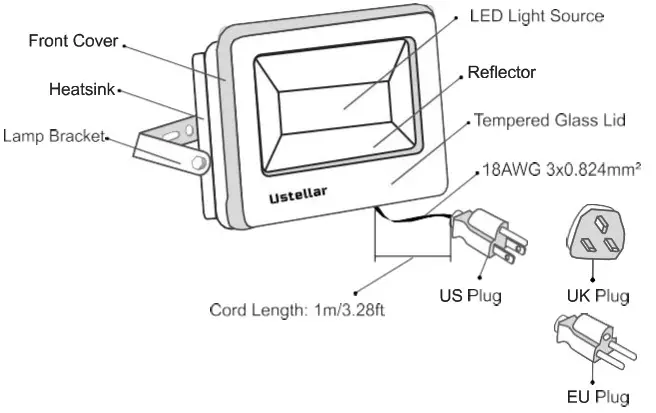

Components

Note:

1. Different plugs for different countries.
2. Cord – type Z attachment. For type Z attachment, if the external cord of this luminaire is damaged, it cannot be replaced without breaking or destroying the luminaire.

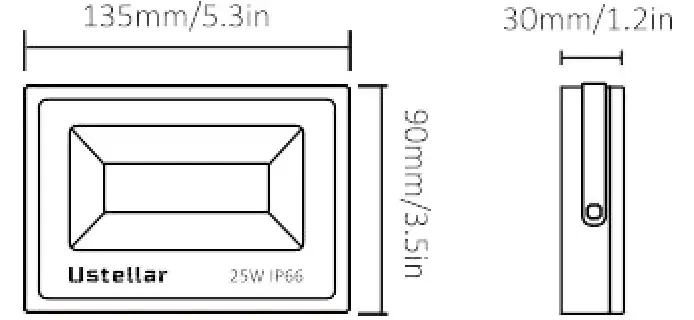

Dimension

UT88870-RGB
Weight: 1.11b/0.5kg
Max Projected Area: 20m’
Suggested Height for Installation: 5m

Installation

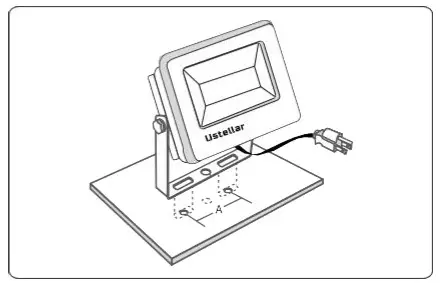

Step A: According to the spacing of two screw bits on the bracket, drill two holes on the mounting panel.

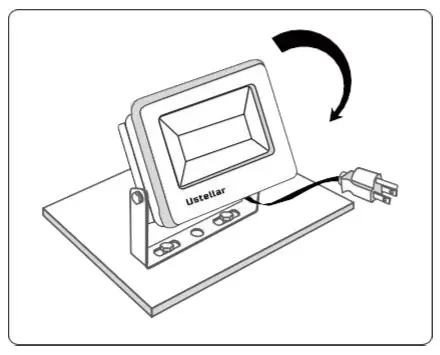

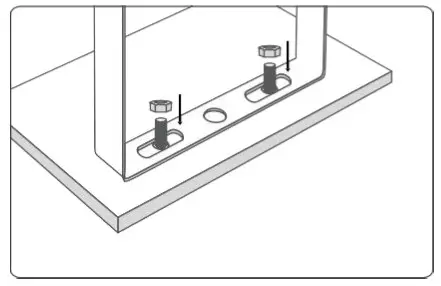

Step B: Aim the bracket at the holes and fix it with two bolts. Step C: Adjust the lighting direction up or down as per your need and plug into power the light on.

Note:

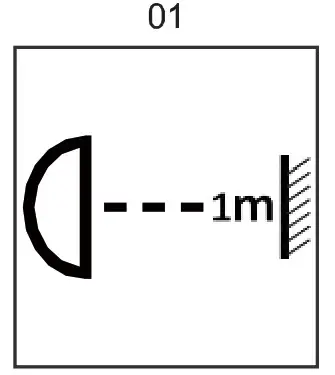

Make sure that the distance between the light and the object being lit is more than 1 meter,so as to avoid high temperature caused by a short distance.
Non-replaceable Light Source.
Limitation of Indoor and Outdoor Use

1. This light is waterproof and dampproof. It is protected against rain, but it cannot be immersed in water.
2. The mounting position of this light should be able to bear at least 10 times as heavy as the light.
3. This light should be used in a condition that is good for heat dissipation. Its working temperature should be less than 40° C . Too high the working temperature will cause serious lumen depression and affect the lifespan of the light.

How to control the ROB floodlight?

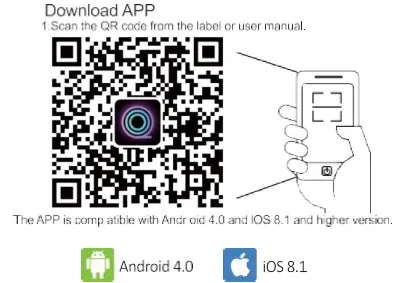

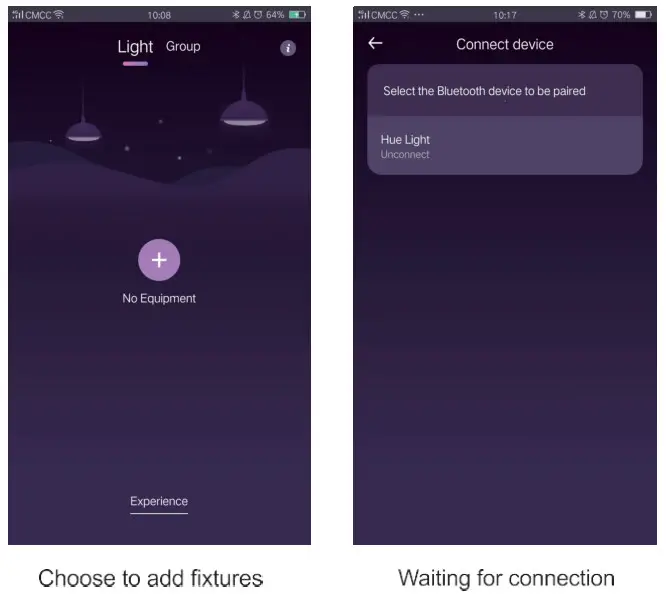

1. Download the App “Shine Light” by scanning the QR code below. This App is compatible with Android 4.0 and iOS 8.1 or above.
2. Power on the light.

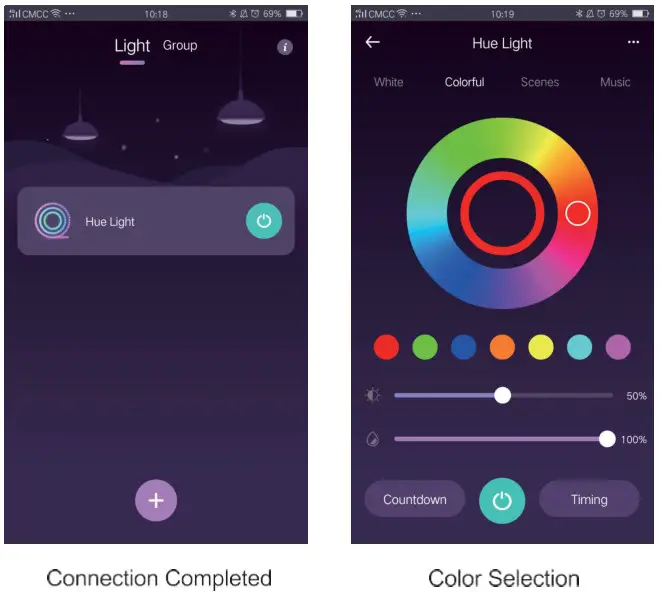

3. Activate the Bluetooth function on your phone and open the App to connect to the light.
4. Enjoy the lighting by exploring the functions such as brightness, modes, music sync, timer, etc via the App.

If you cannot control the lamp with the app, please try:

1. Turn off the Bluetooth function on your phone, and turn it on
2. Power on the lamp again, keep your phone to the lamp as close as possible and try to reconnect.

Why the app shows that the lamp status is connected, but I still cannot control the lamp with the app?

1. Keep your phone to the lamp as close as possible.
2. The app can only control four lamps at one time, if there are over 4 lamps, it may fail to control them.

Contact Us

Have some issues? No worries! Please reach us via these channels. Our customer services team is more than happy to help.
www.ustellar.com
[email protected]
Manufacturer: Shenzhen Ustellar Technology Ltd.
Address: Rm.201, A Bldg., No. A Qianhai 1st Rd.,
Shenyang Cooperation Zone,
Qianhai, Shenzhen, CHINA 518000
