Uline Pegboard Installation Guide

ULINE Pegboard Installation Guide

SAFETY

• ALWAYS wear safety glasses when using any power tool.
• ALWAYS use hearing protection when using loud equipment.
• DO NOT sit, climb, hang or step on hooks or holders.
• DO NOT overload hooks or holders.
• DO NOT try to install pegboard panels by yourself. Use two people.

INFORMATION

SUGGESTED TOOLS

• 24″ Level
• Tape Measure
• Pencil
• Chalk Line
• Drill with Phillips Screwdriver Attachment
• Glue

SUPPLIES

#8 wood screws, 11/2″ to 2″, with anchors and 1/2″ tall spacers.

GENERAL

1. Install over studs, plaster, furring strips or drywall.
2. Snap chalk line at desired height on wall.
   NOTE: Screws may not always anchor into a stud.
3. Mark all holes on wall before hanging pegboard.
   NOTE: If hanging multiple pegboards, mark ALL holes first.

INSTALLATION

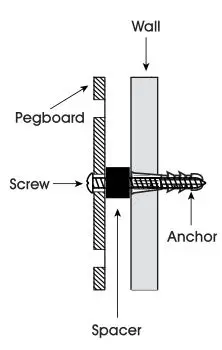

INSTALLATION DIAGRAM

1. Screw
2. Pegboard
3. Spacer
4. Wall
5. Anchor

PREPARATION

1. With someone holding the pegboard in place, mark all holes on wall according to Figure 1 below where screws will be inserted for hanging. (See Figure 1)
2. Pre-drill holes in wall if using anchors.
   NOTE: Use a 3/16″ drill bit.
3. Insert anchors into holes in wall.
4. Following Figure 1 below, glue spacers to back of all pegboard holes through which screws will be inserted. Be careful to glue spacers over the same pegboard holes used to mark wall in step 1 or spacers and holes in wall will not line up correctly. (See Figure 1)

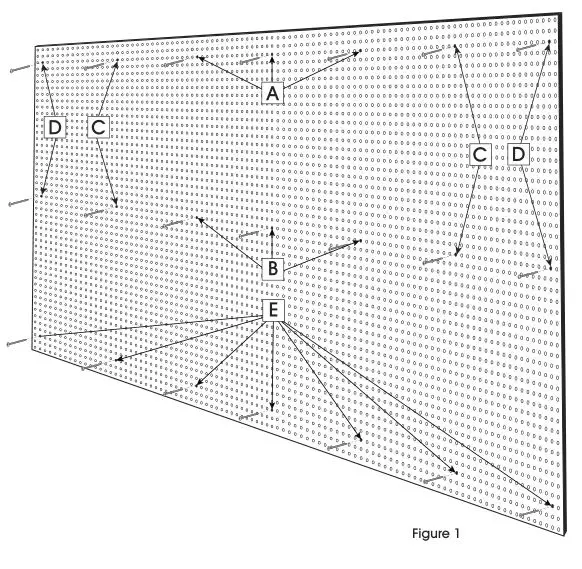

HANGING PEGBOARD (See Figure 1)

NOTE: Follow this order for best results. Do not fully tighten screws until all 21 are in place.

1. Fasten 3 top screws (A).
   • 3rd row from top, 33rd, 48th column from left, and 34th column from right.
2. Fasten 3 center screws (B).
   • 24th row from top, 33rd, 48th column from left, and 34th column from right.
3. Fasten 4 inner side screws (C).
   • 3rd row from top, 17th column from left and 18th column from right.
   • 24th row from top, 17th column from left and 18th column from right.
4. Fasten 4 outer side screws (D).
   • 3rd row from the top, 2nd column from the left and 2nd column from the right.
   • 24th row from the top, 2nd column from the left and 2nd column from the right.
5. Fasten 7 bottom screws (E).
   • 3rd row from the bottom, 2nd column from the left and 2nd column from the right.
   • 3rd row from the bottom, 17th column from the left and 18th column from the right.
   • 3rd row from the bottom, 33rd, 48th column from the left, and 34th column from right.
