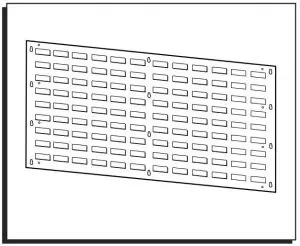

ULINE Wall Mount Panel Racks Installation Guide
1-800-295-5510
uline.com
ASSEMBLY
NOTE: Fasteners not included. After determining the best size and type of fastener to use based on the mounting surface, fasteners will need to be purchased separately.
- Exercise caution when selecting a mounting surface or uprights. This must adequately support the louvered panel with a maximum load.
- Put fasteners through the holes in the panel to attach the panel to the mounting surface.
MOUNTING DIMENSIONS
Dimensions for H-4685. (See Figure 1)
NOTE: 9 rows by 6 columns of Louvers (54 Louvers total).
Figure 1

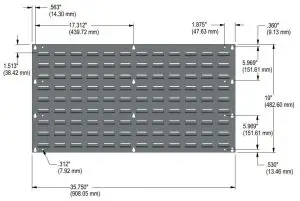

Dimensions for H-1492. (See Figure 2)
NOTE: 9 rows by 12 columns of Louvers (108 Louvers total).
Figure 2
1-800-295-5510
uline.com
Read More About This Manual & Download PDF:
