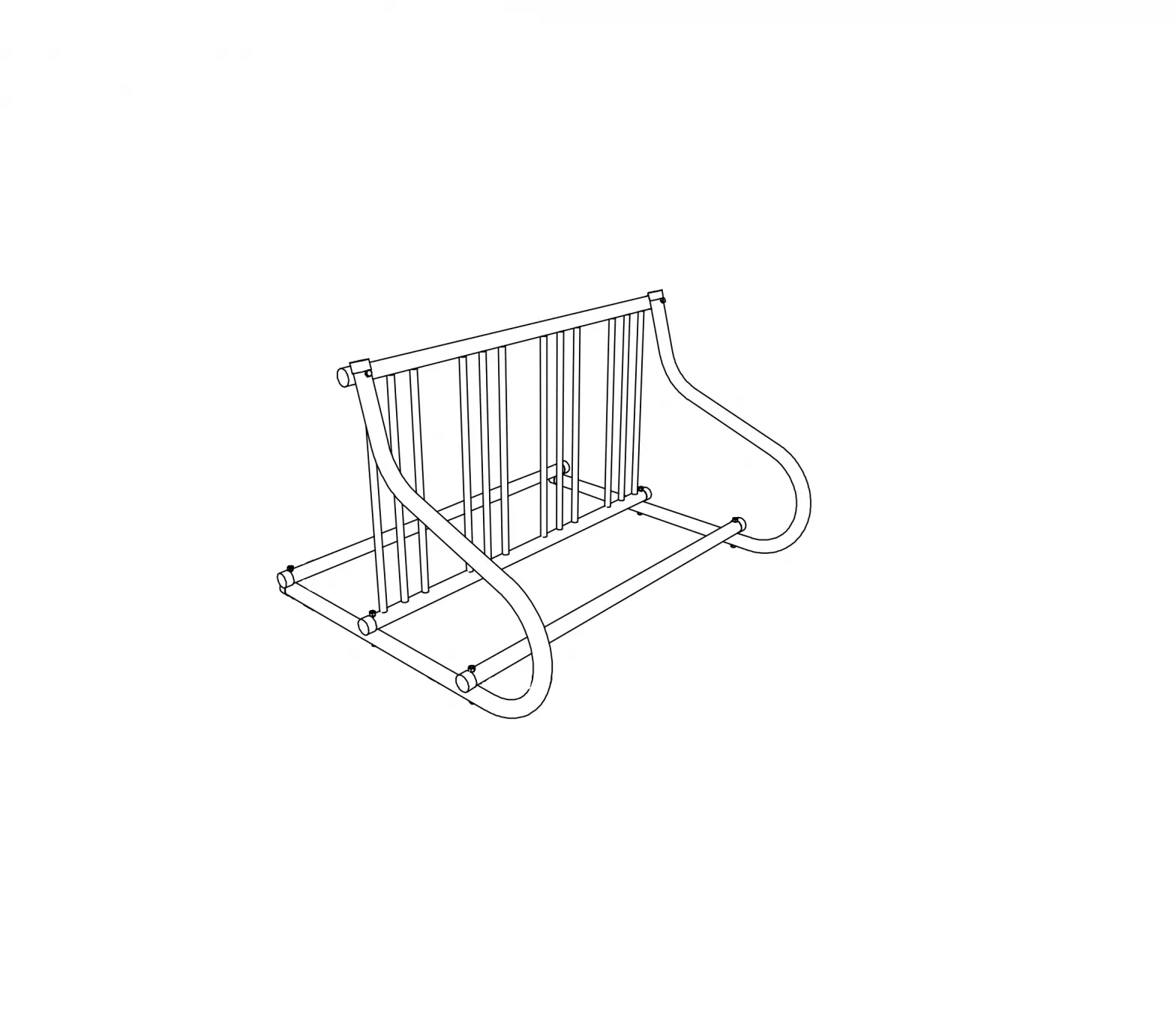

Uline Single Sided Grid Bike Rack User Guide

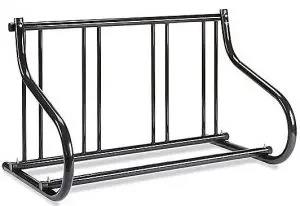

ULINE Single Sided Grid Bike Rack User Guide

TOOL NEEDED

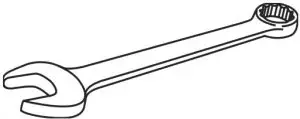

• 9/16″ Wrench


PARTS

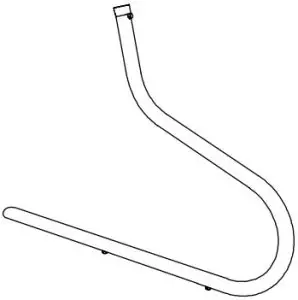

1. Leg x 2

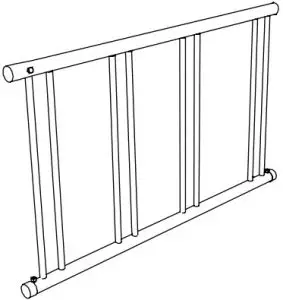

2. Grid Section x 1

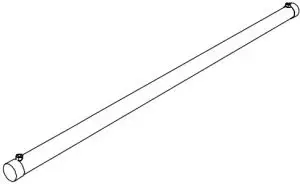

3. Pole x 1

4. Locknut x 6

5. Bolt x 6

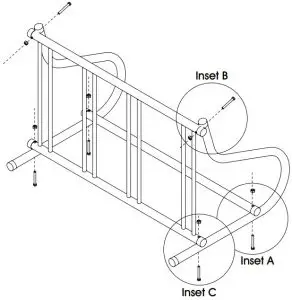

ASSEMBLY

1. Insert bolt upward through hole in leg and pole. Fasten loosely with locknut. Repeat by attaching other leg to pole. (See Inset A)
2. Insert bolt through hole at the top of the leg and end of grid. (See Inset B)
    NOTE: Grid can only be positioned one way for mounting. The holes on top are drilled diagonally through the tube at a slight downward angle.
3. Fasten loosely with locknut. Repeat by attaching other leg to grid.
4. Align bottom holes of grid with middle hole of legs. Insert bolt upward and fasten loosely with locknut. Repeat by attaching other leg to grid. (See Inset C)
5. Complete assembly by tightening all bolts.
