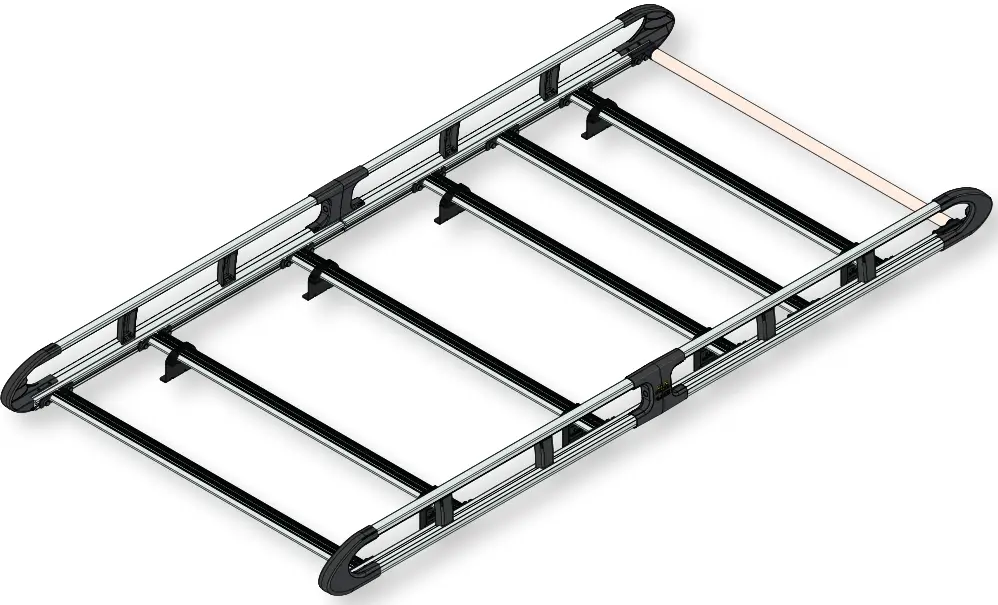

ULTI Rack+ Roof Rack
Instruction Manual
ULTI Rack+ Roof Rack
Fitting Instructions – Read instructions carefully before fitting and follow them for correct use
[email protected]
UK +44 (0) 1392 368 351

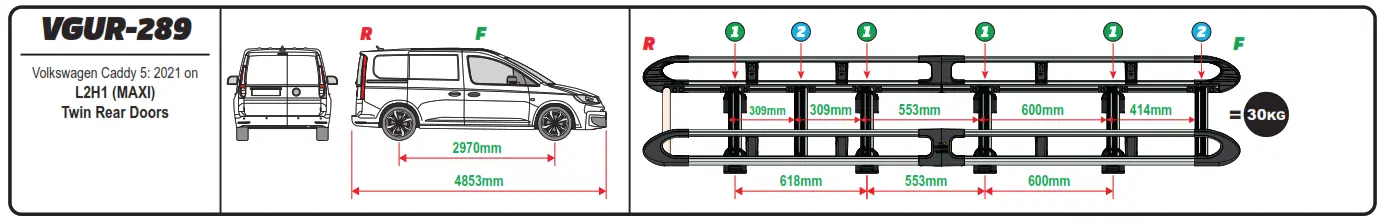

THIS INSTRUCTION COVERS THE FOLLOWING MODELS – CHECK YOU ARE FITTING THE CORRECT MODEL BEFORE PROCEEDING
This FITTING INSTRUCTION is the property of VAN GUARD ACCESSORIES LTD. and must not be used for manufacturing purposes, copied nor communicated in any way to third parties without written permission from VAN GUARD ACCESSORIES LTD.
IN8368_A (CN:NR)

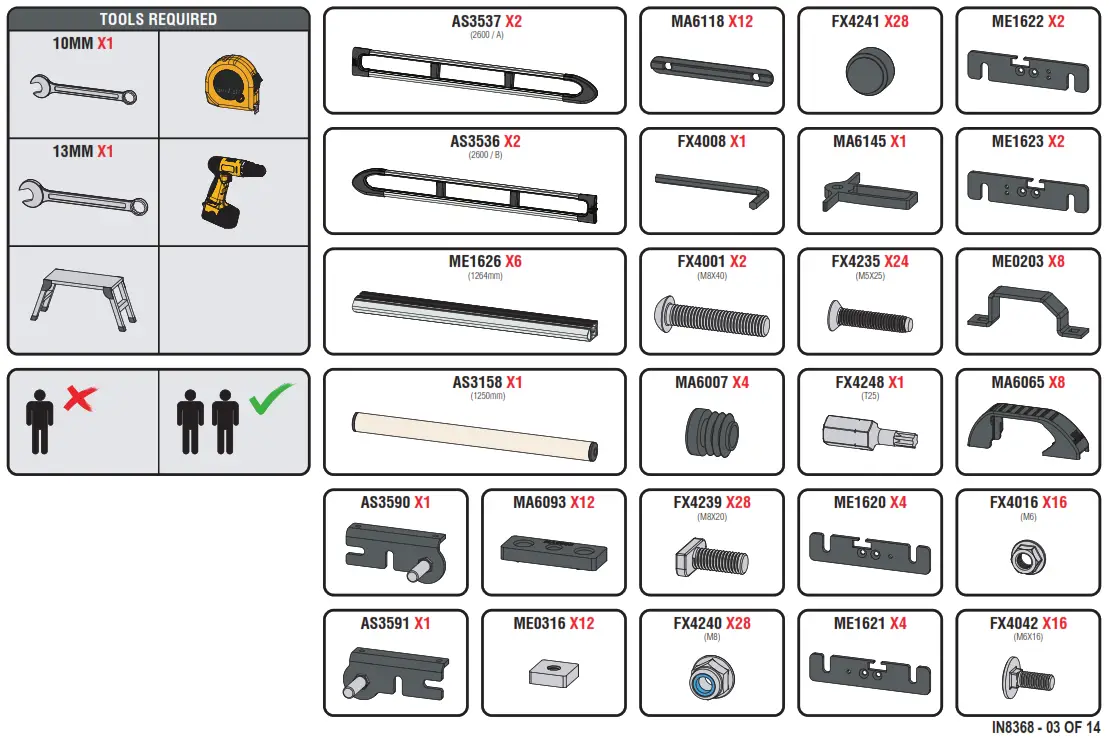

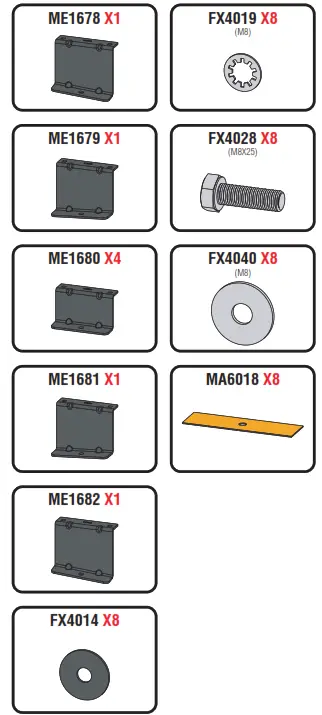

SUPPLIED COMPONENTS – CHECK ALL PARTS ARE PRESENT AND CORRECT BEFORE PROCEEDING

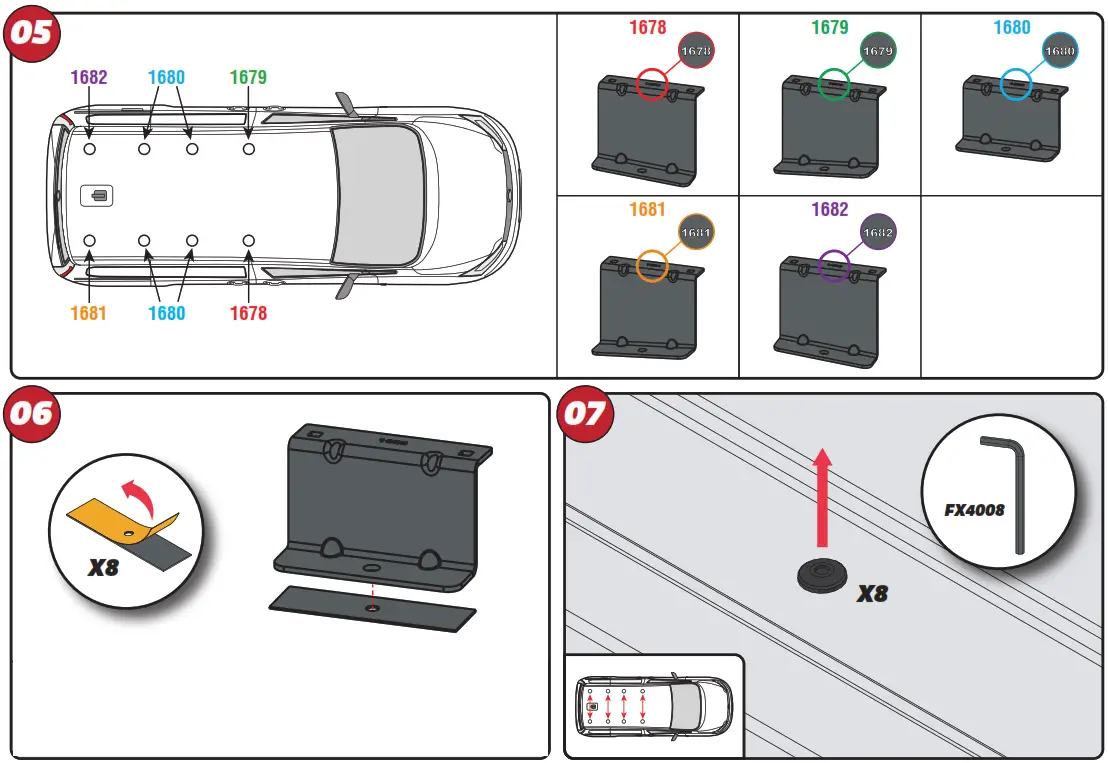

STICK GASKETS TO ALL BRACKETS

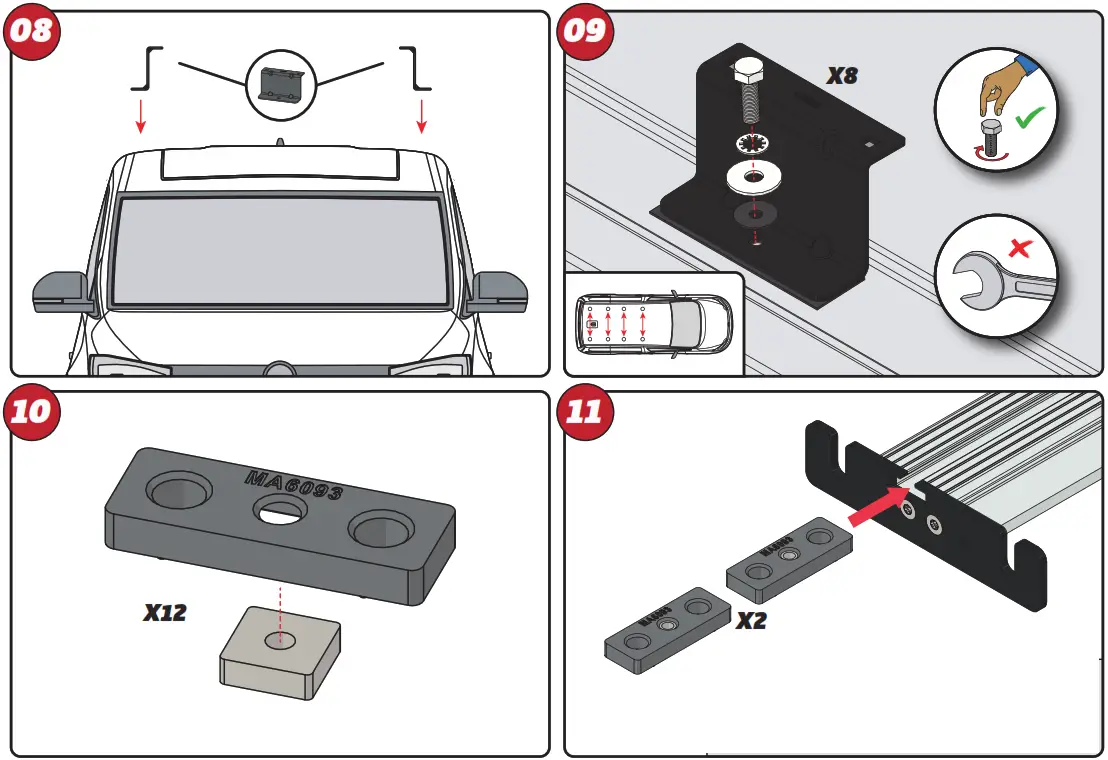

INSERT X2 INTO ALL BARS

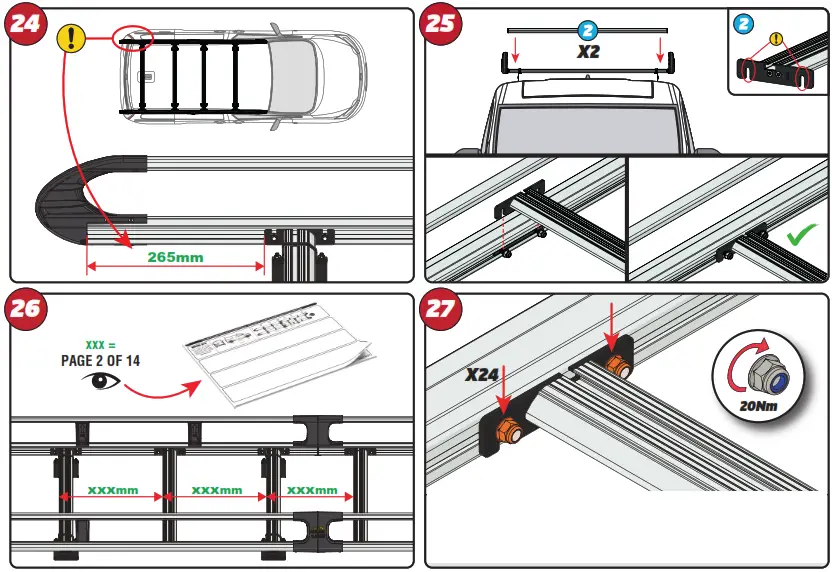

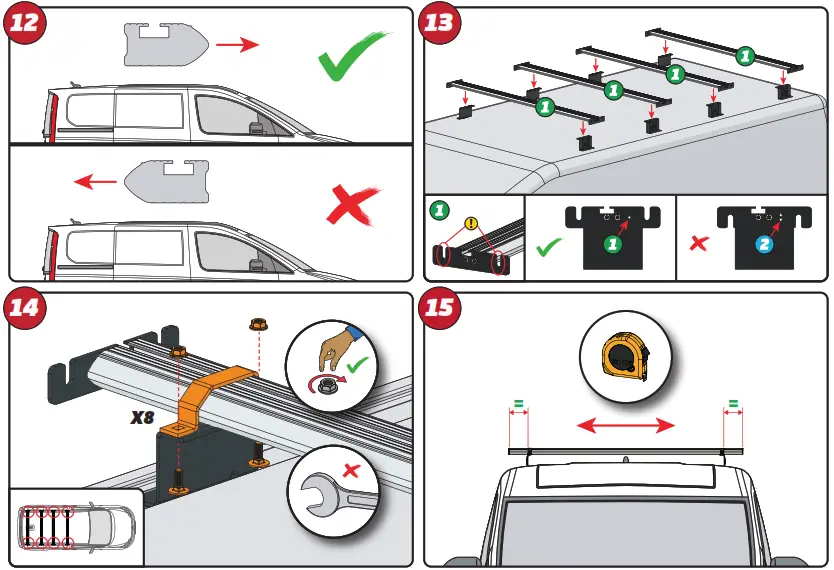

TIGHTEN ALL OF THE CROSS BARS
Van Guard Accessories Ltd
Fair Oak Close, Exeter Airport Business Park,
Exeter, Devon, EX5 2UL
