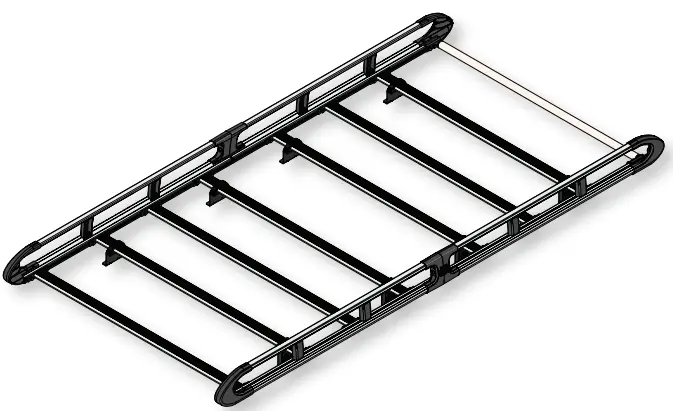

VAN GUARD IN8352 ULTI Rack Plus Van Roof Racks

Product Information

The IN8352 ULTI Rack+ is a product manufactured by Van Guard Accessories Ltd. The product is designed to fit specific models of vans, including Citroen Dispatch, Fiat Scudo, Peugeot Expert, Toyota Pro-Ace, and Vauxhall Vivaro with L3H1 and L2H1 specifications. The product has a maximum weight capacity of 150kg and comes with various supplied components.

Product Usage Instructions

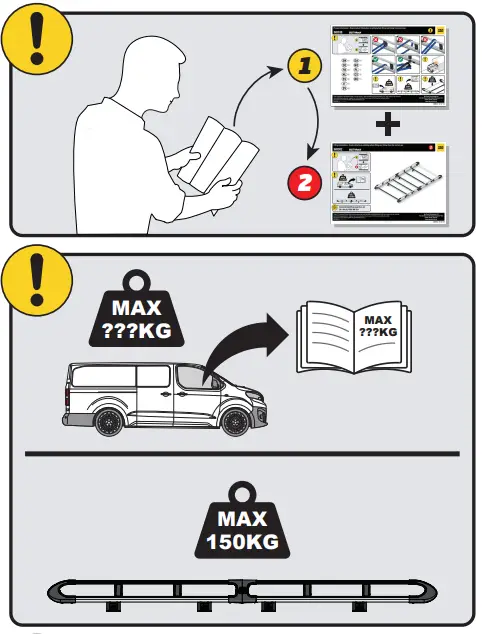

Before fitting the product, read the instructions carefully and ensure that you have the correct model of the product.

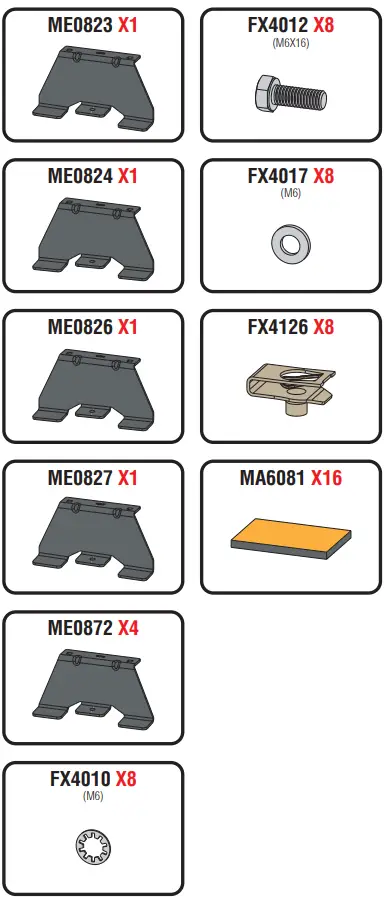

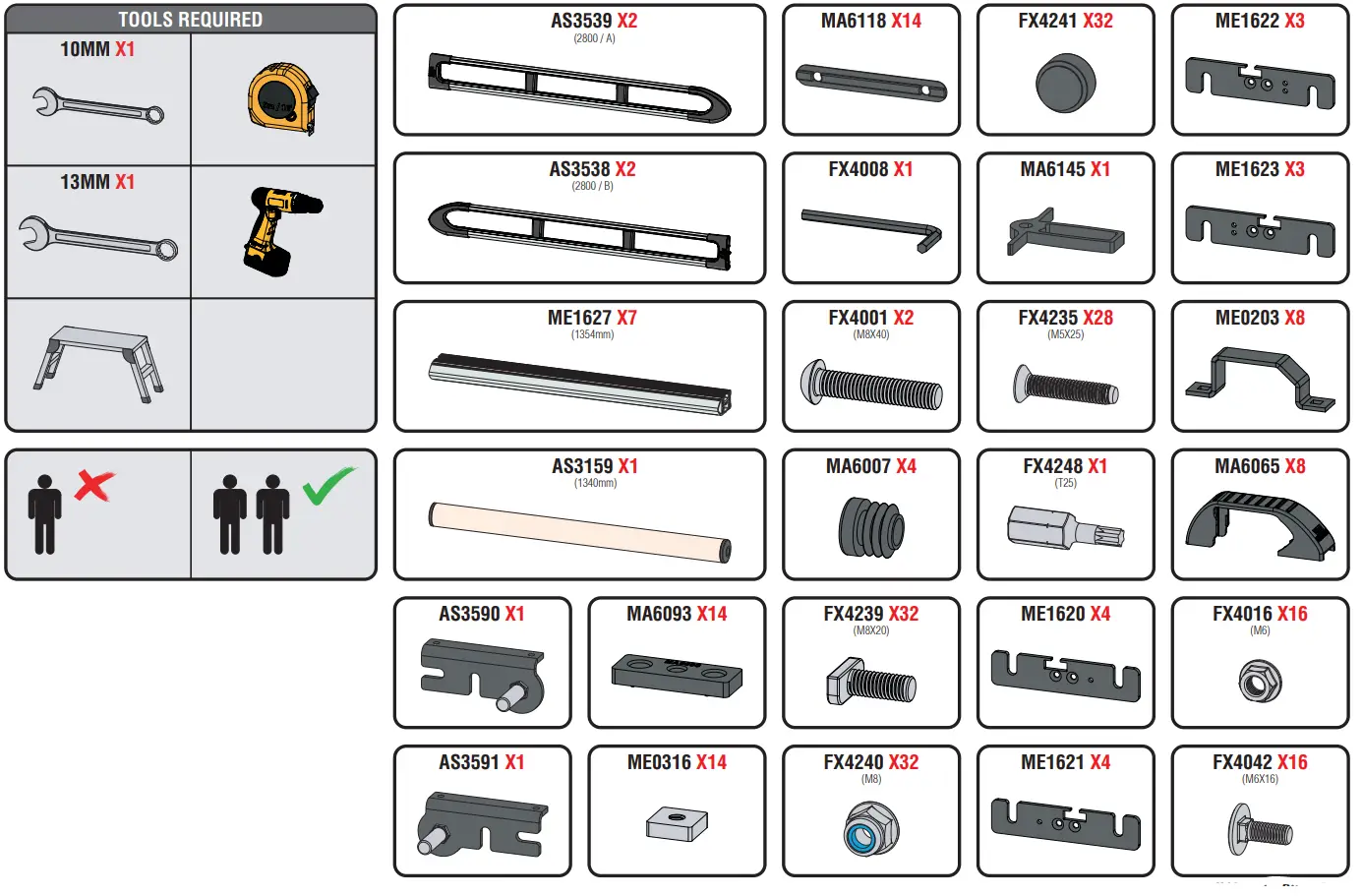

Check that all supplied components are present and correct before proceeding with the fitting process.
Use the tools required for fitting which include a 10mm and 13mm spanner.

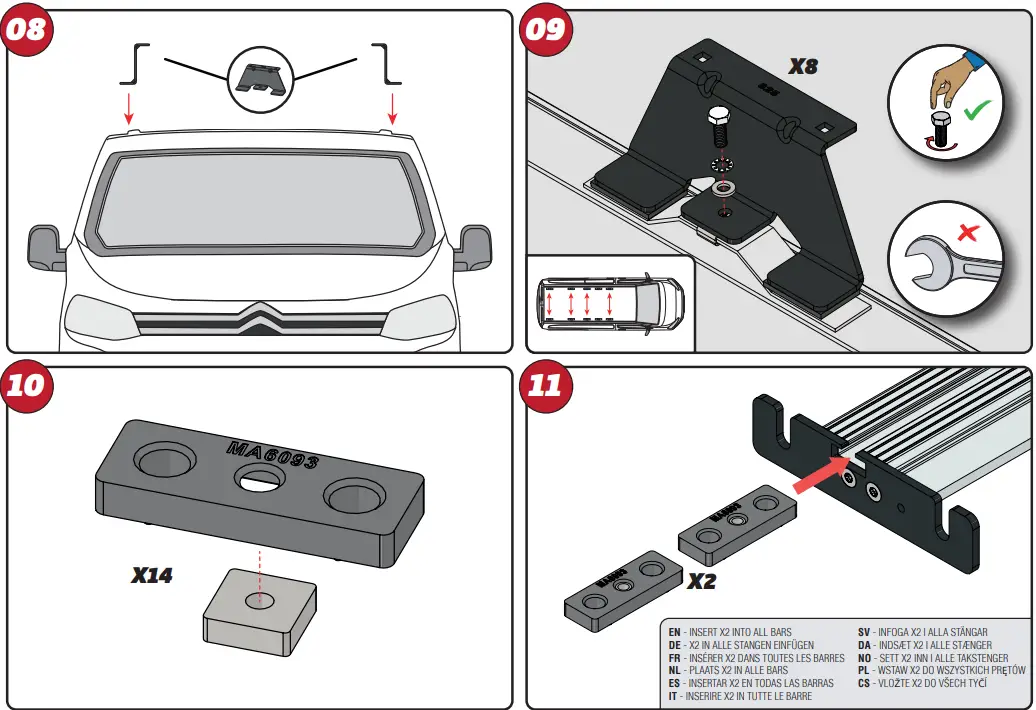

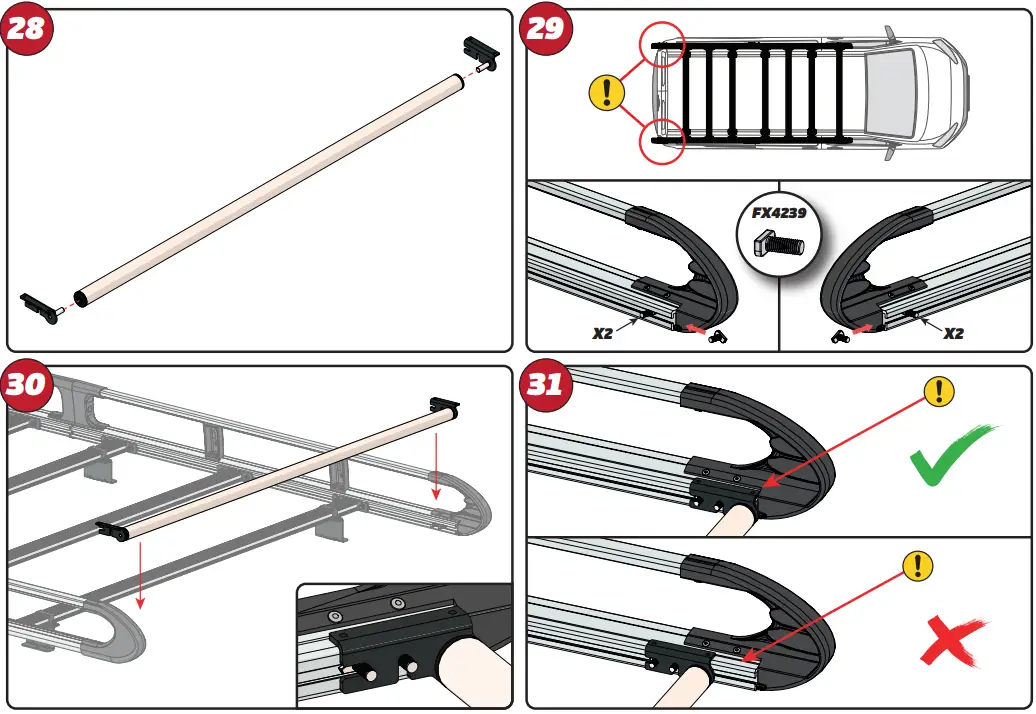

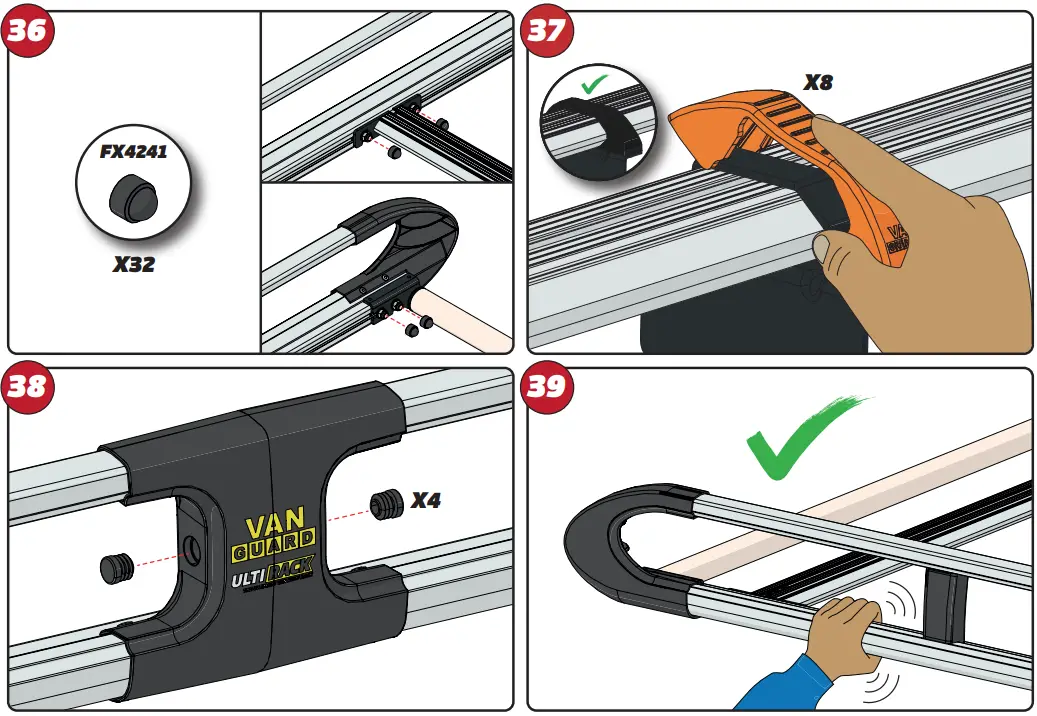

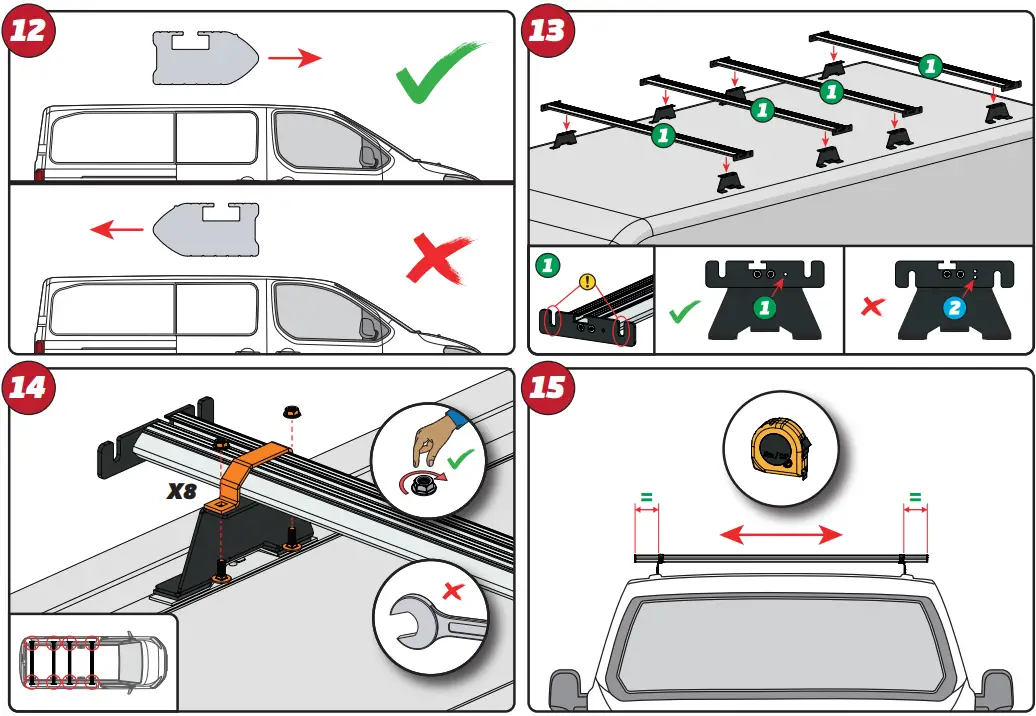

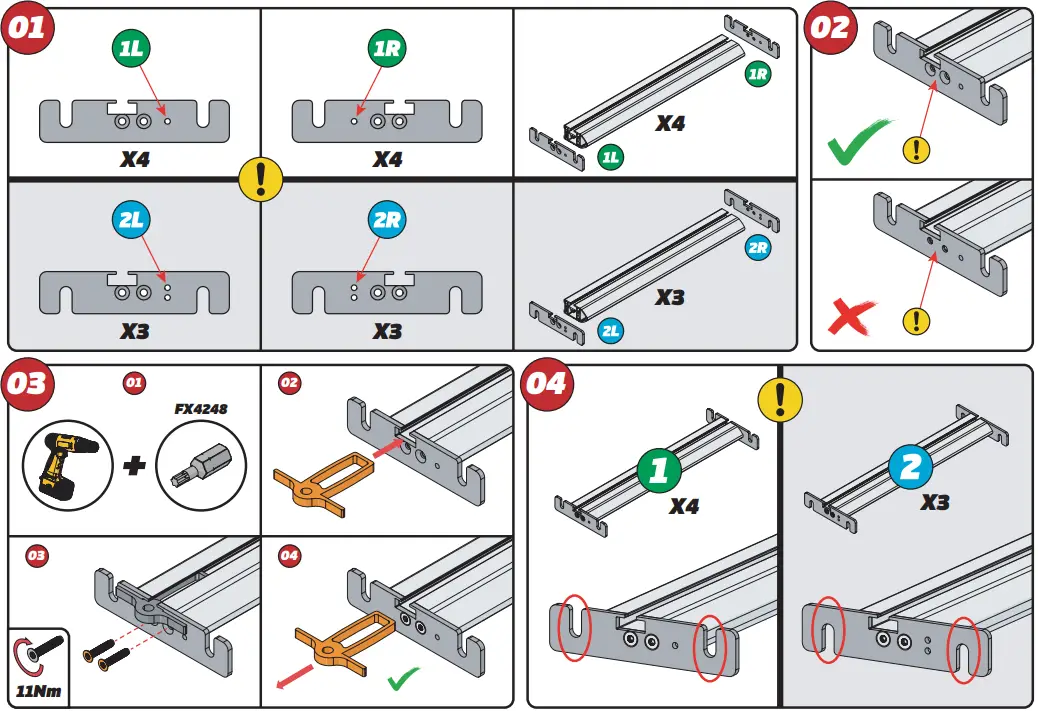

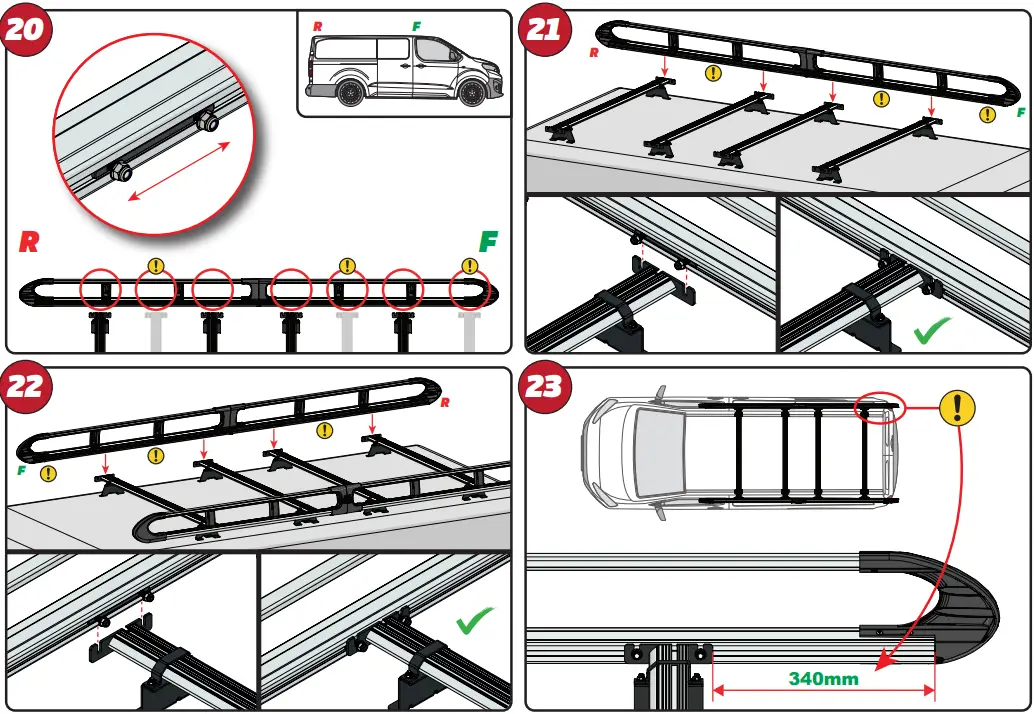

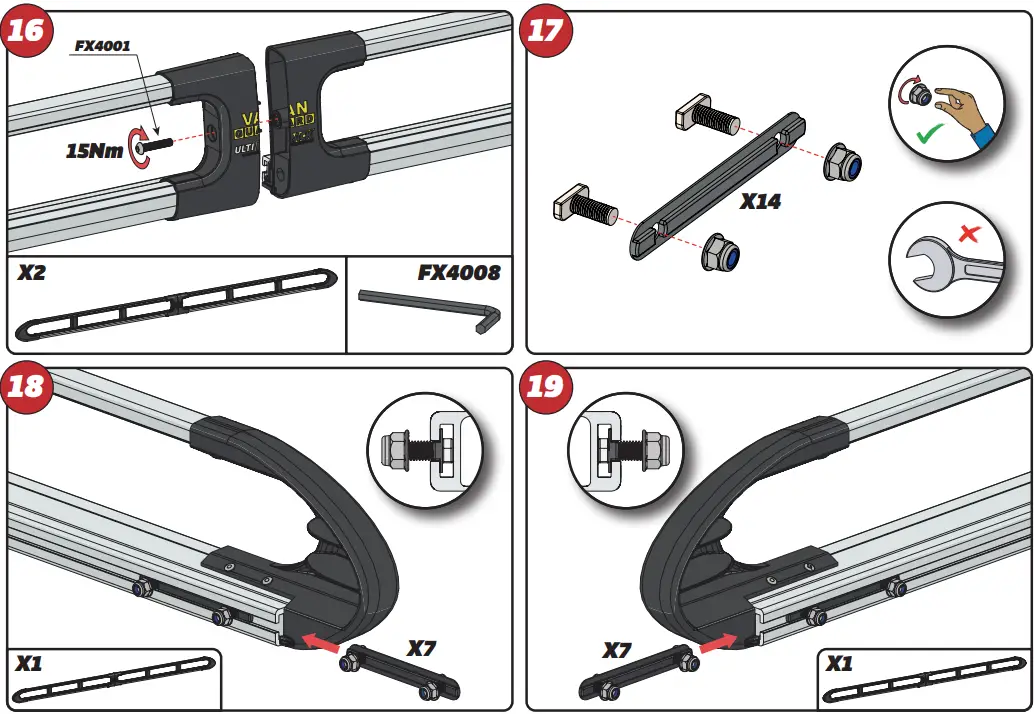

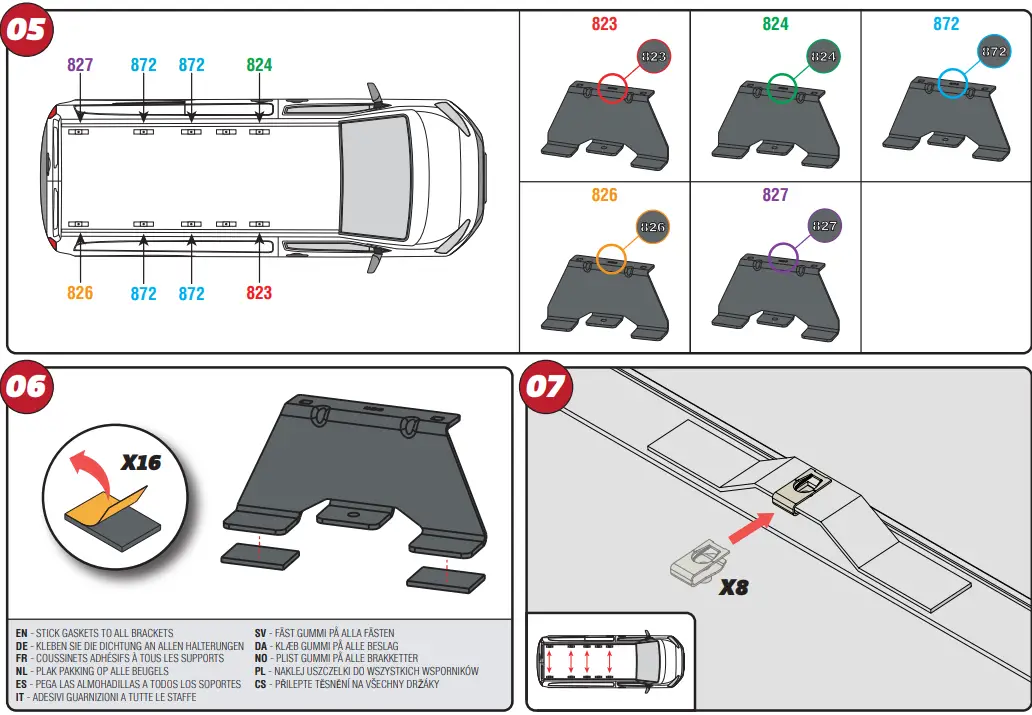

Follow the instructions provided to assemble the product.

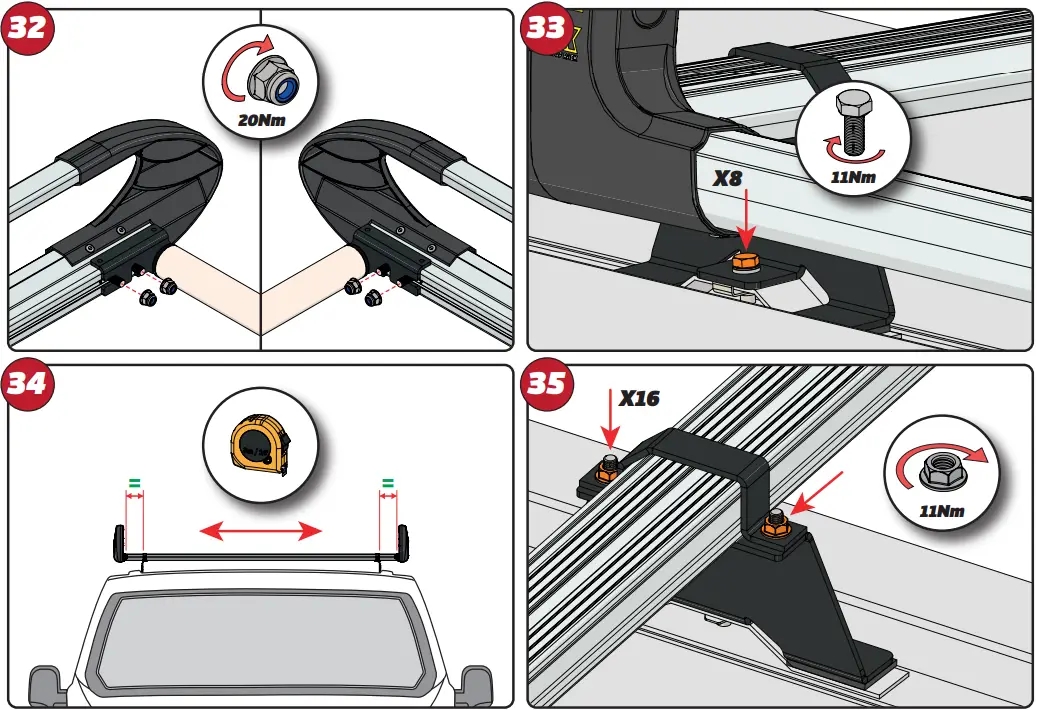

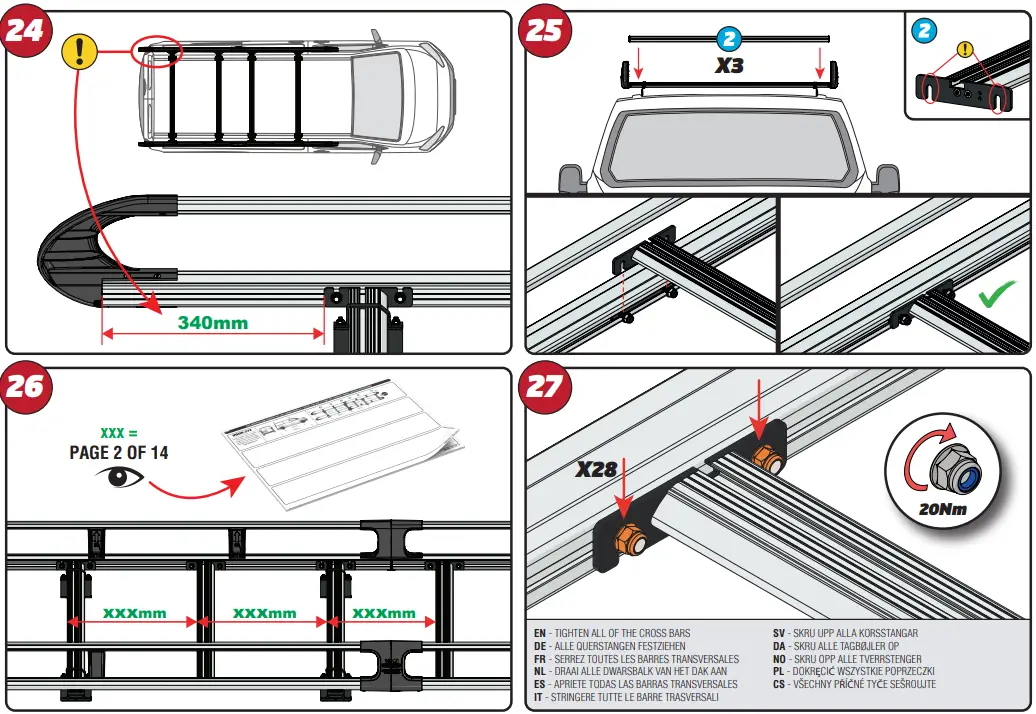

Tighten all of the cross bars using the specified torque for each component (refer to the table in section IN8352-10 of the manual).
Ensure that all parts are securely tightened before using the product.
If you have any questions or concerns about fitting or using the product, contact Van Guard Accessories Ltd customer care at [email protected] or call +44 (0) 1392 368 351.

[email protected] UK +44 (0) 1392 368 351

This FITTING INSTRUCTION is the property of VAN GUARD ACCESSORIES LTD. and must not be used for manufacturing purposes, copied nor communicated in any way to third parties without written permission from VAN GUARD ACCESSORIES LTD.
IN8352_A (CN:NR)

Van Guard Accessories Ltd
Fair Oak Close, Exeter Airport Business Park, Exeter, Devon, EX5 2UL
www.van-guard.co.uk

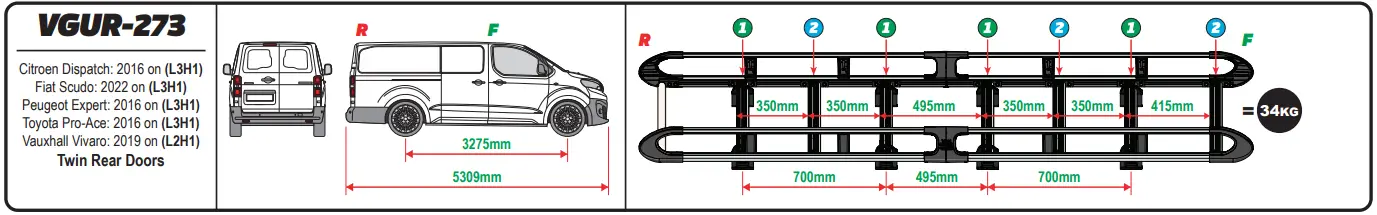

THIS INSTRUCTION COVERS THE FOLLOWING MODELS – CHECK YOU ARE FITTING THE CORRECT MODEL BEFORE PROCEEDING
