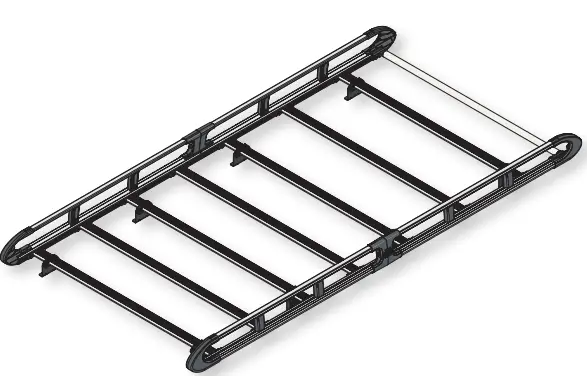

VAN GUARD VGUR-227 ULTIRack+ Roof Rack
Product Information
The IN8298 ULTI Rack+ is a product manufactured by Van Guard Accessories Ltd. The product is designed to fit the Mercedes Vito model from 2003 onwards with L1H1 and twin rear doors. The maximum weight the rack can hold is 150kg. It comes with a set of fitting instructions, which must be read carefully before fitting. The product is supplied with several components, which must be checked before proceeding with the fitting.
Product Usage Instructions
- Before fitting, read the fitting instructions carefully and ensure that all supplied components are present and correct.
- Check that you have the correct model before proceeding.

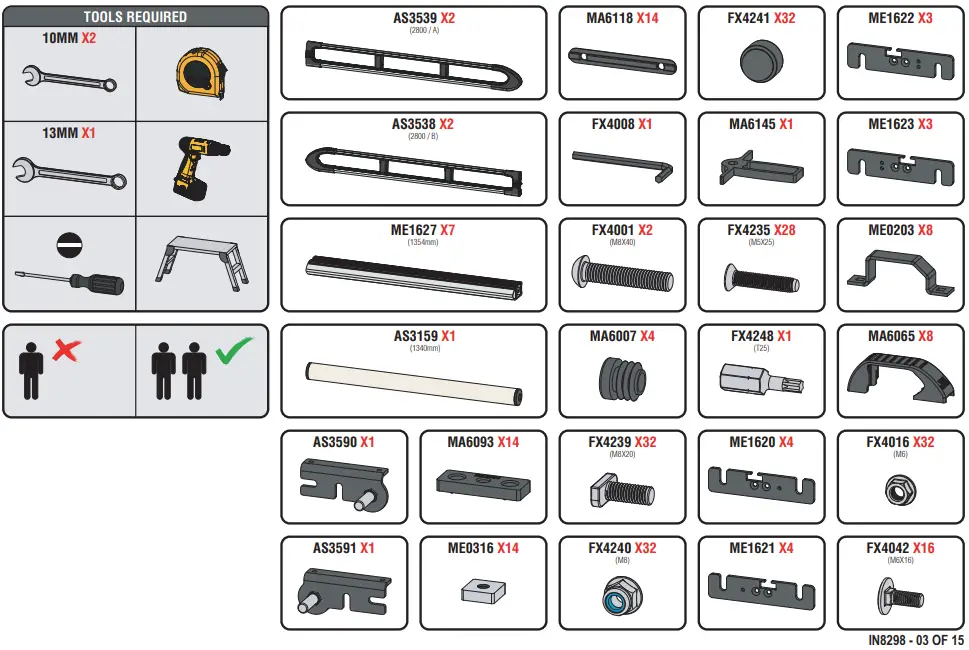

- Use the tools required, which include two 10mm wrenches, a 13mm wrench, and various bolts and screws.
- Fit the supplied components according to the instructions provided. Tighten all bolts and screws to the recommended torque settings.

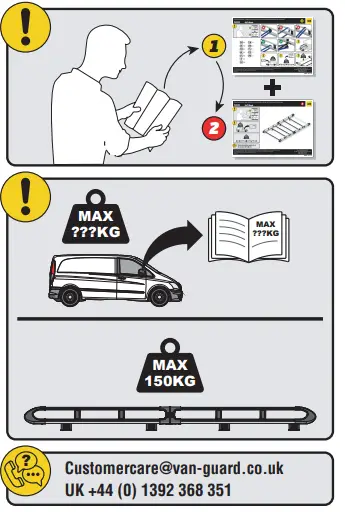

- The rack can hold a maximum weight of 150kg. Do not exceed this weight limit.
- For any queries or issues, contact customer care at [email protected] or call UK +44 (0) 1392 368 35
Fitting Instructions – Read instructions carefully before fitting and follow them for correct use

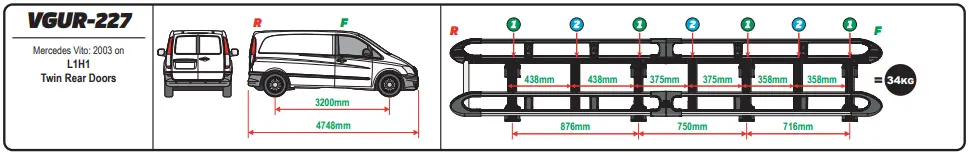

THIS INSTRUCTION COVERS THE FOLLOWING MODELS – CHECK YOU ARE FITTING THE CORRECT MODEL BEFORE PROCEEDING

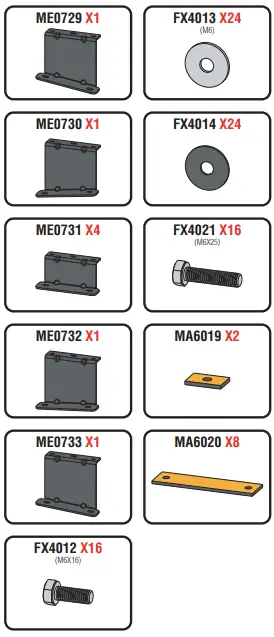

SUPPLIED COMPONENTS
CHECK ALL PARTS ARE PRESENT AND CORRECT BEFORE PROCEEDING
SUPPLIED COMPONENTS – CHECK ALL PARTS ARE PRESENT AND CORRECT BEFORE PROCEEDING
INSTALLATION

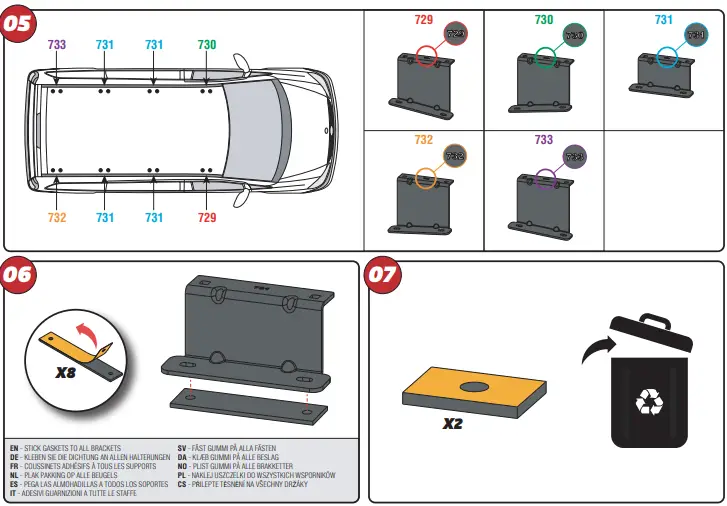

– STICK GASKETS TO ALL BRACKETS
CHECK THE VEHICLE FIXING POINTS AND FOLLOW THE RELEVANT STEPS

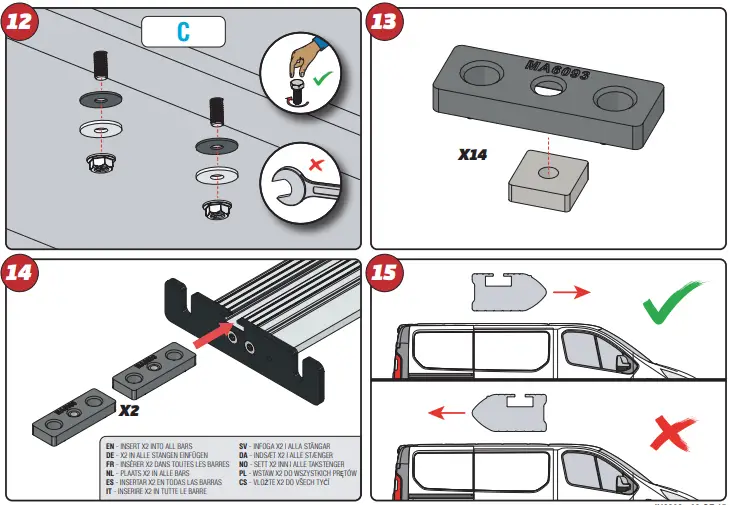

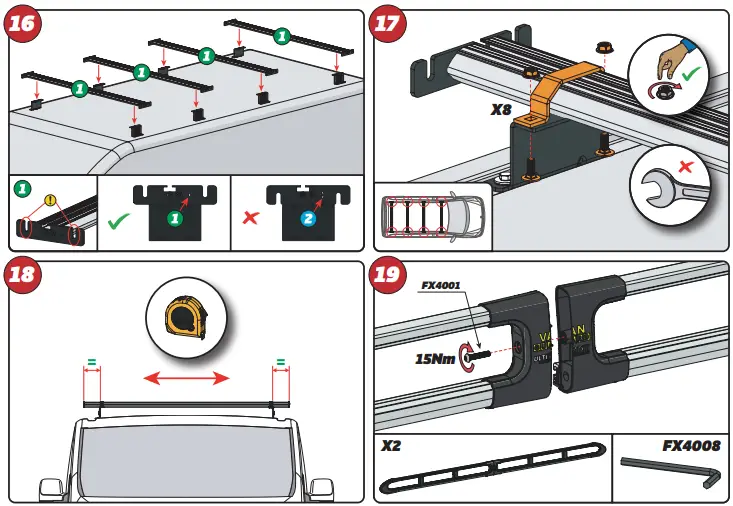

INSERT X2 INTO ALL BARS

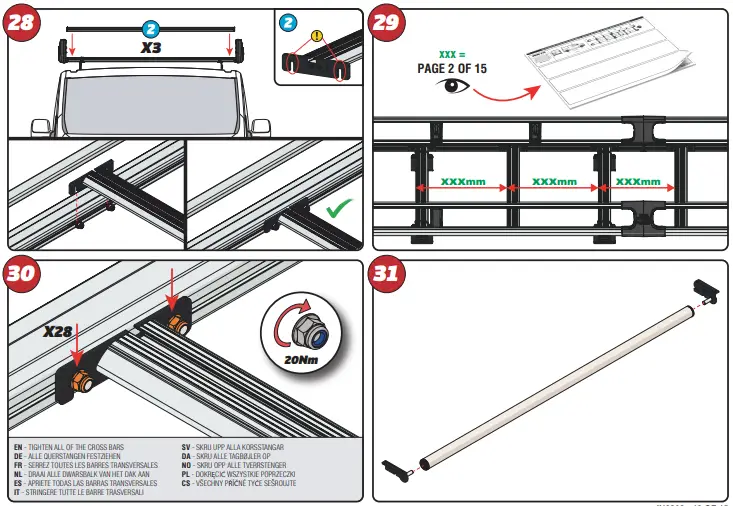

TIGHTEN ALL OF THE CROSS BARS
[email protected] UK +44 (0) 1392 368 351
This FITTING INSTRUCTION is the property of VAN GUARD ACCESSORIES LTD. and must not be used for manufacturing purposes, copied nor communicated in any way to third parties without written
permission from VAN GUARD ACCESSORIES LTD.
IN8298_A (CN:NR)
