Van Guard Vgur-282 Utli Rack+ Roof Rack Instruction Manual

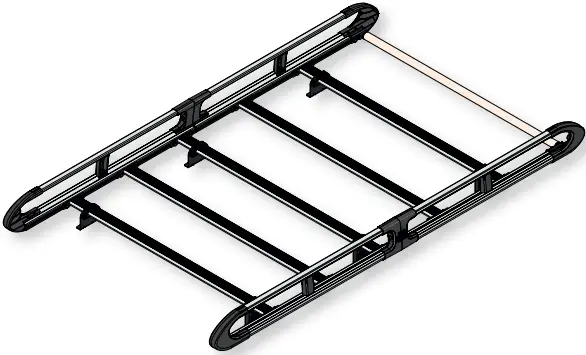

Product InformationThe IN8361 ULTI Rack+ is a product manufactured by Van Guard Accessories Ltd. It is a roof rack system designed for Citroen Berlingo, Peugeot Partner, and Vauxhall Combo models from 2019 onwards with L1H1 (SWB) Twin Rear Doors. The rack has a maximum weight capacity of 100kg and comes with a set of components required for fitting.

The fitting instruction manual is the property of Van Guard Accessories Ltd. and should not be used for manufacturing purposes, copied or communicated in any way to third parties without written permission from Van Guard Accessories Ltd.

Product Usage Instructions

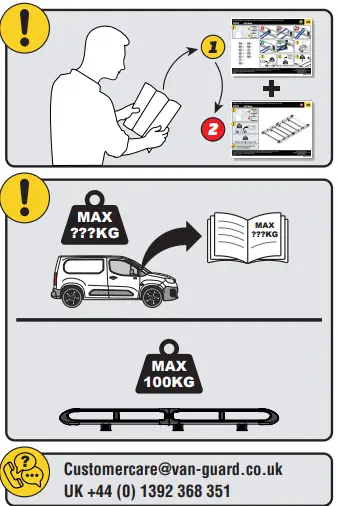

1. Read the instructions carefully before proceeding with the fitting.
2. Ensure that you have the correct model before proceeding with the fitting.
3. Check that all the components required for fitting are present and correct before proceeding.
4. Use the tools mentioned in the instruction manual for fitting. Tighten all the crossbars to the recommended torque of 20Nm.

Note: The instruction manual provides detailed information on the components supplied, their quantity, and the torque required for tightening them. Please refer to the manual for further details on fitting the rack correctly.

If you have any further queries or require assistance, please contact Van Guard Accessories Ltd through [email protected] or call UK +44 (0) 1392 368 351.

Fitting Instructions – Read instructions carefully before fitting and follow them for correct use

THIS INSTRUCTION COVERS THE FOLLOWING MODELS – CHECK YOU ARE FITTING THE CORRECT MODEL BEFORE PROCEEDING

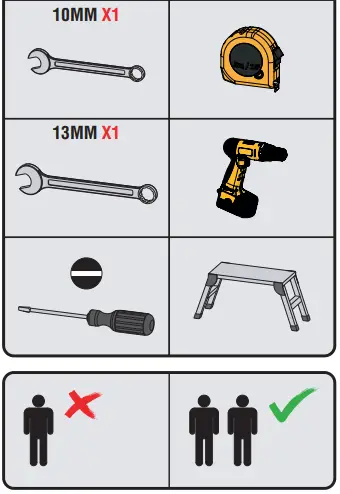

TOOLS REQUIRED

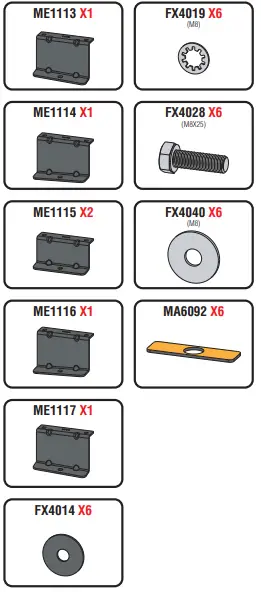

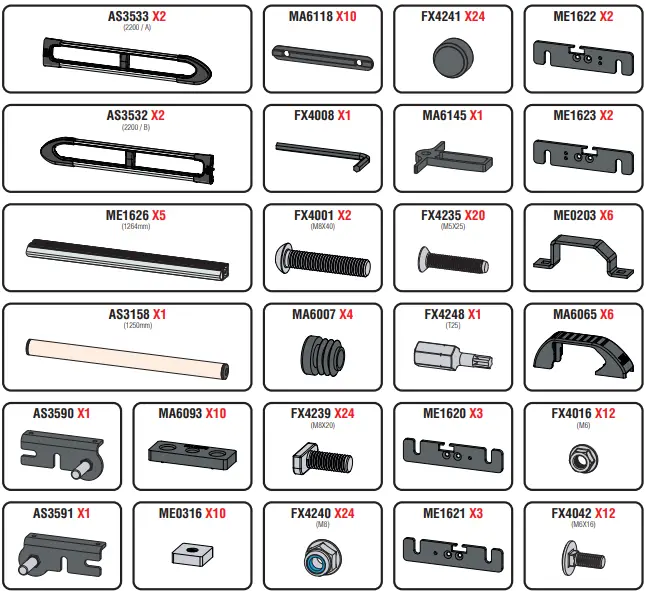

SUPPLIED COMPONENTS

CHECK ALL PARTS ARE PRESENT AND CORRECT BEFORE PROCEEDING

SUPPLIED COMPONENTS – CHECK ALL PARTS ARE PRESENT AND CORRECT BEFORE PROCEEDING

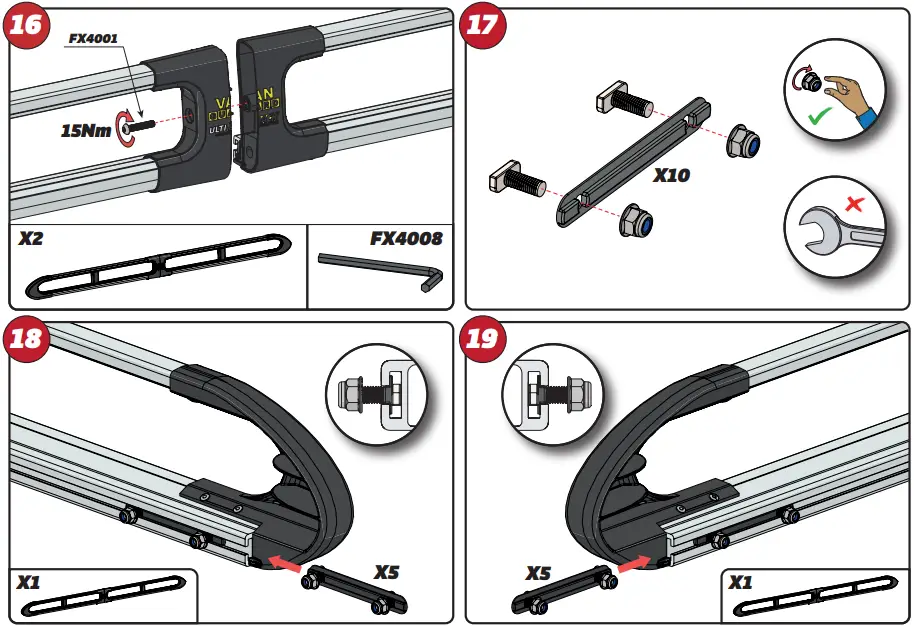

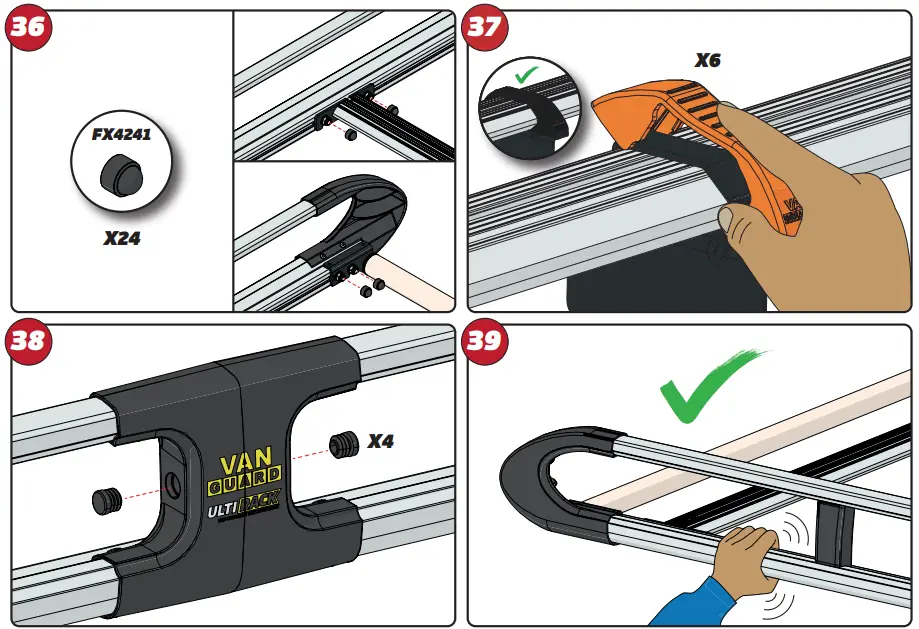

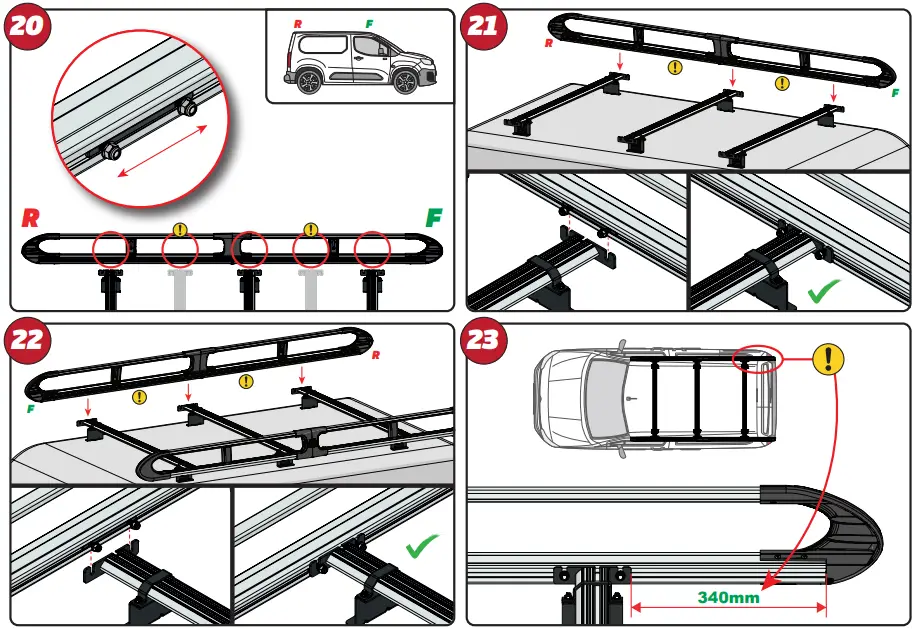

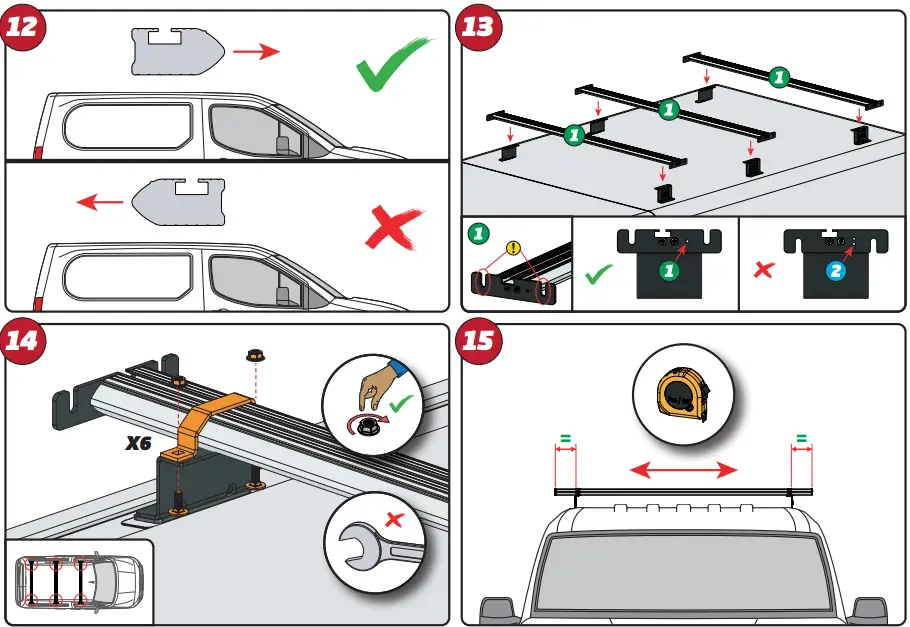

INSTALLATION

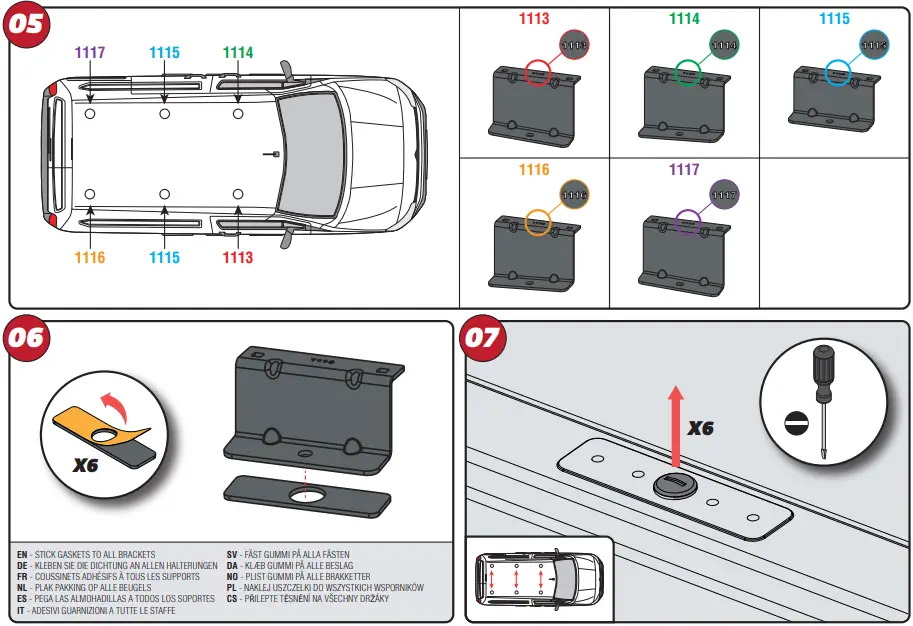

STICK GASKETS TO ALL BRACKETS

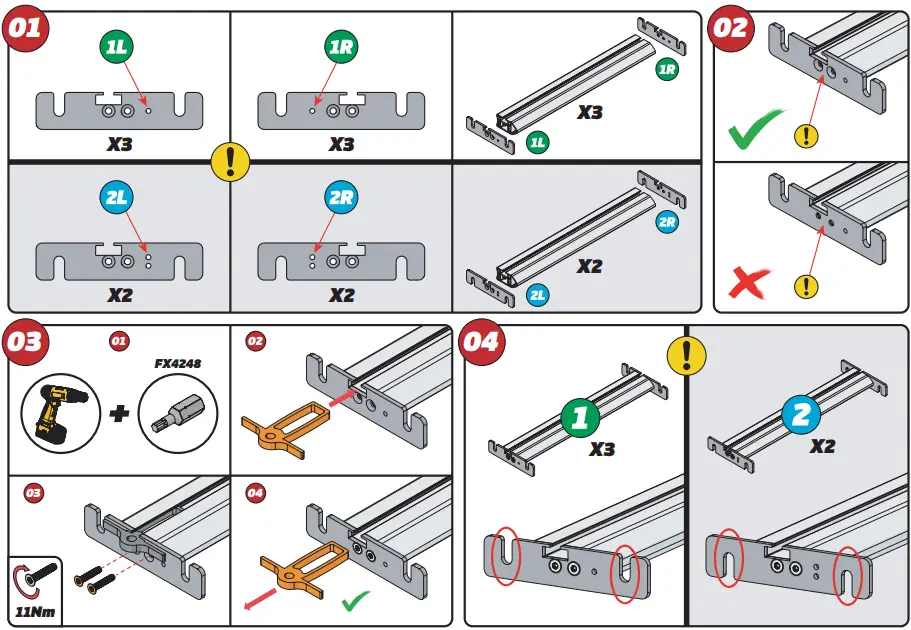

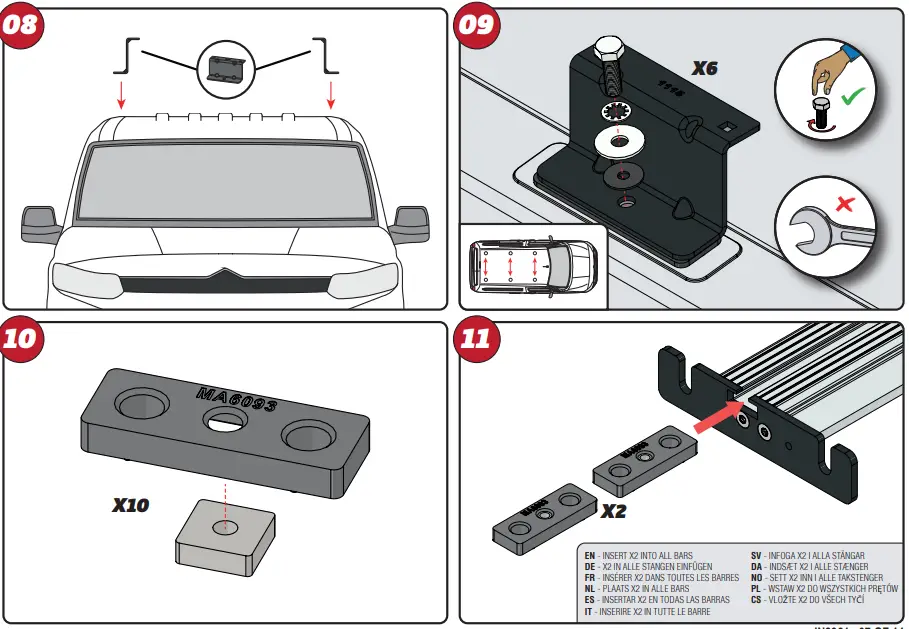

INSERT X2 INTO ALL BARS

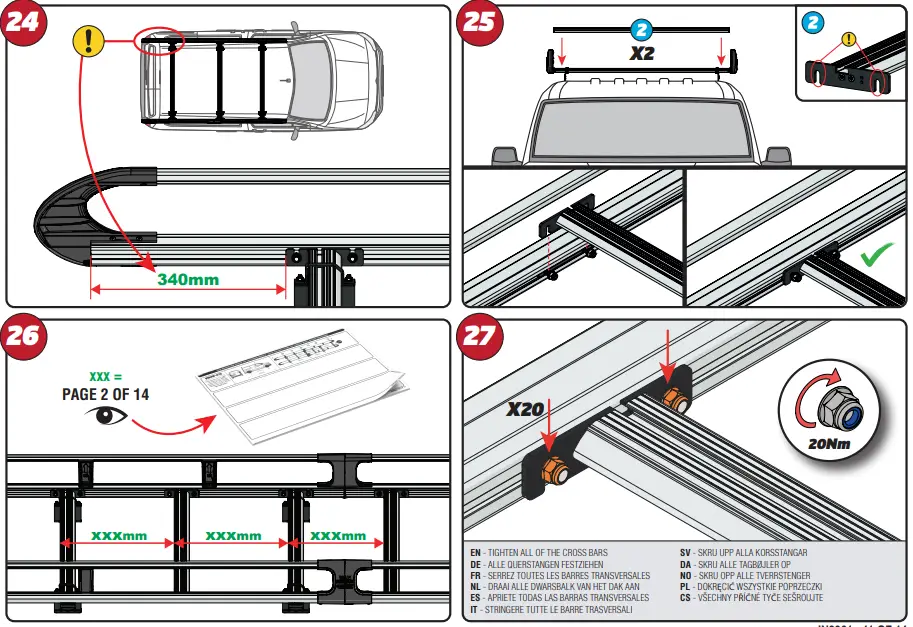

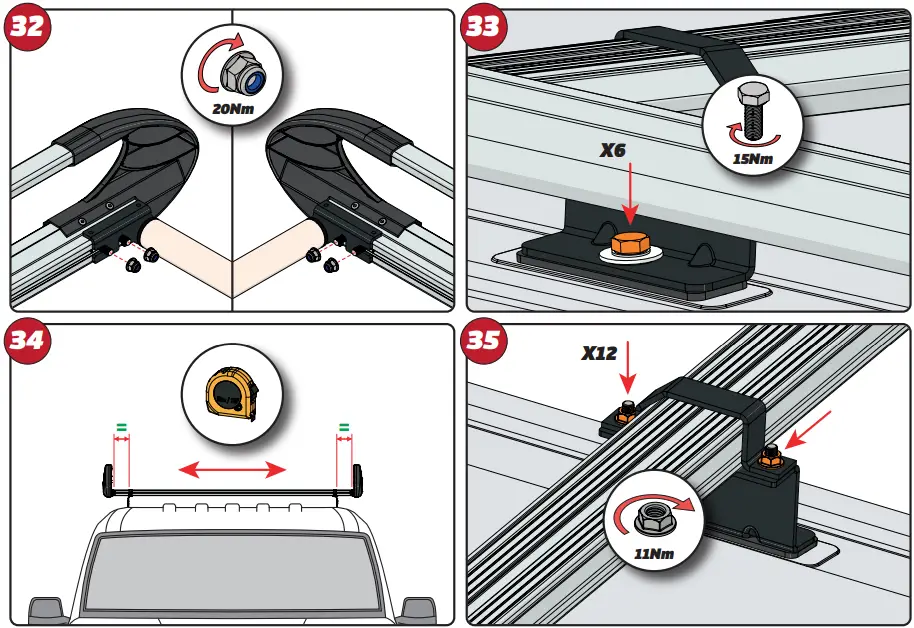

TIGHTEN ALL OF THE CROSS BARS

[email protected] UK +44 (0) 1392 368 351

This FITTING INSTRUCTION is the property of VAN GUARD ACCESSORIES LTD. and must not be used for manufacturing purposes, copied nor communicated in any way to third parties without written
permission from VAN GUARD ACCESSORIES LTD.
IN8361_A (CN:NR)
