Uline Double Sided Grid Bike Pack User Guide

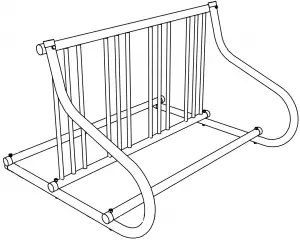

ULINE Double Sided Grid Bike Pack

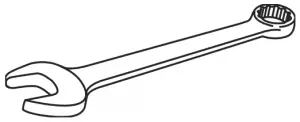

TOOL NEEDED

PARTS

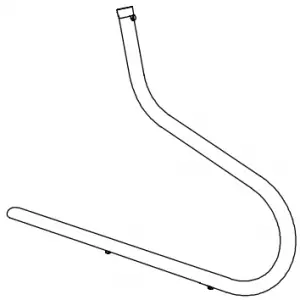

Leg x 2	Grid Section x 1	Grid Section x 1
	Bolt x 8	Locknut x 8

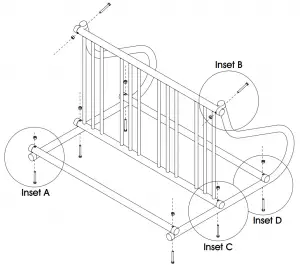

ASSEMBLY

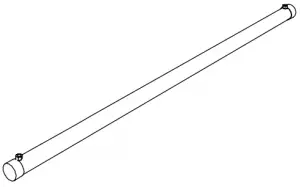

1. Insert bolt upward through last hole in leg and pole. Fasten loosely with locknut. Repeat by attaching other leg to pole. (See Inset A)
2. Insert bolt through hole at the top of the leg and end of grid. (See Inset B)
   NOTE: Grid can only be positioned one way for mounting. The holes on top are drilled diagonally through the tube at a slight downward angle.
3. Fasten loosely with locknut. Repeat by attaching other leg to grid.
4. Align bottom holes of grid with middle hole of legs. Insert bolt upward and fasten loosely with locknut. Repeat by attaching other leg to grid. (See Inset C)
5. Insert bolt upward through remaining hole in leg and other pole. Fasten loosely with locknut. Repeat by attaching other leg to pole. (See Inset D)
6. Complete assembly by tightening all bolts.

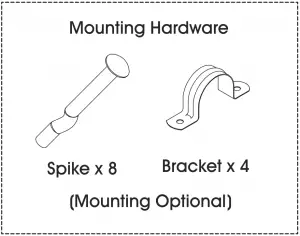

MOUNTING (OPTIONAL)

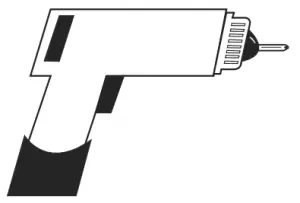

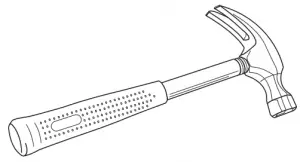

TOOLS NEEDED

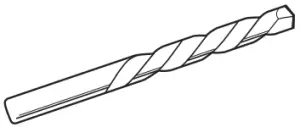

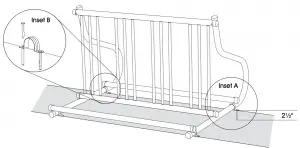

1. Drill a 1/4″ diameter hole into the concrete, block or stone to a depth of 2½”. (See Inset A)
2. Blow out the dust in the hole.
3. Place bracket over tubing.
4. Drive the spike flush to clamp into drilled hole. (See Inset B)
5. Repeat on remaining spikes.
