Uline Single Sided Floor Rack User Guide

ULINE Single Sided Floor Rack

PARTS LIST

• Side Support Panel x 2
• Louvered Panel x 1
• Bolt x 12
• Nut x 8

ASSEMBLY INSTRUCTIONS

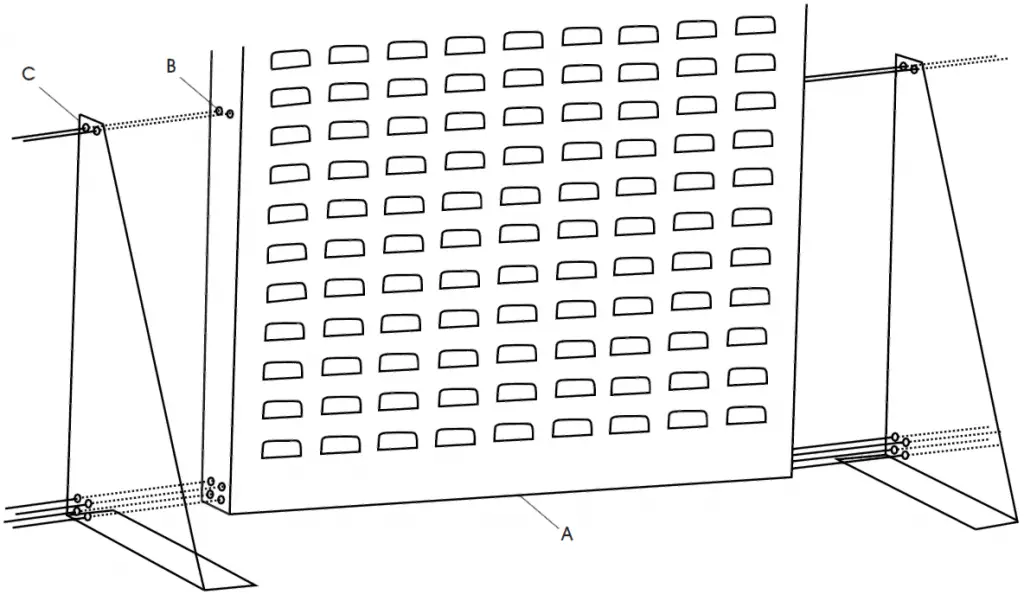

1. Take louvered panel (A) and line up holes (B) (stamped into the left and right side of the panel) to matching holes (C) stamped into each side support panel.
2. Attach louvered panel to side support panels using twelve bolts and eight nuts included with the unit.(Top two bolts on each end of the panel screw in without nuts.)
