H-1978, H-8532 H-8577

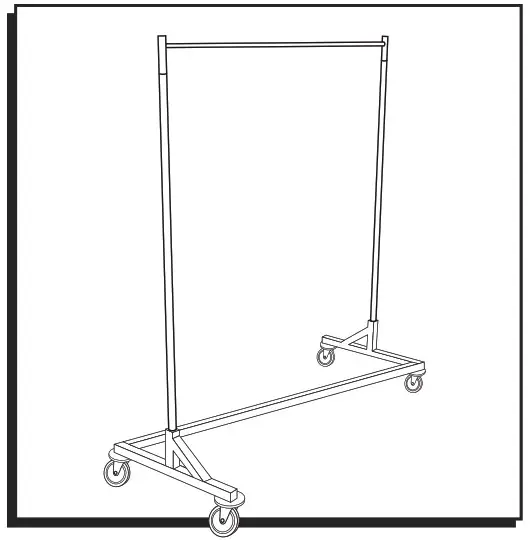

Z-RACK
1-800-295-5510
uline.com

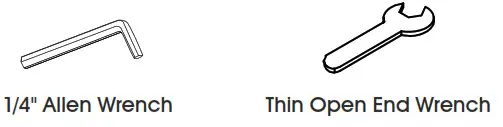

TOOLS INCLUDED

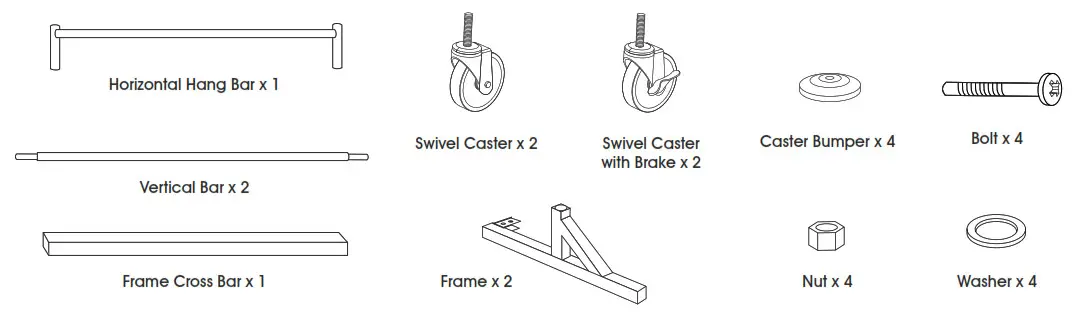

PARTS
ASSEMBLY

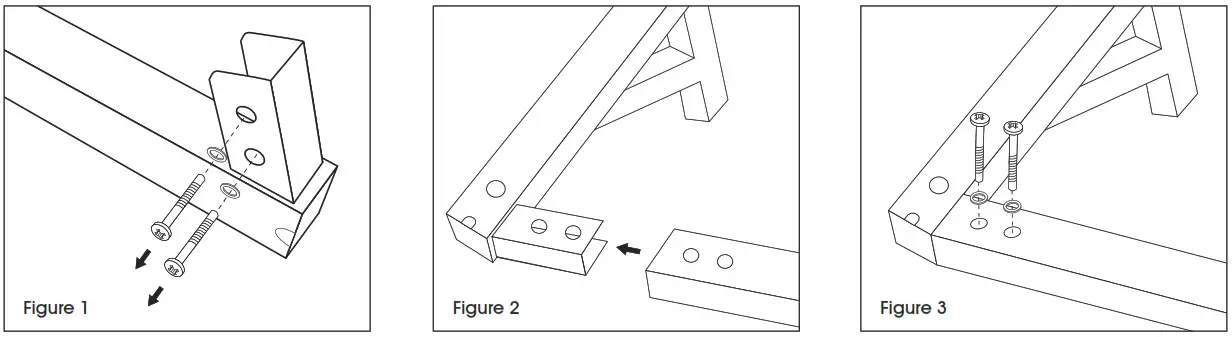

- Remove the included washers and bolts from the frames, using the included 1/4″ Allen wrench. (See Figure 1)
- Slide the frame and the frame crossbar together, aligning the bolt holes. (See Figure 2)
- Insert bolts into aligned bolt holes, placing the washers between the frame and bolt. Tighten using included 1/4″ Allen wrench. (See Figure 3)
- Place caster bumpers on casters with concave side toward the caster.

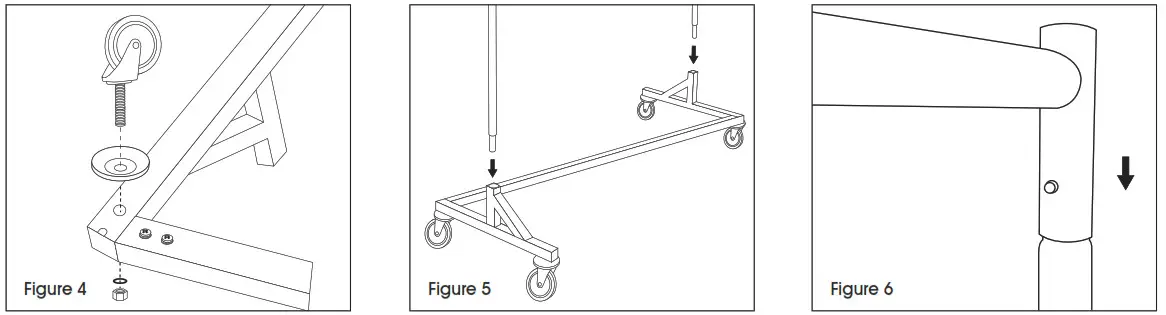

- Align and insert casters with rubber bumpers. Tighten the nut on the opposite side using the included wrench. (See Figure 4)
- Insert the vertical support bars into the frame. (See Figure 5)
- Slide horizontal hang bar on the top of the vertical support bars and lock into place. (See Figure 6)
