ADVANTECH 6W AC-DC Power Supplies User Guide
Introduction

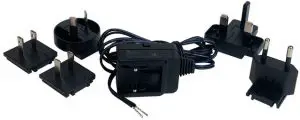

Models BB-SMI6B12V-P230C1 and BB-SMi6B-12-V-ST are 6 Watt, wall plug-in AC-DC power supplies with interchangeable AC blades. These high efficiency power supplies utilize the latest in green power technology. They meet the latest U.S. DoE Level VI efficiency standards in addition to the proposed and more stringent EU CoC Tier 2 requirements.
Designed for global use, these power adapters include input plug options for North America, Europe, United Kingdom, Australia and China.
Features
- DOE Level VI, CoC, ErP Stage 2 Energy Efficiency
- Universal Input Voltage Range – 100 to 240 V AC
- Up to 6 Watts continuous output power
- Single regulated DC output
- Interchangeable, international AC input blades (kit included)
- (North America, Europe, UK, Australia, China)
- Over-voltage, short-circuit protection
- Custom design options available
Ordering Information
| Model No. | Output Voltage (Vdc, typ.) | Output Current (A, max.) | Output Power (W, max.) | Output Plug | Ripple & Noise1 (mVp-p,max.) | Efficiency Level2 |
| BB-SMi6B-12V-P230C1 | 12 | 0.5 | 6 | Barrel Plug | 300 | VI |
| BB-SMi6B-12-V-ST3 | 12 | 0.5 | 6 | Stripped & Tinned Leads | 300 | VI |
- At full load, 100 ~ 240 V AC input, 20 MHz bandwidth oscilloscope, output terminated with 10 μF aluminum electrolytic and 0.1 μF ceramic capacitors.
- CoC Tier 2 compliant.
- Model# BB-SMi6B-12-V-ST is a modified version of Model# BB-SMi612V-P230C1: The DC connector is removed leaving the stripped and tinned ends.

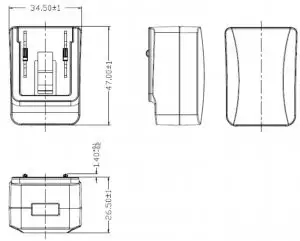

Mechanical Drawing – Power Supply
Mechanical Drawing – DC Power Cord
| Cable | Plug | Cord Length | Color |
| UL2468, 22 AWG | Mono plug, ø2.5 x 11 mm | 1,530 mm ± 50 | Black |

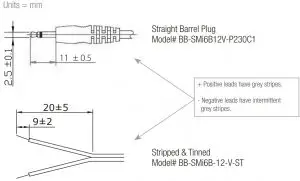

Mechanical Drawings – DC Cord Output Plugs
Mechanical Drawing – AC Input Blades (included)
Specifications
| Parameter | Conditions / Description | Minimum | Typical | Maximum | Units |
Power – Input | |||||
| Voltage | – | 90 | – | 264 | Vac |
| Frequency | – | 47 | – | 63 | Hz |
| Current | – | – | – | 0.2 | A |
| Leakage Current | At nominal AC input and frequency | – | – | 0.25 | mA |
| No-load Power Consumption | At 115 / 230 Vac, 60/50 Hz | – | – | 0.075 | W |
Power – Output | |||||
| Line Regulation | – | – | ± 5 | – | % |
| Load Regulation | – | – | ± 5 | – | % |
| Start-up Time | 115 Vac input | – | – | 3 | s |
| Rise Time | 90~264 Vac input | – | – | 100 | ms |
| Hold-up Time | Nominal input | 5 | – | – | ms |
Safety | |||||
| Isolation Voltage | Input to output at 10 mA for 1 minute | – | 3,000 4,242 | – | Vac Vdc |
Protections | |||||
| Over-Voltage Protection | Output shut down, auto recovery | – | – | 1.0 | A |
| Short Circuit Protection | Output shut down, auto recovery | – | – | – | – |
| MTBF | Telecordia SR-332, Issue 2 at 115/230 Vac, full load, 0~40 °C | 50,000 | – | – | hours |
Environmental | |||||
| Operating Temperature | – | 0 | – | 40 | °C |
| Storage Temperature | – | -20 | – | 60 | °C |
| Operating Humidity | Non-condensing | 20 | – | 85 | % |
| Storage Humidity | Non-condensing | 5 | – | 95 | % |
Mechanical | |||||
| Dimensions | 47.0L x 34.5W x 26.5H (tolerance: ±1%) | – | – | – | mm |
| Inlet Plug | Interchangeable blades (North America, Europe, United Kingdom, Australia, China) | – | – | – | – |
| Weight | Power supply, without blades | – | 54 (± 15%) | – | gm |
| Color | Black | – | – | – | – |
Regulatory – Approvals / Standards / Directives | |||||
| Safety Approvals | UL/cULus, RCM, GS, PSE, CCC, UKCA | – | – | – | – |
| EMI/EMC | FCC Part 15 Class B, CE | – | – | – | – |
| Environmental | RoHS 2011/65/EU amended by 2015/863/EU, WEEE | – | – | – | – |
