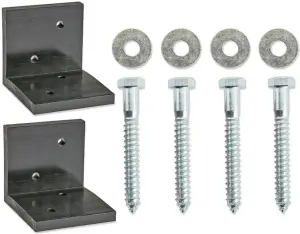

Uline H-2565 Table And Bench Mounting Hardware Installation Guide

ULINE H-2565 Table And Bench Mounting Hardware Installation Guide

Tools Needed

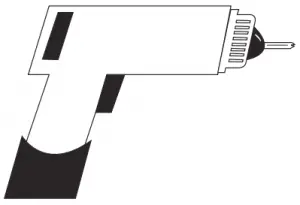

1. Electric Drill

2. 3/8″ Socket Bit


Materials

1. 3/8 x 4″ concrete anchor (4)

2. 3/8″ standard drill bit (1)

3. 5/16″ Concrete drill bit (1)


Bolt Kit Assembly

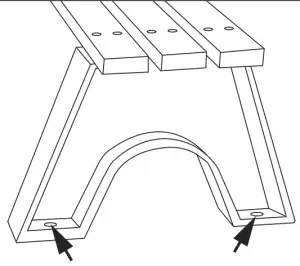

1. After assembling and positioning your table or bench, drill a hole using the standard drill bit through the base of the table or bench in four places (two holes on one base and two on the other). (See Figure 1)
2. Having drilled all the way through the base, you should have a dimple mark on the concrete under the table or bench hole. Using the concrete drill bit, drill four holes in the concrete about 4 inches deep or the length of the drill bit.
3. Place the table or bench over the holes and line it up with the holes in the base. Then, drill in the concrete anchors.
