Uline H-5523 Medium Table Installation Guide

H-5523
MEDIUM TABLE

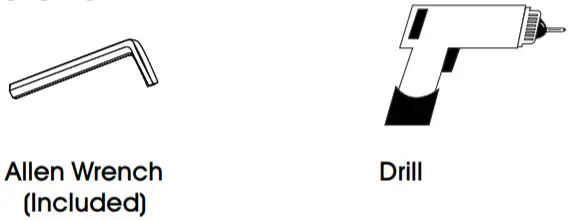

TOOLS NEEDED

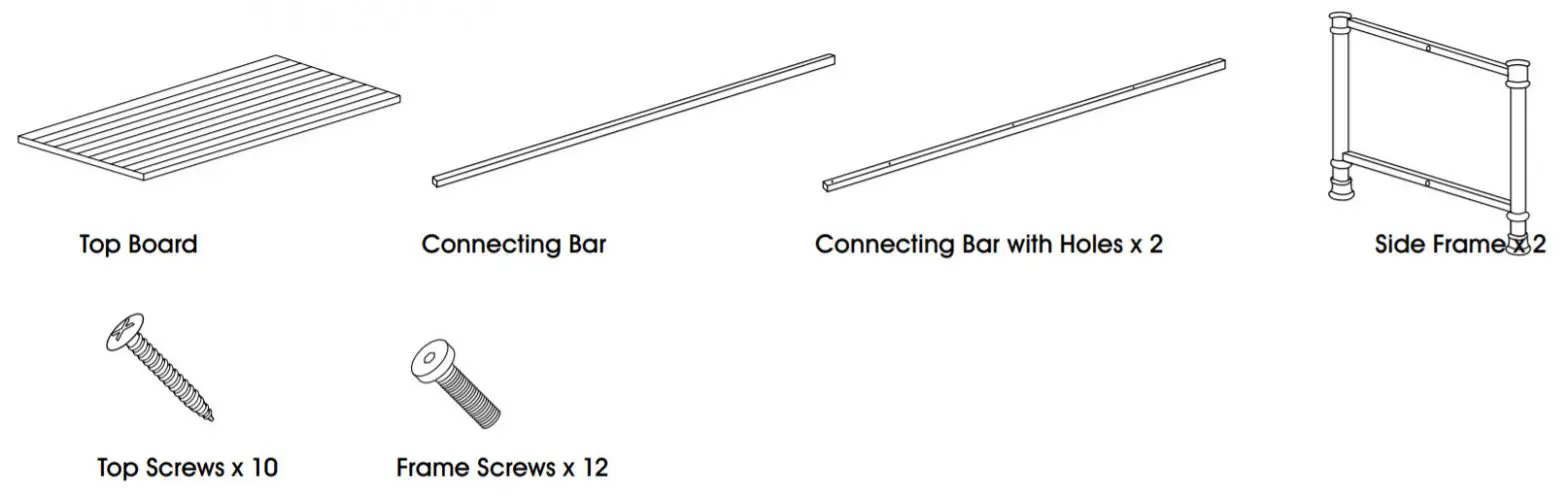

PARTS LIST

ASSEMBLY

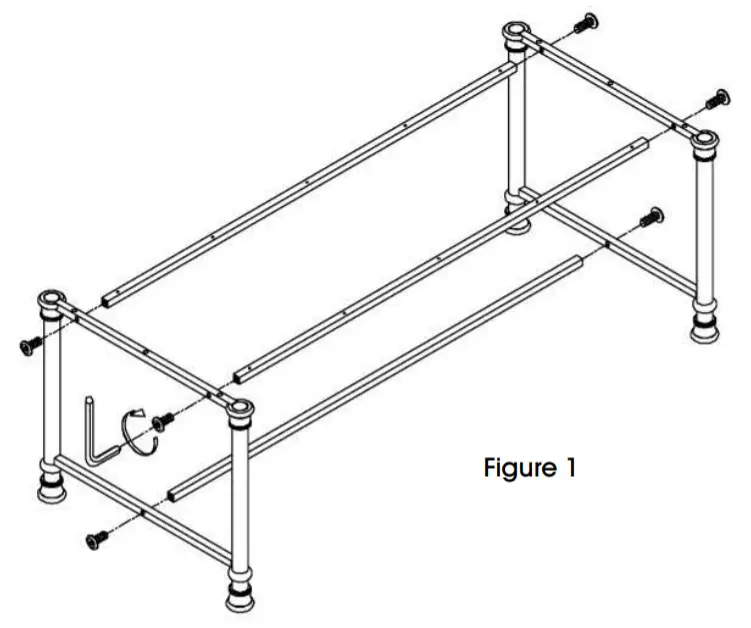

1. Attach side frames to connecting bars using two frame screws per bar and the enclosed Allen wrench. (See Figure 1)
   NOTE: Be sure two connecting bars with holes are on top of each side frame with holes facing out, in order to secure the top board.

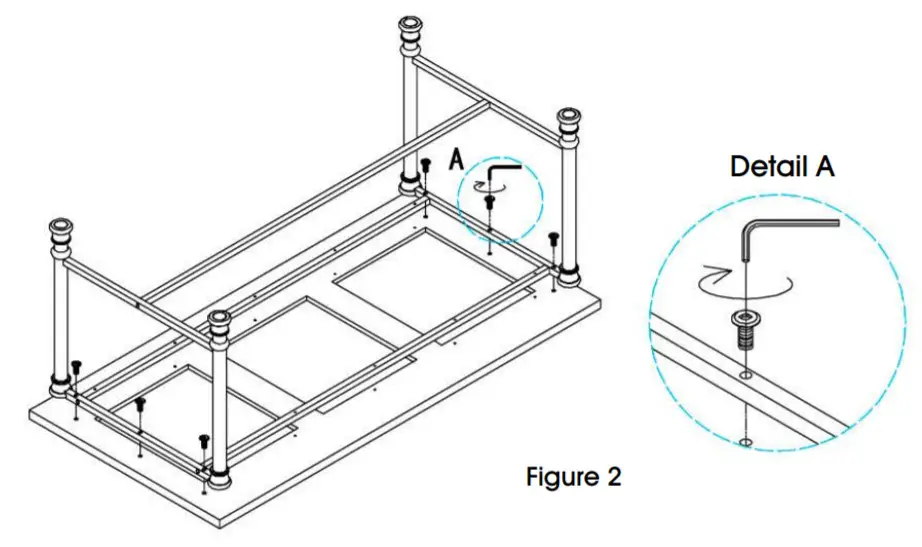

2. Set-top board face down. Align holes inside frames with holes in the bottom of the top board. Attach the side frames to the top board using three frame screws on each end and the enclosed Allen wrench. (See Figure 2)

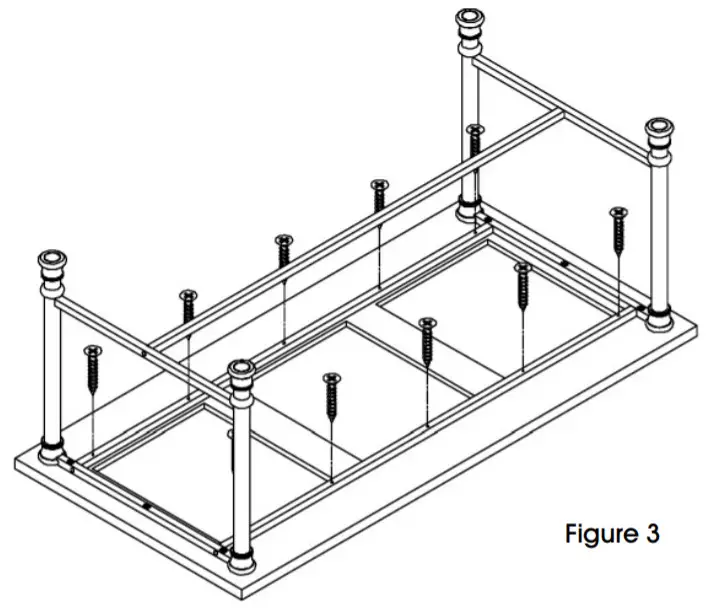

3. Secure the two connecting bars to the top board by drilling five top screws on each side. (See Figure 3)


1-800-295-5510
uline.com
